The Studio Technologies Model 5534 Announcer's Console provides a combination of high-performance analog and digital audio capability with an extensive set of user features and configurable resources. The unit supports the SMPTEr ST 2110 suite of standards to implement audio-over-Ethernet networking connectivity. For enhanced network reliability, redundant stream performance, following the ST 2022-7 standard, is also supported. The Model 5534 is intended for use in demanding broadcast sports, eSports, live event, entertainment, and streaming broadcast applications. Requiring only minimal connections for deployment, the Model 5534 can provide one on-air talent with all the resources they need to support a wide range of applications. The compact, rugged enclosure is intended for tabletop use, small enough for use "court-side" or in a crowded booth, yet flexible enough for numerous remote production scenarios.
The Model 5534 integrates directly into ST 2110 environments. With just a PoE Ethernet Gigabit network connection, a microphone, and a pair of headphones, a complete broadcast on-air position can be created. With the addition of a second Ethernet connection, enhanced ST 2110 performance can be achieve using the ST 2022-7 Redundant Streams standard. An independent Gigabit network interface provides access to the Model 5534's management webpages. This allows full separation of audio transport and management functions.
Eight ST 2110 receiver (input) channels and an integrated sidetone function allow users to easily create their desired headphone audio mix. They'll enjoy clear and "click-free" monaural or stereo audio that should help their on-air performance. A ninth ST 2110 receiver (input) channel allows an alternate microphone audio source to be supported.
The Model 5534 provides eight ST 2110 sender (output) audio channels. One channel is used for the main output, one serves as a configurable auxiliary output channel, and two provide a digital audio version of the headphone output. The remaining four sender (output) channels allow users to communicate ("talkback") with a variety of support personnel. The range of Model 5534 operating capabilities includes the ability to create talent cue (IFB) channels. This resource was specifically included for REMI/At-Home applications.
The Model 5534 was designed to meet three main goals: support ST 2110 standards, provide great audio quality, and offer simple use and an extensive set of configurable features. The Model 5534 uses the ZMAN module from Merging Technologies to provide its ST 2110 capabilities. By partnering with Merging Technologies, Studio Technologies is able to offer solid ST 2110 performance that's been field-proven over many years.
Setup, Configuration, and Operation

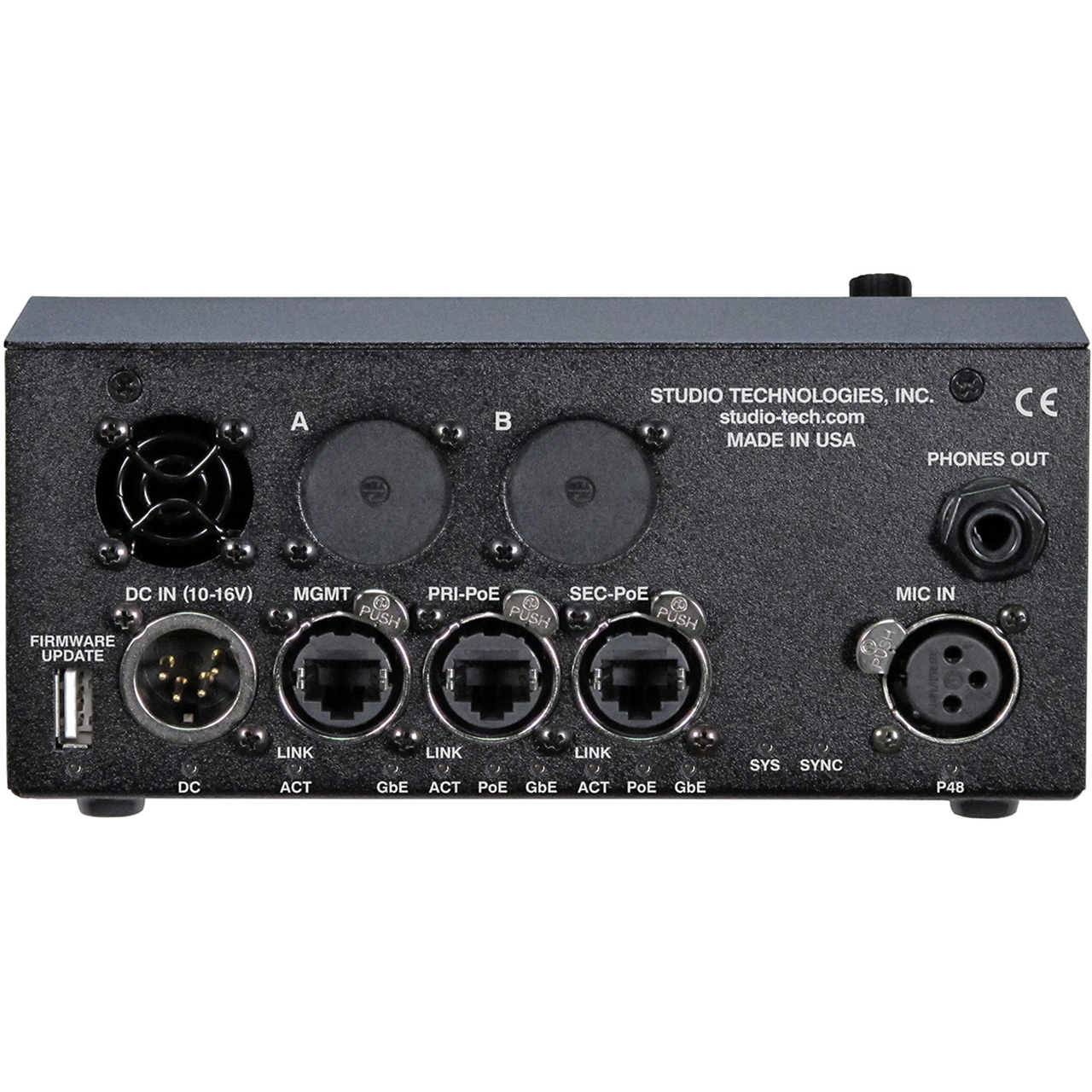

Set up, configuration, and operation of the Model 5534 is simple. The unit includes three Neutrik etherCON RJ45 connectors which allow interfacing with single or redundant ST 2110 Ethernet networks along with a separate management network. Both the primary and secondary ST 2110 network connections can provide power to the unit using the PoE (Power-over-Ethernet) standard. A separate Ethernet interface allows an independent management network to be connected. All Ethernet interfaces support GigE for fast data transport and excellent network compatibility.
