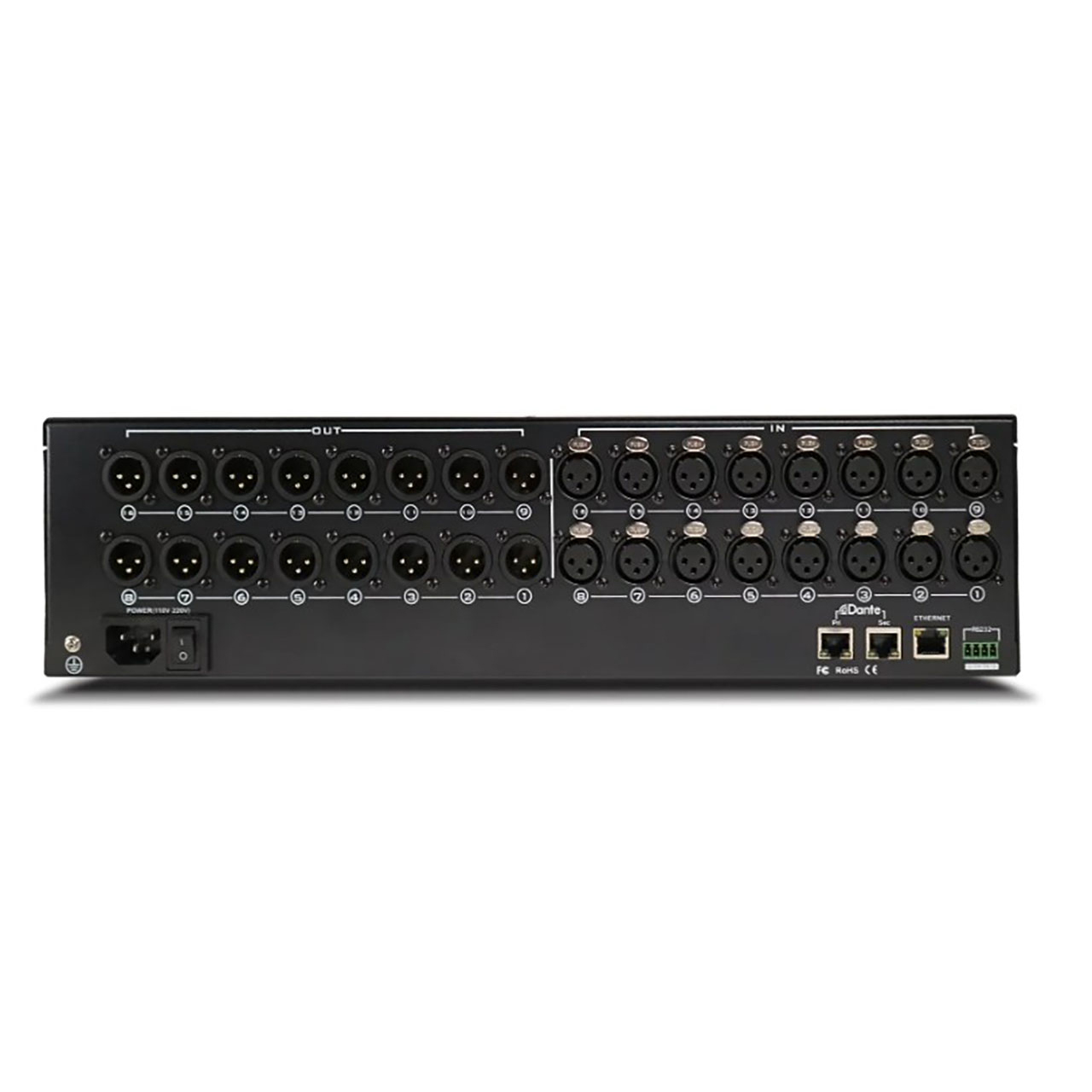

S-Track Luna 16 3RU Rackmount 16x16 XLR Dante Mic-Line Interface for Professional Audio Systems

LUNA 16 - Overview

High-Density Rackmount Dante I/O for Professional Audio Systems

• Features:

  • 16x XLR mic/line inputs
  • 16x XLR line outputs
  • 3RU rackmount chassis
  • Phantom power and preamp gain per input
  • Dante Primary + Secondary RJ45
  • Dedicated out-of-band control RJ45

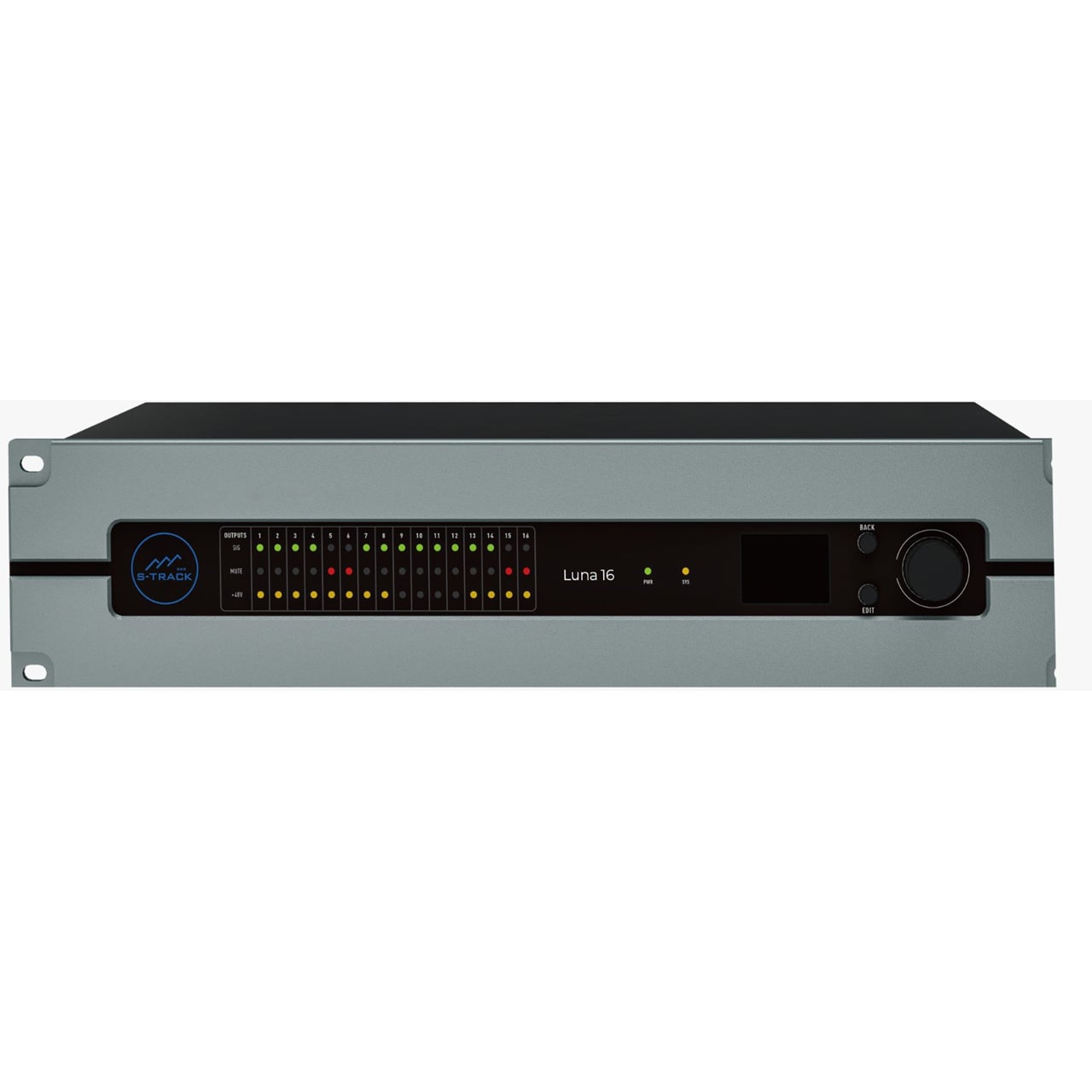

  • Front-panel screen, knob, and buttons
  • Web GUI with faders and channel meters


• Specifications:

  • Input Interfaces: 16x Analog + 16x Dante
  • Output Interfaces: 16x Analog + 16x Dante
  • Input Gain: 0dB - 51dB, 3dB per level
  • Control Interfaces:
  • 6.93
  • - 1x RJ45 Interface
    - 1x RS232 Interface
  • Phantom Power: DC 48V
  • Sampling Rate: 48kHz
  • Bit Depth: 24-bit
  • Input Impedance Balanced: 20K ohms
  • Output Impedance Balanced: 100K ohms
  • Common Mode Rejection Ratio: >60dB @ 50Hz
  • Input Dynamic Range: 100dB
  • Frequency Response: 20Hz - 20KHz, +/- 0.2dB
  • Noise Floor: -90dBu
  • Signal to Noise Ratio: 108dB
  • THD+N: Less or equal to 0.005% @ 1kHz, +4dBu
  • Channel I solation: >100dB @ 1kHz
  • Maximum Output Level: 20dBu
  • Maximum Input Level: 20dBu
  • Digital/Analog: Dynamic Range 118dB
  • Analog/Digital: Dynamic Range 118dB
  • Operating Voltage: AC 100V-240V, 50Hz/60Hz
  • Maximum Power: 26W
  • Chassis: 2.5U
  • Product Dimensions: 19.1" x 6.93" x 4.33" (485.14mm x 176mm x 110mm)
  • Product Weight: 8.8lbs (4kg)


• Item Includes:

  • 1x 16x16 XLR Dante Mic-Line Interface Rackmount


• Warranty:

  • 2-Year Limited Warranty
