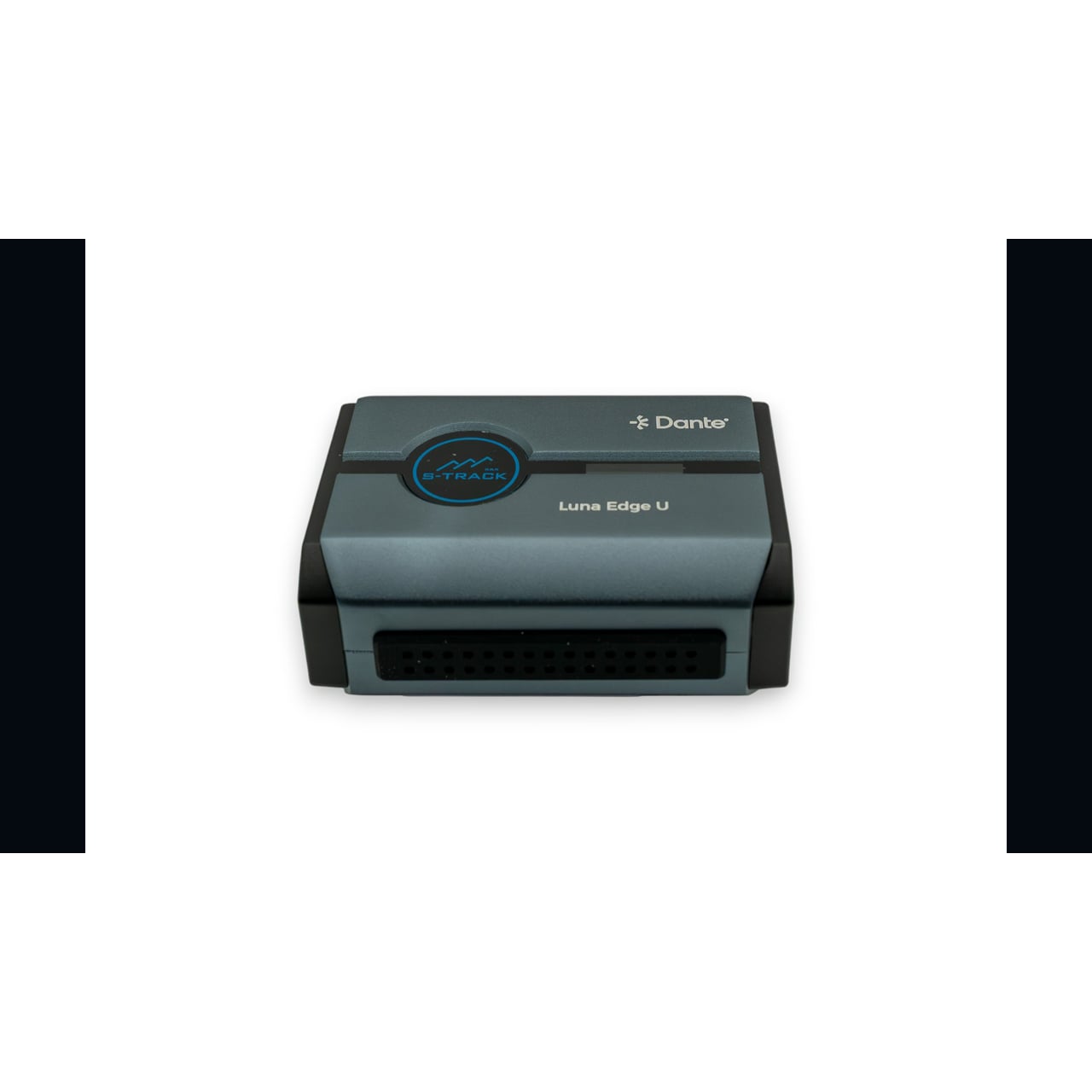

S-Track Luna Edge U USB-to-Dante Interface with 2 Channels In / 2 Channels Out and USB-A / USB-C Connectivity

LUNA EDGE U - Overview

Connect Computer Audio to Dante Without the Complexity

• Features:

  • 2x In/2x Out via USB
  • USB-A and USB-C Connectivity
  • PoE + Dante over RJ45
  • 24-bit audio
  • Native 48 kHz; supports 44.1 and 96kHz
  • Top LED IP address display
  • Compact throw-down form factor
  • Dante Controller configuration
  • Feeds amplifiers, powered speakers, monitors, and recorders


• Specifications:

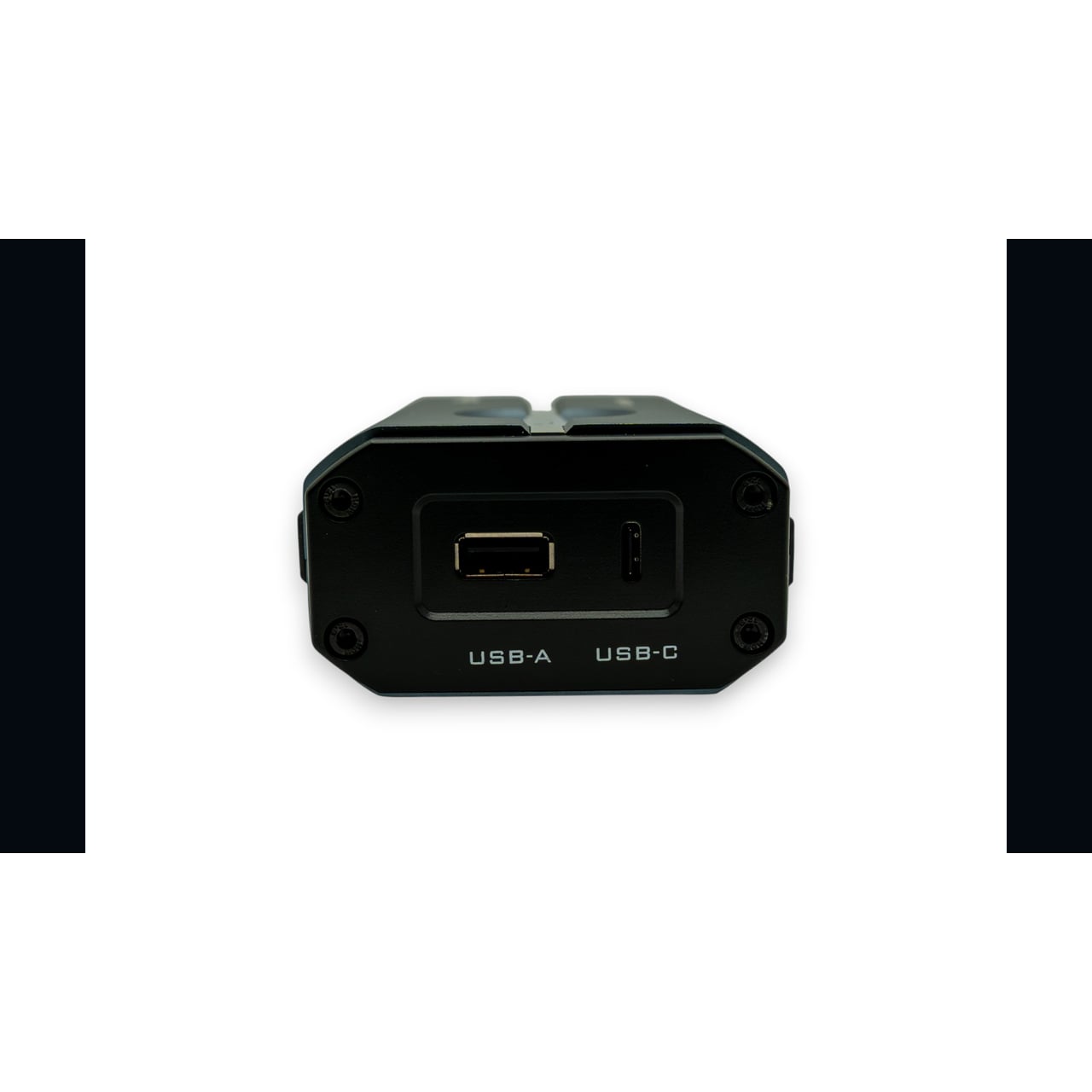

  • Input Interface: 1x USB-A and 1x USB-C

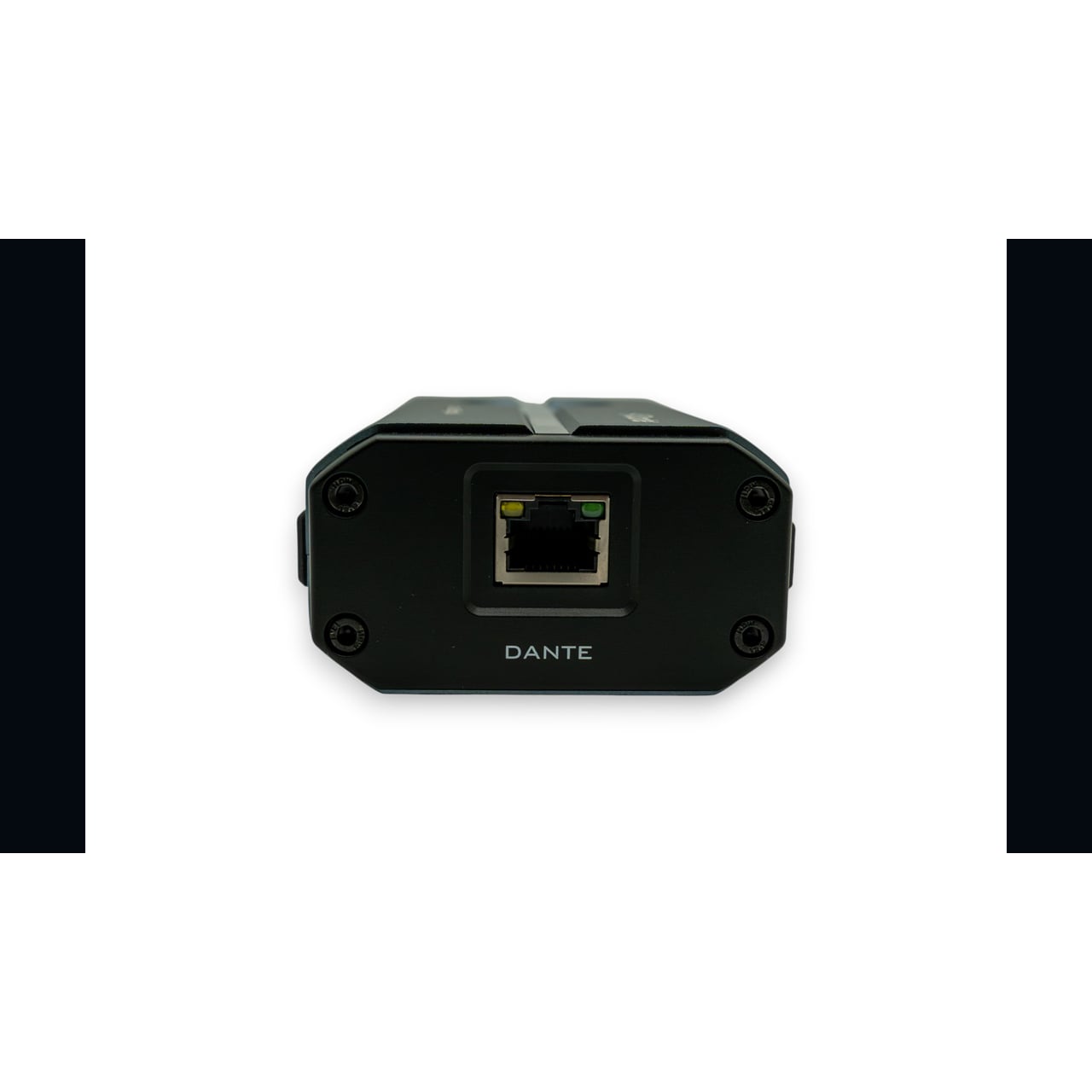

  • Output Interface: 1x RJ45, transmitting 2 channels of Dante Network Audio
  • Power Consumption: <1W
  • Maximum Signal Level (Balanced): 18dBu
  • Frequency Response: 20Hz-20kHz, +/- 0.5 dB
  • Impedance: 110ohms (Balanced)
  • Dynamic Range: >100dB
  • Signal to Noise Ratio: >100dB
  • THD+N: < 0.003% @ 4dBu, 1kHz
  • Power Supply: 802.3af, 802.3at Standard POE Switch
  • Sampling Rate: 48kHz
  • Bit Depth: 24-bit
  • Dante Latency: 1, 2 or 5ms (configurable using Dante Controller)
  • Network Transmission: Dante IP/AES67/RTP Audio
  • Noise Floor: -90dBu
  • Product Dimensions: 3.86" x 2.84" x 1.58" (98mm x 72.12mm x 40.12mm)
  • Product Weight: 0.44lbs (0.2kg)


• Item Includes:

  • 1x Luna Edge U USB-to-Dante Interface


• Warranty:

  • 2-Year Limited Warranty
