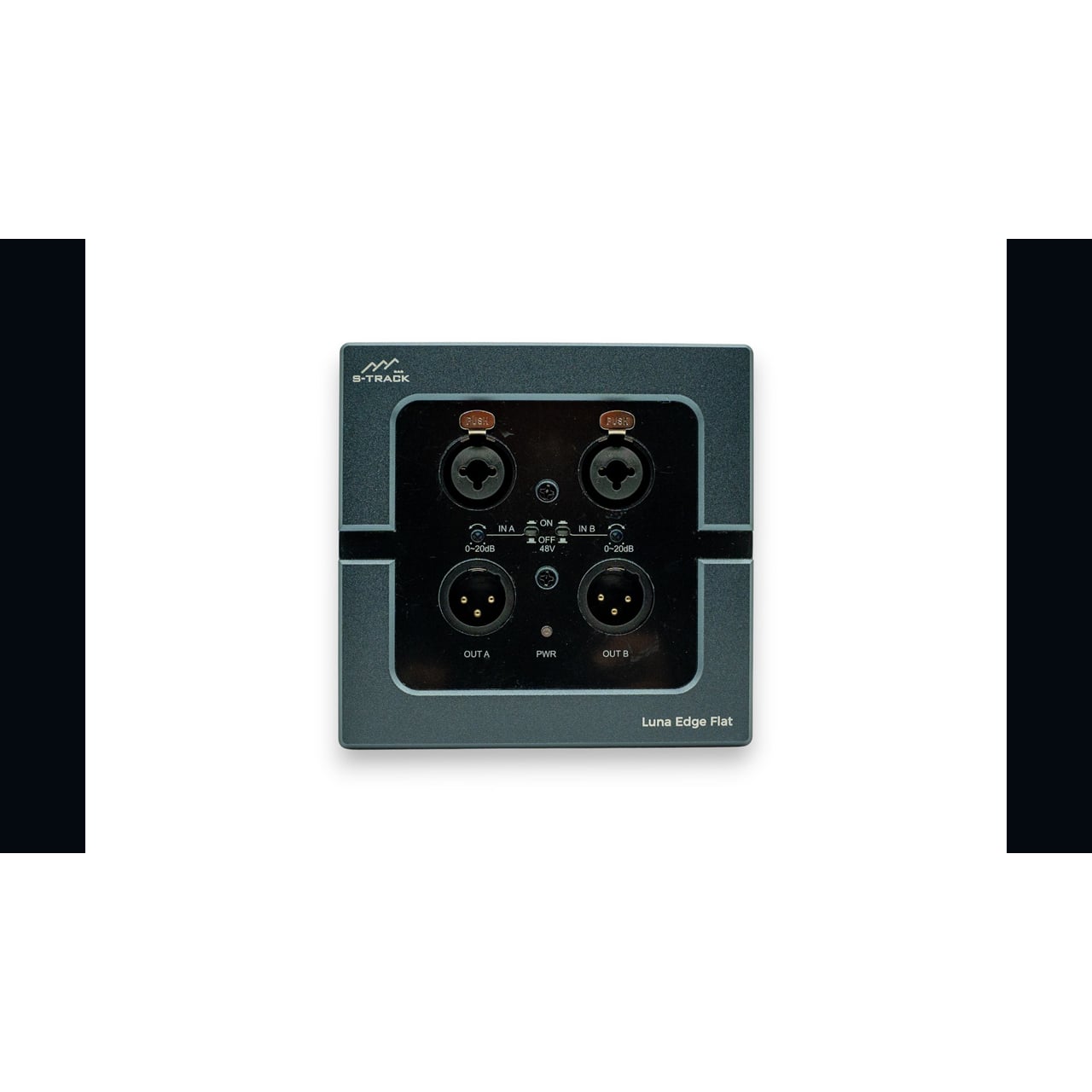

S-Track Luna Edge Flat Flush-Mounted and PoE Powered Dante Interface with 2x XLR / TRS Mic-Line Inputs

LUNA EDGE FLAT - Overview

Flexible Installed Dante I/O for Walls, Tables, Stages, and Desks

• Features:

  • Fits two-gang installation areas
  • 2x XLR/TRS combo mic/line inputs
  • 2x male XLR line outputs
  • 48V phantom power per input
  • Local gain trim
  • PoE + Dante over RJ45
  • Dante Controller configuration
  • Wall, table, stage, lectern, and desk installation


• Specifications:

  • Input Interface:
    - 2x 2-Channel 3-pin XLR female connector
    - 1x RJ45, transmitting 2 channels of Dante Network Audio
  • Output Interface:
    - 1x RJ45, transmitting 2 channels of Dante Network Audio
    - 2x 2-Channel 3-pin XLR male connectors
  • Phantom Power: DC 48V
  • Input Impedance (Balanced): 20kΩ
  • Output Impedance (Balanced): 100Ω
  • Common Mode Rejection: 60dB @ 50Hz
  • Dynamic Range: > 100dB
  • Frequency Response: 30Hz - 20kHz, ± 0.5dB
  • Noise Floor: -90dBu
  • Signal to Noise Ratio: > 100dB
  • THD+N: ≤ 0.005% @ 1kHz, +4dBu
  • Channel Isolation: >100dB @ 1kHz
  • Maximum Output Level: 20dBu
  • Maximum Input Level: 18dBu
  • Sampling Rate: 48kHz
  • Bit Depth: 24-bit
  • Network Transmission: Dante IP/AES67/RTP Audio
  • Dante Latency: 1, 2, or 5ms (Dante Controller Configuration)
  • Power Supply: 802.3af. 802.3at Standard POE Switch
  • Power Consumption: 5W
  • Product Dimensions: 4.7" x 4.6" x 2.3" (120mm x 117mm x 57mm)
  • Product Weight: 1.4lbs (0.63kg)


• Item Includes:

  • 1x Luna Edge Flat Flush-Mounted and PoE Powered Dante Interface


• Warranty:

  • 2-Year Limited Warranty
