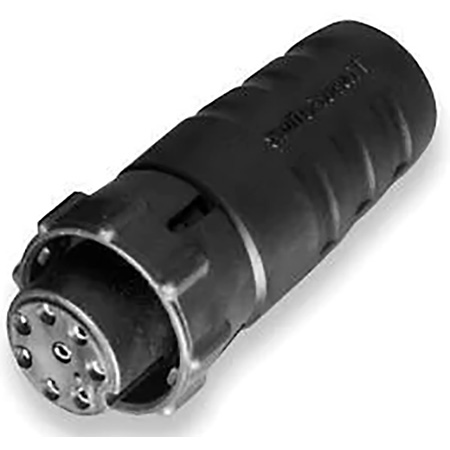

Switchcraft EN3L5FX Standard Circular Connector 5P FEM In-Line Type

502-EN3L5F - Overview

• Features:

  • Sealed to IP68 NEMA 250 (6P)
  • Patented grommet & o-ring free design
  • Available in ribbed or winged coupling ring
  • Cable, panel & cable to cable options
  • Gold plated contacts standard
  • Solder, crimp & PC contact options
  • Straight & right angle PC contact panel connectors


• Specifications:

  • Mechanical
  • Life: Minimum 600 insertion / withdrawal cycles
  • Vibration: Mil-Std 202 Method 201
  • Shock: Mil-Std 202 Method 213B, condition K
  • Hex Nut Torque: All series hex nut to withstand 8-10 in-lb tightening torque.
  • Coupling Locking Style: Bayonet with ribbed coupling nut (winged coupling nut optional)
  • Back Shell Style: Boot

    Electrical & Environmental
  • Voltage Rating: 250 V AC/DC
  • Insulation Resistance: 100 MΩ min
  • Contact Resistance: 20 mΩ max
  • Operating Temperature Rating: -40°C to +65°C (-40°F to +149°F)
  • Moisture Resistance: Mil-Std 202 Method 106F
  • Insulation Resistance: Mil-Std 202 Method 302 condition B
  • Thermal Shock: Mil-Std 202 Method 107G
  • Salt Atmosphere (Corrosion): Mil-Std 202 Method 101D condition B

    Material
  • Panel connector shells & locking disk: Thermoplastic UL94V-0
  • Connector shell interior: Elastomeric, Black UL 94HB
  • Contacts: Copper Alloy, Gold over Nickel Plate
