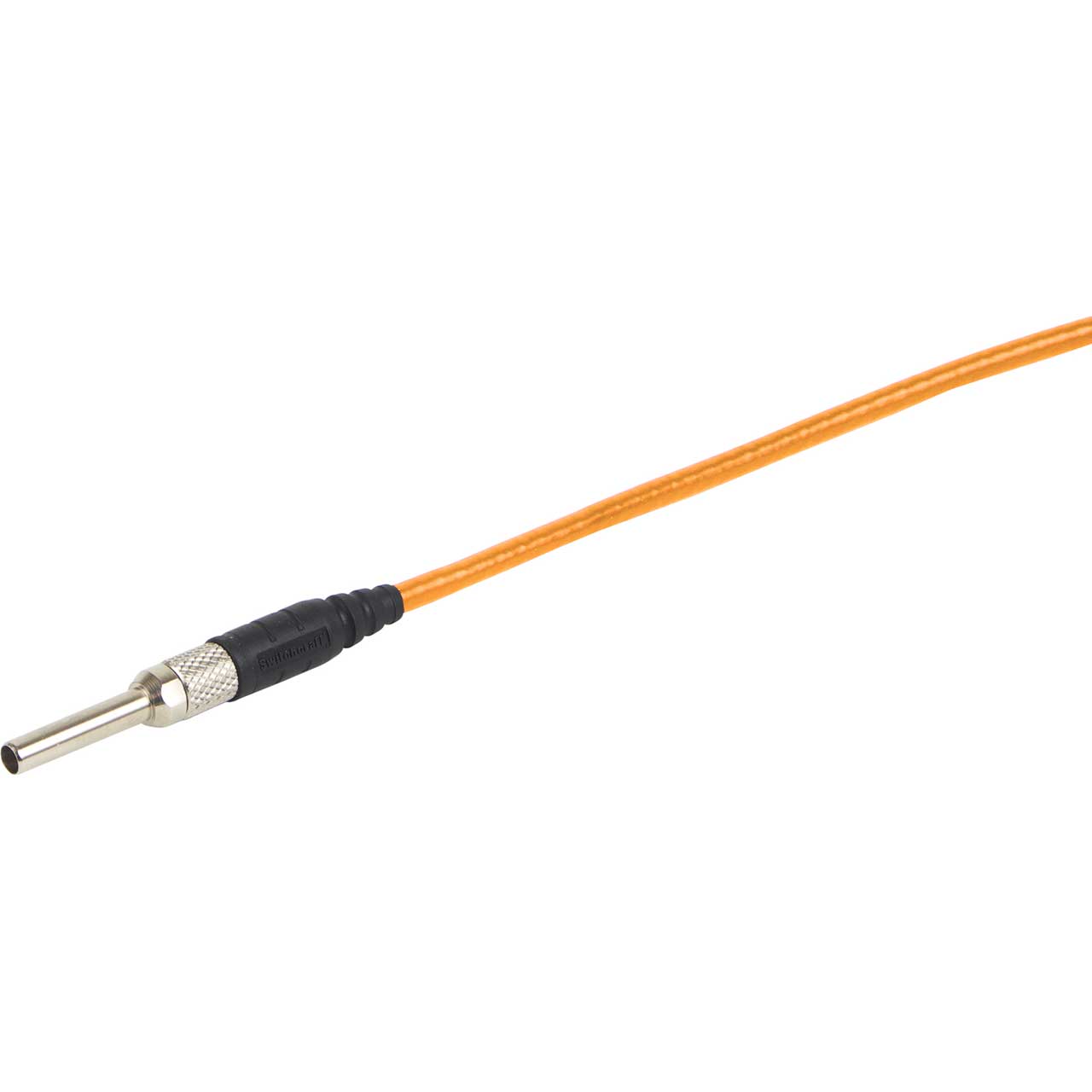

Switchcraft VMMP6O 75 Ohm UHD Micro Video Patchcord for MMVP Patchbays - Orange - 6 Feet

ITEM #: SW-VMMP6O MFG #: VMMP6O

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


    VMMP6O - Overview

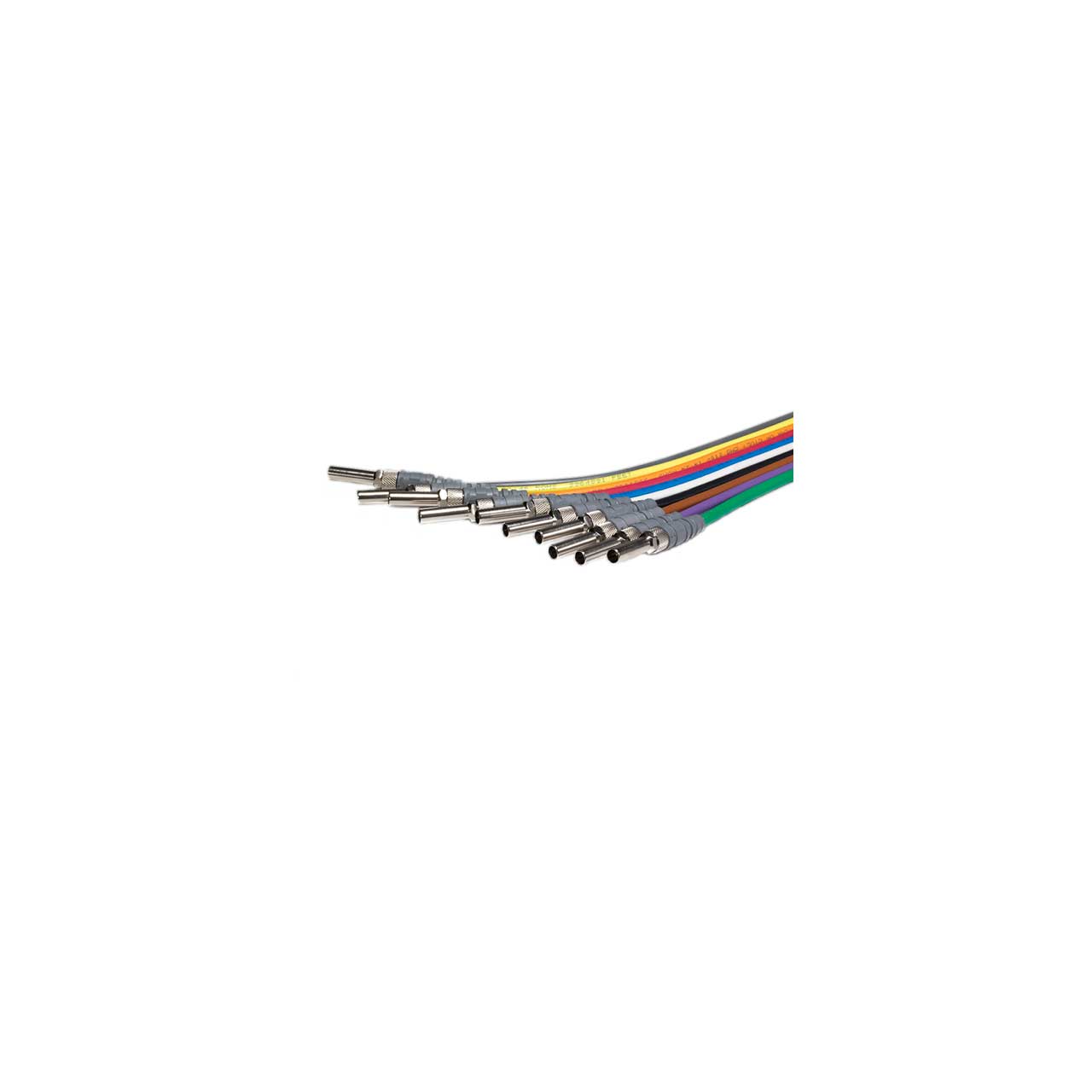

    Switchcraft MMVP Series patchcords are perfect for the most critical HD video and AES/EBU digital audio patching applications. They are available in a wide variety of lengths and colors. Each patchcord is assembled using premium, low loss cabling and a rugged overmolded strain relief for long lasting dependability.

    • Features:

      • Based on proven, reliable technology of MVJ series of HD video jacks
      • Screw in, all-metal jack design
      • Withstands vibration in mobile applications
      • Rated at 3GHz - meets SMPTE 424M specifications for HD patching

    • Specifications:

      • Electrical:
      • Meets SMPTE 2082-1
      • Characteristic Impedance: 75 Ohms
      • Contact Resistance: Less Than 50 MilliOhms
      • Wiring: Center contact to center contact
      • Ground Sleeve to Ground Sleeve
      • Cable: 12g-SDI, 75 Ohms Impedance, 0.23 [5.9] O.D. Belden 4505r Or Equivalent

        Mechanical:
      • Vibration: Per Mil - Std 202, Method 201
      • Life Cycle: 5,000 Min.

        Material:
      • Plug Barrel: Copper Alloy, Nickel Plated.
      • Sleeve: Copper Alloy, Nickel Plated
      • Contact: Copper Alloy, Gold Plated
      • Insulators: Teflon
      • Boot: Thermoplastic Elastomer, Ul94-V0,
      • Gray Color On All Cables.
        Note: This Product Is ROHS Compliant

    • Item Includes:

      • 1x VMMP3O Micro 75 Ohm Video Patchcord - Orange - 6Ft

    • Warranty:

      • Lifetime Limited
