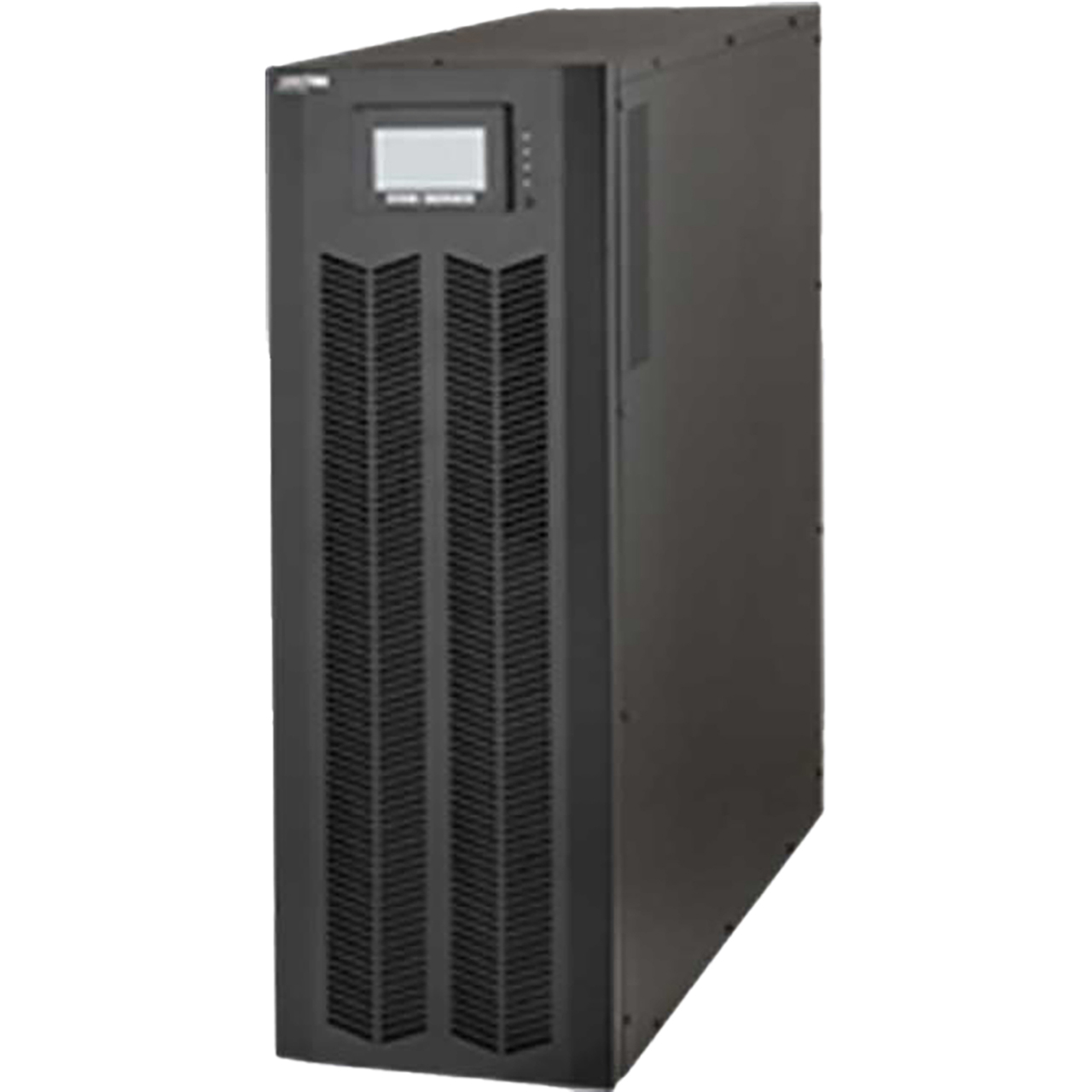

SurgeX UPS-33020-02 3 Phase/20 KVA Large Format UPS - 208/120V 5 Wire - 20000W Hardwired - Advanced IGBT Technology

ITEM #: SX-UPS-33020-02 MFG #: UPS-33020-02

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$34,994.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


UPS-33020-02 - Overview

A powerful combination of superior efficiency and inrush capability

SurgeX UPS-33020-02 three-phase uninterruptible power supply (UPS) products guarantee a reliable and cost-effective power quality solution that delivers an effective combination of superior efficiency and inrush capability to maximize performance.

They provide peak current on demand for today's switch mode power supplies. Its switches are factory set so that the circuit breaker is configured for maximum inrush current capability to withstand up to 300% for 140 msec. The inrush current capability also prevents damage and disruption to the connected equipment.

With one of the smallest footprints in the industry, SurgeX three-phase UPS backup power solutions are the ideal choice for any environment where high performance is needed for critical load applications.

  • Features:

    • The most advanced IGBT technology
    • 300% overload capacity, sustains for 140 msec online
    • 1.0 power factor
    • High efficiency rate, up to 94%
    • ECO mode, 97% efficient
    • Convenient top and side access for serviceability
    • Optional SNMP network card and Modbus

  • Specifications:

    • Load Rating: 67A In
    • Voltage Rating: 3φY, 208/120V (5 Wire)
    • Power Requirement: 1.4kW Max
    • Input/Mains Plug Type: Terminal Strip
    • Input/Mains Cord Length: None
    • Number of Receptacles: 1
    • Receptacle Type: Terminal Strip
    • Over-Current Auto Shutdown: Circuit Breaker
    • Over-Voltage Auto Shutdown: Internal Temp fault shutdown
    • Network Port: REQUIRES SNMP Card
    • Serial Port: RS-232 on Female 9-Pin D-subminiature, USB Type B, RJ45 on optional SNMP card
    • Temperature Sensor Input: None
    • BTU/h Max: 5140
    • Auxiliary Relay Outputs: No
    • Contact Closure Input: EPO
    • Dimensions (WxDxH): 12 x 34 x 40"
    • Weight: 508Lbs
    • Temperature Range: 32° to 104°F
    • Humidity Range: 5 to 95% R.H, non-condensing
    • Agency Listings:
      UL 1778
      CSA-C22.2 Nos. 107.3-14

  • Warranty:

    • UPS Three Phase - Limited Two (2) Year Product Warranty - Limited Two (2) Year Battery Warranty - See attached info for further details.
