SurgeX UPS-33040-12 3 Phase/40 kVA Large Format UPS - 208V/120V 5 Wire - 30000W Hardwired - Advanced IGBT Technology

ITEM #: SX-UPS-33040-12 MFG #: UPS-33040-12

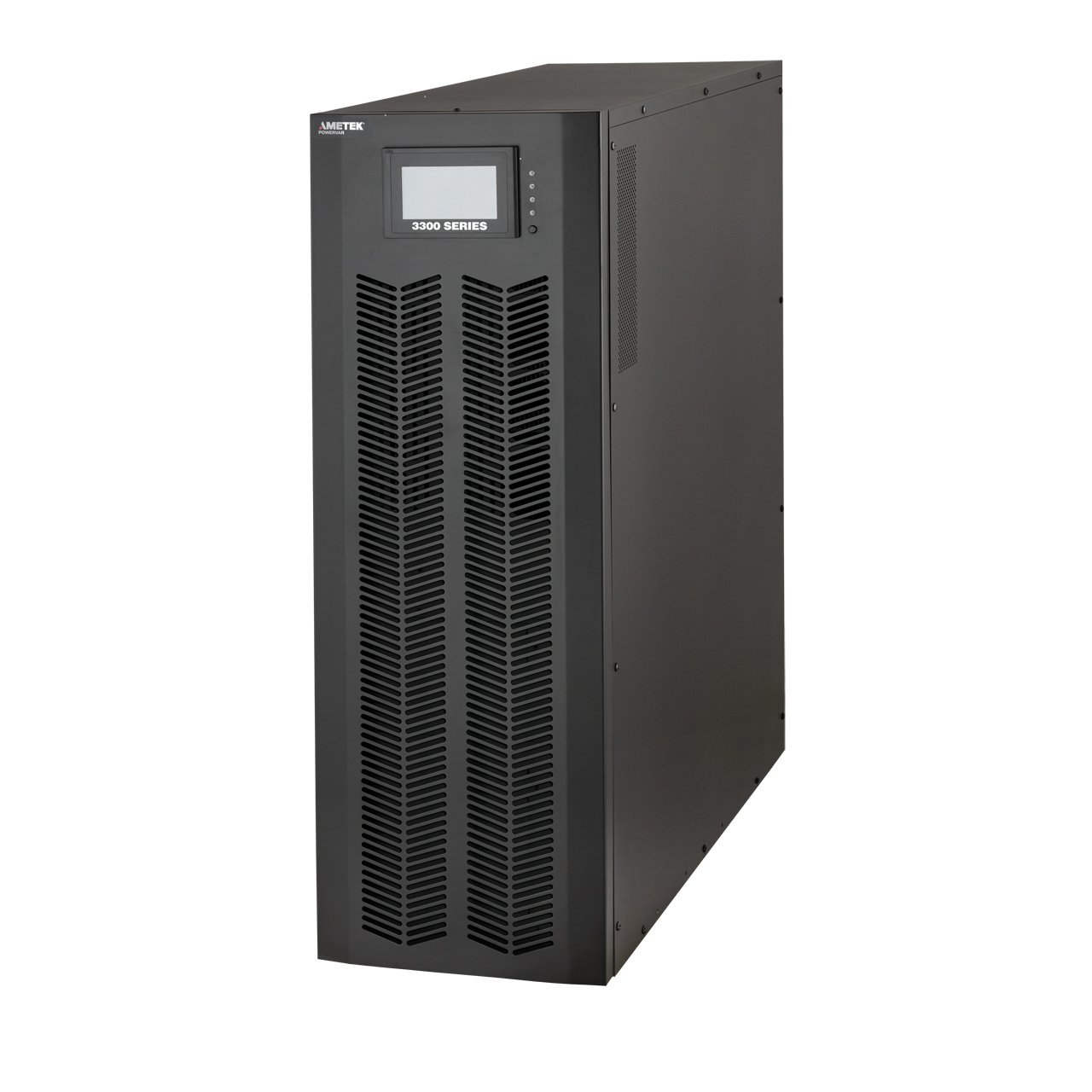

Primary Image

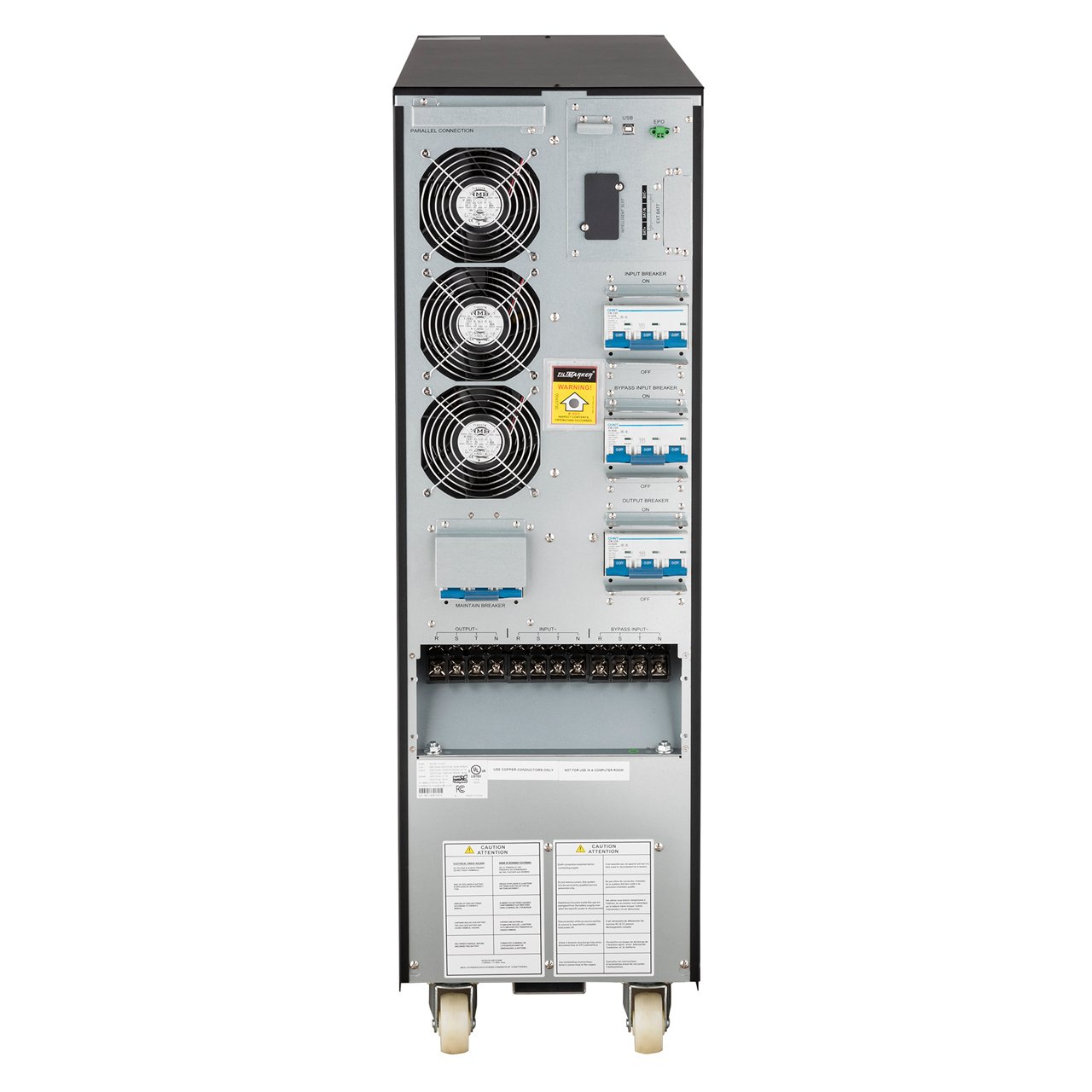

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$54,949.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.
  • Shipped truck freight.


UPS-33040-12 - Overview

The SurgeX UPS-33040-12 is a three-phase uninterruptible power supply that guarantees a reliable and cost-effective power quality solution that delivers an effective combination of superior efficiency and inrush capability to maximize performance. Its switches are factory set so that the circuit breaker is configured for maximum inrush current capability to withstand up to 300% for 140 msec. The inrush current capability also prevents damage and disruption to the connected equipment. With one of the smallest footprints in the industry, this SurgeX three-phase UPS backup power solutions is the ideal choice for any environment where high performance is needed for critical load applications.

  • Features:

    • The most advanced IGBT technology
    • 300% overload capacity - sustains for 140 msec online
    • 1.0 power factor
    • High efficiency rate, up to 94%
    • ECO mode, 97% efficient
    • Convenient top and side access for serviceability
    • Remotely monitor and manage UPS with integrated SNMP network card and Modbus
    • Models is UL and cUL listed

  • Specifications:

      General
    • kVA Size: 40 kVA
    • kW: 40kW
    • External Runtime: 8 Minutes
    • Input & Output Volatge: 208VAC/120VAC
    • Dimensions: 48" x 17" x 32" (1219.2mm x 431.8mm x 812.8mm)
    • Weight: 353lbs (160kg)

      Input
    • 208VAC: 3-phase, 4-wire
    • Input Voltage Range: +30%, -17%
    • Power Factor: 0.99 100% load, 0.98 min. 50% load
    • Input THDi: 1% - 100% load, 2%-50% load
    • Frequency Range: 46-64Hz

      Output
    • 208VAC/120VAC: 3-phase, 4-wire
    • 220VAC/127VAC: 3-phase, 4-wire
    • Overload Capacity (w/Utility):
      - 300% for 140 milliseconds
      - 150% for 60 seconds
      - 125% for 10 minutes
    • Efficiency: Up to 94%
    • ECO Mode: 97%
    • Output Voltage THD: 2%
    • Output Frequency: 50/60Hz
    • Power Factor: 1.0

  • Item Includes:

    • 1x SurgeX UPS-33040-12 3 Phase/40 kVA Large Format UPS

  • Warranty:

    • 1 Year Limited Warranty
