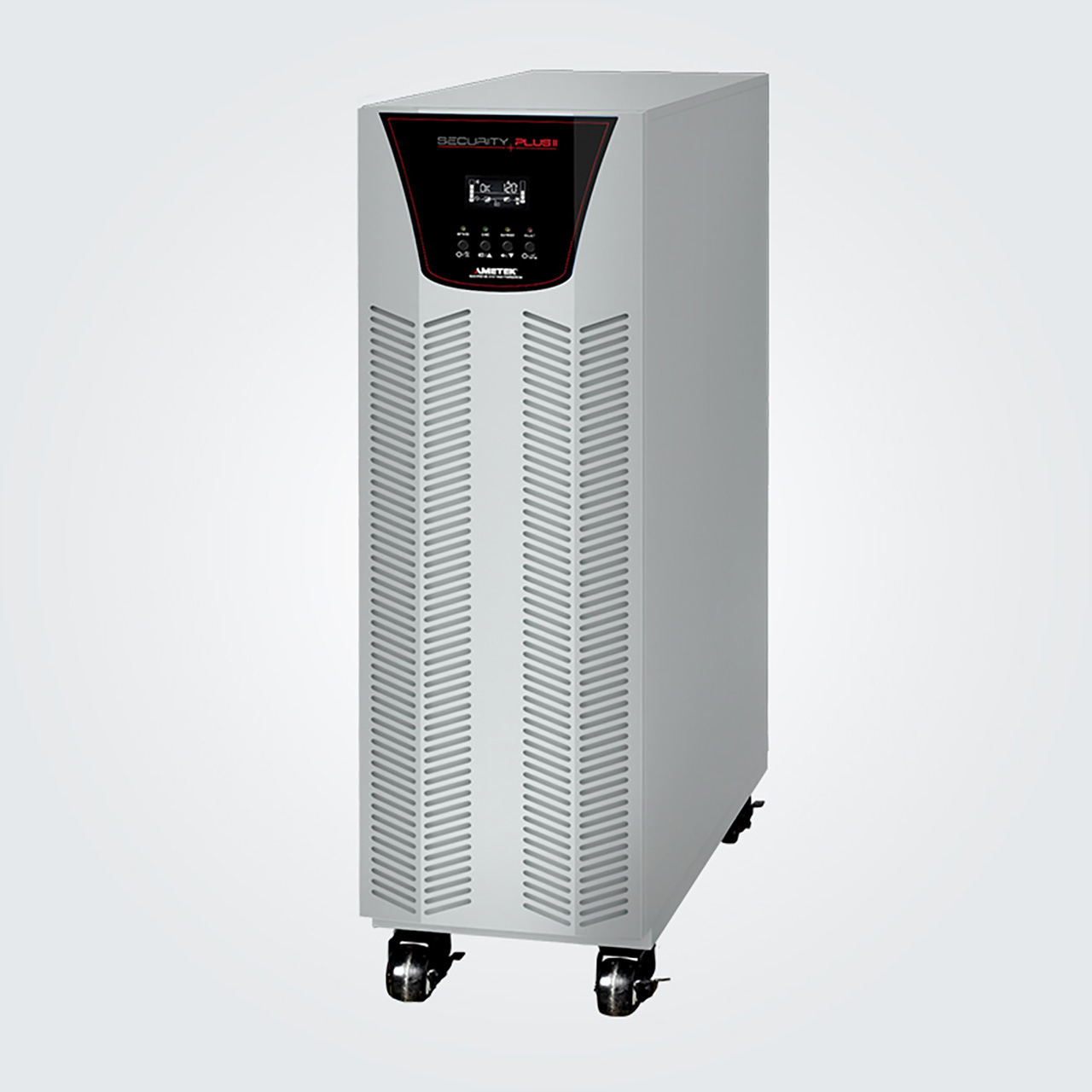

SurgeX UPS-42100-85R Online/Double Conversion Large Format Uninterruptible Power Supply w/ Isolation Transformer - 10kVA

ITEM #: SX-UPS-42100-85R MFG #: UPS-42100-85R

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$21,669.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Shipped truck freight.


UPS-42100-85R - Overview

The SurgeX UPS-42100-85R is a large format single-phase uninterruptible power supply, a reliable, efficient, and cost-effective solution for powering mission-critical equipment. They regenerate AC power via true online double-conversion technology coupled with an isolation transformer to entirely re-establish the neutral to ground bond. Unique to the industry, this combination eradicates harmonics and common mode noise to guarantee optimum performance and reliability, offering a better experience for end users and fewer service calls for integrators.

  • Features:

    • Online double conversion technology with no transfer time
    • Low impedance isolation transformer
    • Static bypass switch
    • Inrush load rating up to 300%
    • Over/Under voltage shutdown
    • Internal temperature fault shutdown
    • Industry leading -30%/+15% voltage range
    • Expandable battery packs
    • Multiple control options including SNMP
    • Smallest footprint in the industry

  • Specifications:

    • Load Rating: 54A In
    • Volatge Rating:
      - 208-240V In
      - 120-240V Out
      - 10,000W Hardwired
    • Input/Mains Plug Type: Terminal Strip
    • Receptacles: 1x
    • Receptacle Type: Terminal Strip
    • Under-Voltage Auto Shutdown: Yes
    • Over-Voltage Auto Shutdown: Yes
    • Over-Current Auto Shutdown: Circuit Breaker
    • Over-Temperature Auto Shutdown: Internal temperature fault shutdown
    • Network Port: Optional SNMP Card
    • Serial Port:
      - RS-232 on Male 9-pin D-subminiature
      - USB Type B
      - RJ45 on optional SNMP card
    • Temperature Sensor Input: None
    • BTU/h Max: 4215 BTU/h
    • Auxiliary Relay Outputs: No
    • Contact Closure Input: EPO
    • Dimensions: 9.8" x 24.7" x 32.5" (25cm x 63cm x 82.6cm)
    • Weight: 301lbs (136.5kg)

  • Item Includes:

    • 1x UPS-42100-85R Large Format Single-Phase Uninterruptible Power Supply

  • Warranty:

    • 1 Year Limited Warranty
