Tascam DP-006 6 Track Digital Pocket Studio

ITEM #: TCM-DP-006 MFG #: DP-006

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:


Our Price:


After Savings:


Availability: In Stock
iAvailability Description Popup
$50 Instant Savings! Get Instant Savings on select Tascam offerings for a limited time only, while supplies last. Get the best with Markertek today!

    DP-006 - Overview

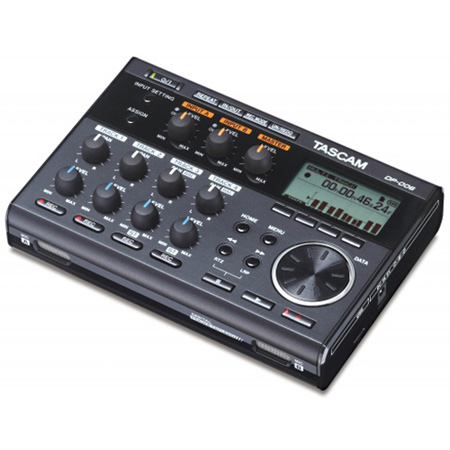

    The Tascam DP-006 6-Track Digital Pocketstudio from Tascam is a compact, battery-powered multitrack recorder, featuring two built-in omnidirectional condenser microphones and WAV file resolution up to 16-bit/44.1kHz. Additionally, two unbalanced 1/4" TS line inputs can be used to record mic, line or Hi-Z instrument signals. Designed with analog functionality and dedicated control knobs, the DP-006 is ideal for on-the-spot recording. A Mini USB 2.0 output facilitates high-speed file transfer to your Mac or PC.

    The DP-006 provides an 1/8" stereo line output as well as an 1/8" stereo headphone output. An integrated chromatic tuner and metronome help you perfect your performance. For elongated battery life, the DP-006 is compatible with Tascam's BP-6AA external battery pack. The DP-006 was designed with a tripod mount for versatile set-up and placement. The DP-006 features an ultra lightweight-less than 13 oz -design to ensure portability.

    Versatile Recording and Data Transfer
    The DP-006 can record, import and export 16-bit/44.1kHz WAV files. It is compatible with both mono and stereo files.

    Recording Media Included
    The DP-006 records WAV files to SD/SDHC cards up to 32GB, a 2GB card is included. High-speed data transfer is available through the onboard USB 2.0 port. Your files can then be imported to your favorite DAW.

    Recording / Playback Engines
    The DP-006 can record 2 mono tracks or 1 stereo track simultaneously. It offers up to 6 tracks of simultaneous playback.

    • Features:

      • Dual Omnidirectional Microphones
      • Records WAV Files at 16-Bit/44.1 kHz
      • Two Unbalanced 1/4" TS Inputs
      • Mini USB 2.0 Output
      • Integrated Metronome and Tuner
        8 Hours of Operation on 4 AA Batteries
      • 1/8" Stereo Line Output
      • 1/8" Stereo Headphone Output
    • Specifications:

      • General
      • Recording Media: SD/SDHC card (up to 32GB)
      • File System: TASCAM original (MTR partition) FAT32 (FAT partition)

        Line Input
      • Connector: 2 x 1/4" TS unbalanced
      • Input Impedances: Switchable: 10kΩ mic/line; 1MΩ guitar
      • Nominal Input Level: -10 dBV
      • Maximum Input Level: +6 dBV
      • Headroom: 16 dB

        Built-In Microphone Specifications
      • Type: 2 x omni-directional condenser microphone

        Line Output
      • Connector: 1/8" (3.5 mm) stereo mini
      • Nominal Output Level: -16 dBV
      • Maximum Output Level: 0 dBV

        Headphone Output
      • Connector: 1/8" (3.5 mm) stereo mini
      • Maximum Output Level: 15 mW per side (THD+N less than 0.1%, 32Ω loaded)

        Audio Performance
      • Frequency Response: 20 Hz to 20 kHz +1/-3 dB
      • Distortion: < 0.05%
      • Signal-to-Noise Ratio: > 81 dB

        SB Connectivity
      • USB Connector: 1 x USB Mini-B 4-pin
      • Format: USB 2.0 high speed mass storage class
      • Operating System Requirements: Windows XP / Vista / 7 / Mac OS X 10.2 or later

        Physical Characteristics
      • Power Requirements: 4 x AA batteries (alkaline or NiMH); TASCAM PS-P520 AC adapter (sold separately)
      • Battery Life (approx.): 8 hrs alkaline, 9 hrs NiMH (using line input/recording) 8.5 hrs alkaline, 9.5 NiMH (using headphone/playback)
      • Power Consumption: 1W maximum
      • Operating Temperature Range: 41 to 95°F (5 to 35°C)
      • Dimensions (W x H x D): 6.1 inch x 1.63 inch x 4.2 inch (155 x 41.5 x 107 mm)
      • Weight: 12.7 oz (360 g)
      • Package Weight: 1.65 lb
      • Box Dimensions(L x W x H): 8.9 inch x 6.0 inch x 3.0 inch
    • Item Includes:

      • 4GB SD Card
    • GTIN:
