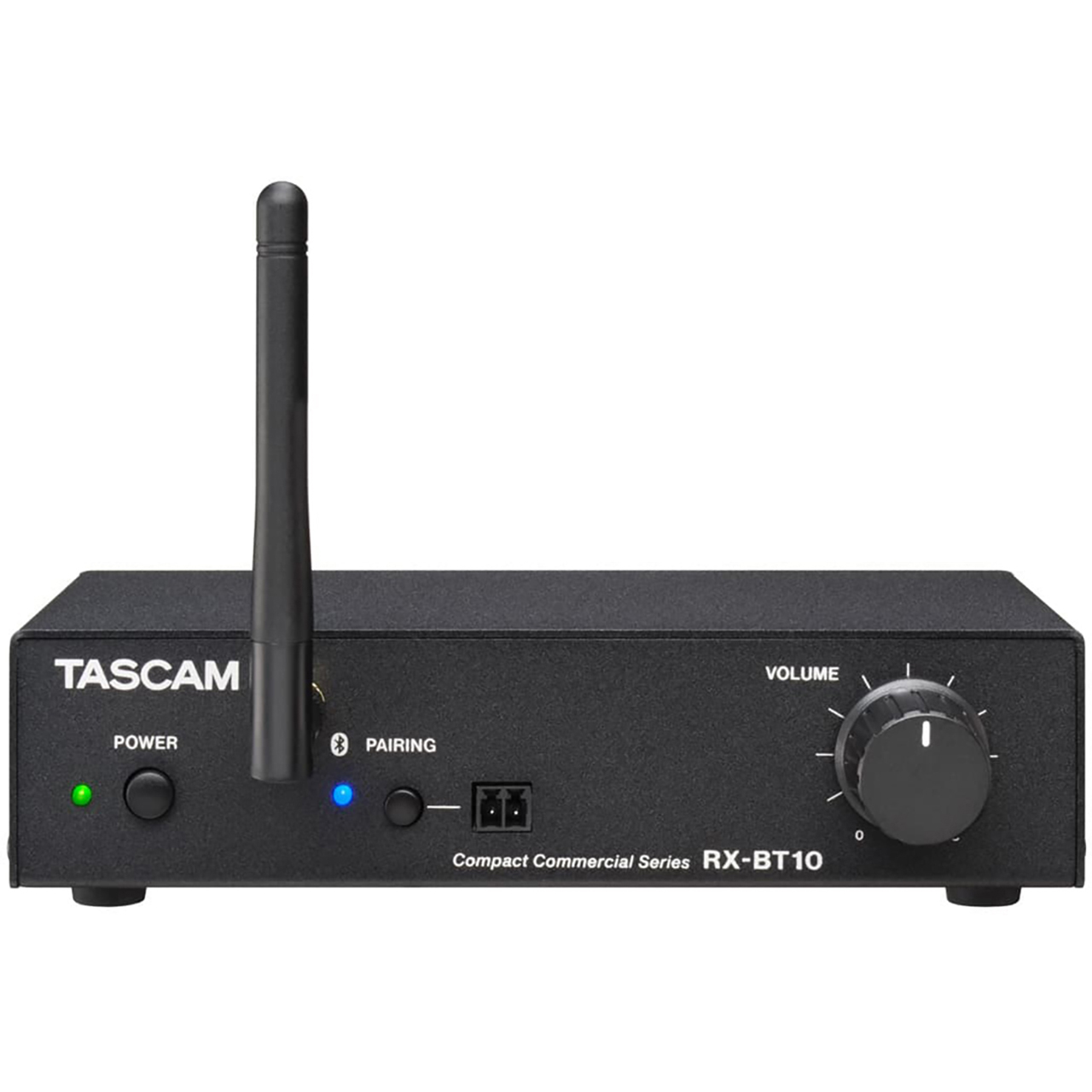

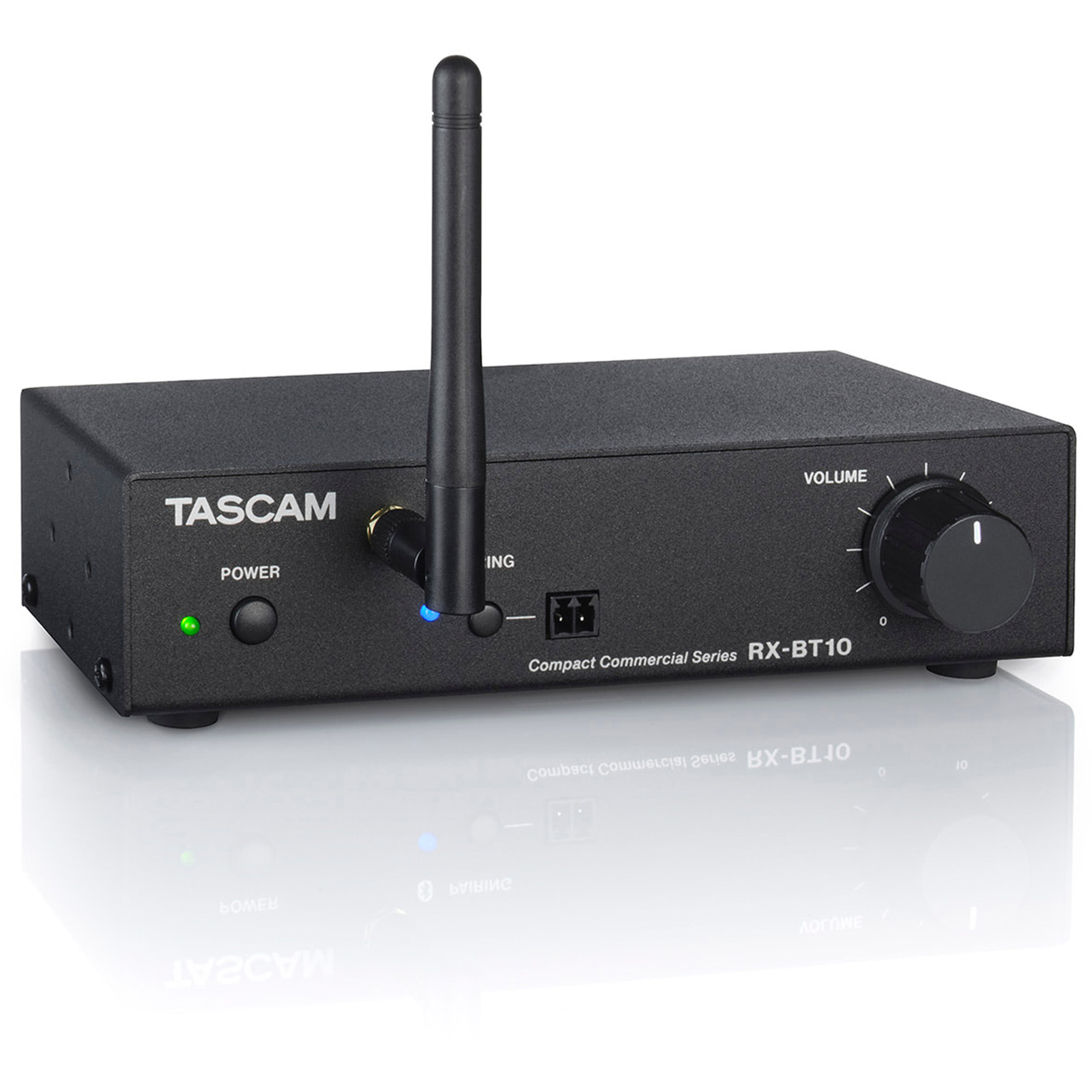

Tascam RX-BT10 Compact Stereo Bluetooth Receiver With Balanced XLR and Unbalanced RCA Outputs

ITEM #: TCM-RX-BT10 MFG #: RX-BT10

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$399.00

Our Price:

$299.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RX-BT10 - Overview

The Tascam RX-BT10 Bluetooth® receiver is the professional solution for integrating Bluetooth® audio into any installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, and the option to connect a remote pairing button, the RX-BT10 delivers versatility and reliable performance in spaces ranging from small rooms to large venues.

Add Bluetooth® to Any System with Ease
The RX-BT10 is the easy way to add Bluetooth connectivity to any setup. With Bluetooth 5.1 output class 1, it delivers a stable connection over long distances-up to 100m in ideal conditions. The front-panel receiver antenna ensures reliable reception so you don't have to worry about signal sensitivity.

*Actual range may vary depending on the environment, device class, and local radio wave conditions.

Output Options

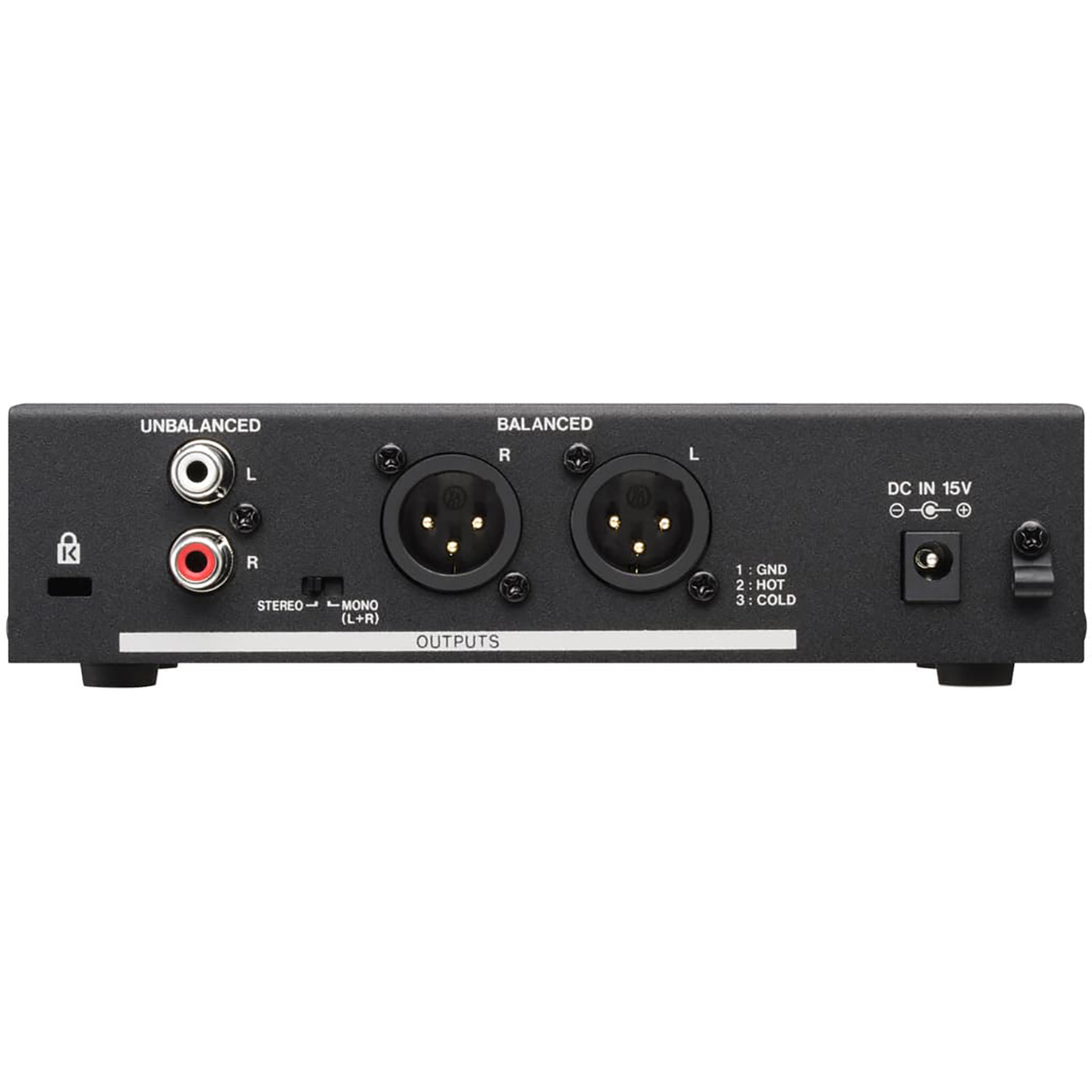

With both balanced and unbalanced outputs, this unit integrates seamlessly into any setup. Choose between balanced stereo XLR or unbalanced stereo RCA connections, and use the rear-panel stereo/mono switch to maintain a full stereo field or sum the signal as needed.

Compact and Built to Last
Built for durability, the RX-BT10 features a rugged metal enclosure that stands up to the demands of any installation. Its compact size makes it easy to integrate into a variety of setups. Mounting points on the top and bottom panels enable the RX-BT10 to be attached to practically anything, plus a bracket kit for mounting on a shelf or under a desk is included. Designed for reliability, long-lasting performance in any environment is a guarantee.

Applications:
- Hotel Setups
- Classrooms
- Mobile Events
- Stores
- Restaurants
- Commercial Spaces
- Banquet Halls
- Conference Rooms
- Mid-to-Large Sized Venues

  • Features:

    • Bluetooth® 5.1 (Class 1) for long distance and high stability connection
    • XLR balanced output
    • Compact and rugged metal enclosure
    • A unique Bluetooth® ID is assigned to each devices for easy identification
    • Bluetooth® antenna and pairing button are extendable, allowing to place it in the optimal position
    • Switchable mono/stereo output
    • RCA unbalanced output
    • Euro block terminal to add a remote pairing button
    • Bluetooth® paring button
    • Bracket kit for mounting on a shelf or under a desk included
    • Rack mountable (Required 1U rack-mountable shelf: AK-RS1, sold separately)
    • AC adapter (PS-M1524) included

  • Specifications:

      Input - Bluetooth®
    • Version: 5.1
    • Output Class: 1 (about 100m unobstructed transmission range*)
    • Supported Profiles: A2DP, AVRCP
    • Supported Codecs: SBC, AAC
      *Transmission distance is estimated. The transmission distance may vary depending on the surrounding environment and radio wave conditions. Different Bluetooth transmission output classes have connection compatibility, but they might be connected using the shorter maximum transmission distance. For example, if a smartphone that is Class 2 (10 m unobstructed transmission range) is connected to this unit, which is Class 1 (100 m unobstructed transmission range), the unobstructed transmission range of the smartphone will be applied.

      Outputs - LINE OUT (UNBALANCED)
    • Connectors: RCA pin jacks
    • Maximum Output Level: +6dBV
    • Nominal Output Level: -10dBV
    • Output Impedance: 100Ω or less

      Outputs - LINE OUT (BALANCED)
    • Connectors: XLR (balanced)(1: GND, 2: HOT, 3: COLD)
    • Maximum Output Level: +14dBu
    • Nominal Output Level: -2dBu
    • Output Impedance: 200Ω or less

      Audio Performance
    • Frequency Response: 20Hz - 20kHz: +0.5dB/-1dB
    • Distortion (THD+N): 0.04% or less (1kHz, maximum output level)
    • S/N: 90dB or more (1kHz, 22kHz LPF, A-weighted)
    • Channel Separation: 100dB or more

      Other
    • Power:
      - Specialized AC Adapter (PS-M1524)
      - Input Voltage: AC 100V - 240V (50/60Hz)
      - Output Voltage: DC 15V
      - Output Current: 2.4A
    • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Operating Humidity Range: 5% - 85% (without condensation)
    • Power Consumption: 1.7W
    • Dimensions (WxHxD, excluding protrusions): 6.73" x 1.77" x 2.87" (171mm x 45mm x 73mm)
    • Weight: 1.17lbs (530g)

  • Item Includes:

    • 1x RX-BT10 (with Euroblock plug)
    • 1x AC adapter (TASCAM PS-M1524)
    • 1x Cord for AC adapter (Type A for Japan and US/Type C for Europe)
    • 1x Bluetooth® Antenna
    • 1x Installation Bracket Kit:
      - 2x Brackets
      - 6x Installation screws
    • 1x Safety Guide
    • 1x TASCAM ID Registration Guide
