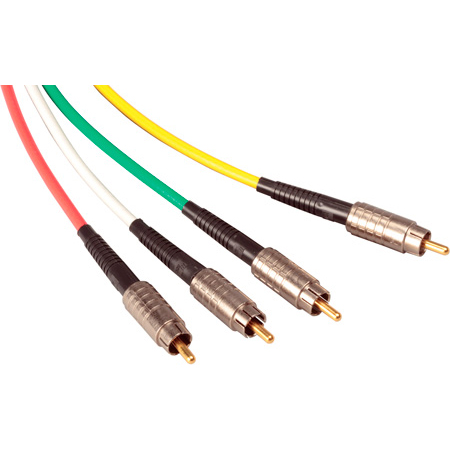

    ADC CRCA-1 Crimp RCA Connector for Gepco VPM2000 or Belden 1505A

    Manufacturer: ADC-Commscope

    Item #: TE-CRCA-1   •   MFG #: CRCA-1



    List Price:$4.88
    Our Price:$4.49
    Special Price:$3.99

    free ship


    Availability:
    In Stock
    i
    Item is Available for immediate shipping from our warehouse.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The venerable RCA connector is still the universally accepted method of terminating coaxial cable for audio and video signals in prosumer-type products such as video decks, DVDs, video projectors and HD monitors. ADC by TE Connectivity CRCA-1 precision RCA connectors are designed for demanding professional environments, offering a performance-driven product with outstanding mechanical and electrical characteristics, as well as easy BNC-type assembly.


      • Features

        • Outstanding electrical performance up to 2 GHz
        • 50 microinch gold-plated, locking internal center conductor crimps to cable
        • Exclusive closed-entry center pin contact RCA pin/ receptacle
        • Nominal 75 Ohm characteristic impedance end-to-end
        • Easy preparation and installation; installs the same as a standard BNC with BNC tooling
        • Compatible with hex, square, and 12-point crimp tools and select competitive crimp tool and die sets
        • Tarnish-resistant, nickel-plated body; 50 microinch gold-plated center pin, or all gold-plated version (shown)
        • Cable sizes for RG59, RG187 and RG6 available; uses same tooling
        • Meets or exceeds MIL-STD-202F requirements

      • Specifications

        • Characteristic Impedance: 75 Ohm typical
        • Voltage Rating: 1000 Volts RMS
        • Insertion Loss: < 0.6 dB 1 MHz to 1 GHz (measured with 1 meter of 728 cable)
        • Return Loss: Better than 26 dB up to 200 MHz
        • Contact Resistance: .030 Ohm maximum change post environmental
        • Insulation Resistance: 200 M-Ohm minimum change
        • Mechanical Durability: 500 cycles min
        • Center Contact Retention: 6 lbs. min
        • Cable Pulloff Force: Dependent on cable size
        • Cable Bend and Twist: 500 cycles min
        • Force to Engage/Disengage: Longitudinal force 3 lbs. typical
        • Thermal Shock: -40° C to 35° C operating; -55° C to 85° C, non-operating
        • Moisture Resistance: 0% to 95%; MIL-STD-202 Method 106
        • Corrosion (Salt Spray): MIL-STD-202 Method 101, Test Condition B
        • Flammability: UL 94-VO rated (center conductor insulator)
        • Vibration: MIL-STD-202 Method 201
        • Solvent Resistance: MIL-STD-202 Method 215
        • Body: Tarnish-resistant electroless nickel plating
        • Center Conductor: 50 millionths inch gold plating MIL-G-45204 Type 1, Grade C, Class 1; requires .042" crimp station die
