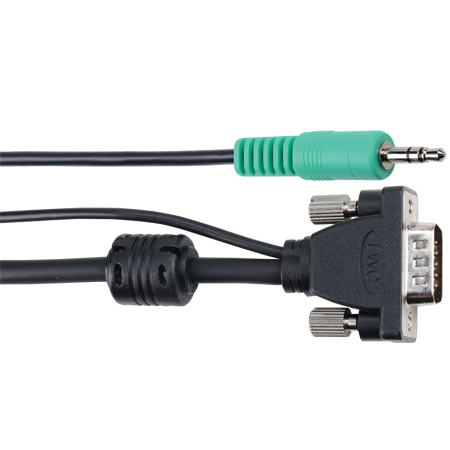

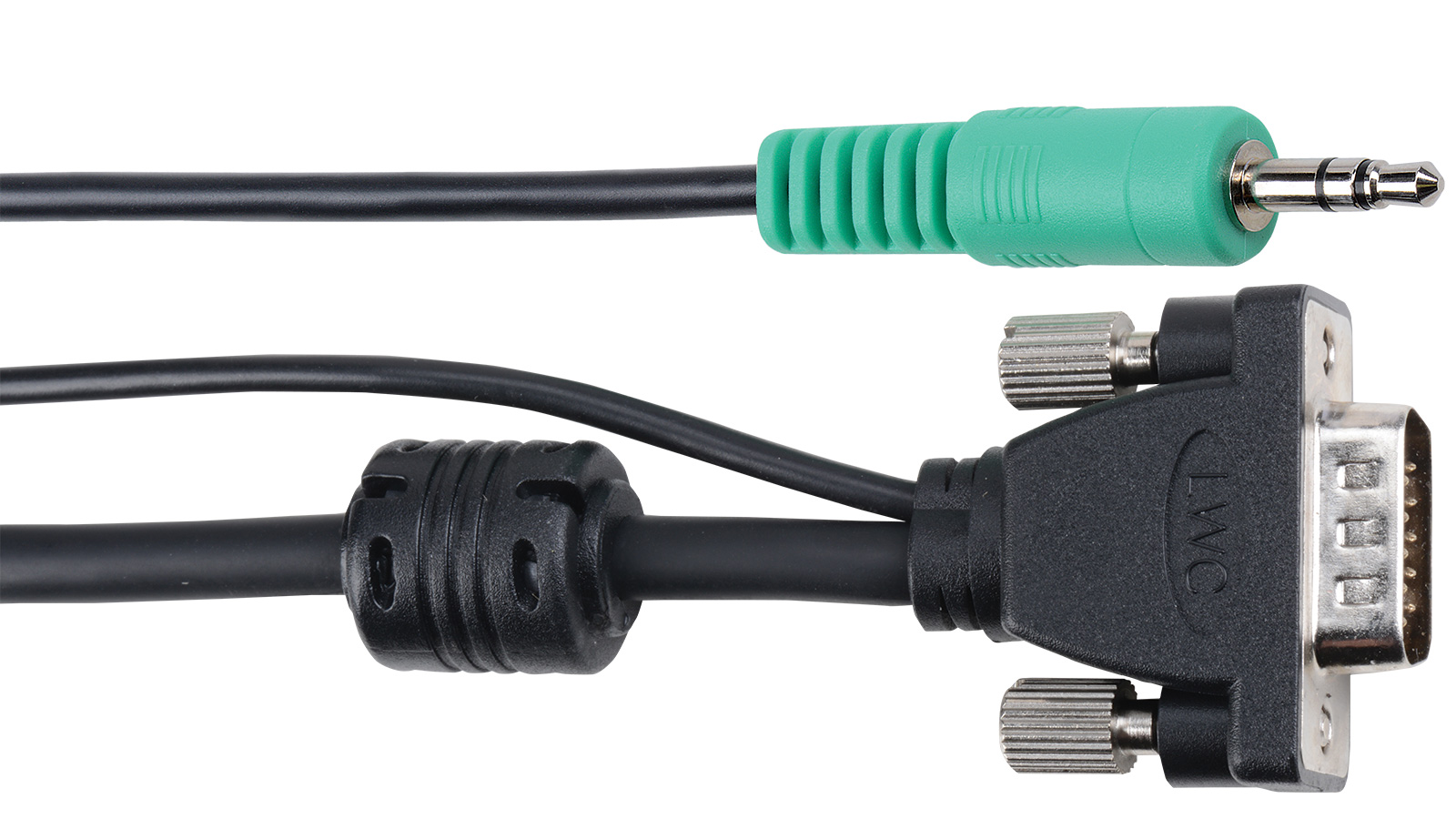

3 Foot Micro VGA with Stereo Audio Male-Male Cable

Questions? Ask a Markertek Expert:
800-522-2025 Email

3 Foot Micro VGA with Stereo Audio Male-Male Cable

Manufacturer: Liberty Wire and Cable

Item #: TN-MVGAMA-M-3   •   MFG #: E-MVGAMAM-M-3



List Price:$24.28
Our Price:$21.86

free ship


Length:



Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.


    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The E-MVGAMAM-M cable is designed to be used in tabletop, podium, and presentation system applications. A very flexible UL listed cable to permit sharp bends and constant movement, this product is ideal to interface mobile content users with laptops to the video infrastructure. The audio lead is purposefully longer at 22 inches for the source side, this is especially helpful when the audio jack is on the opposite side of the video jack.

    The cable is a miniature coaxial cable design; the attenuation on 32 AWG coaxial cables is such that it only warrants 1920x1200 WUXGA to 25 feet. Care must be exercised if using this product to interface to passive wall plates and panel junctions as the loss budget could be exceeded by the combination of passive plates and cable attenuation issues. It is recommended the primary use be to patch a source to a display interface, extension device, or active switch. This product is not permitted to be run in a concealed location (in-wall) per the NEC unless it is in conduit.

    The Micro sized molding on the VGA connectors is substantially smaller than a standard molded VGA connector. The molding measures 1.09 inches from front of molding to back of strain relief. A standard VGA mold can measure 2.0 inches from front to back. The micro cable is only 0.200" in diameter.

    Key Applications:
    Conference Rooms
    Classrooms
    Podium/Presentations


    • Features

      • Micro-Sized Molding and Cable for small OD and flexibility
      • DE15 Male Plug to DE15 Male Plug Video Connectivity
      • 3.5mm Male Plug to 3.5mm Male Plug Stereo Audio
      • Video and Sync on 32 AWG high resolution coaxial cables
      • ID Bit communications and EDID Pin 9 on 28 AWG cabling
      • Full 15-Pin VESA EDID and ID/DDC Compliance
      • Double Shielded foil and braid overall shield
      • Ferrite Beads for EMI Compliance
      • Thumbscrew for ease of installation and retention
      • 8 & 22 inch Audio leads for routing ease and convenience
      • UL AWM 20276, CSA Type AWM I/II A/B FT4, RoHS Compliant

    • Specifications

      • I/O Connections
      • VGA: Male DE series 15 pin High Density connector
      • Analog Audio: 3.5 mm TRS plug

        VGA + 3.5mm Supported Video and Audio
      • VGA Maximum Supported Video Resolution: Up to [email protected] up to 25 feet
      • Analog Audio Support: Up to 48 kHz sampling rate
      • VESA: Full EDID ID/DDC Plug and Play with pin 9 connected

        Cable Construction
      • VGA Connector Material: Molded PVC
      • VGA Connector Dimensions: 33 x 14 x 28mm
      • Analog Audio Connector Material: Molded PVC
      • Analog Audio Connector Dimensions: 10.3mm diameter, 36.75mm length with strain relief included
      • Jacket Material: Flexible PVC
      • Cable Construction: Copper, 32 AWG RGB coaxial and 30 AWG sync and ID-Bit
      • Overall Cable Size: 5.0mm diameter
      • Shielding: Dual foil and tinned copper braid serve shields
      • Minimum Bend Radius: 50mm
      • Maximum Tensile Load: 10Kg
      • Available Cable Lengths: 3, 6, 12, 15, 25 feet

        Environmental Requirements
      • Operating Temperature: 0° to +50° C (+32° to +122° F)
      • Operating Humidity: 20% to 85%, Non-condensing
      • Storage Temperature: -30° to +50° C (-22° to +122° F)
      • Storage Humidity: 20% to 85%, Non-condensing

        Power and Regulatory
      • Regulatory: AWM 20276 80°C 30V VW-1, RoHS
