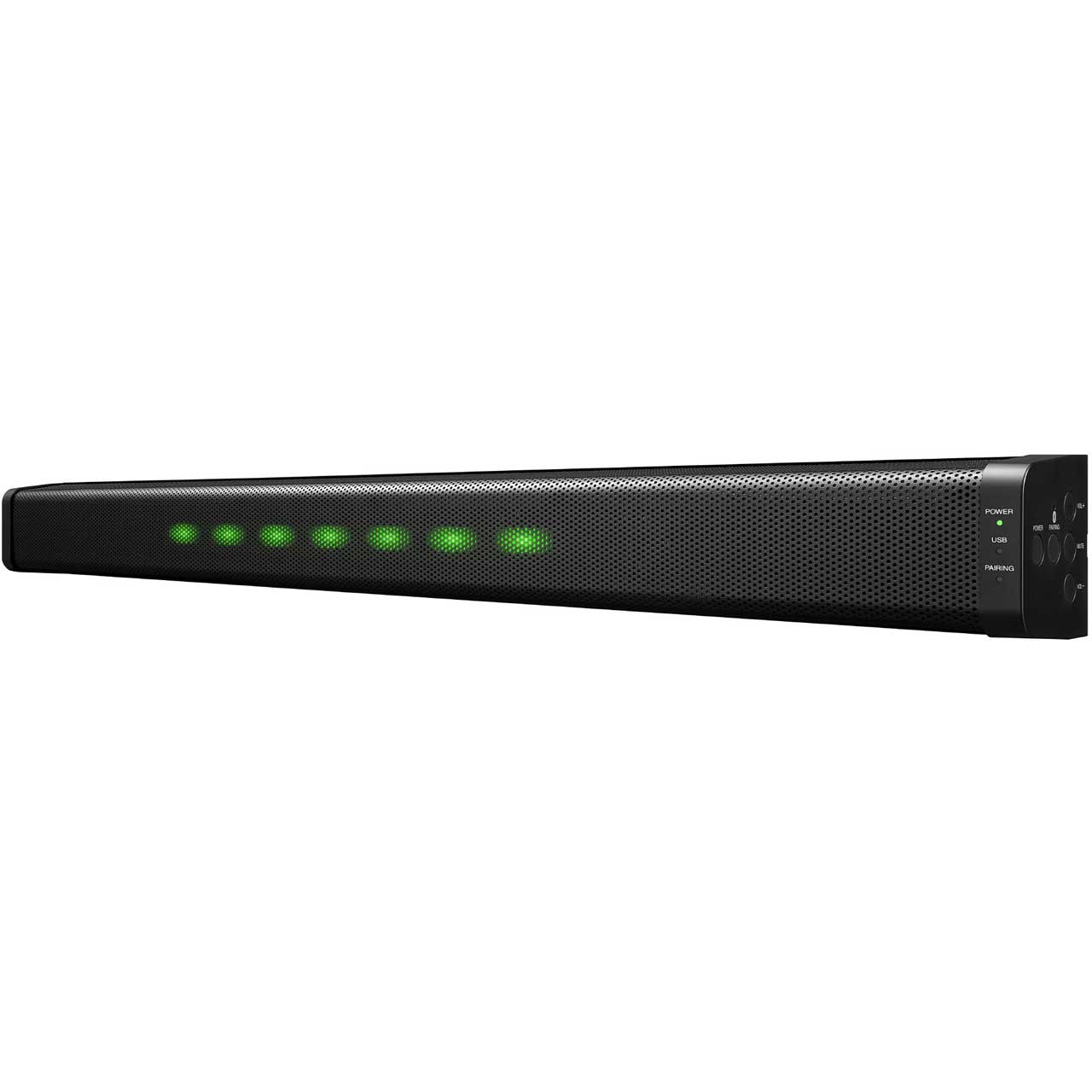

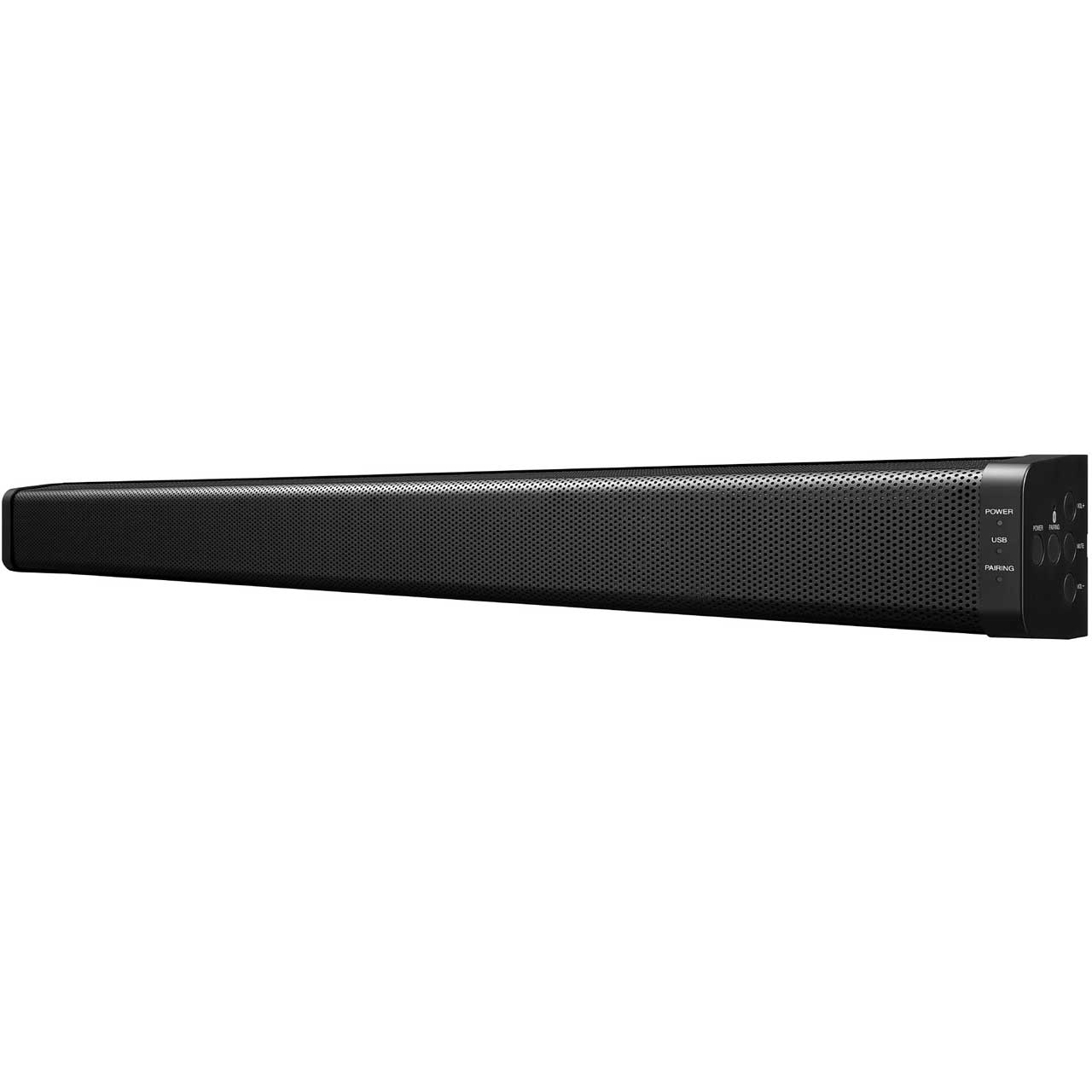

TOA AMCF1B3CU LENUBIO Integrated Audio Collaboration System Built-In Array Mic & Soundbar from meetingIO Series - Black

ITEM #: TOA-AM-CF1B-3CU MFG #: AM-CF1B 3CU

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,846.40

Our Price:

$2,300.10

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AM-CF1B 3CU - Overview

    The TOA Electronics AM-CF1B Integrated Audio Collaboration Systems are designed to be used in huddle rooms or workspaces. Software web conferences can be carried out more effectively over laptops by connecting the AM-CF1 to the PCs and web cameras. Even when the conference has multiple participants, not only can each participant's voice be accurately picked up, but each other party's voice can also be reproduced clearly.

    High quality loudspeakers and an array microphone, which collects sound ideally by detecting and tracking the speakers voice, will make team collaboration in huddle rooms highly productive and your presentation more attractive.

    Applications
    Boardrooms
    Conference rooms
    Educational facilities
    Fixed installations
    Government projects
    Lecture desk
    Office buildings
    Universities

    • Features:

      • TOA's unique algorithm detects the speaker's position and controls the array microphone's Directivity in real time, allowing the speaker's voice to be more effectively picked up.
      • The sound source direction detected by the microphone can be displayed on the front panel LED indicator to inform the speaker that his or her voice is being picked up.
      • A built-in USB hub allows connection to web cameras, etc.
      • Various settings can be performed for echo cancellation, equalization and the like using a web app.

    • Specifications:

      • PC Hardware Requirements are as Follows: Display 1366 x 768 resolution or higher
      • Confirmed PC operation environments are as follows:
        OS Windows 10, 64-bit
        macOS 10.4.3 Mojave
        Browser Google Chrome 72.0.3626.81, Safari 12.0.3
      • Power Source: 12 V DC (supplied from the specified AC adapter) or 52 V DC (supplied from the specified PoE extender)
      • Current Consumption: 3.5 A or less
      • Input:
        USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
        Bluetooth: 2 channels (A2DP1.3 (stereo), HPF1.6)
        Codec: 1 channel, -10 dB*1, 10 kΩ, unbalanced, RCA pin jack
        AUX: Stereo 1 channel, -10 dB*1, 10 kΩ, unbalanced, RCA pin jack
      • Output:
        USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1, 3.0 type-B port
        Bluetooth: 1 channel (HPF1.6)
        Codec: 1 channel, -10 dB*1, 600 Ω, unbalanced, RCA pin jack
        AUX: Stereo 1 channel, 4 dB*2, 600 Ω, electronically-balanced, removable terminal block (6 pins)
        Internal speaker: 2-way (woofer x 2, tweeter x 1) x 2, 10 W x 2
      • USB Hub Port: USB 3.0/USB 2.0/USB 1.1, type-A port
      • Control Input: 2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 2 mA or less, removable terminal block (6 pins)
      • Control Output: 2 channels, relay contact output, withstand voltage: 30 V DC, control current: max. 300 mA, removable terminal block (6 pins)
      • Network I/F: 10BASE-T/100BASE-TX, RJ-45
      • Microphone: Unidirectional electret condenser microphone
      • Frequency Response: 20 Hz - 20 kHz (AUX IN - AUX OUT)
      • Operation: Power switch, Bluetooth pairing switch, Mute switch, Volume Up/Down switch
      • Indicators: Power indicator (blue/green/yellow/red), USB connection indicator (green/blue), Bluetooth indicator (blue), Multifunction indicator (green/red)
      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Operating Humidity: 90% RH or less (no condensation)
      • Finish:
        Body: Aluminum, black (RAL 9005 equivalent), 30% glossy
        Punched Net: Surface-treated steel plate, black (RAL 9005 equivalent), 30% glossy
        Side Cover: ABS resin, black (RAL 9005 equivalent)
      • Dimensions (WxHxD): 31.5 x 3.28 x 3.38" (800 x 83.2 x 85.8mm)
      • Weight: 10.14Lbs (4.6kg)

    • Item Includes:

      • 1x AM-CF1B-3CU - Black
      • 1x AC adapter (DC cord length: 3.28')
      • 1x AC Power cord (6.56')
      • 1x USB cable (9.84')
      • 2x Removable terminal plug (6 pins)
      • 1x Wall mounting bracket (preinstalled on the unit)
      • 1x Hex wrench (M3)
