No More Multi Channel Amplifier for Multi-Zone Paging System

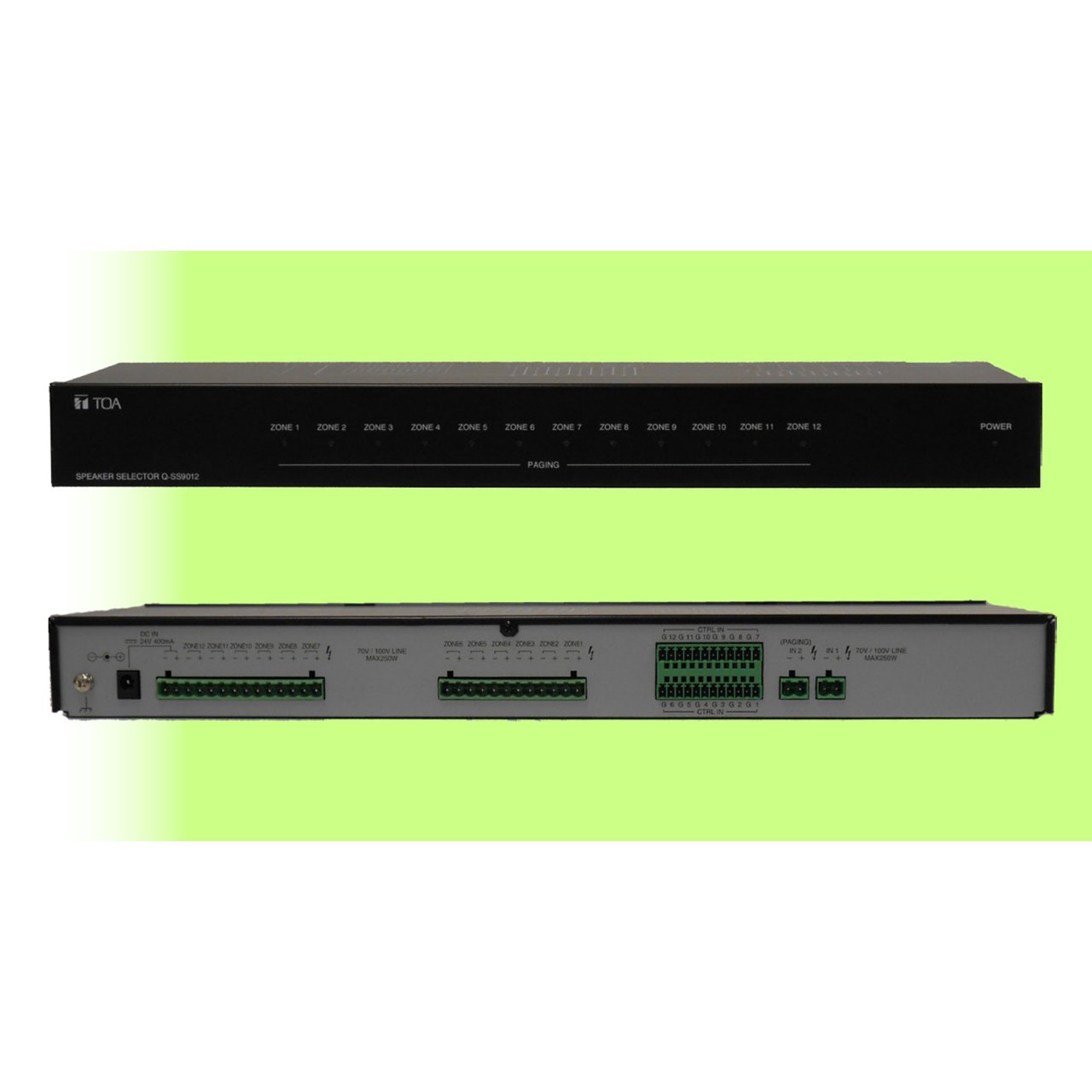

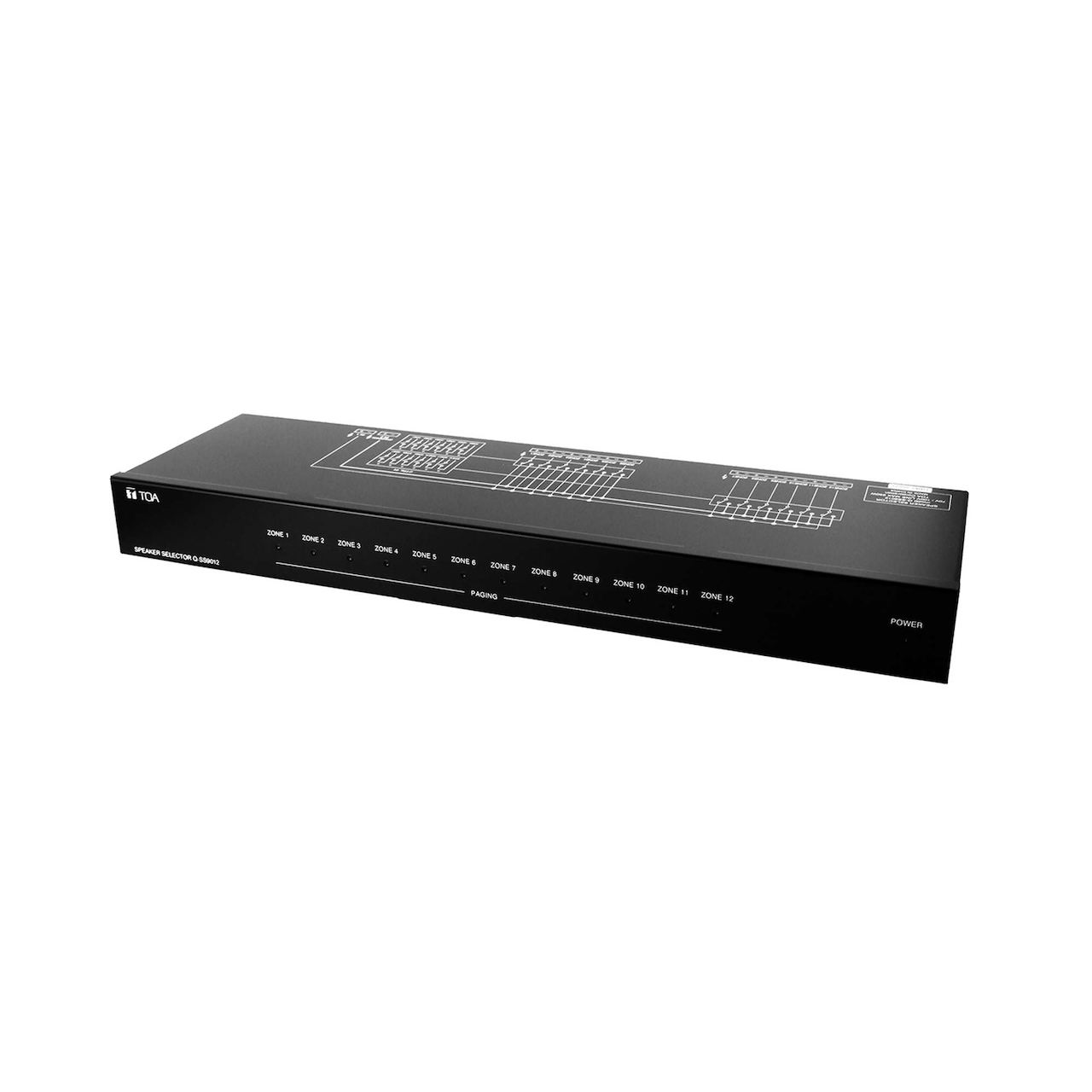

The TOA Q-SS9012PS is a speaker selector used in conjunction with 9000M2 Series mixer amplifiers or other paging equipment. It selectively distributes each of 2 amplified inputs of the same 12 output zones by the status of corresponding contact closure input. 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure. The Q-SS9012PS Multi-Zone Speaker Selector has 2 amplifier inputs and 12 individual relay switches to select the amplifier connected to each 12 speaker line/zone. This allows up to 12 zones for paging and BGM distribution with a dual channel amplifier or simple paging system with only a one channel amplifier. TOA's new concept offers a real cost effective multi-zone paging system.
-
- 12 contact inputs and 12 speaker outputs. Power amp input is split into 12 zones with activation via contact closure
- Can facilitate paging over BGM by switching between BGM output (amp input 1) and Page output (amp input 2)
- LED indicator for each selector
- optional MB-15B, mounting rack
-
- Power Source: 24V DC from AC adaptor AD-246 or equivalent
- Current Consumption: 400mA or less
- Power Handling: 250W or less (70V/100V line per channel (IN1, IN2)
- Control Input: 12 channels, dry (no voltage) contact closures
- Open Voltage: 3.3V DC
- Short-Circuit Current: Under 1mA, removable terminal block (24 pins)

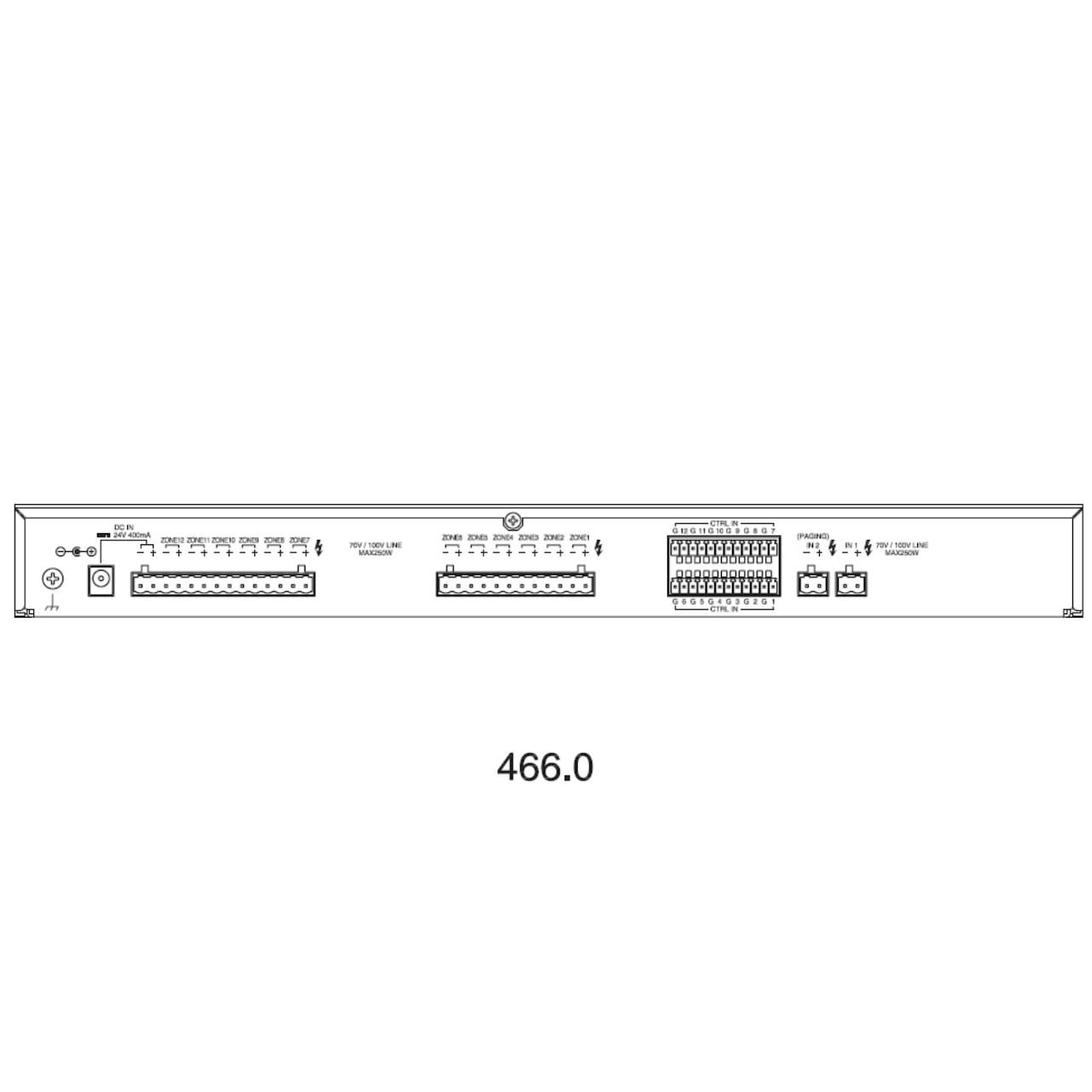

- Speaker Terminal: Removable terminal block (2 pins, IN1, IN2, Zone 1-12)
- Control Terminal: Removable terminal block (24 pins)
- Operating Temperature: 14°F - 104°F (-10°C - 40°C)
- Case Finish: Surface-treated steel plate, black
- Dimensions (HxWxD): 1.73" x 16.54" x 4.84" (44mm x 420mm x 123mm)
- Weight: 3.52lbs (1.6kg)
-
- Removable Terminal plug (2pins)
- Removable Terminal Plug (12 pins)
- Removable Terminal Plug (14 pins)
- AD-246 Power Supply i
