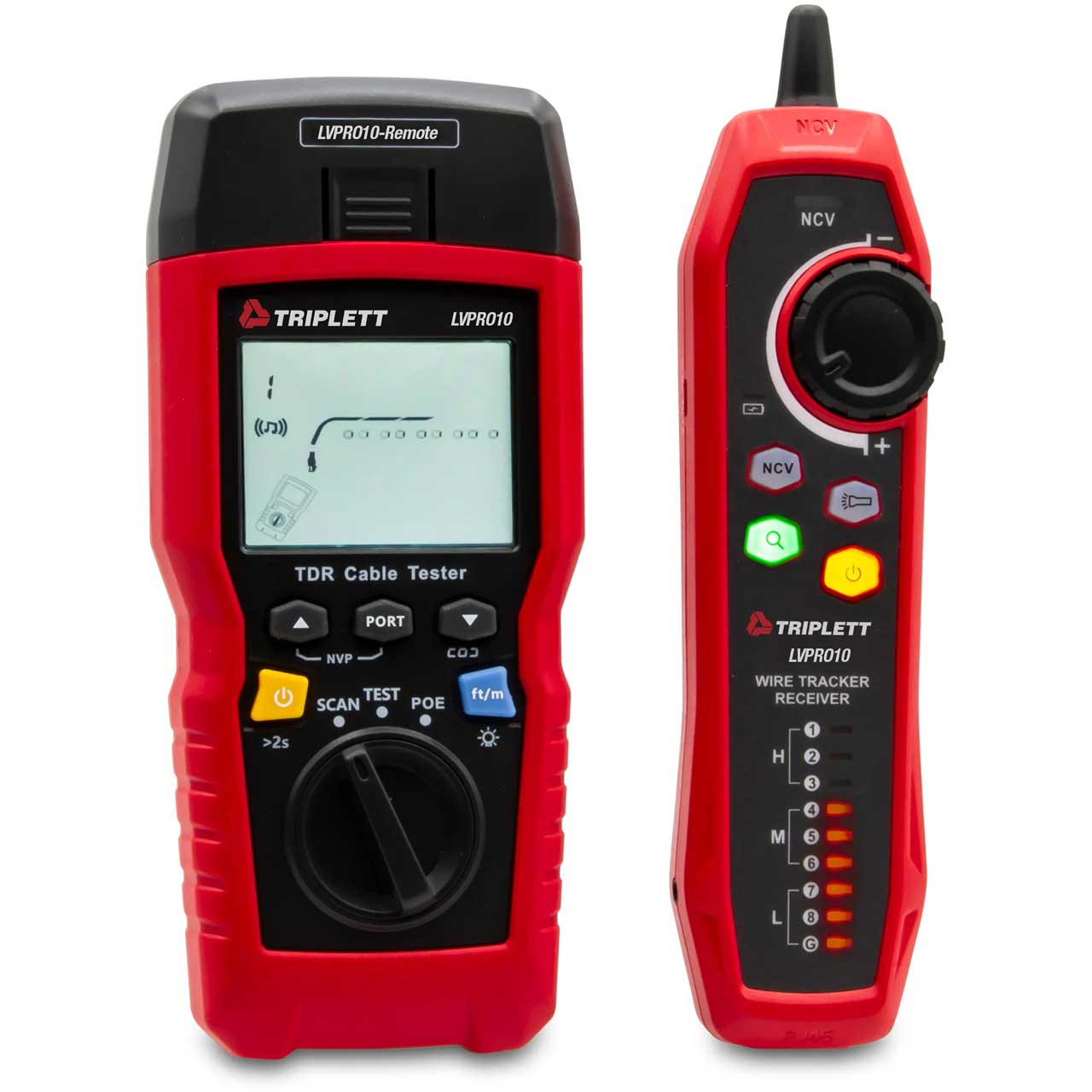

Triplett LVPRO10 TDR/Cable Tester for CAT5E/6/6A/8 Twisted Pair and Coax Cables

LVPRO10 - Overview

• Features:

  • Test twisted pair continuity, opens/shorts, reversals, and split pairs
  • Detect cable length and line sequence
  • Detect PoE presence and standard (802.3AF, 802.3AT, 802.3BT)
  • Ethernet port test
  • Tone mode allows for tracing cables
  • Built-in RJ11, RJ45, and coax ports
  • 2.8" backlit graphical LCD
  • 70VDC input protection
  • Built-in NCV Detector (>40V) and flashlight
  • Auto power off
  • Includes tracer probe with charging cable, remote adapter, RJ45 and RJ11 adapter cables, RJ11 cable with alligator clips, F- to F-connector adapter, (3) AA batteries and pouch case


• Specifications:

  • Cable Types:
    - UTP, FTP and SSTP twisted pair
    - 50ω, 75ω, 93ω coax cable
  • Cable Length Test:
    - Range: 1640ft (500m) Resolution: 1ft (0.33m)
    - Accuracy: ±4% or 2ft (0.6m)
  • POE detection: POE standards: 802.3AF, 802.3AT, 802.3BT
  • Ethernet Port Test: Yes
  • Cable Location: Yes
  • Port Blink: Yes
  • Power: (3) AA Batteries
  • Tester Dimensions: 7.1 x 3.1 x 1.5" (181 x 80 x 39mm)
  • Weight: 12.7oz (360g)
  • Probe Dimensions: 7.8 x 1.9 x 1.3" (197 x 48 x 34mm)
  • Weight: 4.5oz (127g)


• Item Includes:

  • 1x Tracer Probe with Charging Cable
  • 1x Remote Adapter
  • 1x RJ45/RJ11 Adapter Cable
  • 1x RJ11 Cable with Alligator Clips
  • 1x F- to F- Connector Adapter
  • 3x AA Batteries
  • 1x Pouch Case


• Warranty:

  • 1 Year Warranty


• GTIN:

  0614395004958
