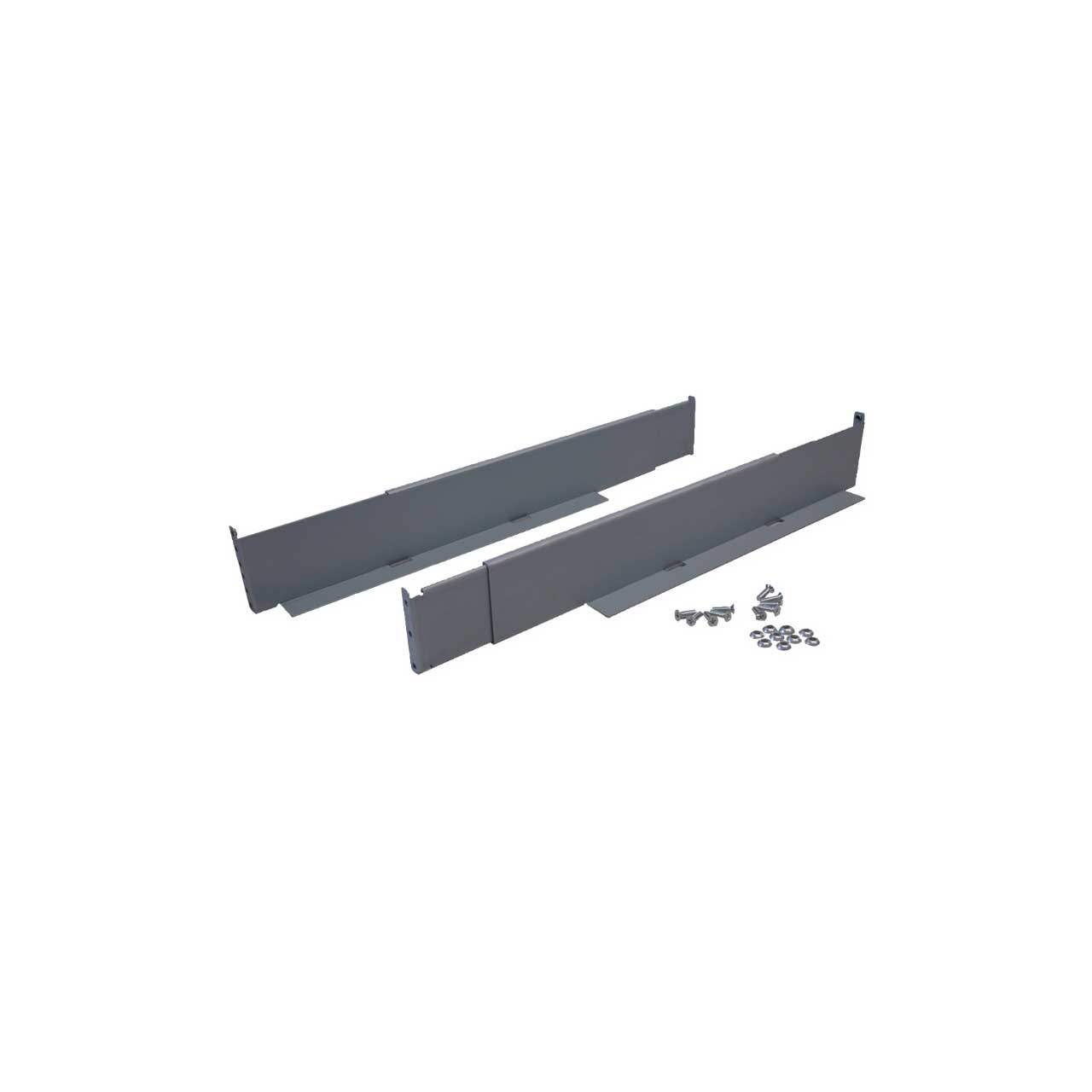

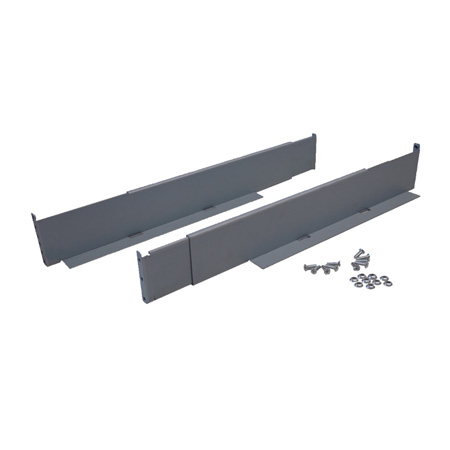

Tripp Lite 4POSTRAILKITHD SmartRack Mounting Rail Kit - Enables 4-Post Rackmount Installation of Select UPS Systems

ITEM #: TRL-4PRAILKITHD MFG #: 4POSTRAILKITHD

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$237.74

Our Price:

$186.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    4POSTRAILKITHD - Overview

    Tripp Lite's 4POSTRAILKITHD is an adjustable rackmount shelf system that supports heavy UPS systems in 4-post rackmount applications. Includes one pair of expandable "L bracket" mounting rails to offer front-to-rear support of select rackmount UPS systems, or other heavy pieces of networking or power protection equipment with a 17.5-in. wide rectangular chassis. A pair of expandable "L brackets" adjust to any setting between 20.5 and 36 in. The kit includes mounting hardware compatible with square-hole racks. Supports up to 500 lbs.

    • Features:

      • Supports heavy UPS systems in 4-post rackmount applications
      • Adjustable to any setting between 20.5 and 36 in.
      • Square-hole rack attachment hardware is included
      • Supports a UPS chassis up to 500 lbs.
      • An adjustable rackmount shelf system that supports heavy UPS systems in 4-post rackmount applications
      • Includes one pair of expandable "L bracket" mounting rails to offer front-to-rear support of rackmount UPS systems
      • Expandable "L brackets" adjust to any setting between 20.5 and 36 inches
      • Includes mounting hardware compatible with square-hole racks
      • Compatible with other heavy pieces of networking or power protection equipment with a 17.5-in. wide rectangular chassis

    • Specifications:

      • Accessories Type: Rackmount Kit
      • Shipping Dimensions (hwd / in.): 6.5 x 4.5 x 24
      • Shipping Dimensions (hwd / cm): 16.51 x 11.43 x 61
      • Shipping Weight (lbs.): 10.5
      • Shipping Weight (kg): 4.8
      • Material of Construction: Steel
      • Weight Capacity - Stationary (lbs.): 500
      • Weight Capacity - Stationary (kg): 225
      • Product Warranty Period (Worldwide): 5-year limited warranty

    • Item Includes:

      • Pair of expandable L brackets
      • Attachment hardware

    • Warranty:

      • 5 Year

    • GTIN:

      0037332182999
