Tripp Lite B119-2X2 2x2 HDMI Matrix Switch for Video & Audio 1920x1200 at 60Hz / 1080p

ITEM #: TRL-B119-2X2 MFG #: B119-2X2

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TRL-B119-2X2

B119-2X2 - Overview

Tripp Lite's B119-2X2 is a 2x2 HDMI Matrix Switch that routes high definition video from any two HDMI sources to any two HDMI displays. It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz. The 2x2 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

  • Features:

    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
    • Share multiple HDMI sources between multiple monitors (2 Input, 2 Output)
    • Allows any input to be routed to any output; or the same input to be routed to multiple outputs
    • Switch between inputs via pushbuttons, remote control, or RS-232 serial
    • Monitors can be located up to 25 ft. from the switch
    • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz
    • HDCP and EDID compatible
    • Mounting hardware included
    • Plug-and-play; No software or drivers required
    • Compatible with all operating systems
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

  • Specifications:

    • AC Adapter: Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
    • Unit Dimensions (hwd / in.): 1.2 x 9.2 x 3.9
    • Unit Dimensions (hwd / cm): 3.05 x 23.37 x 9.91
    • Unit Weight (lbs.): 1.45
    • Unit Weight (kg): 0.66
    • Color: Black
    • Port Control: Push Buttons
    • Ports: 2

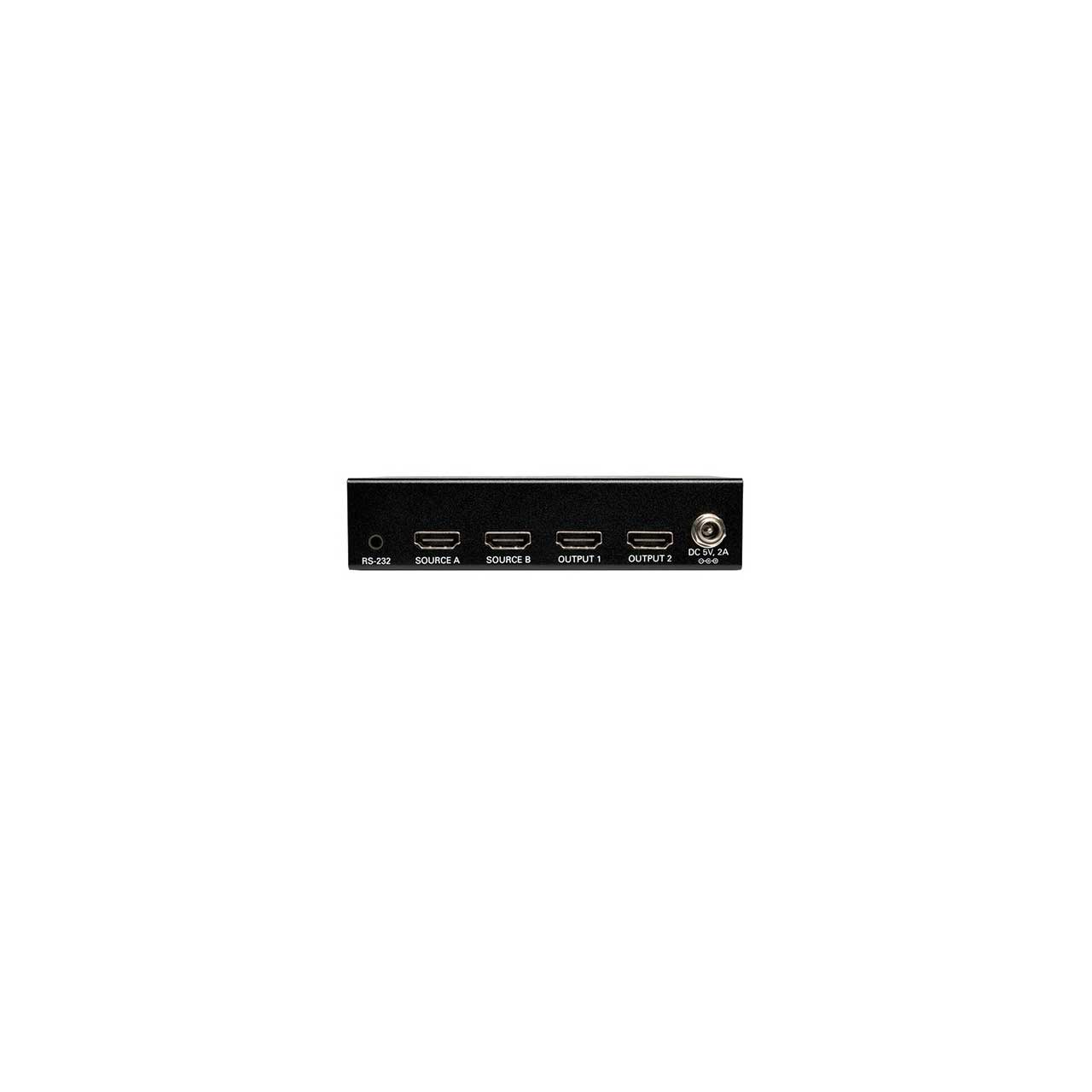

    • Side A - Connector 1: (2) HDMI (FEMALE)
    • Side B - Connector 1: (2) HDMI (FEMALE)
    • Product Warranty Period (Worldwide): 1-year limited warranty

  • Item Includes:

    • B119-2X2 Local Transmitter Unit
    • External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
    • 3.5 mm to DB9 Adapter Cable
    • Mounting Hardware
    • Remote Control
    • Owner’s Manual

  • Warranty:

    • 1 Year

  • GTIN:

    0037332180186
