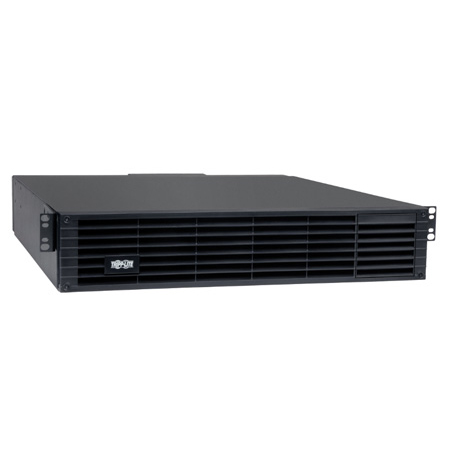

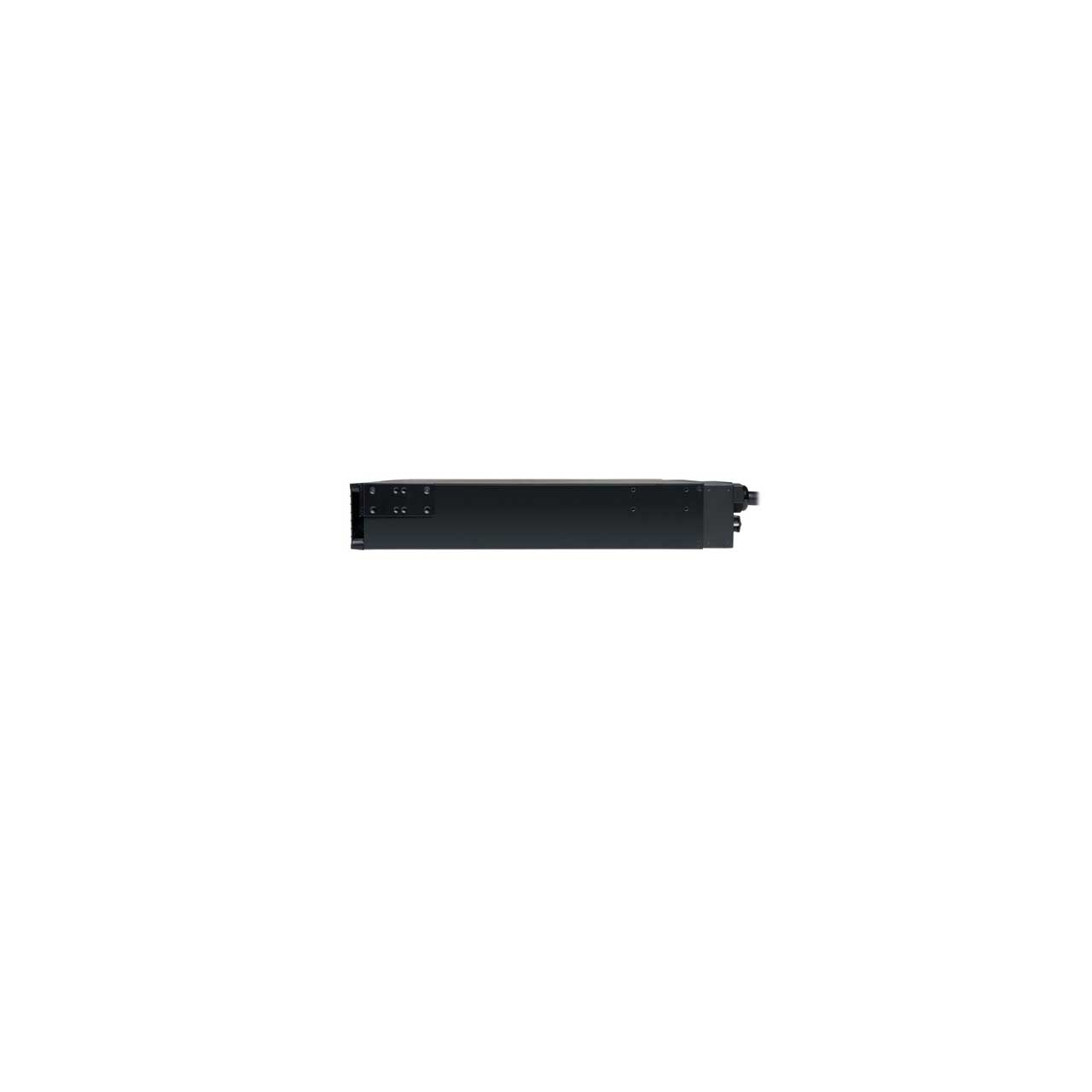

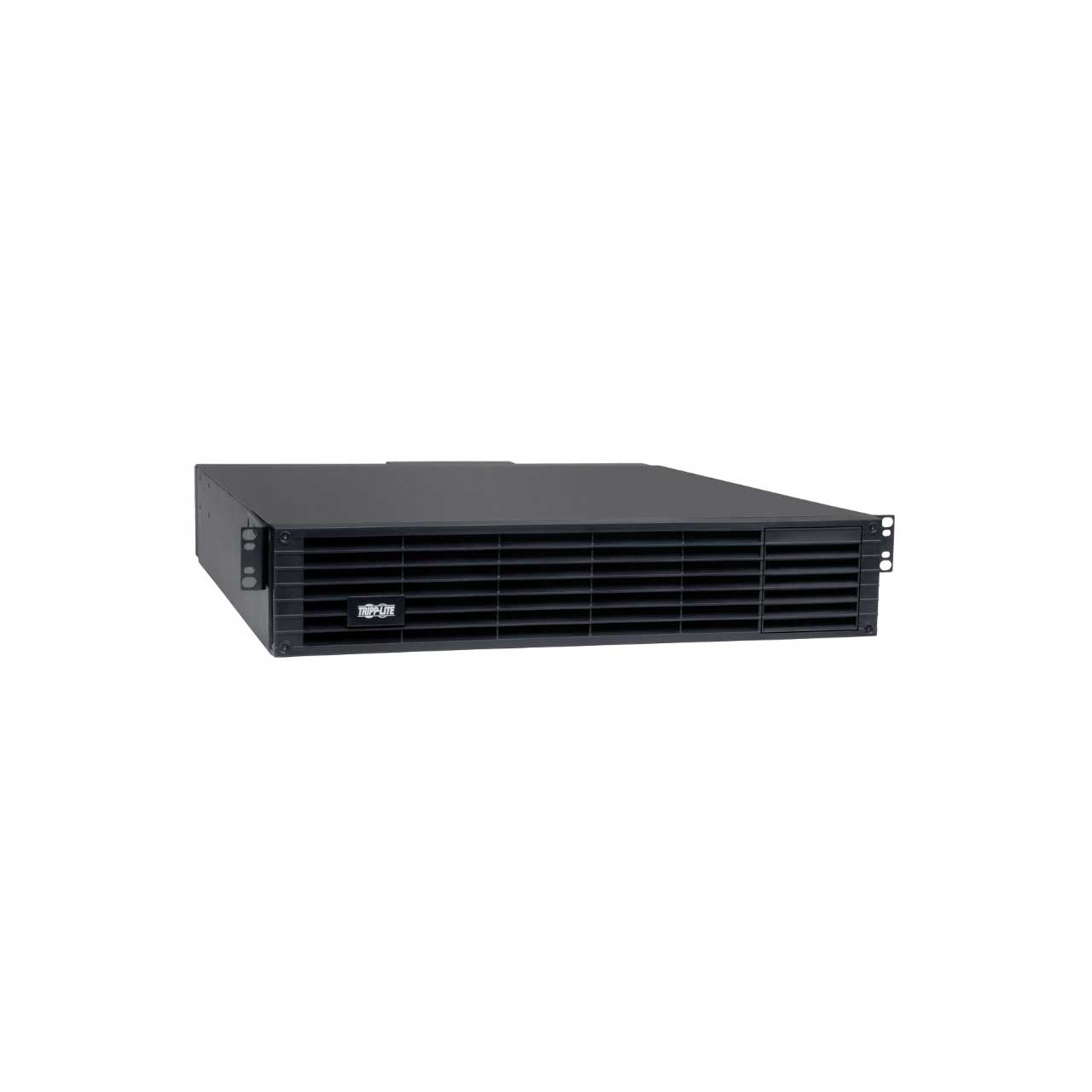

Tripp Lite BP36V27-2US External 36V 2U Rack/Tower Battery Pack for select Tripp Lite UPS Systems (BP36V27-2US)

ITEM #: TRL-BP36V27-2US MFG #: BP36V27-2US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Tripp Lite
Free Shipping with $49 Minimum Order

List Price:

$1,213.06

Our Price:

$850.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BP36V27-2US - Overview

    BP36V27-2US rack/tower external battery pack offers extended battery runtime when used in conjunction with expandable 36V Tripp Lite rackmount or tower UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting, wallmount and upright tower installation available.

    Compatible with these UPS Systems - SMART1000RMXL2U, SMART1200XLHG, SMART1500RMXL2UA, SMART1500RMXLN, SMART1500XL, SMX1200XLHG, SMX1500XLRT2U and other Tripp Lite UPS systems that specify the use of this battery pack.

    • Features:

      • Offers extended-run UPS operation when used in conjunction with compatible 36V DC Tripp Lite UPS systems
      • Includes heavy gauge cabling with high current DC connectors for simple installation
      • Daisychain connector enables the connection of additional compatible 36V external battery packs to the host UPS
      • Included mounting brackets support rackmount installation in 4 post racks using only 2 rack spaces (2U)
      • UPDHDEARKIT option supports 2 point front-rail rackmount installation without rear supports
      • 2POSTRMKITWM option supports balanced 2 point center-mounting in 2 post equipment racks
      • 2POSTRMKITWM option also enables wallmount installation
      • 2-9USTAND option enables upright tower placement


    • Specifications:

      • DC System Voltage (VDC): 36
      • UPS Connection: Attached cable with gray 2-point DC connector
      • Typical Battery Lifespan: 4-6 years typical (North America)
      • Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount
      • Installation Form Factors Supported with Optional Accessories: 2 post rackmount (2POSTRMKITWM); Wallmount (2POSTRMKITWM); Tower (2-9USTAND); 2-4 post front rail rackmount (UPSHDEARKIT)
      • Minimum Required Rack Depth (inches): 29.1
      • Minimum Required Rack Depth (cm): 73.91
      • Shipping Dimensions (hwd / in.): 10.4 x 26.4 x 28.4
      • Shipping Dimensions (hwd / cm): 26.4 x 67 x 72.1
      • Shipping Weight (lbs.): 102
      • Shipping Weight (kg): 46.3
      • Unit Dimensions (hwd / in.): 3.4 x 17.3 x 22.6
      • Unit Dimensions (hwd / cm): 8.6 x 7.9 x 57.4
      • Unit Weight (lbs.): 68.9
      • Unit Weight (kg): 31.25
      • Material of Construction: Steel
      • External Battery Pack Form Factor: Rack/Tower
      • Minimum Required Rack Depth (mm): 739
      • Product Warranty Period (U.S. & Canada): 2-year limited warranty
      • Product Warranty Period (International): 1-year limited warranty
      • Product Warranty Period (Mexico): 1-year limited warranty
      • Product Warranty Period (Puerto Rico): 1-year limited warranty


    • Item Includes:

      • BP36V27-2US external battery pack with attached DC cabling

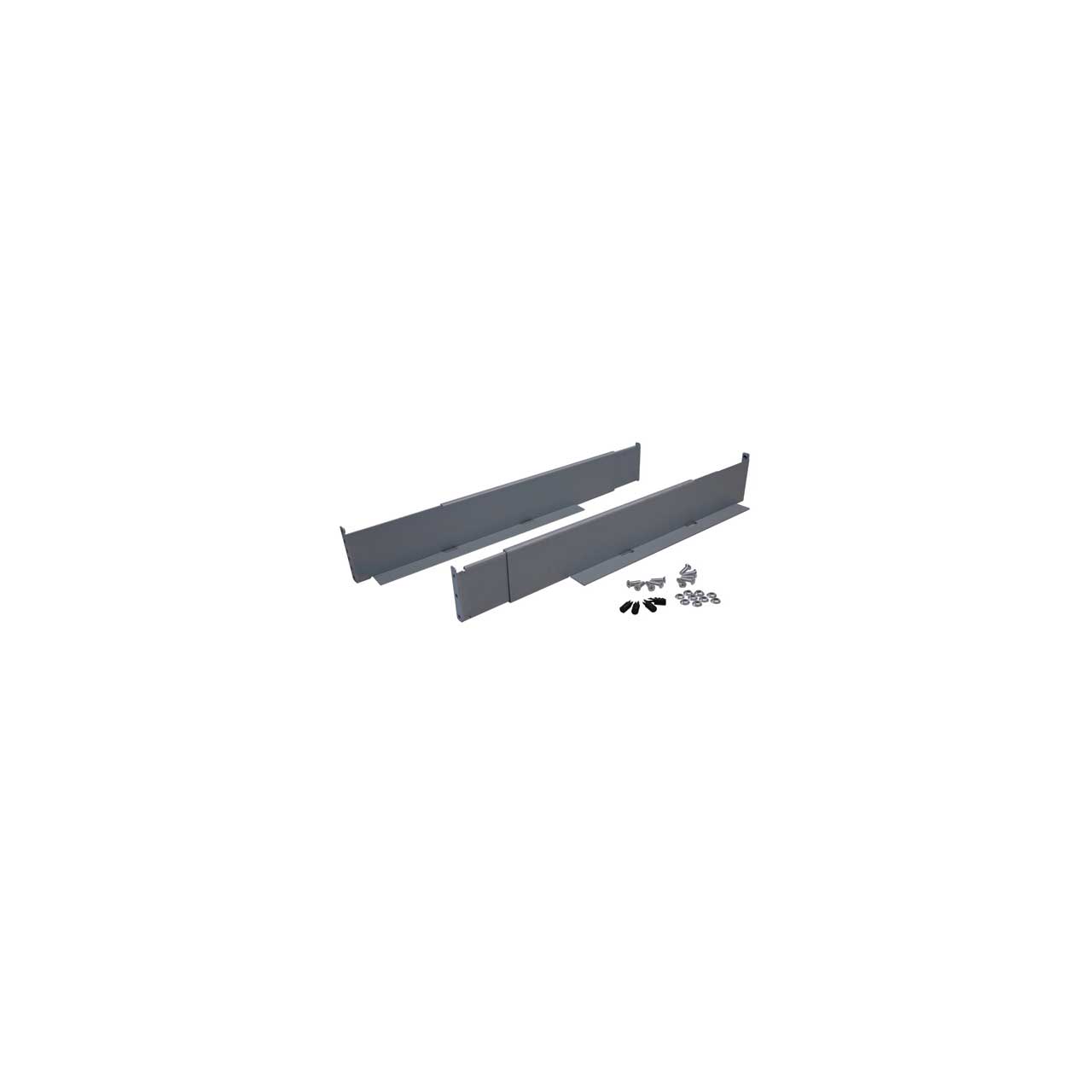

      • 4 post compatible mounting hardware
      • Owner's manual


    • Warranty:

      • 2 Year


    • GTIN:

      0037332181770
