Tripp Lite N224-01K-Bk Cat6 Gigabit Bulk Solid Plenum-Rated PVC Cable - Black - 1000 Foot

ITEM #: TRL-N224-01K-BK MFG #: N224-01K-BK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,223.00

Our Price:

$474.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    N224-01K-BK - Overview

    Premium high-speed cabling designed for Cat6 premise (in-wall) applications in air ducts and drop ceilings, such as the distribution of data, voice and digital video across Gigabit Ethernet networks.

    Perfect Solution for High-Speed Cat6 Premise Applications in Air Ducts and Drop Ceilings
    - Designed for distributing data, voice and digital video across Gigabit Ethernet networks
    - Delivers speeds up to 550 MHz/1 Gbps
    - Ideal for horizontal wiring applications, including 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications

    Premium Construction for Superior Performance

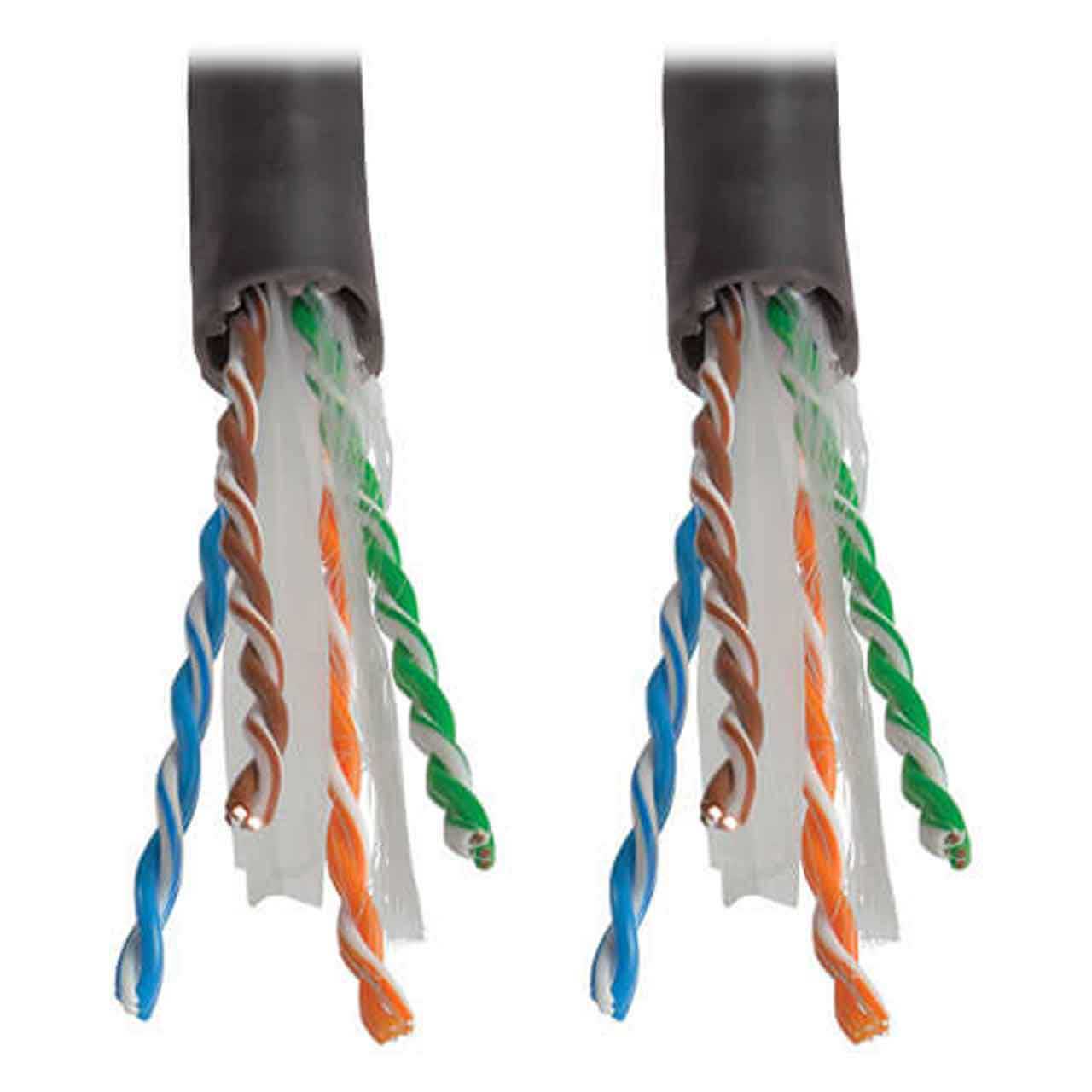

    - Made from 23 AWG copper wire
    - 4-pair solid UTP
    - Minimum near-end crosstalk
    - Plenum-rated CMP jacket
    - Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11)

    • Features:

      • Ideal for horizontal applications in air ducts and drop ceilings
      • Rated for 550 MHz/1 Gbps communications
      • High-quality 23 AWG 4-pair solid copper wire
      • Plenum-rated CMP jacket
      • Meets IEEE 802.3ab and ANSI/EIA/TIA 568 standards

    • Specifications:

      • Physical:
      • Cable Jacket Color: Black
      • Cable Jacket Material: PVC
      • Cable Jacket Rating: CMP
      • Cable Shielding: UTP
      • Conductor Material: Solid Copper
      • Cable Length (ft.): 1000
      • Cable Length (in.): 12000
      • Shipping Dimensions (hwd / in.): 13.78 x 14.17 x 13.78
      • Shipping Weight (lbs.): 31.00

        Communications:
      • Bandwidth per TIA Standard: 250 MHz
      • Maximum Bandwidth as Tested: 500 MHz
      • Network Compatibility: 1 Gbps (Gigabit)

        Connections:
      • Side A - Connector 1: Bare Wire
      • Side B - Connector 1: Bare Wire
      • Crossover Wiring: No
      • Connector Type: Bare Wire

    • Item Includes:

      • 1x N224-01K-BK Cat6 Gigabit Bulk Solid-Core Plenum-Rated CMP Cable, Black, 1000 ft.

    • GTIN:

      0037332196675
