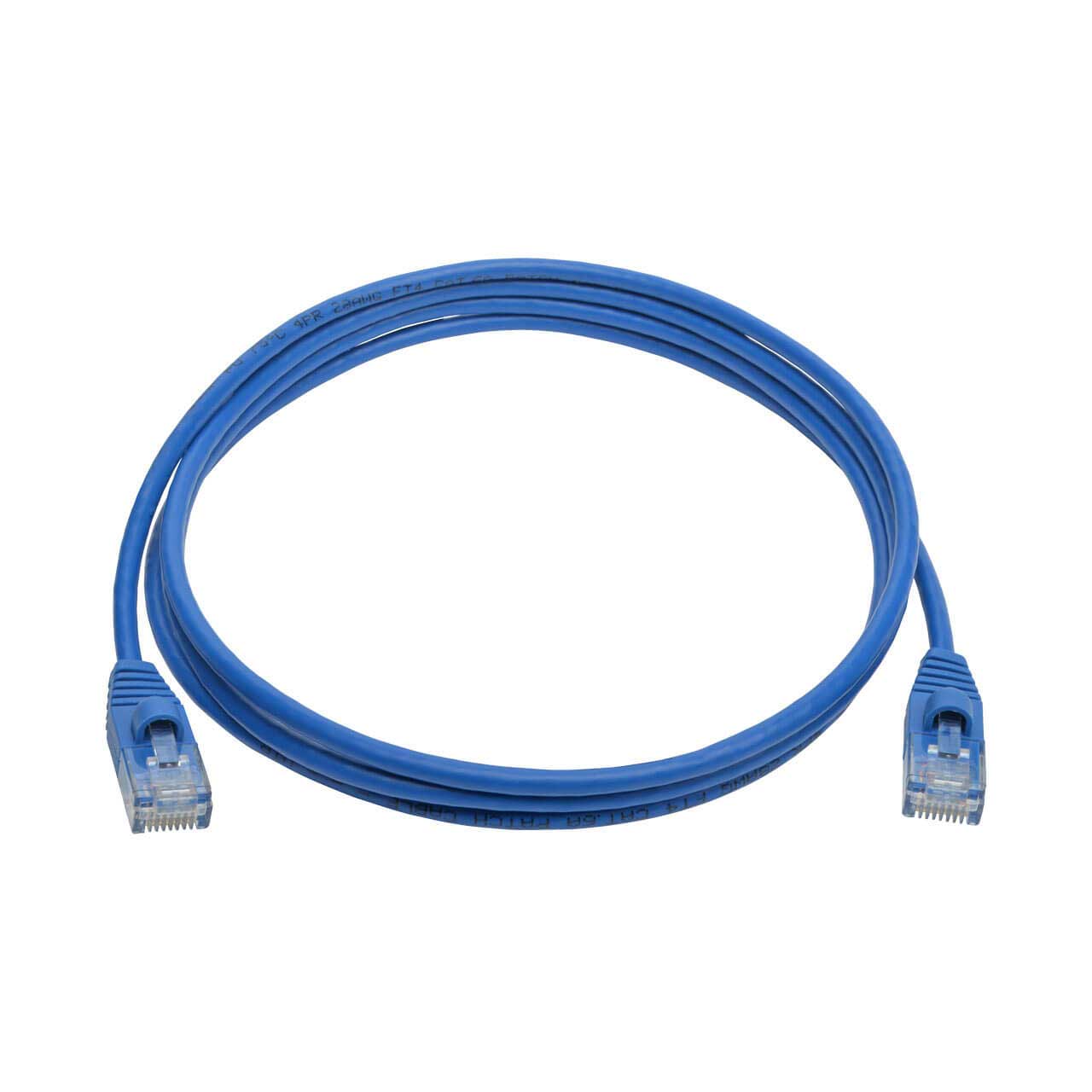

Tripp Lite N261-S05-BL Slim Cat6A 10G Snagless Molded UTP Ethernet Network Patch Cable - (RJ45 M/M)- Blue - 5-Ft

N261-S05-BL - Overview

Ideal for connecting components like computers, servers, routers, printers, patch panels and switches in high-density data centers

• Features:

  • Recommended Solution for Your Cat6a High-Density Network Connections
  • Ideal for connecting components like computers, servers, routers, printers, patch panels and switches in high-density data centers
  • Designed for fast transmission and excellent signal quality
  • Ensures peak performance throughout your LAN
  • Supports Ethernet speeds up to 10 Gbps
  • Special Slim Design
  • More than 38% smaller in diameter than standard Cat6a cable
  • Increases airflow in tight spaces
  • Increased flexibility for installing around corners and through cable management panels
  • Cuts down on bothersome cable clutter
  • Premium Construction for Superior Performance
  • High-quality 28 AWG 4-pair stranded copper wire
  • Minimal near-end crosstalk ensures a strong signal
  • Rugged PVC jacket stands up to long-term use

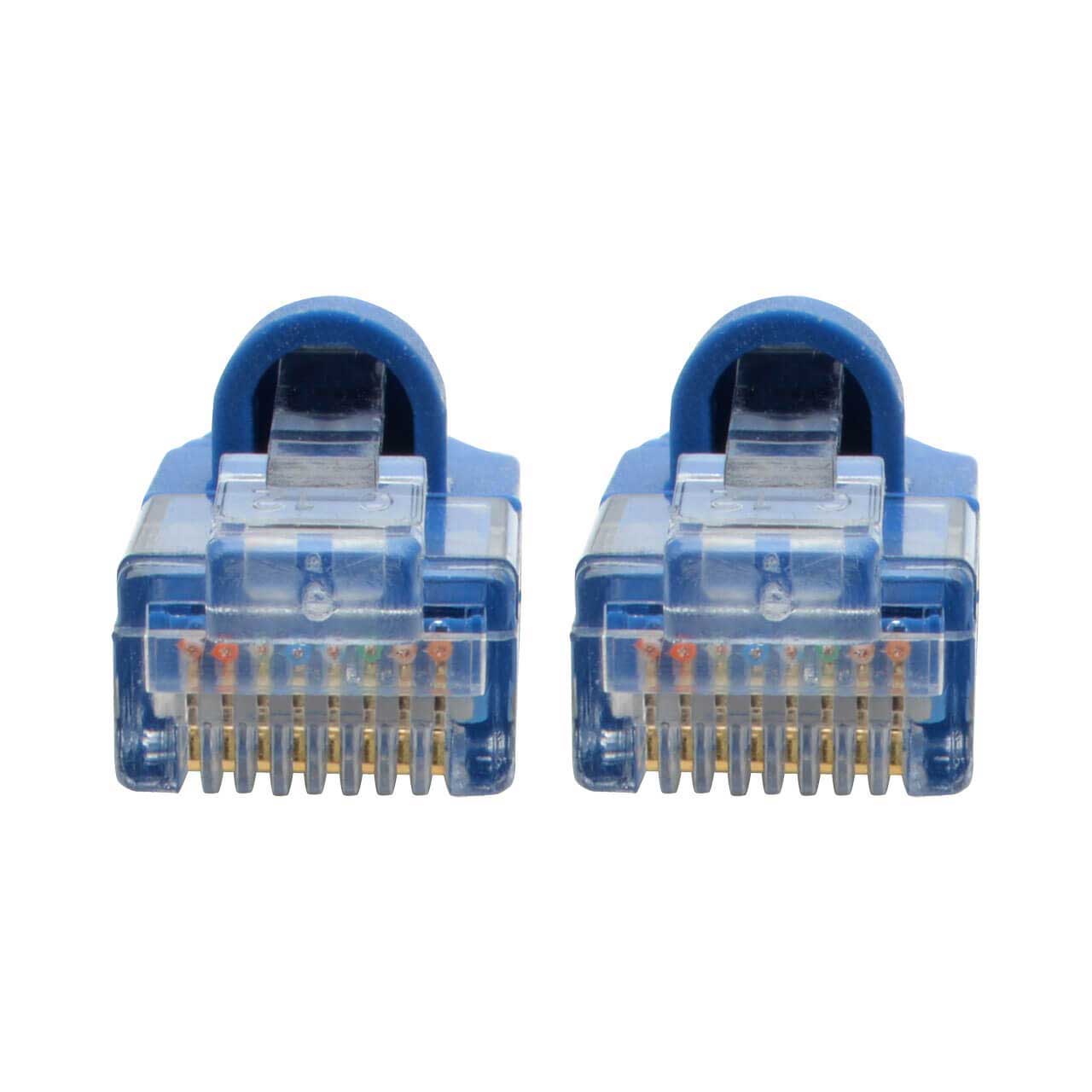

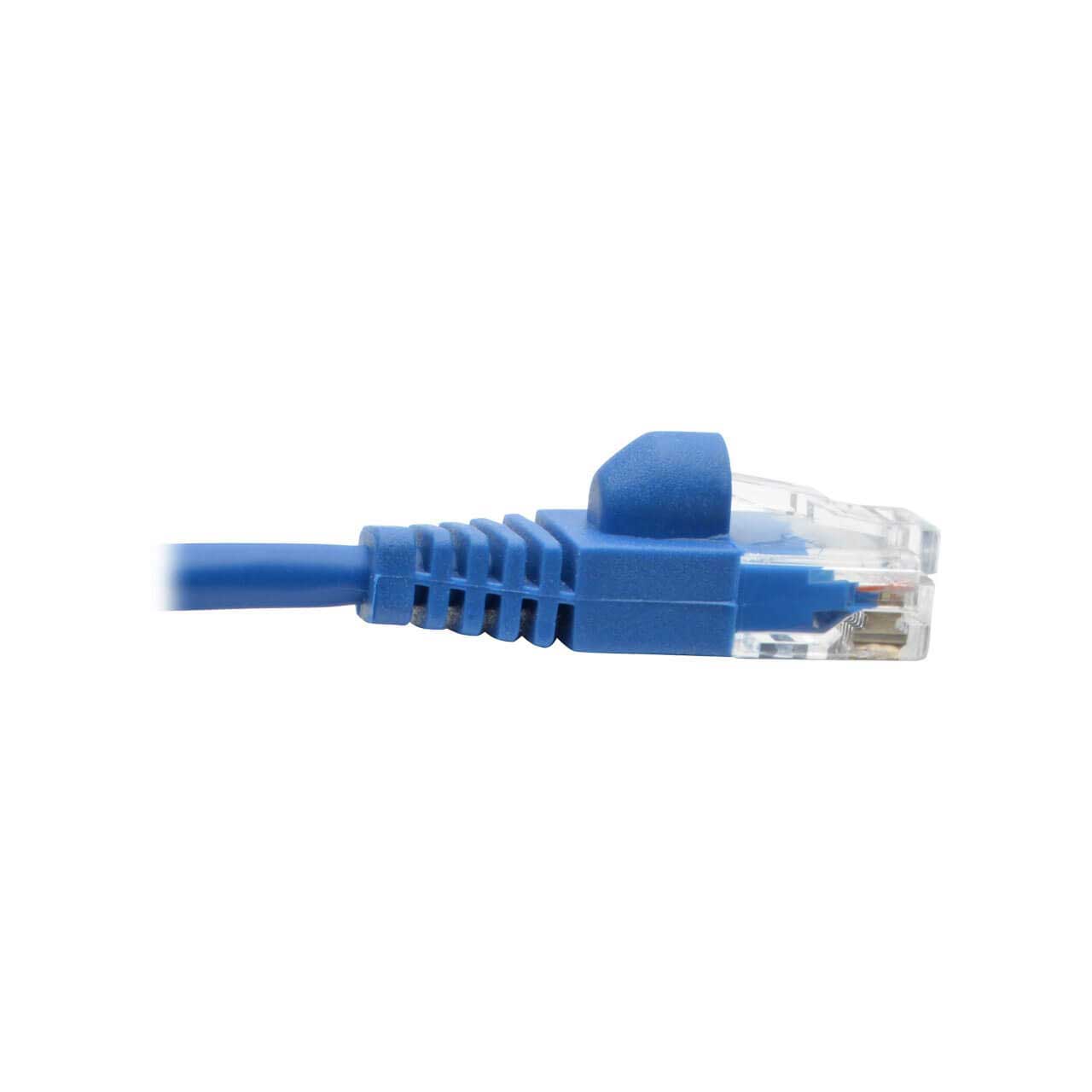

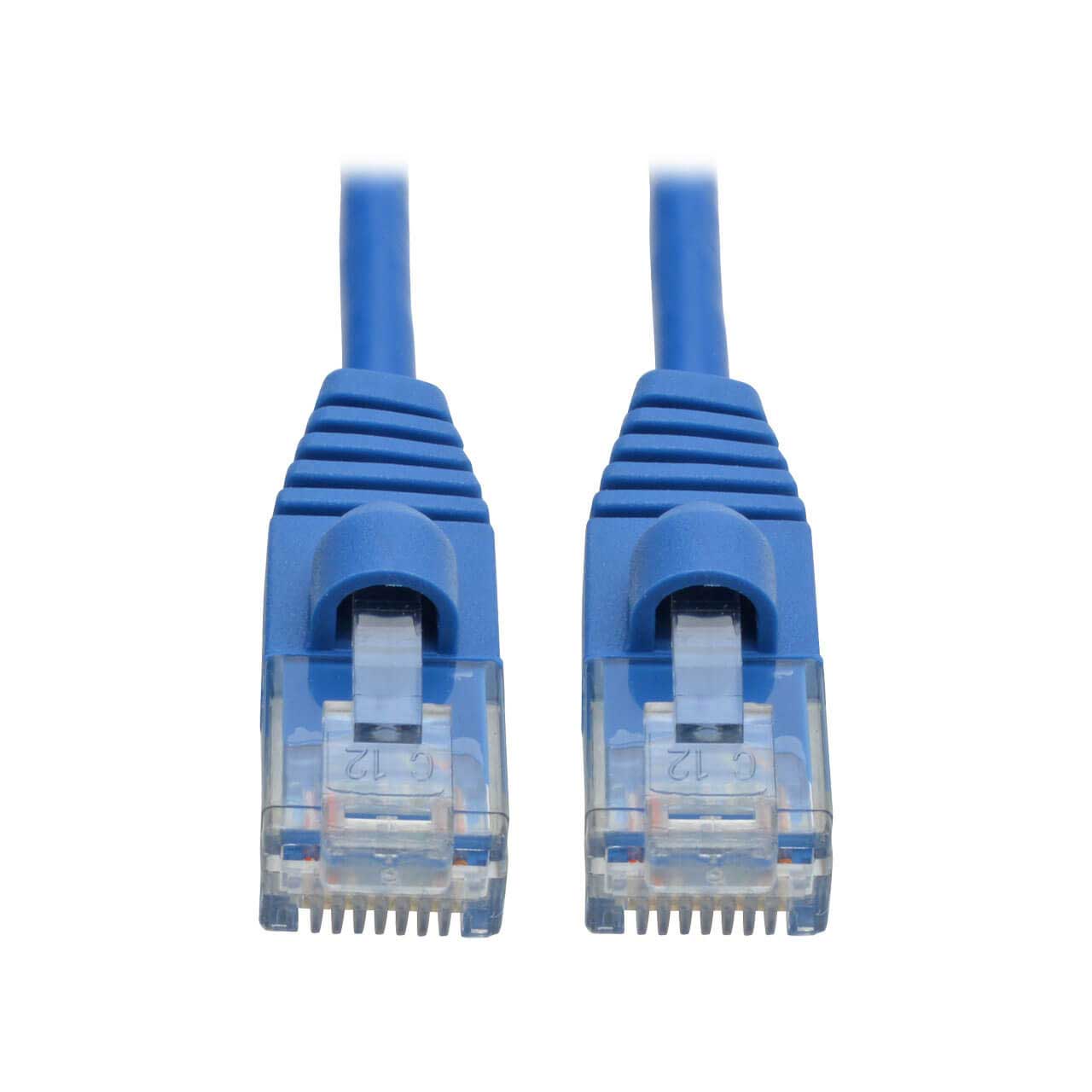

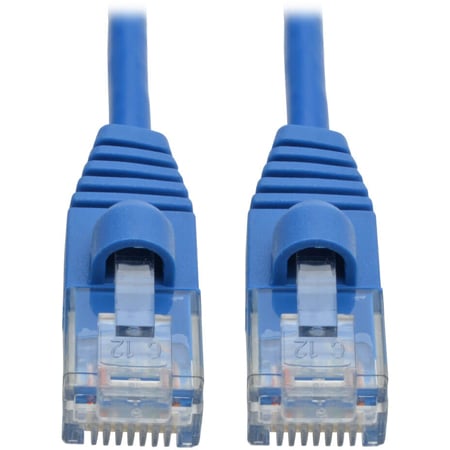

  • Snagless RJ45 Connectors
  • Molded snagless boots prevent locking tabs from damage during installation
  • Integral strain relief protects cable and connectors from stress and cracking
  • Tested and Certified Using Trusted Fluke Equipment
  • Supports IEEE 802.3afDTE power


• Specifications:

  • Cable Jacket Color: Blue
  • Cable Jacket Material: PVC
  • Cable Shielding: UTP
  • Cable Outer Diameter (OD): 3.8 mm
  • Number of Conductors: 4 Pair
  • Conductor Material: Stranded Copper
  • Conductor Gauge: 28 AWG
  • Cable Length (ft.): 5
  • Cable Length (in.): 60
  • Shipping Dimensions (hwd / in.): 0.50 x 7.00 x 9.00
  • Shipping Weight (lbs.): 0.10
  • Operating Temperature Range: 14° to 122°F (-10° to 50°C)
  • Storage Temperature Range: 5° to 140°F (-15° to 60°C)
  • Operating Humidity Range: 0% to 90% RH, Non-Condensing
  • Storage Humidity Range: 0% to 90% RH, Non-Condensing
  • Side A - Connector: 1 RJ45 (MALE)
  • Side B - Connector: 1 RJ45 (MALE)
  • Contact Plating: Gold
  • Connector Type: Snagless; Molded
  • Wiring Configuration: EIA/TIA 568B
  • Bandwidth per TIA Standard: 500 MHz
  • Maximum Bandwidth as Tested: 600 MHz
  • Network Compatibility: 10 Gbps
  • IEEE Standards Supported: 802.3an
  • Product Compliance: CE (Europe); RoHS; IEEE 802.3an 10GBase-T; REACH; UKCA


• Item Includes:

  • 1x N261-S05-BL Cat6a 10G Snagless Molded Slim UTP Network Patch Cable (M/M), Blue, 5 ft.


• Warranty:

  • Lifetime Limited Warranty


• GTIN:

  0037332203892
