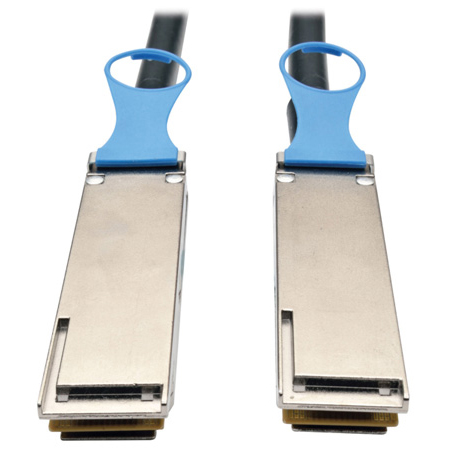

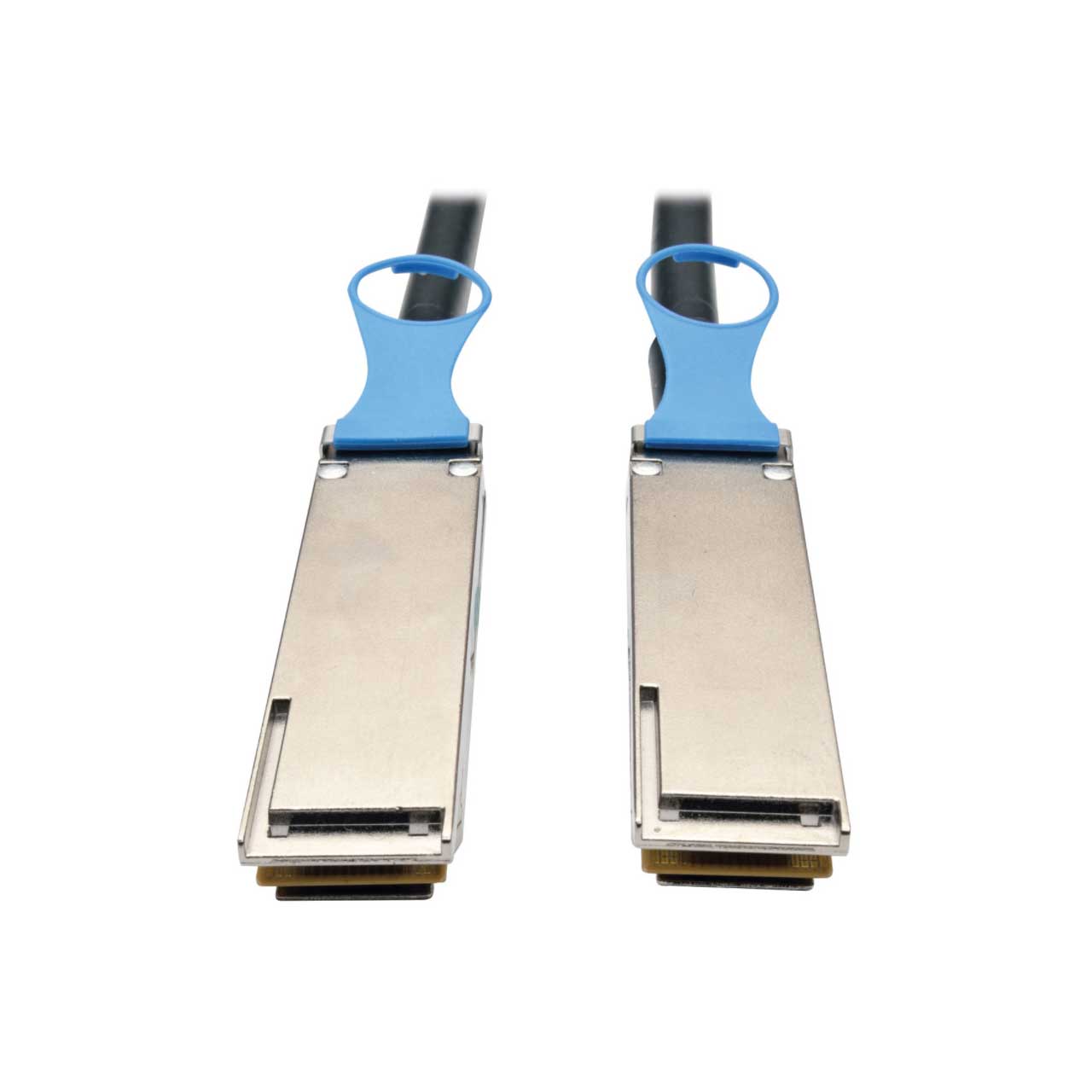

Tripp Lite N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M) 3 feet

ITEM #: TRL-N28201M28-BK MFG #: N282-01M-28-BK

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$584.83

Our Price:

$258.21

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    N282-01M-28-BK - Overview

    The N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable provides next-generation performance by combining four 28 Gbps SFP channels into one high-density cable. It’s ideal for connecting active network equipment in data centers, high-end servers and enterprise wiring closets. This one-meter copper cable integrates a 100G Ethernet-optimized (100 GbE) 38-position “board-as-connector” design with zinc die-cast male QSFP+ connectors for superior EMI resistance, minimal insertion loss and low crosstalk for better performance. Ergonomic pull-tab ejectors make connecting to equipment a quick, easy task. Eight-pair wire technology is optimized for bandwidth-intense applications, including 100-Gigabit Ethernet (100GBASE-CR4), 128G Fibrer Channel and EDR 4x InfiniBand.

    Flexible 26 AWG conductors maintain a smooth high-frequency response. The N282-01M-28-BK undergoes a rigorous assembly and testing procedure aimed at eliminating unnecessary signal loss. It’s fully compliant with the MSA (Multi-Source Agreement) SFF-8665 architecture for guaranteed compatibility with all QSFP and QSFP+ ports, as well as RoHS and IEEE 802.3bj.

    • Features:

      • Connect Network Equipment at Speeds Up to 100 Gbps
      • Combines four 28 Gbps SFP channels into single high-density cable
      • Ideal for data centers, high-end servers and enterprise wiring closets
      • Multi-platform support for 128G Fibre Channel and EDR InfiniBand
      • Lower port cost and power budget when compared to fiber optics Top-of-the-Line Construction
      • 100 GbE 38-position “board-as-connector” design
      • Zinc die-cast male QSFP+ connectors for superior EMI resistance
      • Ergonomic pull-tab ejectors for quick, easy connections
      • 8-pair wire technology optimized for bandwidth-intense applications
      • Flexible 26 AWG conductors maintain smooth high-frequency response Fully Compliant and Compatible
      • Meets or exceeds strict 100-Gigabit Ethernet (100GBASE-CR4) standards
      • Complies with IEEE 802.3bj and RoHS
      • Complies with latest QSFP28 MSA (Multi-Source Agreement) SFF-8665 architecture
      • Compatible with all QSFP and QSRP+ ports

    • Specifications:

      • Cable Length (ft.): 3.3
      • Cable Length (m): 1
      • Color: Black
      • Side A - Connector 1: QSFP+ (MALE)
      • Side B - Connector 1: QSFP+ (MALE)
      • Certifications: MSA SFF-8665, IEEE 802.3bj, RoHS, REACH
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • N282-01M-28-BK QSFP28 to QSFP28 100GbE Passive DAC Copper InfiniBand Cable (M/M), 3-foot

    • Warranty:

      • Lifetime

    • GTIN:

      0037332193148
