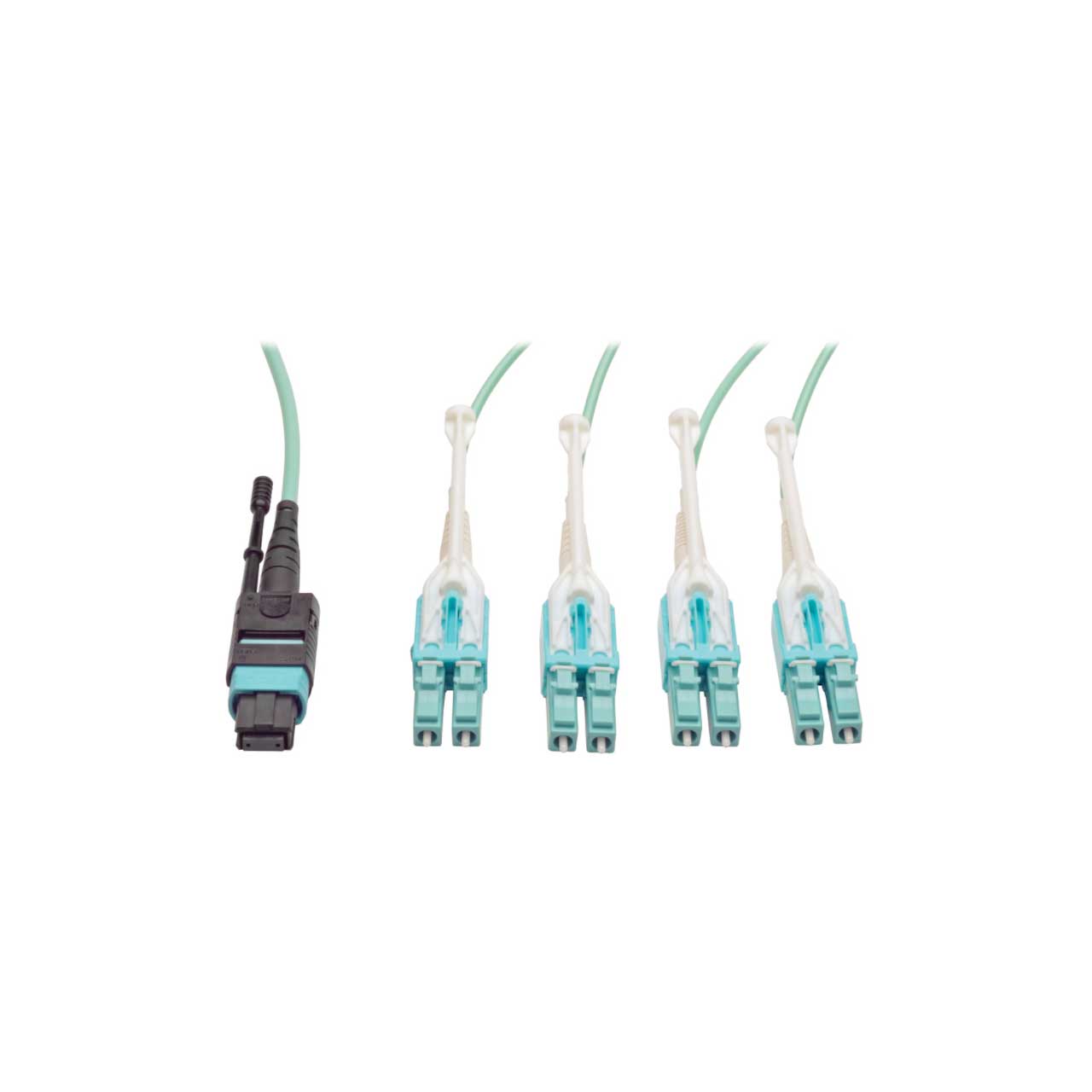

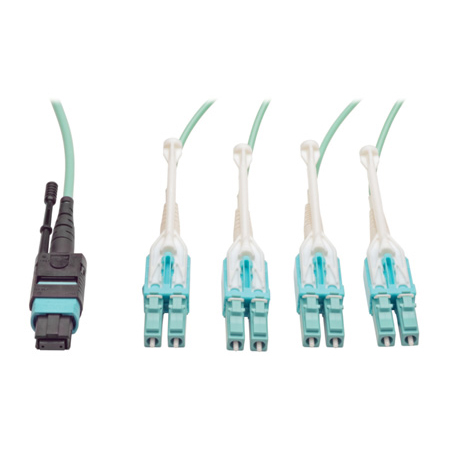

Tripp Lite N844-01M-8LC-PT MTP/MPO Fan-out Cable with Push/Pull Tab Connectors MTP/MPO to 8xLC 40GbE Plenum - Aqua 3 ft

ITEM #: TRL-N84401M8LCPT MFG #: N844-01M-8LC-PT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Tripp Lite
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$235.60

Our Price:

$172.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    N844-01M-8LC-PT - Overview

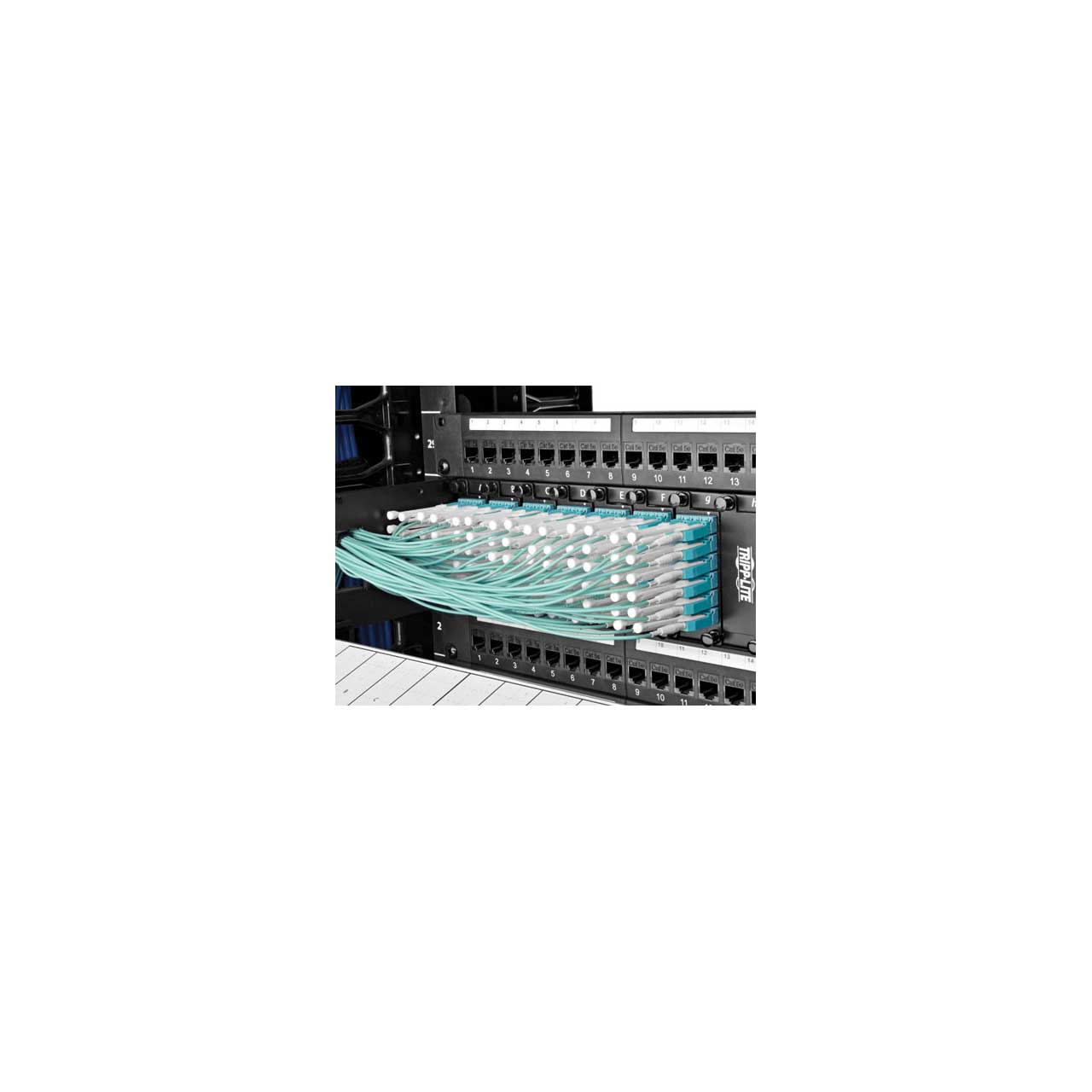

    Tripp Lite's Premium MPO/MTP Multi-Fiber cabling system is ideally suited for a high density environment that demands space saving and reduced cable management solutions. MPO/MTP fan-outs support various connections from multi-fiber to single-fiber out. N844-xxM-8LC-P cables utilize 8 fibers to fully transmit 40GBASE-SR, 4 fibers in each direction transmitting at 10Gbps.

    It includes push/pull tab connectors for maximum accessibility; install or remove the cable with one hand without needing additional tools. Its slim, uniboot design provides space savings, while its premium-grade ceramic ferrules are designed for 10GbE and faster applications. Backward compatible with existing 50/125 fiber. Plenum rated jacket.

    • Features:

      • MTP / MPO to 8 x LC Fan-out Cable
      • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
      • Slim uniboot design saves space and makes cables easier to manage
      • Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
      • Sturdy plastic housing for long-lasting durability
      • OM3, 40GbE rated, 40GBASE-SR4
      • Backward compatible with existing 50/125 fiber
      • Plenum rated jacket


    • Specifications:

      • Cable Length (ft.): 3.3
      • Cable Length (m): 1
      • Color: Aqua
      • Network Speed: 10Gbps / 40Gbps / 100Gbps
      • Side A - Connector 1: 12-STRAND MTP (FEMALE)
      • Side B - Connector 1: (8) LC DUPLEX (MALE) WITH PULL/PUSH TAB
      • Product Warranty Period (Worldwide): Lifetime limited warranty


    • Item Includes:

      • 3-foot MTP / MPO Fan-out Cable, MTP/MPO to 8 x LC, 40GbE OM3 Plenum


    • Warranty:

      • Lifetime


    • GTIN:

      0037332185259
