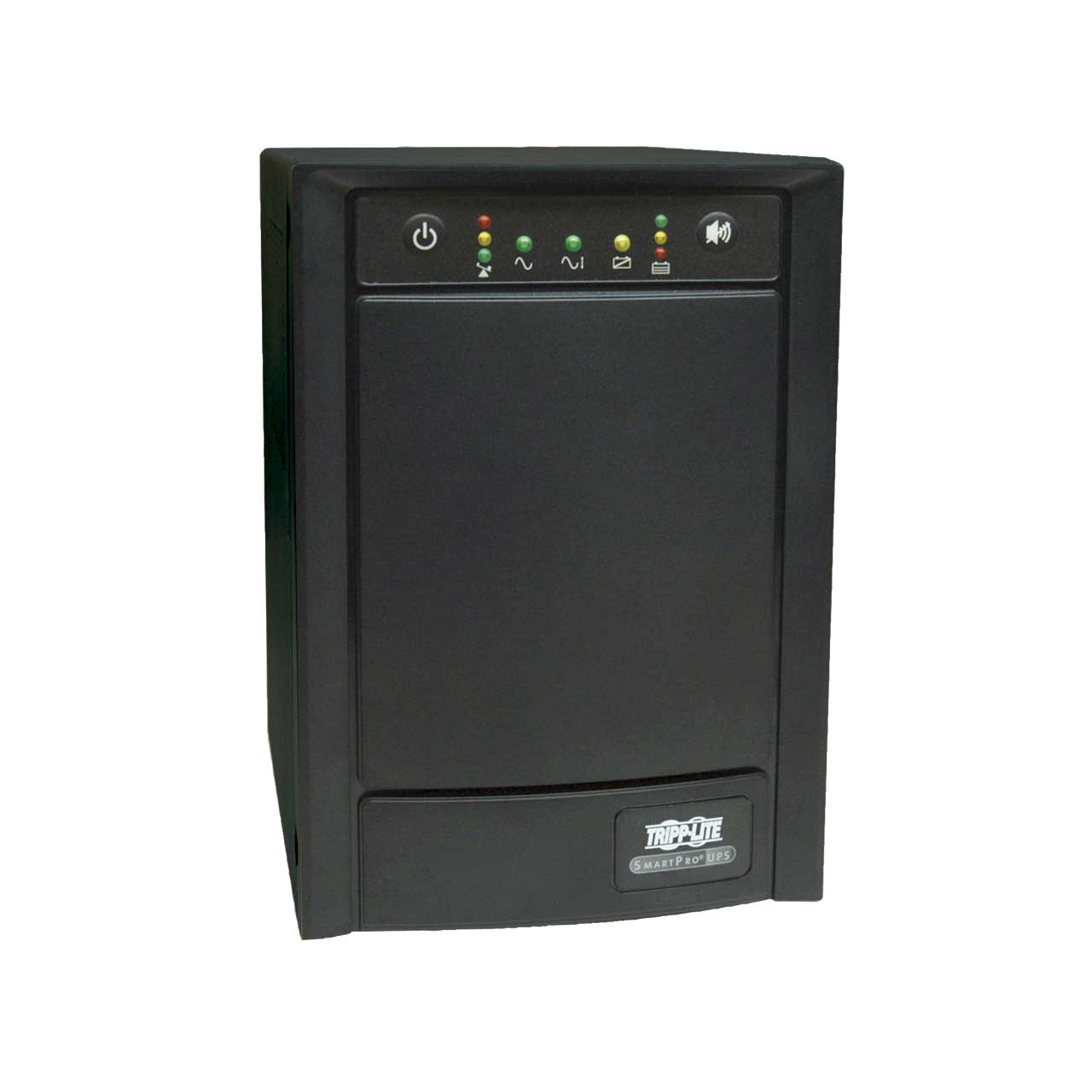

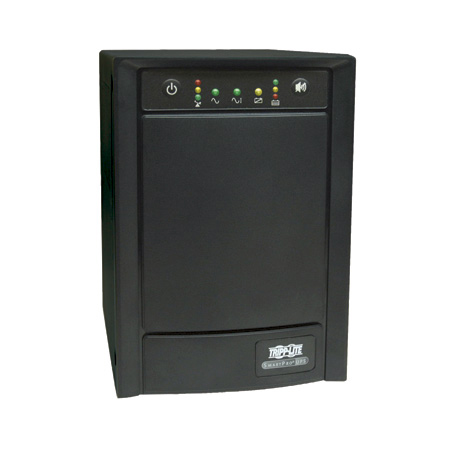

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$696.38

Our Price:

$473.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMART750SLT - Overview

    Tripp Lite's SMART750SLT intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 15 minutes half load runtime and 5 minutes fully loaded. 750VA/500 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles total, 4 of which offer surge suppression-only for less critical desktop accessories. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output power control for delayed or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Built-in audible alarm and LEDs offer status notification for line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Also includes single line TEL/DSL or Ethernet line surge suppression. Attractive, all-black tower housing.

    • Features:

      • SMART750SLT line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
      • 750VA/500 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
      • Large internal batteries offer runtimes of 17.8 minutes at half load (375VA/250 watts) and 6.5 minutes at full load (750VA/500 watts)
      • Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110 or 120V nominal output over an input voltage range of 83 to 145V
      • Includes 8 NEMA 5-15R output receptacles total, 4 with UPS and surge suppression for critical devices and 4 with surge-only protection for less critical accessories
      • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification, event logging and running user-defined script commands
      • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software.
      • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
      • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for delayed or immediate reboot of connected equipment
      • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
      • Status LEDs offer continuous status information of UPS operating parameters and site power quality
      • Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
      • Single line TEL/DSL and network Ethernet line surge suppression

    • Specifications:

      • Output Volt Amp Capacity (VA): 750
      • Output Watt Capacity (Watts): 500
      • Power Factor: 0.7
      • Nominal Output Voltage(s) Supported: 100V; 110V; 120V
      • Nominal Voltage Details: 120V default (voltage selection via back panel switches)
      • Frequency Compatibility: 50 / 60 Hz
      • Output Voltage Regulation (Line Mode): -13%, +15%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Output Receptacles: (8) 5-15R
      • UPS Output Receptacles (Surge Suppression Only): 4 UPS outlets, 4 surge-only outlets
      • Output AC Waveform (AC Mode): Sine wave
      • Output AC Waveform (Battery Mode): Pure Sine wave
      • Rated input current (Maximum Load): 12A
      • Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 120V AC
      • Recommended Electrical Service: 15A 120V
      • Input Phase: Single-Phase
      • Full Load Runtime (min.): 6.5 min. (500w)
      • Half Load Runtime (min.): 17.8 min. (250w)
      • DC System Voltage (VDC): 24
      • Battery Recharge Rate (Included Batteries): Less than 8 hours from 10% to 90% (typical, full load discharge)
      • Internal UPS Replacement Battery Cartridge: RBC24-SLT
      • Communications Interface: USB; DB9 Serial; Slot for SNMP/Web interface
      • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
      • Communications Cable: USB and DB9 cabling included
      • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
      • Low Voltage Transfer to Battery Power (Setpoint): 95V (120V), 87V (110V), 83V (100V)
      • High Voltage Transfer to Battery Power (Setpoint): 145V (120V), 133V (110V), 121V (100V)
      • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
      • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

    • Item Includes:

      • SMART750SLT UPS System
      • PowerAlert Software CD-Rom
      • USB and serial cabling
      • User manual with warranty information

    • GTIN:

      0037332124395
