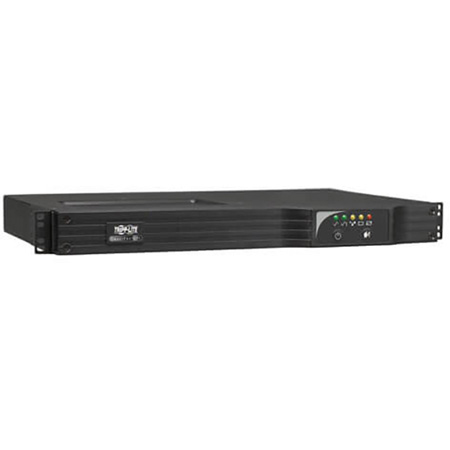

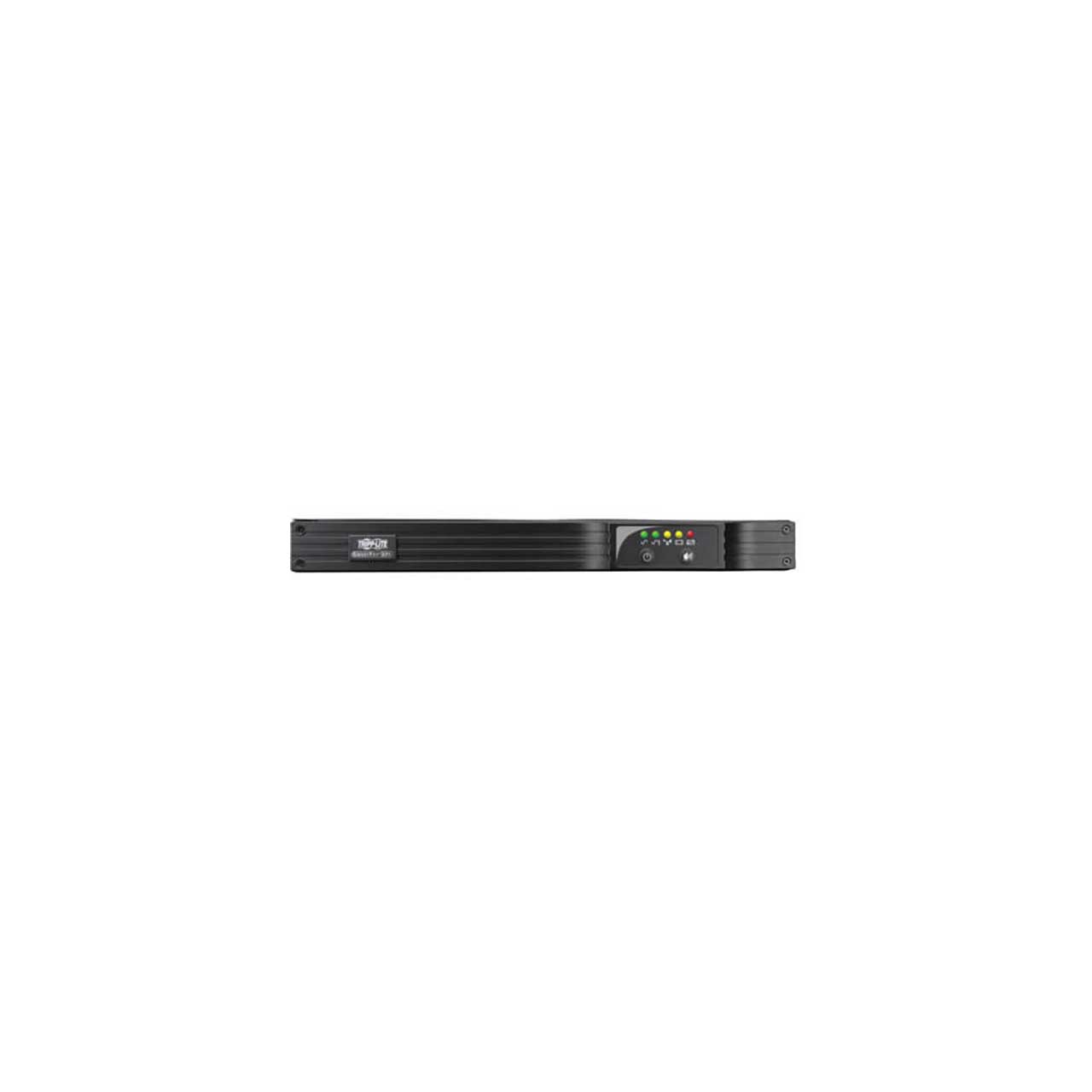

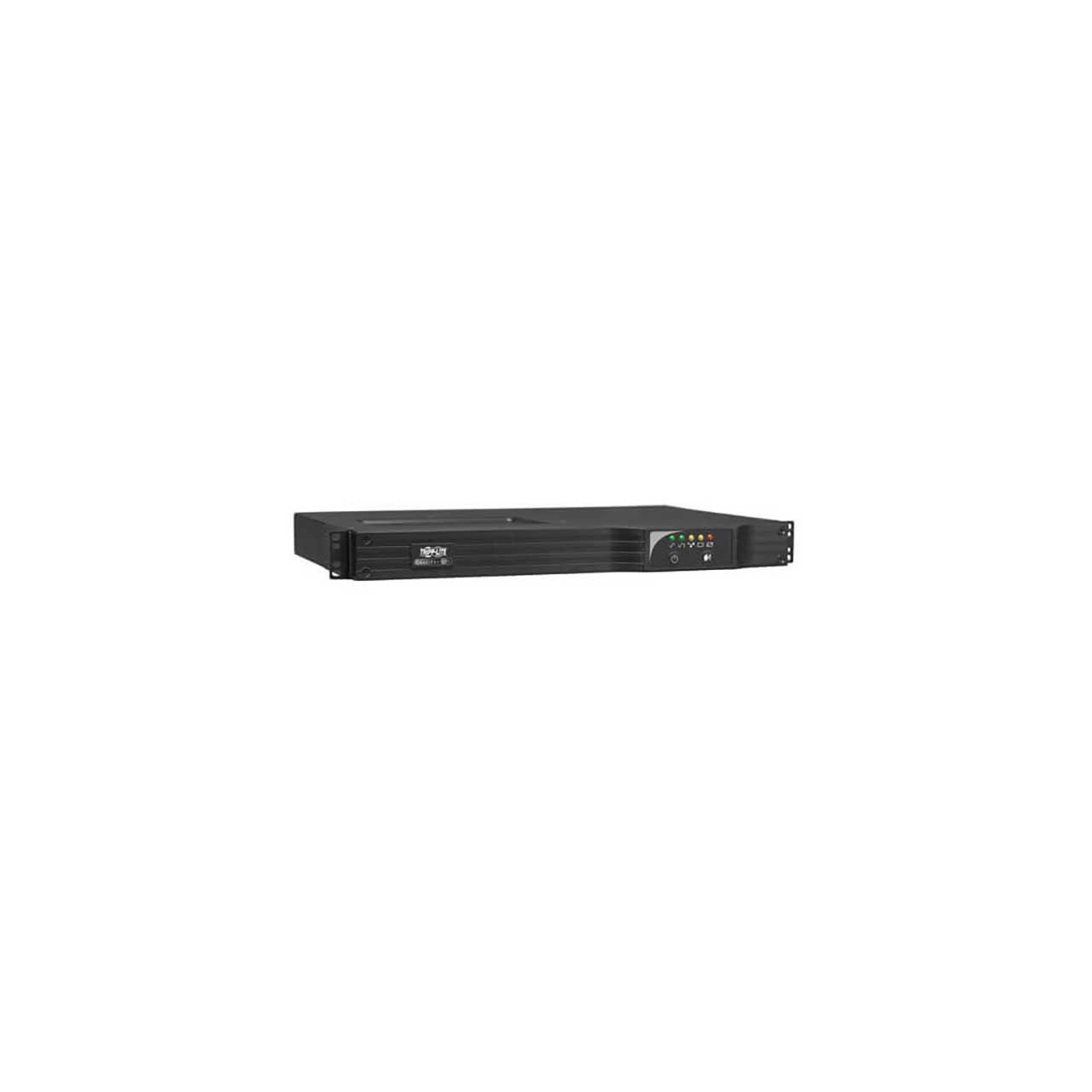

Tripp Lite SMX500RT1U 500 VA 300W UPS 230V

ITEM #: TRL-SMX500RT1U MFG #: SMX500RT1U

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$486.10

Our Price:

$315.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SMX500RT1U - Overview

    Tripp Lite's SMX500RT1U intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only one rack space (1U) in a 2 or 4 post rack, with included accessories for upright tower placement. Large internal batteries offer 14.6 minutes half load runtime and 3.2 minutes at full load. Maintains regulated 230V nominal output without using battery power during brownouts as low as 187V. 500VA/300 watt power handling capability is compatible with networking, telecom and other sensitive electronic applications. Includes a total of 7 IEC C13 outlets (6 UPS with a single outlet that can be individually controlled via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment, and 1 surge-only receptacle. Supports simultaneous remote monitoring of UPS and site power conditions via built-in USB, DB9 monitoring ports and network management card slot. PowerAlert UPS monitoring and unattended shutdown software is available via free download. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency situation. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme.

    • Features:

      • Tripp Lite SMX500RT1U .5 kVA / 500VA / 300 watt line interactive UPS
      • 1U rack/tower compatible form factor

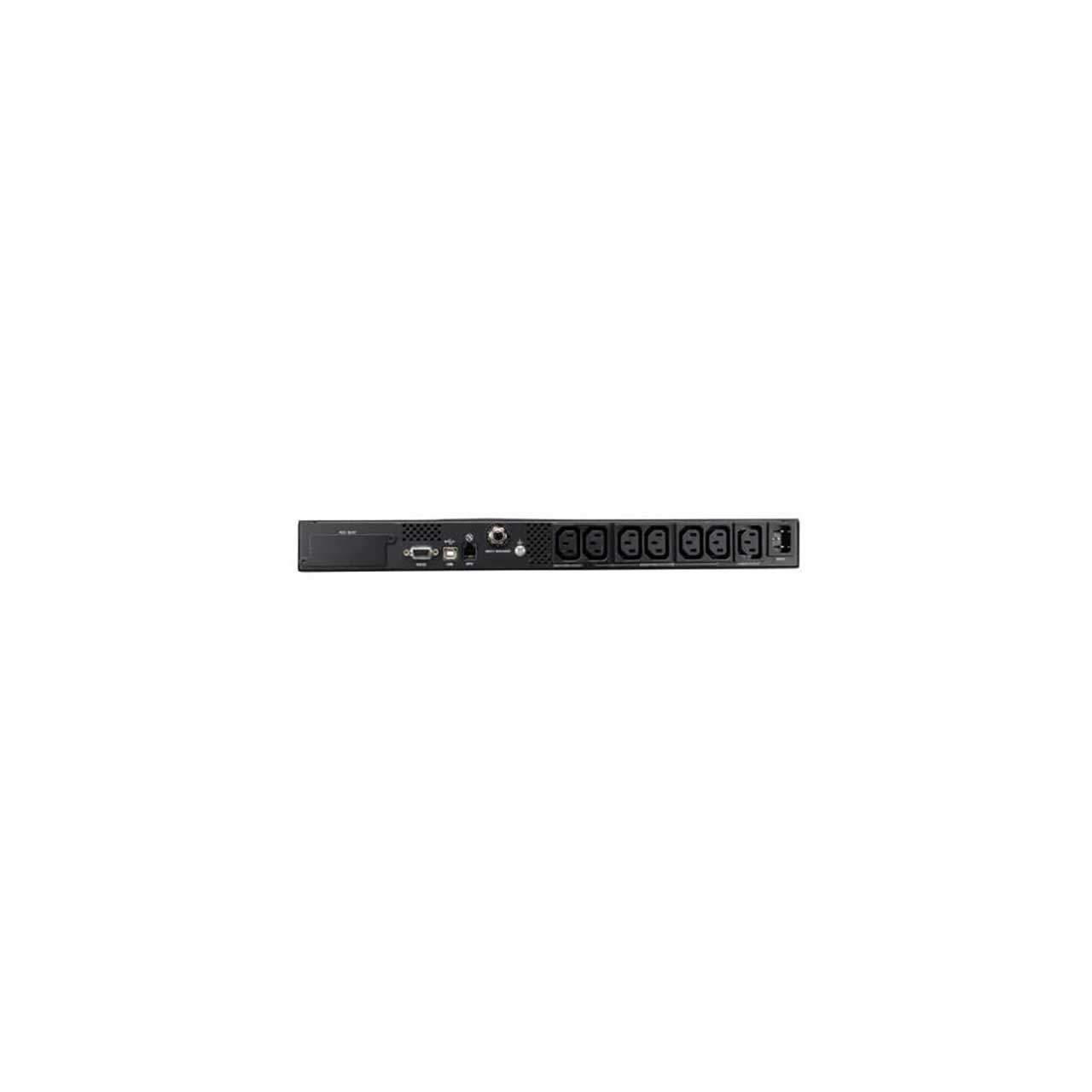

      • IEC C14 input; 7 IEC C13 output receptacles
      • Installed depth of only 11.8 in/29.8 cm
      • Large internal batteries offer runtimes of 14.6 minutes at half load (250VA/150 watts) and 3.2 minutes at full load (500VA/300 watts)
      • Intelligent battery management system extends battery life
      • Maintains regulated 230V nominal output during brownouts as low as 187V
      • Includes 6 UPS-supported outlets, with one single-outlet load bank for remote load shedding or rebooting of an individual device
      • Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
      • Supports Tripp Lite's WatchDog software application to restore operation to locked equipment through soft reboot of application, OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications (requires optional WATCHDOGSW)
      • Emergency Power Off (EPO) interface with cable
      • Multi-function audible alarms and set of 5 front panel LEDs
      • C14 inlet accepts user-supplied AC power cord with country specific plug
      • Network-grade AC surge suppression
      • Field-replaceable, hot-swappable internal UPS batteries
      • Optional PDUBHV10 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment

    • Specifications:

      • Output Volt Amp Capacity (VA): 500
      • Output Watt Capacity (Watts): 300
      • Power Factor: 0.6
      • Nominal Output Voltage(s) Supported: 220V; 230V; 240V
      • Nominal Voltage Details: 230v nominal inverter output voltage
      • Frequency Compatibility: 50 / 60 Hz
      • Frequency Compatibility Details: Automatic frequency selection
      • Output Voltage Regulation (Line Mode): -8%, +15%
      • Output Voltage Regulation (Battery Mode): +/- 5%
      • Output Receptacles: (7) C13
      • Included Output Power Cables: Two 1.8m IEC320-C13 to C14 load jumper cables
      • UPS Output Receptacles (Surge Suppression Only): 6 UPS outlets, 1 surge-only outlet
      • Load Management Receptacles: One switchable single-outlet C13 load bank
      • Hot-Swap PDU options: PDUBHV10 (2U / 8 C13 outlets)
      • Output AC Waveform (AC Mode): Sine wave
      • Output AC Waveform (Battery Mode): PWM sine wave
      • Rated input current (Maximum Load): 2.4A
      • Nominal Input Voltage(s) Supported: 230V AC
      • UPS Input Connection Type: C14 inlet
      • UPS Input Connection Description: C14 inlet accepts user-supplied AC power cord with country-specific plug
      • Input Circuit Breakers: 8A
      • Input Phase: Single-Phase

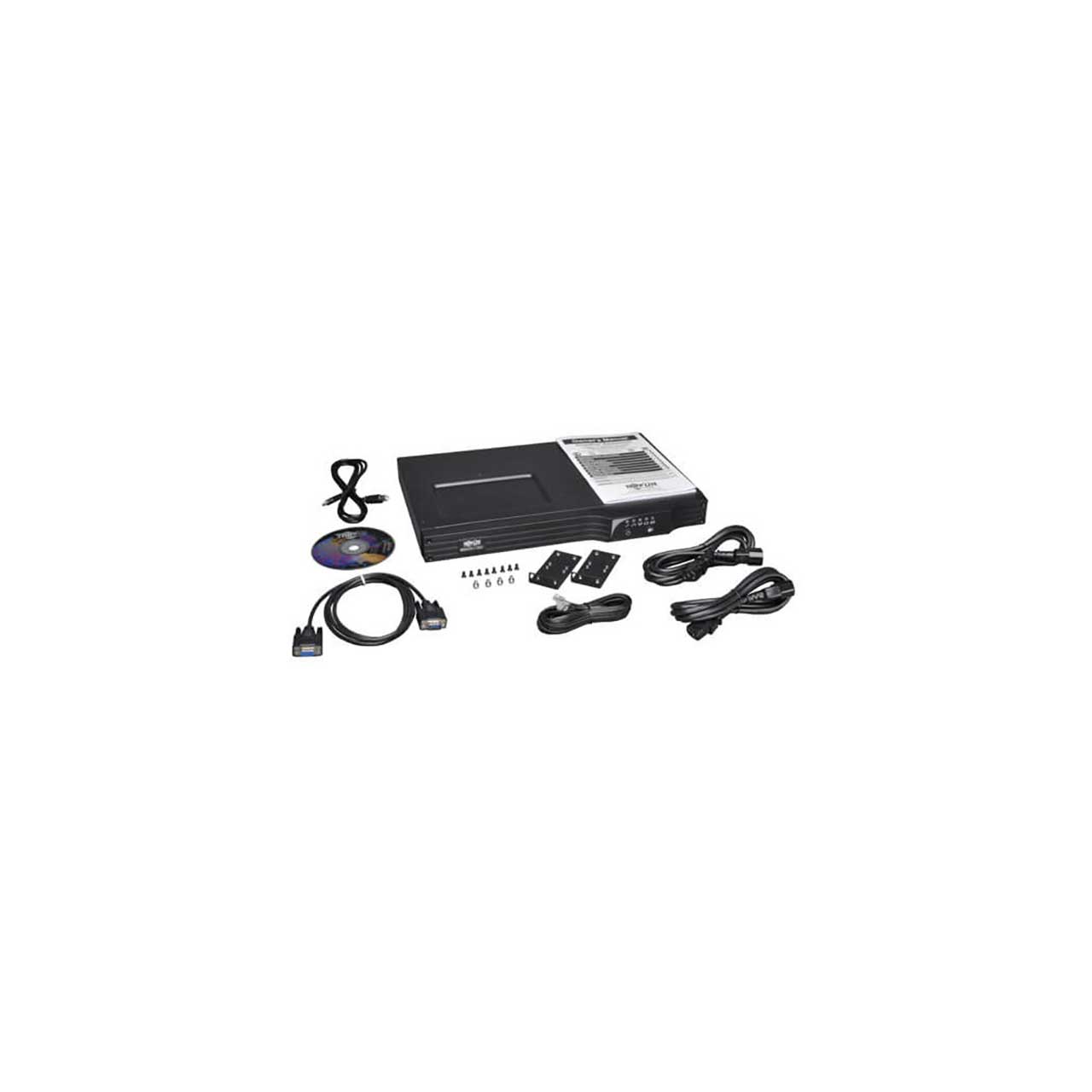

    • Item Includes:

      • SMX500RT1U UPS System with mounting hardware
      • Two 1.8m IEC320-C13 to C14 load jumper cables
      • USB, DB9 and EPO cables
      • Instruction manual with warranty information

    • GTIN:

      0037332119254
