Tripp Lite SU80KMBPK Wall Mount Kirk Key Bypass Panel 240V for 80kVA 3-Phase UPS

SU80KMBPK - Overview

• Features:

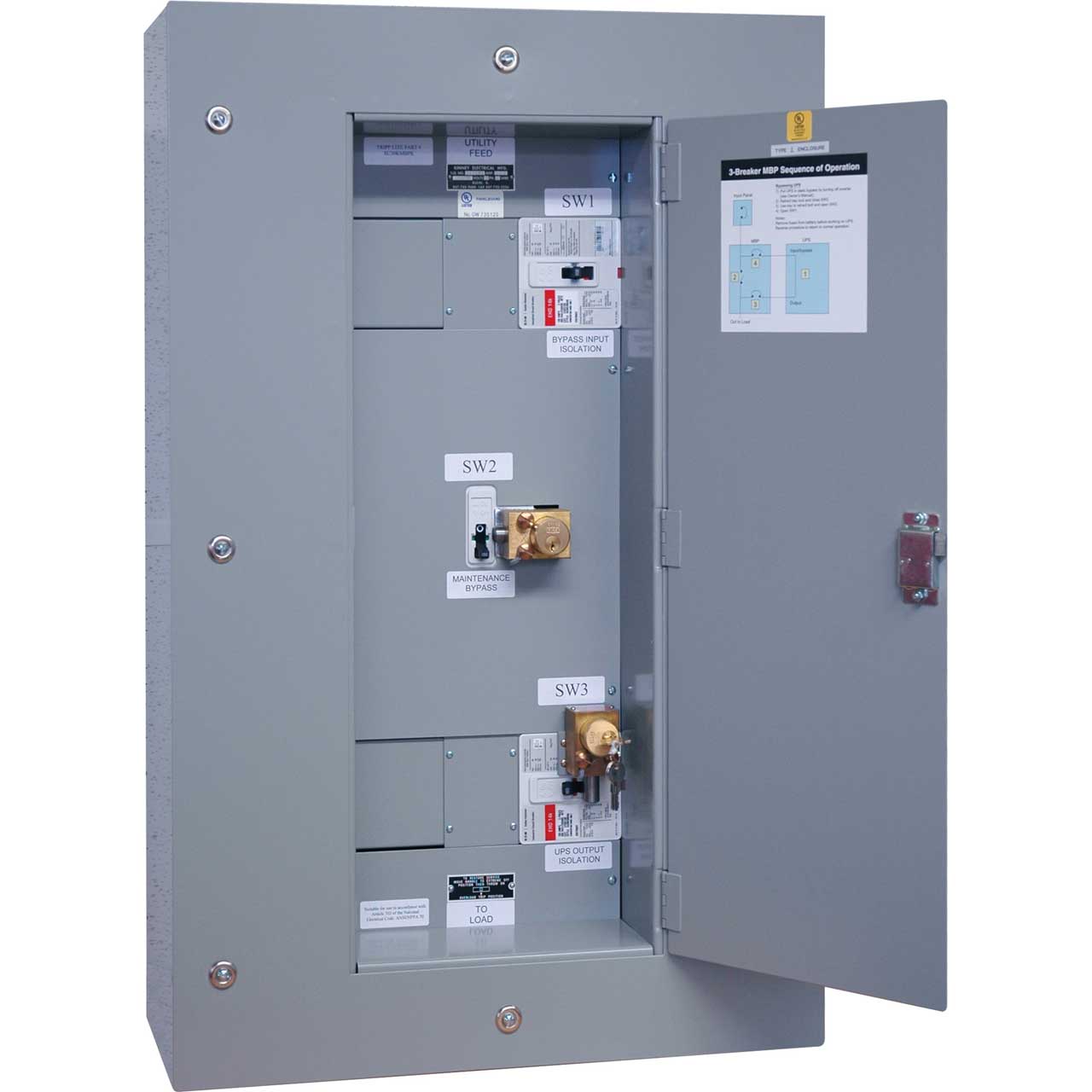

  • Wallmount manual bypass panel isolates UPS from connected loads for maintenance with no loss of network availability
  • Includes Kirk-Key interlock system enhances system reliability
  • 3 built-in circuit breakers, heavy duty buswork
  • Compatible with select Tripp Lite 3 phase UPS systems


• Specifications:

  • Input
  • Nominal Input Voltage(s) Supported: 240V AC
  • Voltage Compatibility (VAC): 240

    Physical
  • Shipping Dimensions (hwd / in.): 62.00 x 36.87 x 12.50
  • Shipping Weight (lbs.): 375.00
  • Unit Dimensions (hwd / in.): 61.25 x 36.1 x 11.75
  • Unit Weight (lbs.): 370
  • Form Factors Supported: Wallmount


• Item Includes:

  • Kirk-Key interlock system


• Warranty:

  • 2-year


• GTIN:

  0037332146298
