Tripp Lite SV60KM3P3B 60kVA Smart Online 3-Phase UPS Medium Frame Modular - 3 Batteries

ITEM #: TRL-SV60KM3P3B MFG #: SV60KM3P3B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.


SV60KM3P3B - Overview

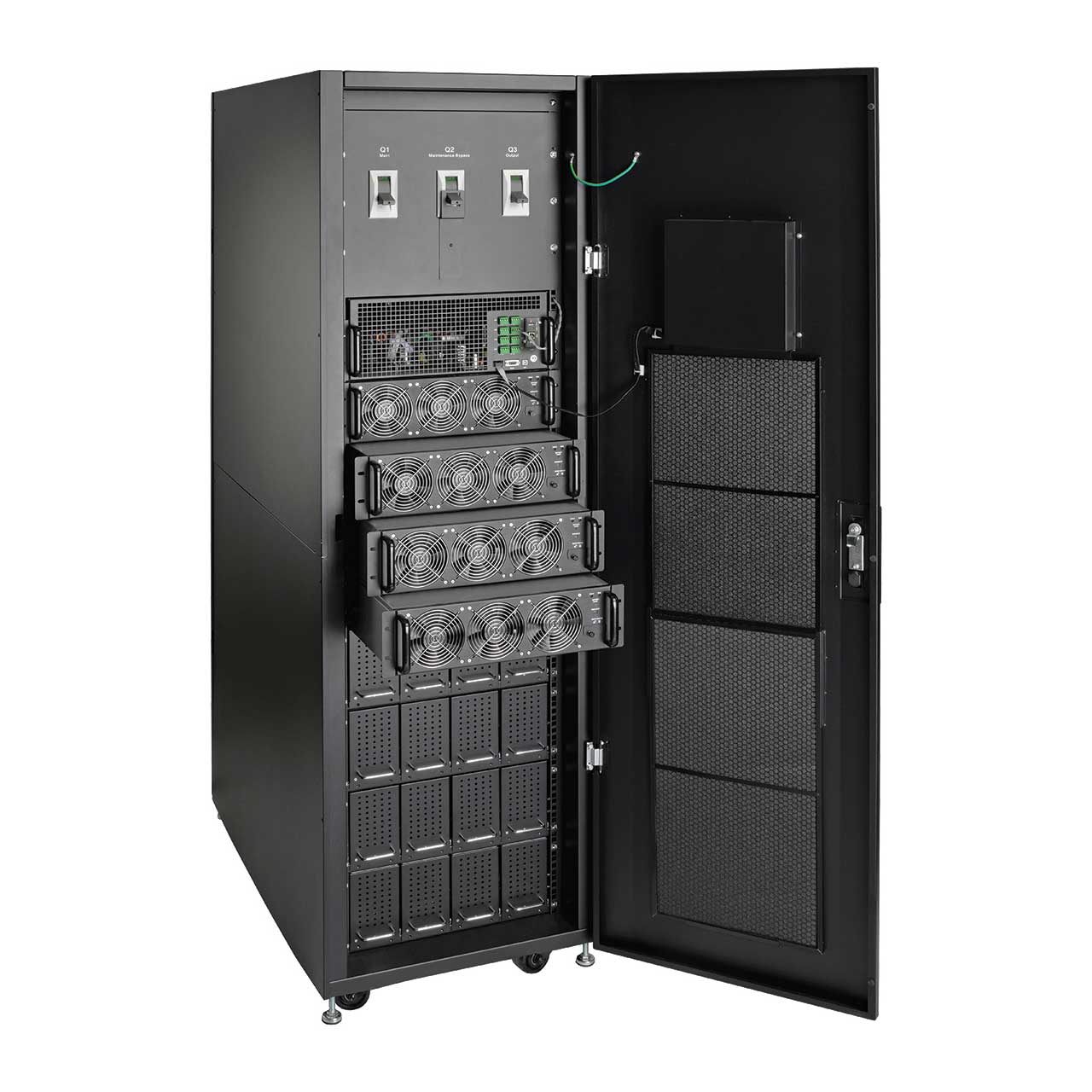

The Tripp Lite SV60KM3P3B SmartOnline® SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems. The SV60KM3P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), three 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module and one SVBM internal battery module. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 60kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.

  • Features:

    • Scalable capacity up to 80kVA (or 60kVA with N+1 fault tolerance)
    • Economy mode option helps reduce operating and cooling costs

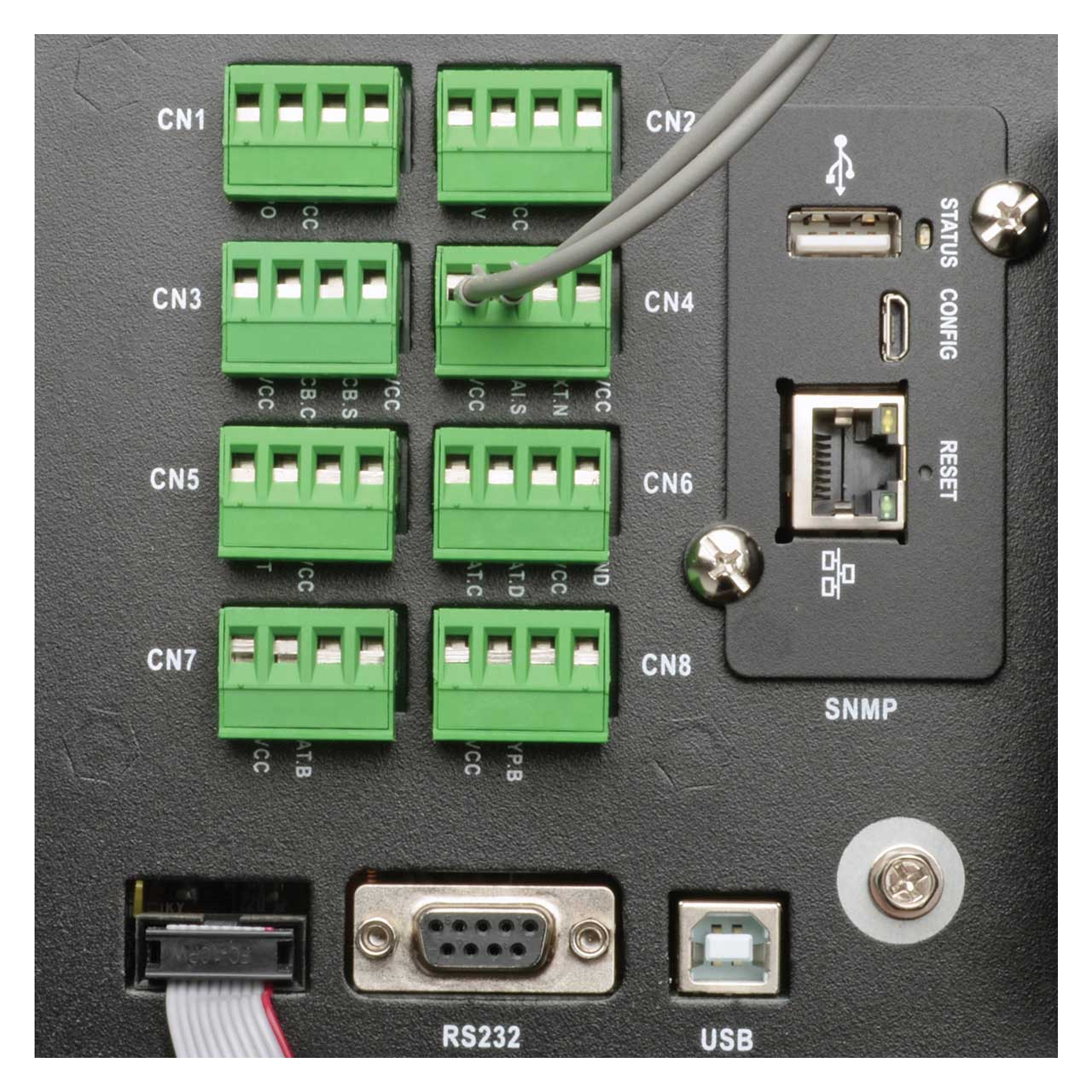

    • Pre-installed WEBCARDLX network interface for 24/7 remote access
    • DSP/IGBT technology and 1% output voltage regulation
    • Includes 3 internal battery modules, supports one more
    • For extended runtimes beyond those provided by internal battery modules, please review the suffix "0B" SV models without internal battery modules, which offer different external battery pack options.

  • Specifications:

    • Output Volt Amp Capacity (VA): 60000
    • Output kVA Capacity (kVA): 60
    • Output Watt Capacity (Watts): 54000
    • Output kW Capacity (kW): 54
    • Power Factor: 0.9
    • Crest Factor: 3:1
    • Nominal Output Voltage(s) Supported: 120/208V 3-PH Wye; 127/220V 3-PH Wye
    • Frequency Compatibility: 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
    • Output Receptacles: Hardwire
    • Output Circuit Breakers: 300A 3 pole magnetic breaker
    • Output AC Waveform (AC Mode): Pure Sine wave
    • Output AC Waveform (Battery Mode): Pure Sine wave
    • Output Amp Capacity: 167A (208/120V); 157A (220/127V)
    • Individually Controllable Load Banks: No
    • Rated input current (Maximum Load): SV60KM3P3B 60kVA Configuration: 180A; Maximum 80kVA Configuration: 240A; 306A maximum inrush current
    • Nominal Input Voltage(s) Supported: 120/208V 3-PH Wye; 127/220V 3-PH Wye
    • Nominal Input Voltage Description: Set of two hardwire input connections enables 3-Phase Wye, 4 wire (3P, N, G) inputs from two separate power sources
    • UPS Input Connection Type: Hardwire
    • Input Circuit Breakers: MAIN and ALTERNATE AC inputs are each protected by 300A 3 pole magnetic breakers

  • Item Includes:

    • SV60KM3P3B SmartOnline SV Series 60kVA 3-Phase On-Line Double-Conversion UPS System
    • Pre-installed WEBCARDLX network interface
    • (3) SV20PM 20kVA power modules (shipped separately)
    • (3) SVBM battery modules (shipped separately)
    • Owner's manual

  • Warranty:

    • 1-year

  • GTIN:

    0037332213112
