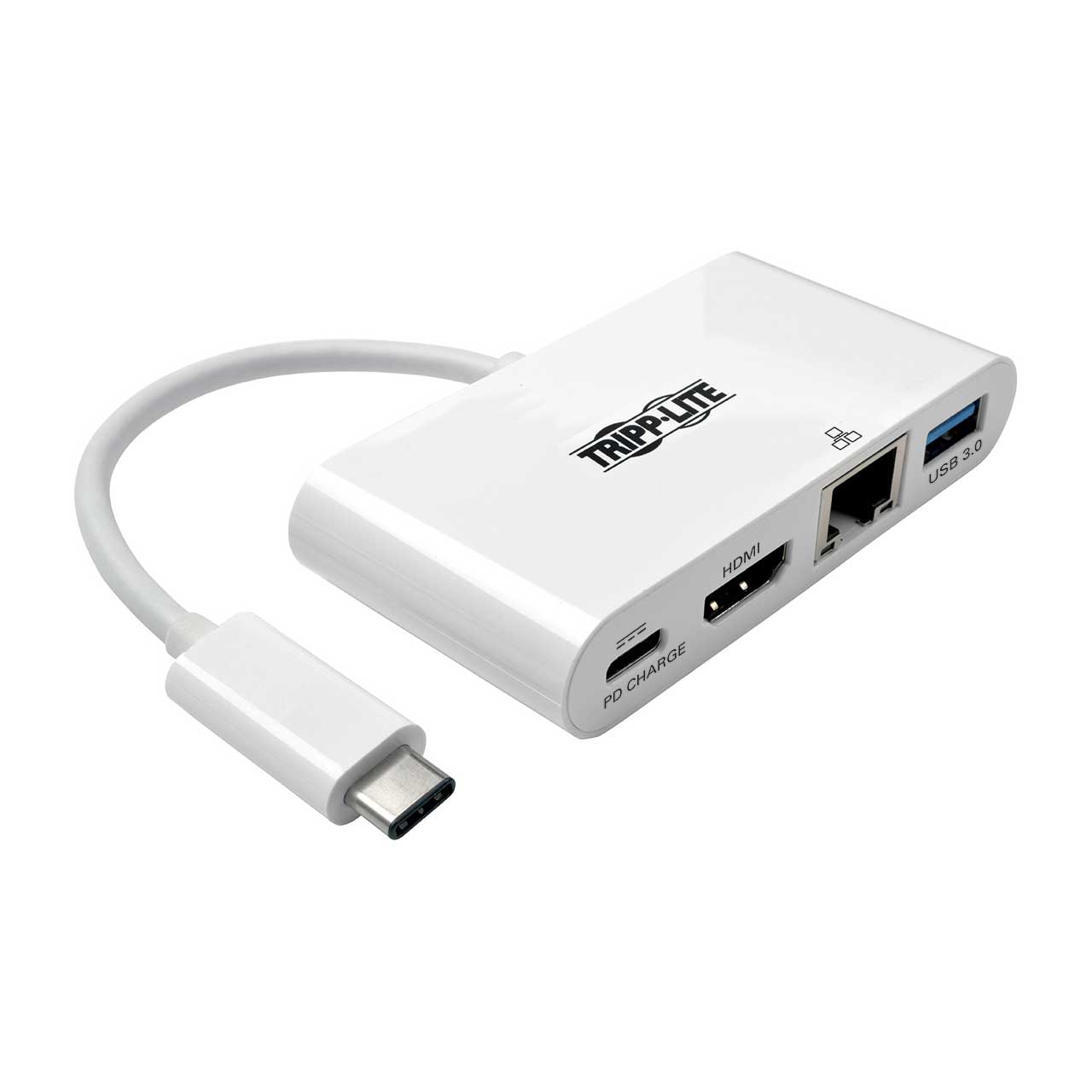

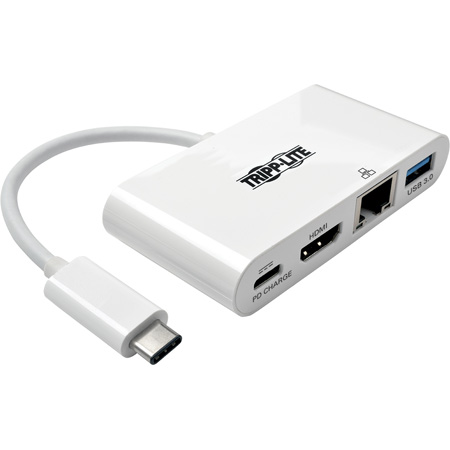

Tripp Lite U444-06N-HGUB-C USB-C Multiport Hub with HDMI PD Charge Ethernet USB-A

U444-06NHGUC - Overview

• Features:

  • Transmits DisplayPort signals from sources supporting USB DisplayPort Alt Mode
  • Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @60 Hz
  • BC 1.2-compliant USB-A port provides up to 1.5A of fast-charging power
  • Connects you to a wired Ethernet network when no Wi-Fi is available
  • Powers and charges PD Charging-compliant devices, such as MacBooks and Chromebooks
  • Easy installation with plug-and-play operation-no software required


• Specifications:

  • Input
  • Bus Powered: Yes
  • Product Length: 6"

    Output
  • Charging Ports / Amps: 1.5A; 3A
  • Charging Watts: 60

    Battery
  • Battery Charging (1.2 Port): Yes

    Physical
  • Cable Jacket Rating: VW-1
  • Color: Black
  • Material of Construction: PVC and ABS
  • Shipping Dimensions (HxWxD): 0.90 x 3.90 x 5.50"
  • Shipping Weight: 0.20Lbs
  • Unit Dimensions (HxWxD): 0.57 x 1.57 x 3.15"
  • Unit Packaging Type: Box
  • Unit Weight: 0.09Lbs

    Environmental
  • Operating Temperature Range: 32° to 113°F (0° to 45°C)
  • Storage Temperature Range: 14° to 158°F (-10° to 70°C)
  • BTUs: 9 BTU/Hr
  • Power Consumption (Watts): 2.6
  • Operating Humidity Range: 10 to 85% RH, Non-Condensing
  • Storage Humidity Range: 5 to 90% RH, Non-Condensing

    Communications
  • Network Speed: 1Gbps
  • IEEE Standards Supported: 802.3; 802.3u; 802.3az; 802.3x

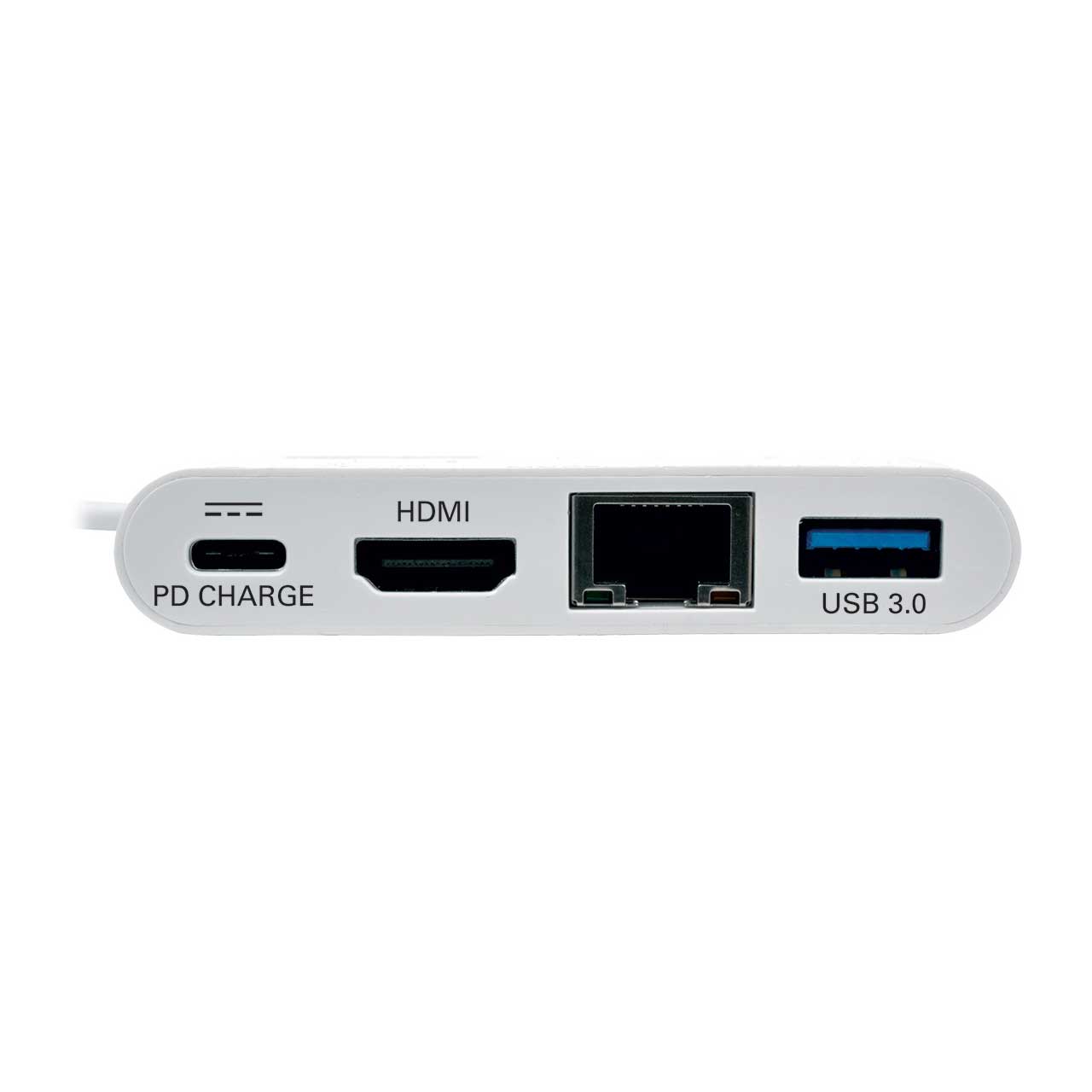

    Connections
  • Ports: 4

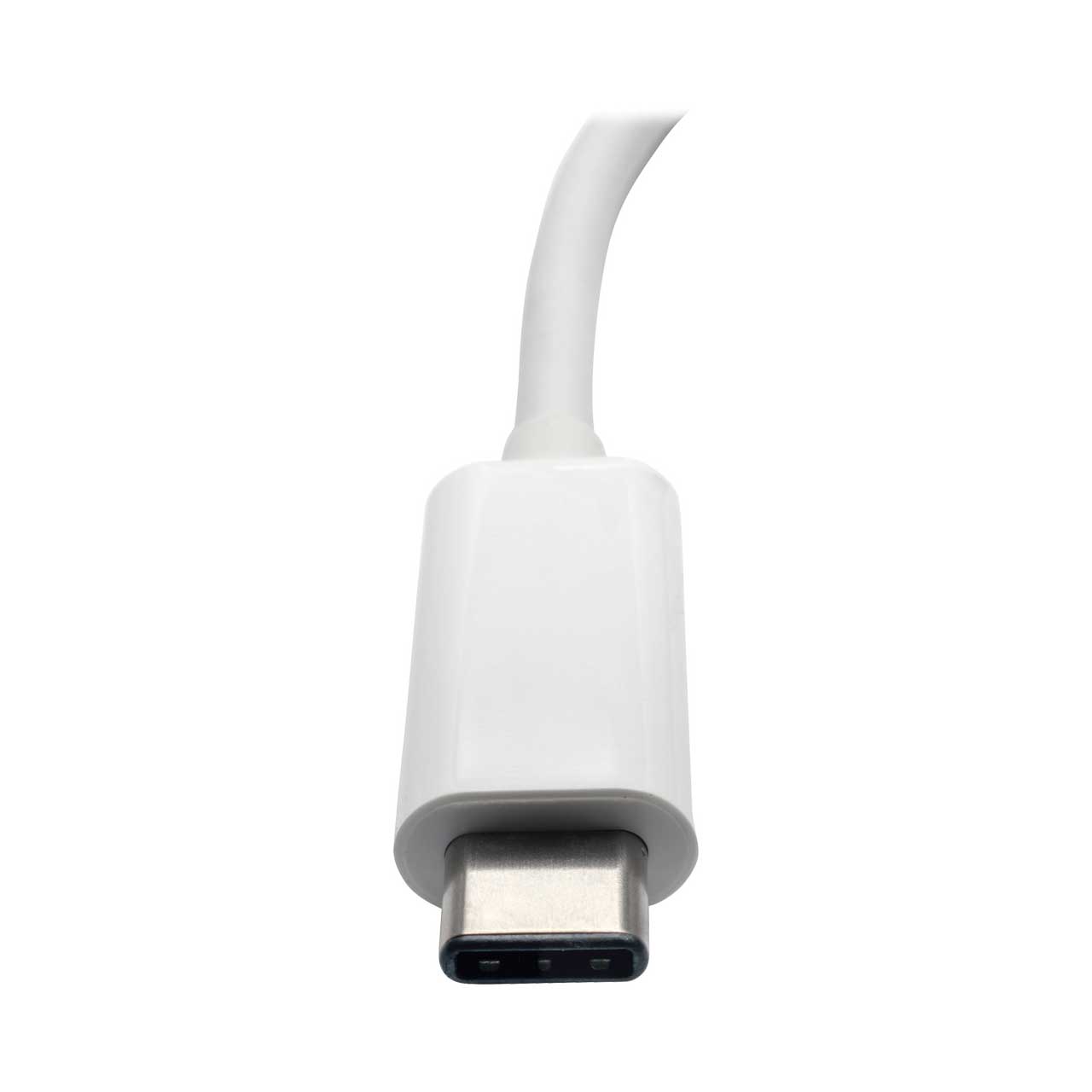

  • Side A - Connector 1: USB C (MALE)
  • Side B - Connector 1: HDMI (FEMALE)
  • Side B - Connector 2: USB 3.0 A (FEMALE)
  • Side B - Connector 3: USB Type-C (FEMALE)
  • Side B - Connector 4: RJ45 (FEMALE)
  • Connector Plating: Nickel

    Features & Specifications
  • Max Supported Video Resolution: HDMI: 1920 X 1080 (1080P) @ 60HZ
  • HDMI Specification: 1.3
  • HDCP Specification: 1.3
  • USB Specification: USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
  • Driver Required: No
  • Recommended Category Cable: Cat5/Cat5e/Cat6 Cables
  • USB Power Delivery (PD) Charging Support: Yes
  • Auto MDIX Support: Yes
  • Full Duplex Support: Yes
  • Suspend Mode Support: Yes
  • Remote Wakeup Support: Yes
  • Technology: Cat5/5e; Cat6; USB 3.1 (Gen 1); HDMI; USB; PD Charging
  • USB Power Delivery (PD) Charging Specification: 2.0

    Standards & Compliance
  • Certifications: Tested to CE, FCC, RoHS, REACH


• Item Includes:

  • 1x U444-06N-HGUB-C USB-C to HDMI Adapter with USB-A Hub, Gigabit Ethernet, Thunderbolt 3, 1080p-PD Charging, Black
  • 1x Owner's manual


• Warranty:

  • 3-year limited warranty


• GTIN:

  0037332209160
