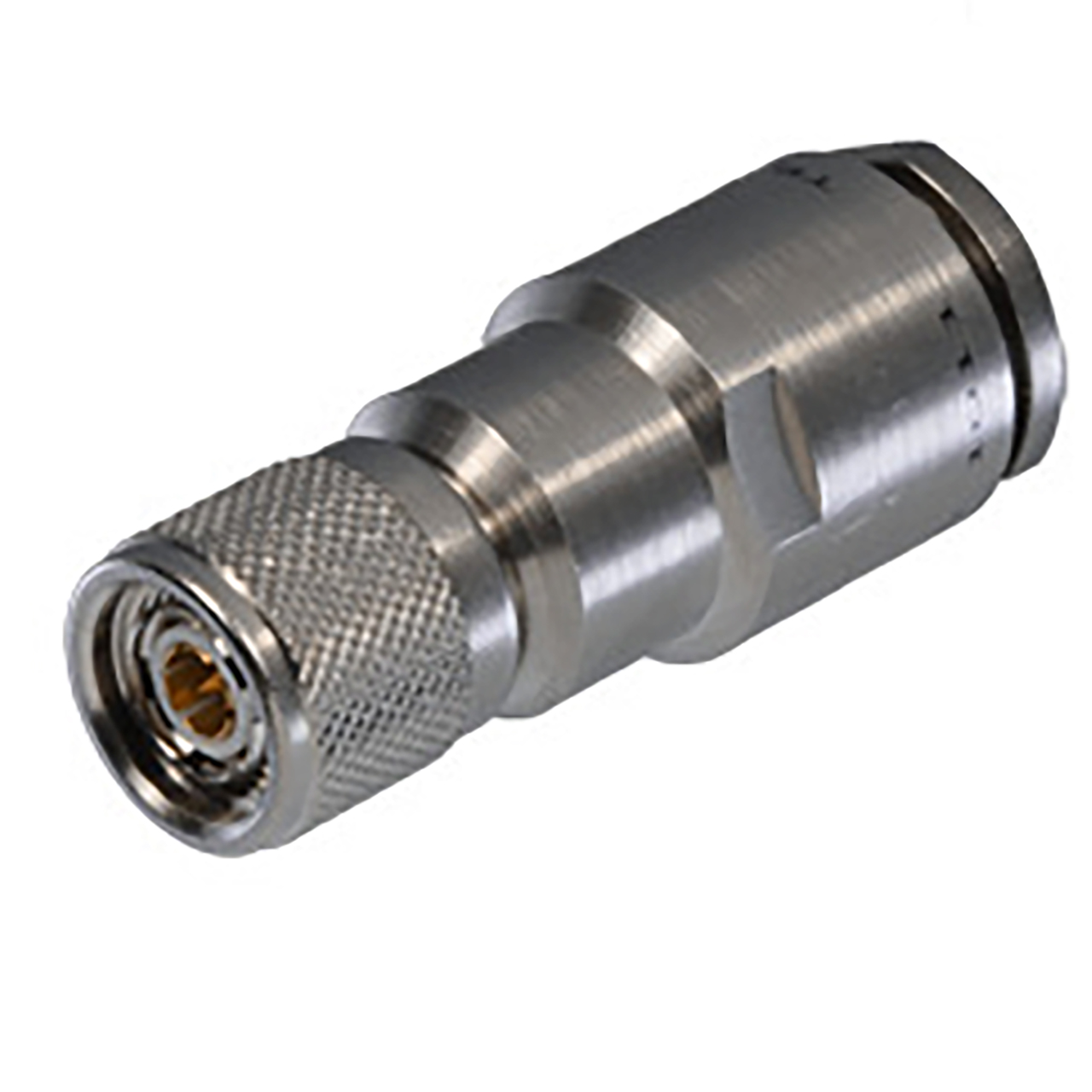

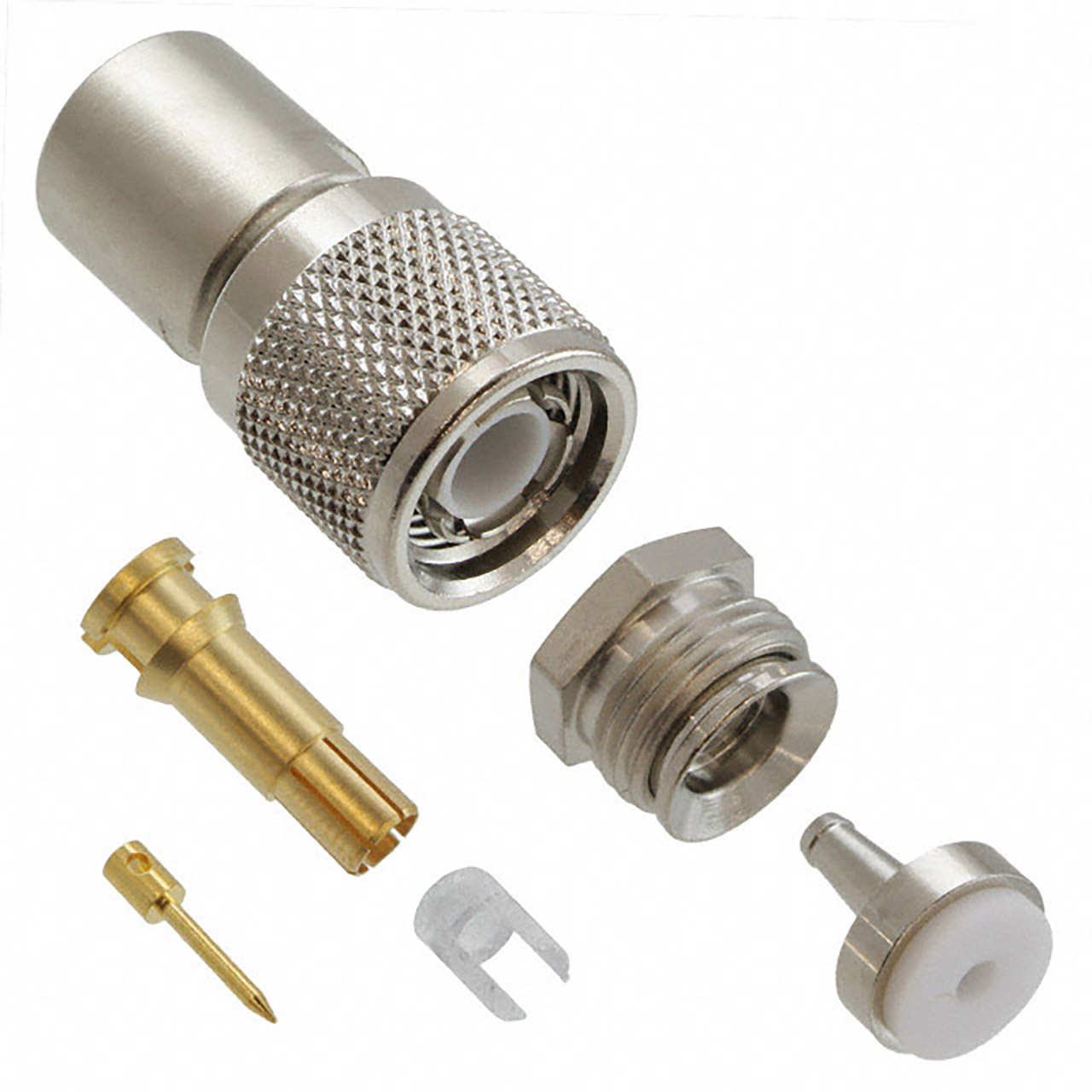

Trompeter PL375-13A TRT Threaded Straight RF Plug for 8232 cable - Wrench Crimp

PL375-13A - Overview

High Performance, Lightweight, Harsh Environment TRT Connector

• Features:

  • Highly reliable, lightweight, and high-performance connectivity in extreme conditions
  • Threaded secure connections providing vibration resistance - Perfect for Drones and Aircraft
  • Optimized for Belden 8232 cable


• Specifications:

  • Brand: Cinch/Trompeter RF Connectivity
  • Series: TRT
  • Type: Standard
  • Termination Type: Wrench Crimp
  • Termination Style: Cable
  • Gender: Plug
  • Cable Type: 8232
  • Mounting Style: Cable Mount
  • Body Style: Straight
  • Body Material: Brass
  • Body Finish: Nickel
  • Contact Material: Beryllium Copper
  • Contact Plating: Gold
  • Insulator: PTFE
  • Max Frequency: 0.5GHz
  • Durability: 500 Cycles Min
  • Operating Temp. Range: -85°F - 329°F (-65°C - 165°C)
  • Impedance (Ohms): Non-Constant
  • Working Voltage: 400Vrms
  • Insulation Resistance: 5000mΩ Min
  • Number of Ports: 1


• Item Includes:

  • 1x PL375-13A TRT Threaded Straight RF Plug
