Universal Audio OX Amplifier Top Box/Reactive Load Box for Recording Guitar

ITEM #: UA-OX MFG #: OX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,874.00

Our Price:

$1,499.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    OX - Overview

    OX is a premium reactive load box and guitar recording system, giving you perfectly studio-miked amp sounds from your favorite tube amp. OX lets you play and record your amp in its sweet spots - from huge clean tones and edge-of-breakup to fully cranked - at any volume level, and with mic, room, and speaker cabinet emulations at the turn of a knob.

    Featuring Universal Audio's breakthrough Dynamic Speaker Modeling, OX is the first system to accurately emulate speaker drive, breakup, and cone cry - making it the world's finest speaker attenuator and guitar amp recording solution.

    The World's Best Reactive Load Box
    With decades of analog hardware engineering expertise, Universal Audio's dream team of engineers set out to design a reactive load box that retains the tone, dynamics, and feel of your tube amp - no matter how much it's attenuated. The goal was for your tube amp to "see" OX as an actual speaker - with continuously variable impedance and response - so you don't lose a drop of tone or playing dynamics.

    A Complete Guitar Recording System

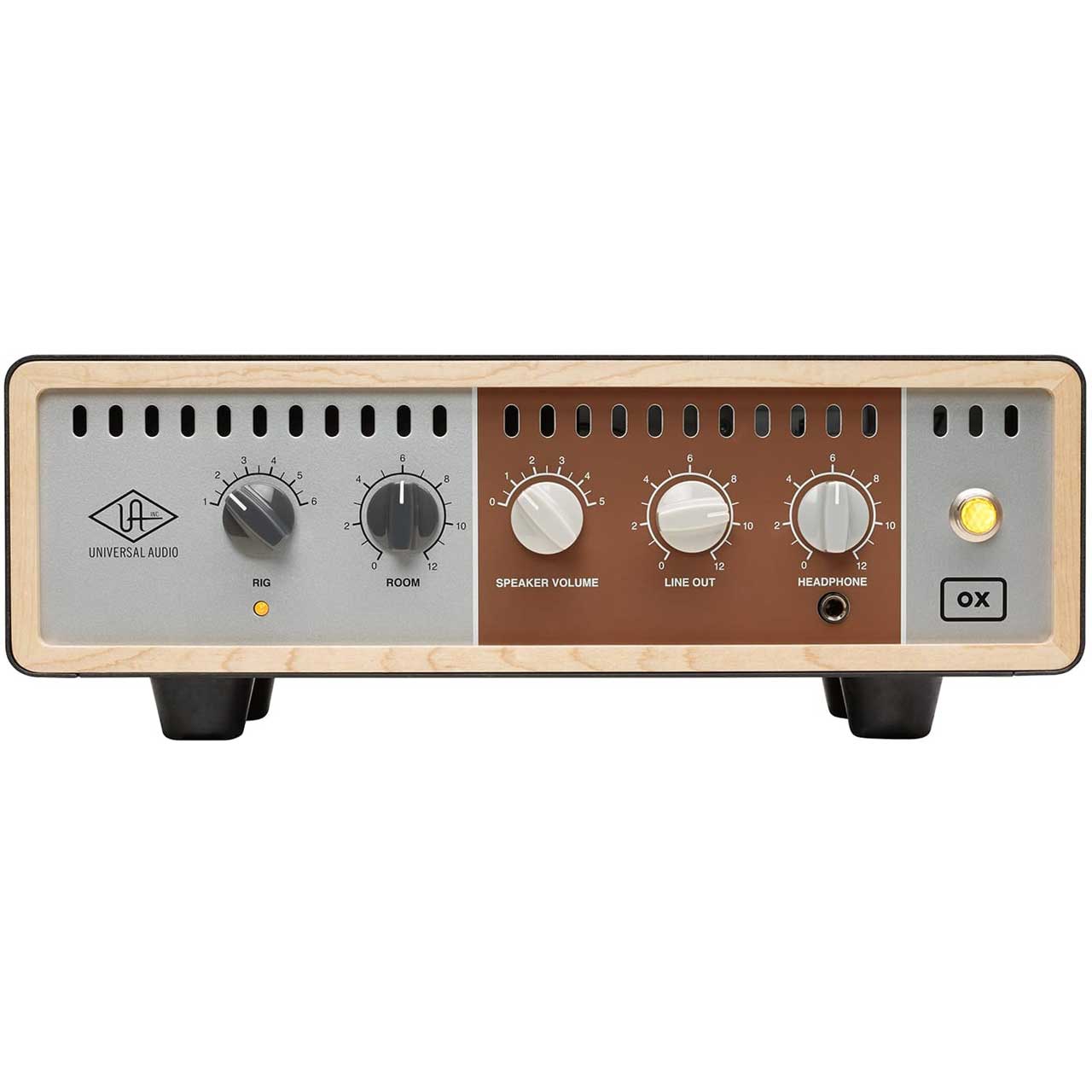

    OX's front-panel, six-position RIG control allows you to quickly choose from complete setups - including emulated speaker cabinets, close mics, ambient room mics, and up to four simultaneous studio effects. OX is also the only guitar recording system to offer a complete selection of expertly placed room mics, giving you the authentic experience of pushing air while recording your cranked amp in a world-class tracking room.

    Dynamic Speaker Modeling
    UA's groundbreaking Dynamic Speaker Modeling faithfully emulates speaker breakup, drive, and cone cry - an essential ingredient to authentic tube amp tones. Using the Speaker Breakup knob in the OX app, you can control the harmonics and sonic complexity that occurs only at certain frequencies and volume levels on various speakers - far beyond a static Impulse Response system - giving you the same sonic phenomenon that occurs with a real speaker cabinet.

    • Features:

      • Play and record your tube amp in its tonal sweet spot - anywhere, at any volume, with full dynamics
      • Get stunning mic and guitar cabinet combinations at the turn of a RIG knob - no miking required

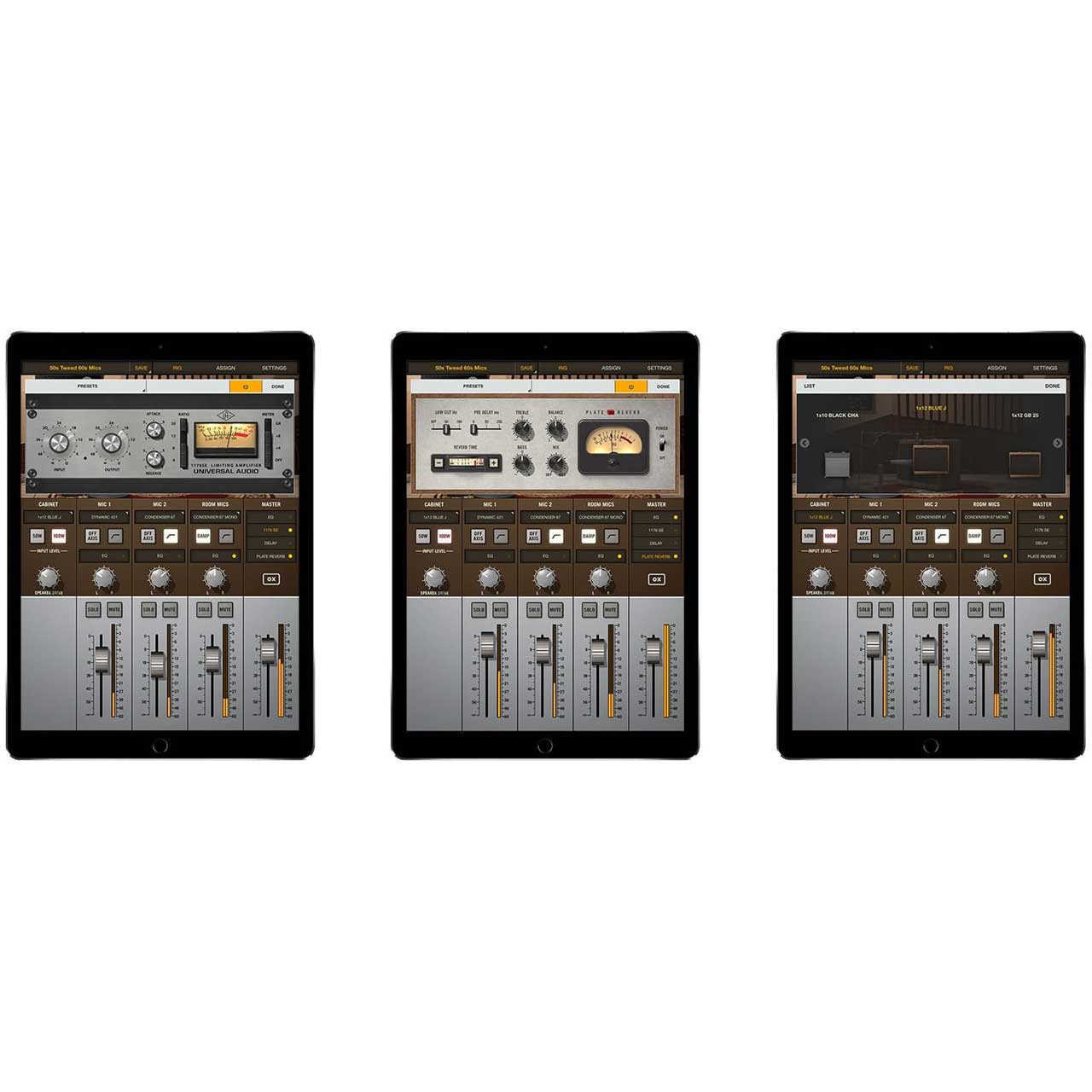

      • Audition, tweak, and save more than 100 jaw-dropping custom Rigs from compatible iPad, or Mac/Windows computers.
      • Get authentic "edge of destruction" sounds, complete with UA Dynamic Room Modeling, speaker breakup, and cone cry

    • Specifications:

      • I/O Complement
      • Amplifier Input: One
      • Speaker Output: One
      • Line Outputs: Two (one stereo left/right)
      • Headphone Output: One (stereo left/right)
      • Digital Outputs: Two (mirrored)

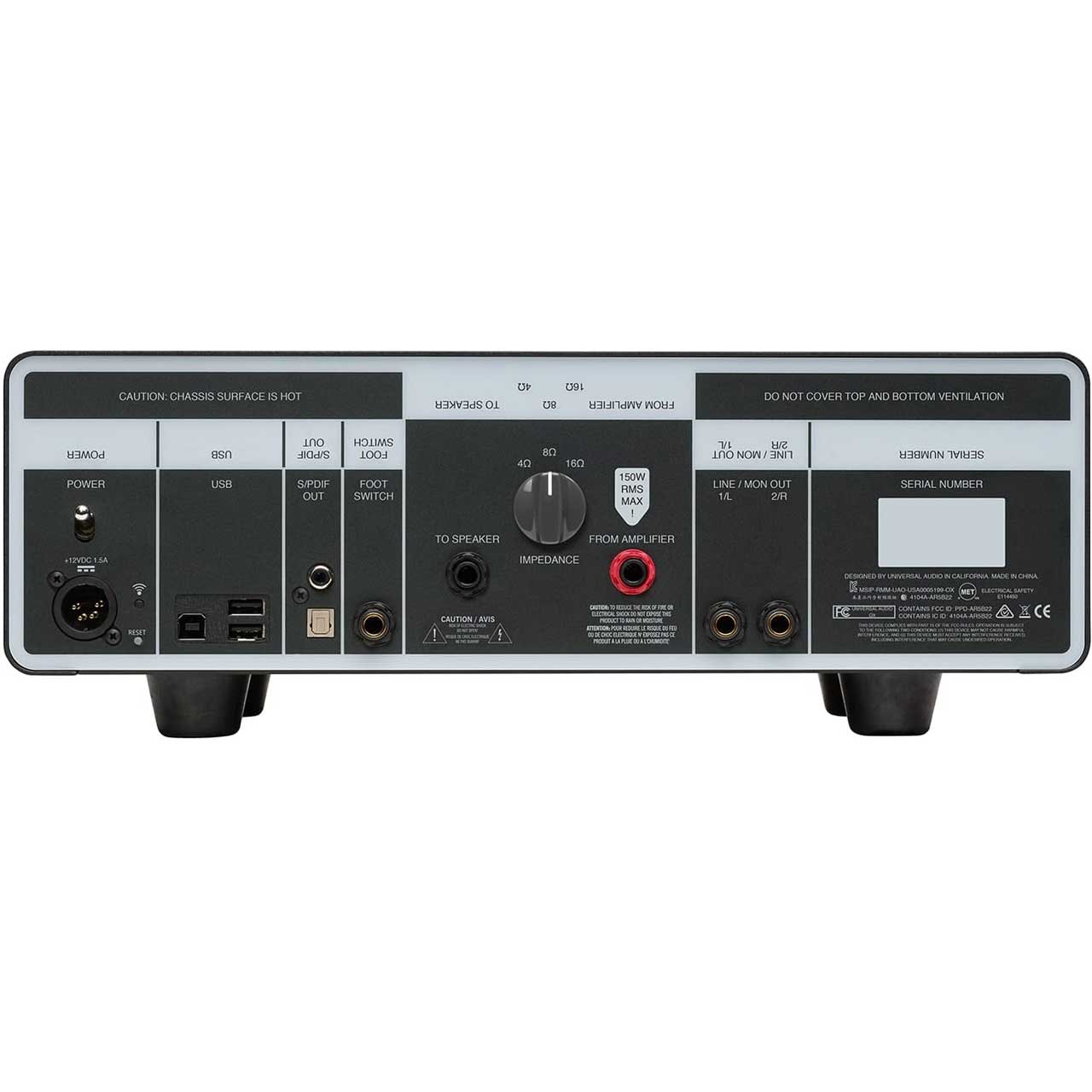

        Analog I/O
      • Amplifier Input
        Connector Type: ¼" Female TS Unbalanced
        Input Impedance: 4/8/16 Ohms (selectable)
        Maximum Input Power: 150 Watts RMS, 200 Watts peak
        Safety Load (power off): 16 Ohms
      • Speaker Output
        Connector Type: ¼" Female TS Unbalanced
        Output Attenuation: Five Attenuation Steps and Speaker Off
        Output Latency: None (pure analog)
      • Line Outputs 1 - 2
        Connector Type: ¼" Female TRS Balanced
        Dynamic Range: 114.5 dB (A-weighted)
        Frequency Response: 20 Hz - 20 kHz, ±0.1 dB
        Signal-to-Noise Ratio: 114.0 dB (A-weighted)
        Total Harmonic Distortion: + Noise -110 dB @ -3 dBFS
        Channel Separation: 129 dB
        Output Impedance: 100 Ohms
        Maximum Output Level: 20.2 dBu (balanced)
        Output Latency: 2.77 milliseconds (122 samples @ 44.1 kHz)
      • Stereo Headphone Outputs
        Connector Type: ¼" Female TRS Stereo
        Dynamic Range: 113.0 dB (A-weighted)
        Frequency Response: 20 Hz - 20 kHz, ±0.1 dB
        Signal-to-Noise Ratio: 113.0 dB (A-weighted)
        Total Harmonic Distortion: + Noise -107 dB @ -3 dBFS
        Maximum Output Power: 80 milliwatts into 600 Ohms
        Output Latency: 2.77 milliseconds (122 samples @ 44.1 kHz)

        Digital Outputs
      • Format: S/PDIF IEC958
      • Connector Type 1: Female Phono (RCA)
      • Connector Type 2: Optical TOSLINK JIS F05
      • Sample Rate & Bit Depth: 44.1 kHz, 24-bit
      • Output Latency: 2.57 milliseconds (113 samples @ 44.1 kHz)

        Electrical
      • Power Supply: External AC to DC Power Supply, Level VI compliant
      • AC Input Connector Type: IEC Male
      • AC Requirements: 100V - 240V AC, 50 - 60 Hz
      • DC Connector Type: XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
      • DC Requirements: 12 VDC ±5%, 1.5A
      • Maximum Power Consumption: 18 Watts
      • Operating Temperature Range: 32° to 104° Fahrenheit (0° to 40° Celsius)
      • Storage Temperature Range: -40° to 176° Fahrenheit (-40° to 80° Celsius)
      • Operating Humidity Range: 10% - 95%, non-condensing

        Compliance
      • EMC and Safety Standards
      • FCC Part 15 for Class B digital device EN 610003-3-3:2013 EN 301489-17
      • ICES-003 EN 55103-2 KN 301489-1
      • VCCI-CISPR 32:2016 KN32 KN 301489-17
      • EN 55032 KN35 UL/cUL 62368-1
      • CIPSR 32:2012 CNS 13438 EN 62368-1
      • EN 61000-3-2:2014 EN 301489-1 IEC 62368-1

        Physical
      • Dimensions
        Width: 15.01" (381.25mm)
        Height, Chassis Only: 4.45" (112.94mm)
        Height, Including Rubber Feet: 5.45" (138.44mm)
        Depth, Chassis Only: 8.05" (204.5mm)
        Depth, Including Knob & Jack Protrusions: 9.04" (229.58mm)
      • Shipping Box (WxDxH): 20 x 12 x 11" (52.7 x 32.9 x 28.7cm)
      • Weight (unit only): 14.1Lbs (6.40kg)

    • Item Includes:

      • 1x OX Amp Top Box Unit
      • 1x External Power Supply
      • 1x IEC Power Cable - US, EU, or UK (region dependent)
      • 1x Quick Start Guide
      • 1x RIG Control Presets
      • 1x Safety & License Sheet
