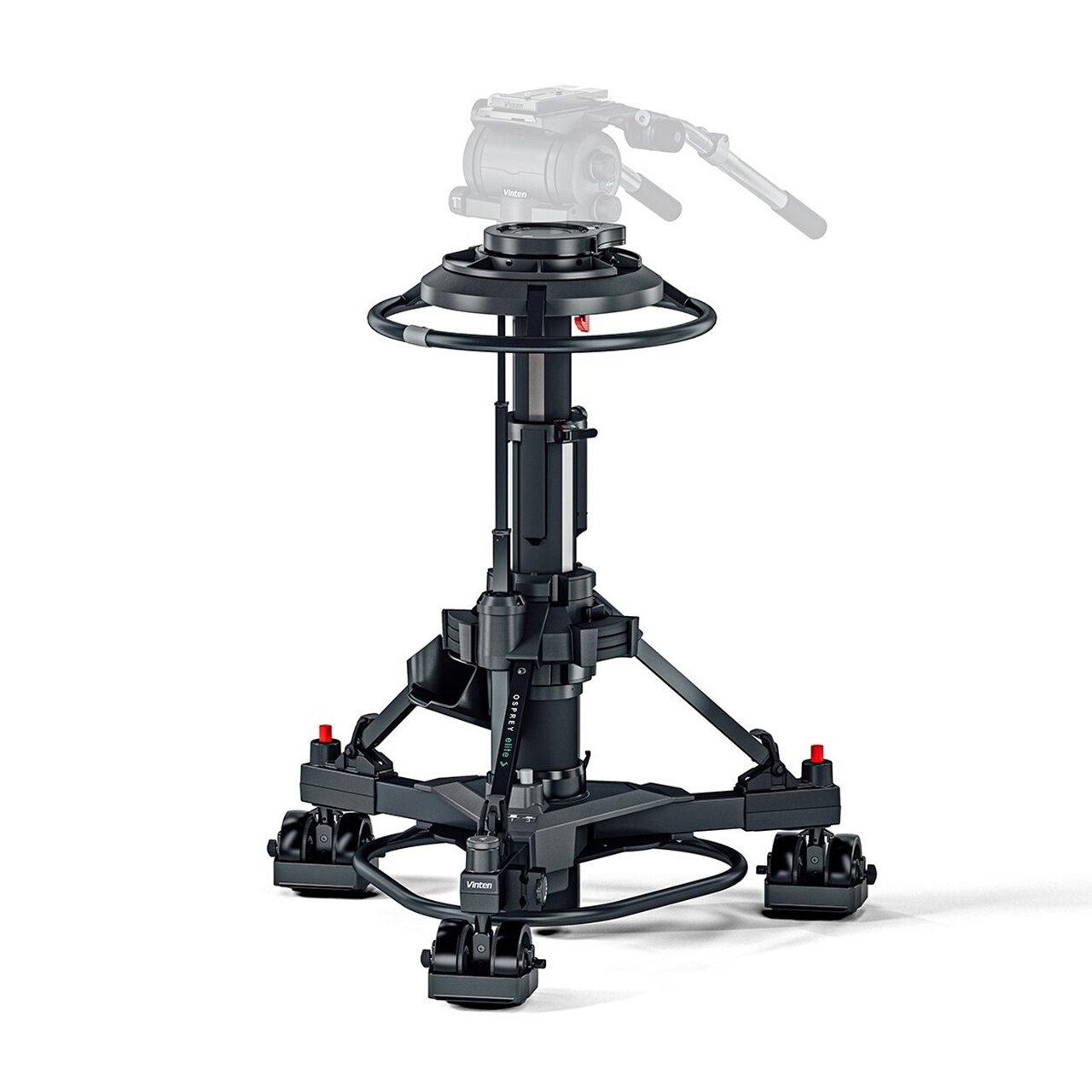

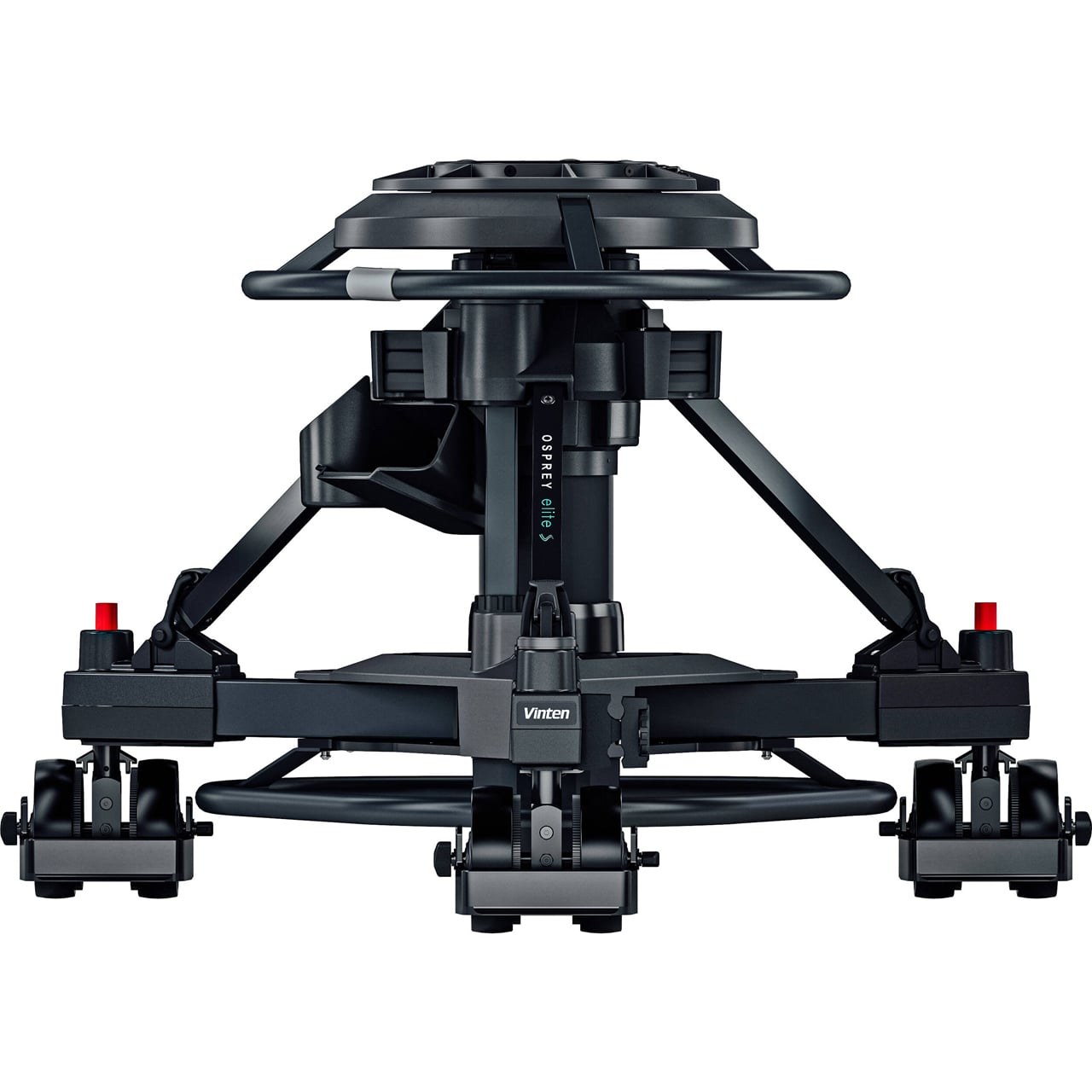

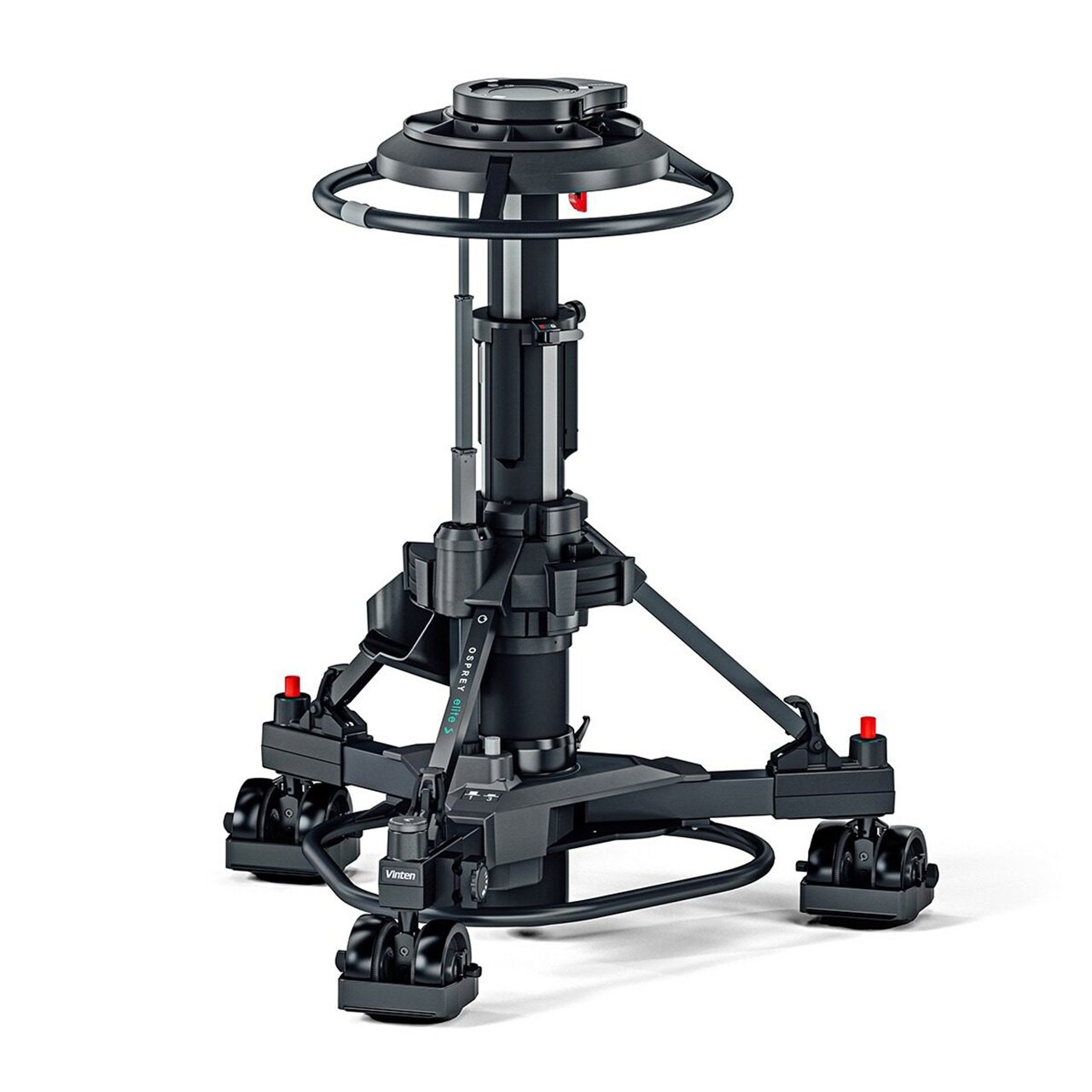

Vinten V4172-0001 Osprey Elite S Studio 2-Stage Pedestal with 177lb Payload and Full Crab and Steer Function

ITEM #: VIN-V4172-0001 MFG #: VIN-V4172-0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$38,500.00

Our Price:

$36,575.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
  • Shipped truck freight.


VIN-V4172-0001 - Overview

Supports large Vinten Vector Heads or heavy Digital Cameras and Teleprompters!

The Vinten Osprey Elite S is a portable, fully functioning studio pedestal for large payloads of up to 177lbs (80kg). A versatile pedestal, capable of supporting large Vinten Vector Heads or full facility digital cameras and teleprompters. It can track talent eyelines from a seated to standing position `on shot' with its extended fully balanced range. It has an inlet valve for any air source, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Elite S pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It has a selector for both single wheel and all wheel crab steering for working in tight spaces and on shot direction changes. It comes with 5" (12.5cm) wheels and adjustable cable guards for studio use.

  • Features:

    • Full, 2-stage balance range for total `on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama and performances

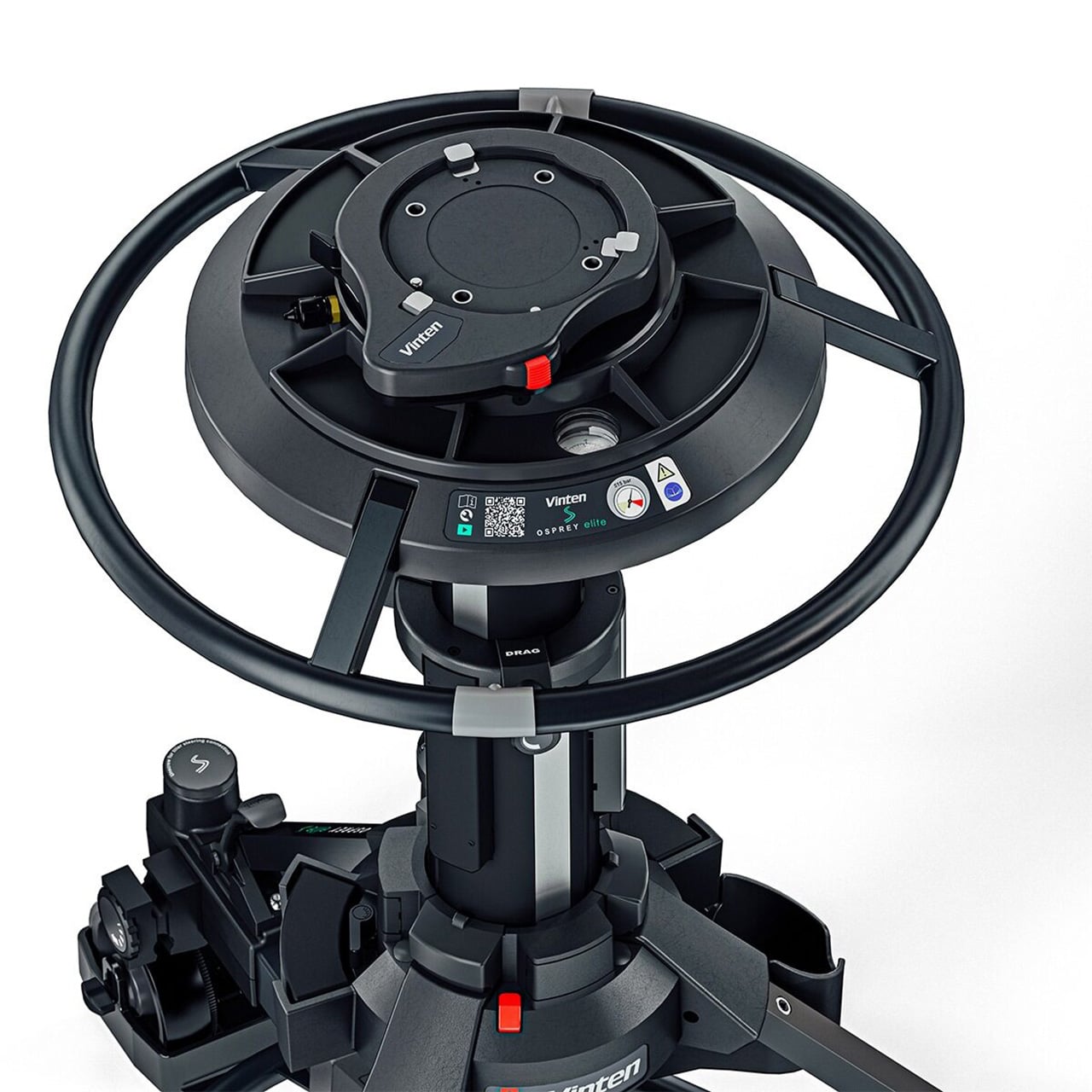

    • Full crab and steer facilities controlled from a central steering ring for enhanced maneuverability and on-shot steering
    • Built in pressure gauge for easy counter balance set-up
    • Detachable skid for easy transport and storage

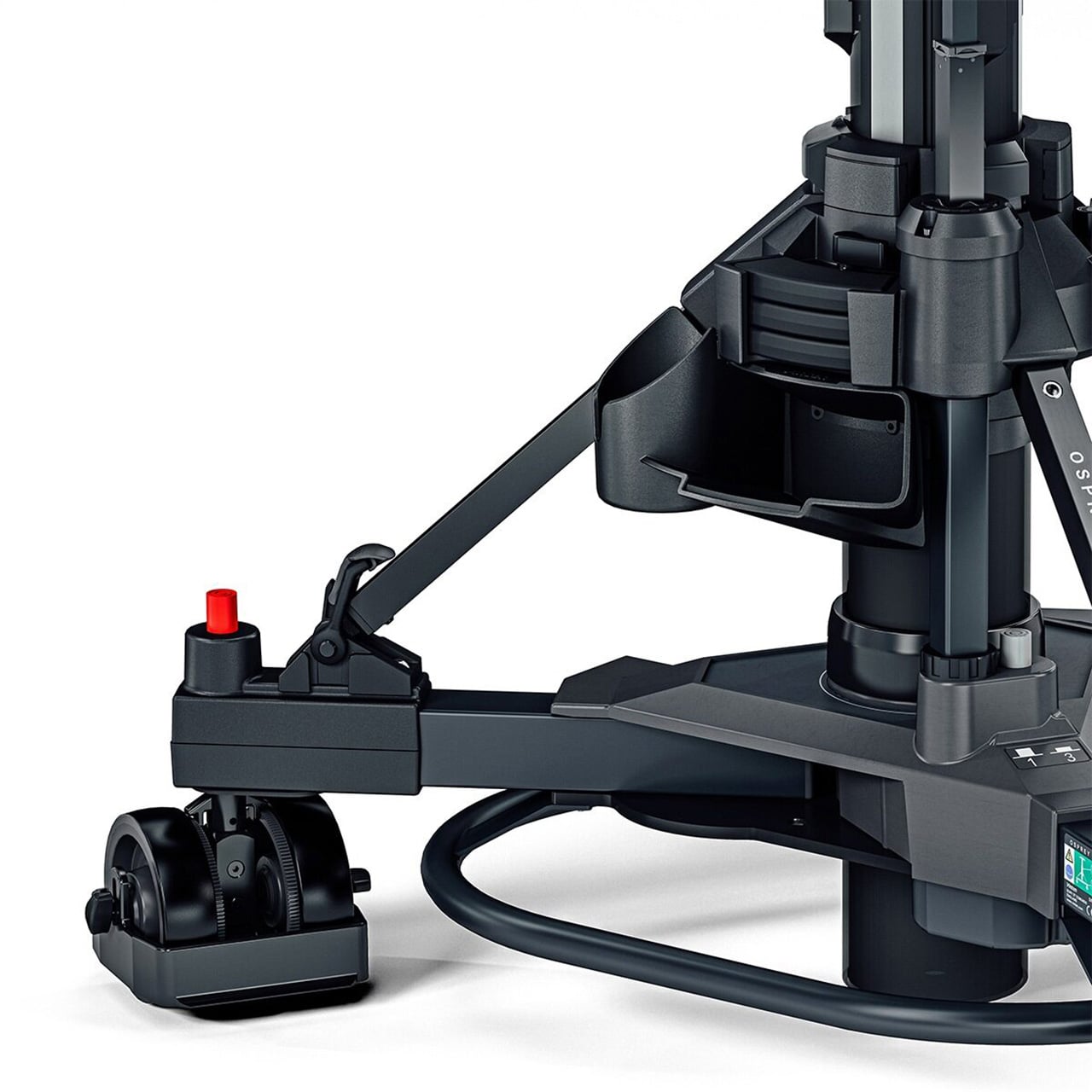

    • Wheel rim braking mechanism eliminates tire flat spots for super smooth rolling shots
    • Pedestal supplied with Quickfix quick release system & operator storage area
    • Column can be adapted to work on dolly track

  • Specifications:

    • On Shot Stroke: 30.3" (77cm)
    • Head Fitting: Flat Base
    • Height: 2.1ft - 4.7ft (0.66m - 1.43m)
    • Ground Clearance: 7.8" (20cm)
    • Tracking Width: 38" (97cm)
    • Transit Doorway Width: 28.7" (73cm)
    • Steering Ring Diameter: 21" (53.5cm)
    • Wheel Diameter: 5" (12.5cm)
    • Wheel Lock: Single-Point
    • Load Capacity: 176.4lbs (80kg)
    • Weight: 102.5lbs (46.5kg)

  • Item Includes:

    • Vinten Osprey Elite S 2-Stage Steering Pedestal
    • Quickfix Quick Release System
    • Accessory Holder
    • Manual Pump
    • Kick Ring
    • Limited 1-Year Manufacturer Warranty
    • Registration Extension: 1-Year

  • GTIN:

    5060896402567
