Vinten V4173-0001 2-Stage Osprey Studio S Pedestal with 30.3 Inch Height Range

ITEM #: VIN-V4173-0001 MFG #: V4173-0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$46,310.00

Our Price:

$43,995.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup
  • Shipped truck freight.


V4173-0001 - Overview

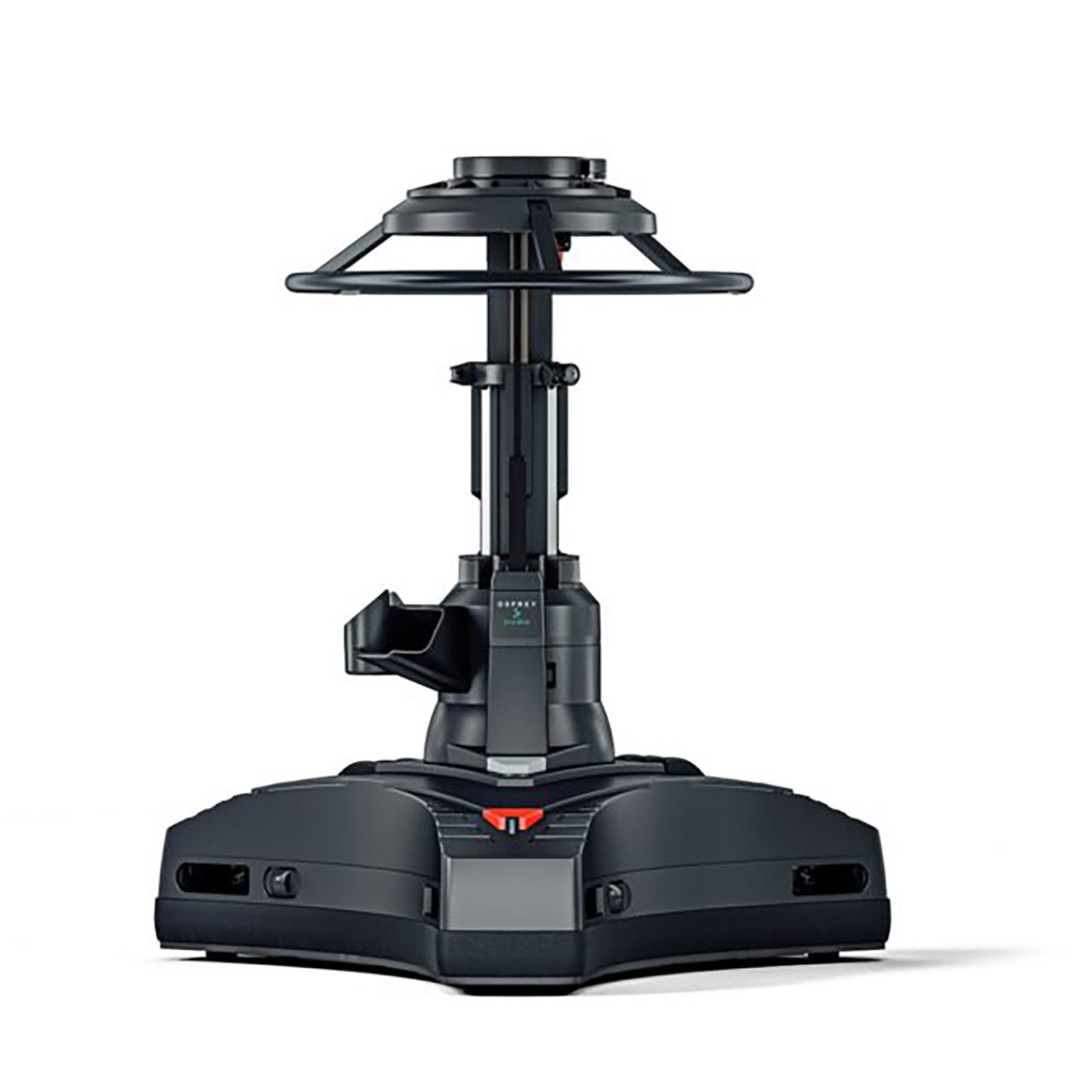

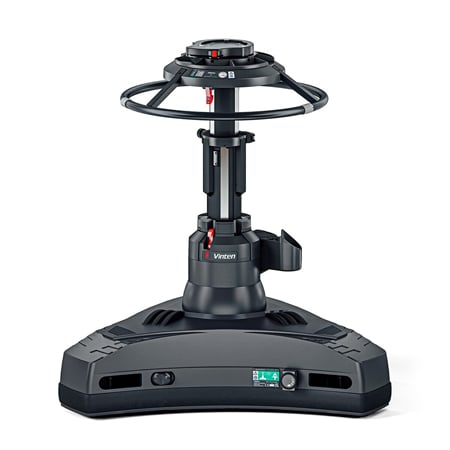

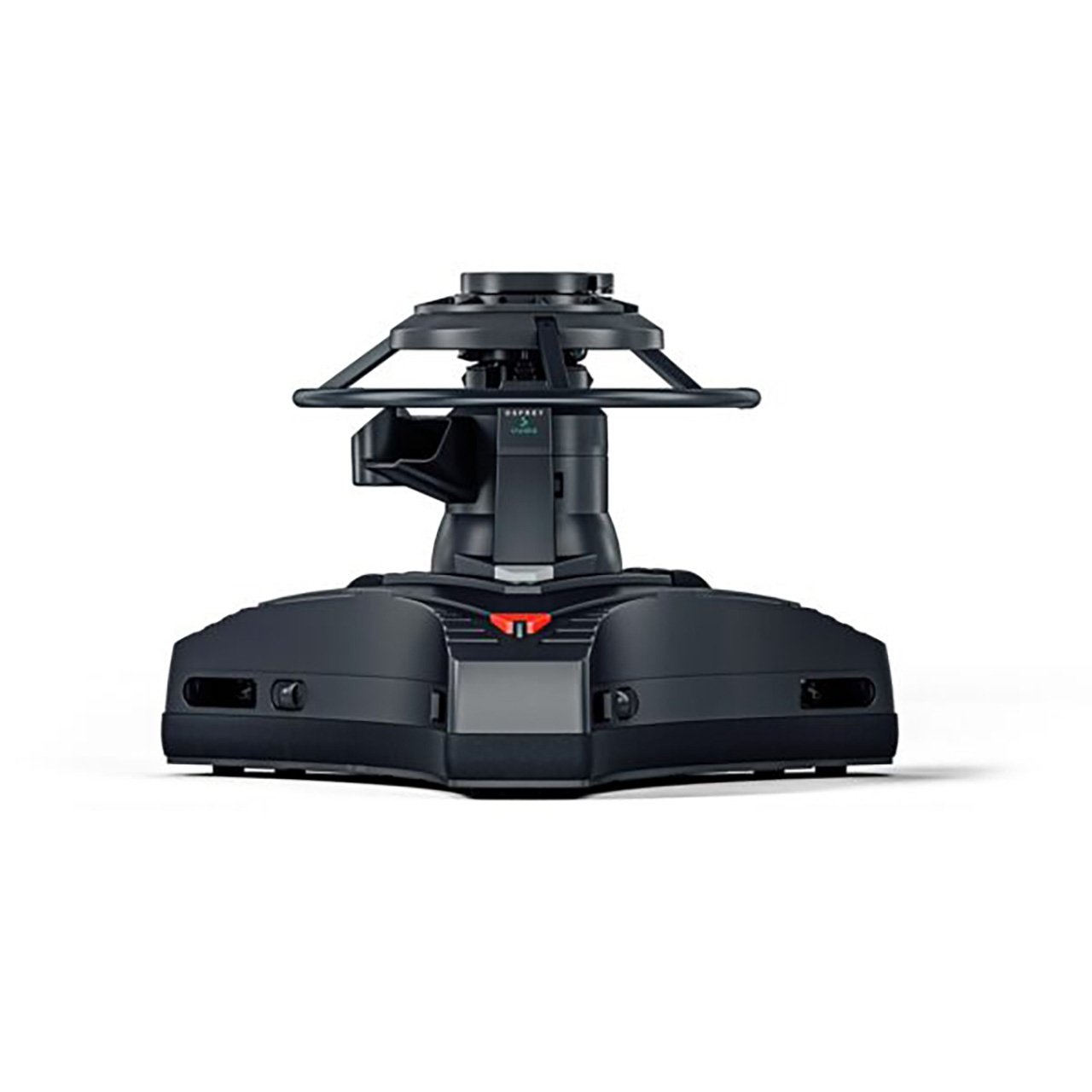

The Vinten Osprey Studio S is a fully functioning studio pedestal for large payloads up to 177lb (80kg). It is a full studio version of the Osprey elite and is capable of supporting large Vinten Vector heads and the latest range of portable or full facility digital cameras and teleprompters. It can track talent eye lines from a seated to standing position "on shot" with its extended fully balanced range. It has an inlet valve for any air source, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Studio pedestal includes a pressure gauge for clear and reliable set-up. It has a single brake and selector for both single wheel and "all wheel" crab steering for working in tight spaces and on shot direction changes. It comes with an integral cable guard for studio use.

  • Features:

    • Full, 2-stage balance range for total `on shot' elevation, perfect for moving from seated to standing talent in game shows, entertainment shows, drama and performances
    • Full crab and steer facilities controlled from a central interchangable steering ring for enhanced manoeuvrability and on-shot steering
    • Durable skirted base for ultimate stability
    • Integral cable guard to prevent cable damage and disturbances to shots single action parking brake

  • Specifications:

    • Application: Drama, Entertainment, Events, Multicam, Turnaround studio, Live Studio
    • Color: Black
    • Height: 25.98 in to 56.3 in
    • On Shot Stroke: 30.31 in
    • Payload: 187.4 lb
    • Pedestal Base: Skirted
    • Perfect Balance Stages: 2
    • Range: Osprey
    • Stages: 2
    • Steering Ring Diameter: 25 in
    • Tracking Width: 42.52 in
    • Transit Width: 31.5 in
    • Trim Weights: 3500
    • Weight: 197.09 lb
    • Wheel Diameter: 4.92 in
    • Wheel Locks: Single-pointd
    • Crab and Steer Modes: Yes
    • Accessory Holder Included: Yes
    • Kick Ring Included: Studio base
    • Adjustable Cable Guards: Yes
    • Ground Clearance: 08.8 in (2 cm)
