VigilLink VLEX-HAACT150-TR CAT HDMI and Toslink Digital Audio Extender - 492 Foot/150m

Name: VigilLink VLEX-HAACT150-TR CAT HDMI and Toslink Digital Audio Extender - 492 Foot/150m
Brand: VigilLink
SKU: VLEX-HAACT150-TR
Price: 247.00 USD
Availability: InStock

ITEM #: VLEX-HAACT150-TR MFG #: VLEX-HAACT150-TR

VigilLink

Our Price:

$247.00

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VLEX-HAACT150-TR - Overview

Experience seamless audio transmission with the VigilLink VLEX-HAACT150-TR Audio Extender. It can transmit HDMI ARC or S/PDIF audio signals over impressive distances of up to 150m/492ft (96kHz) or 90m/295ft (192kHz, for ARC only) using a single CAT cable.

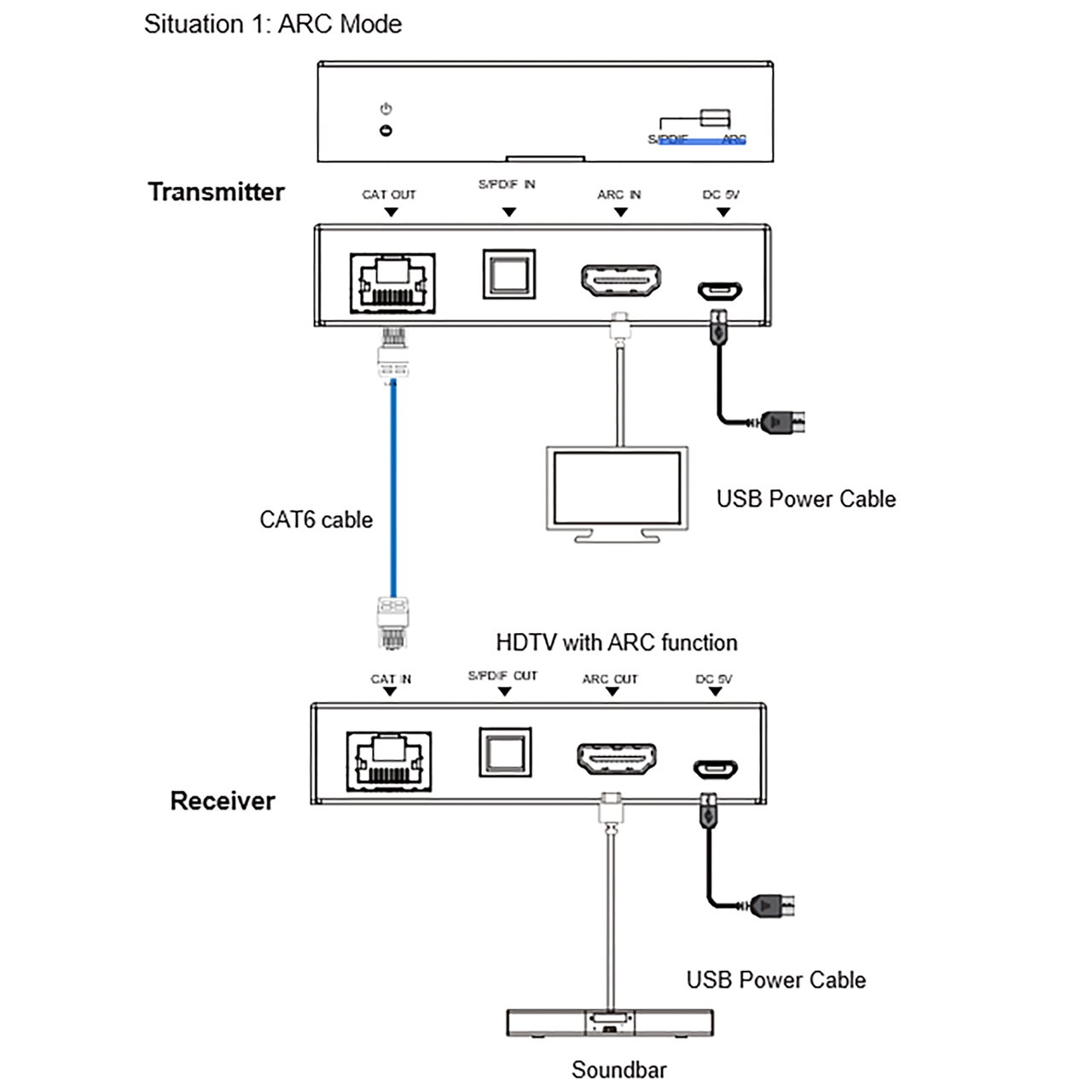

Featuring CEC pass-through functionality between the HDMI ARC input port and ARC output port, this extender ensures a seamless handshake for ARC transmission.

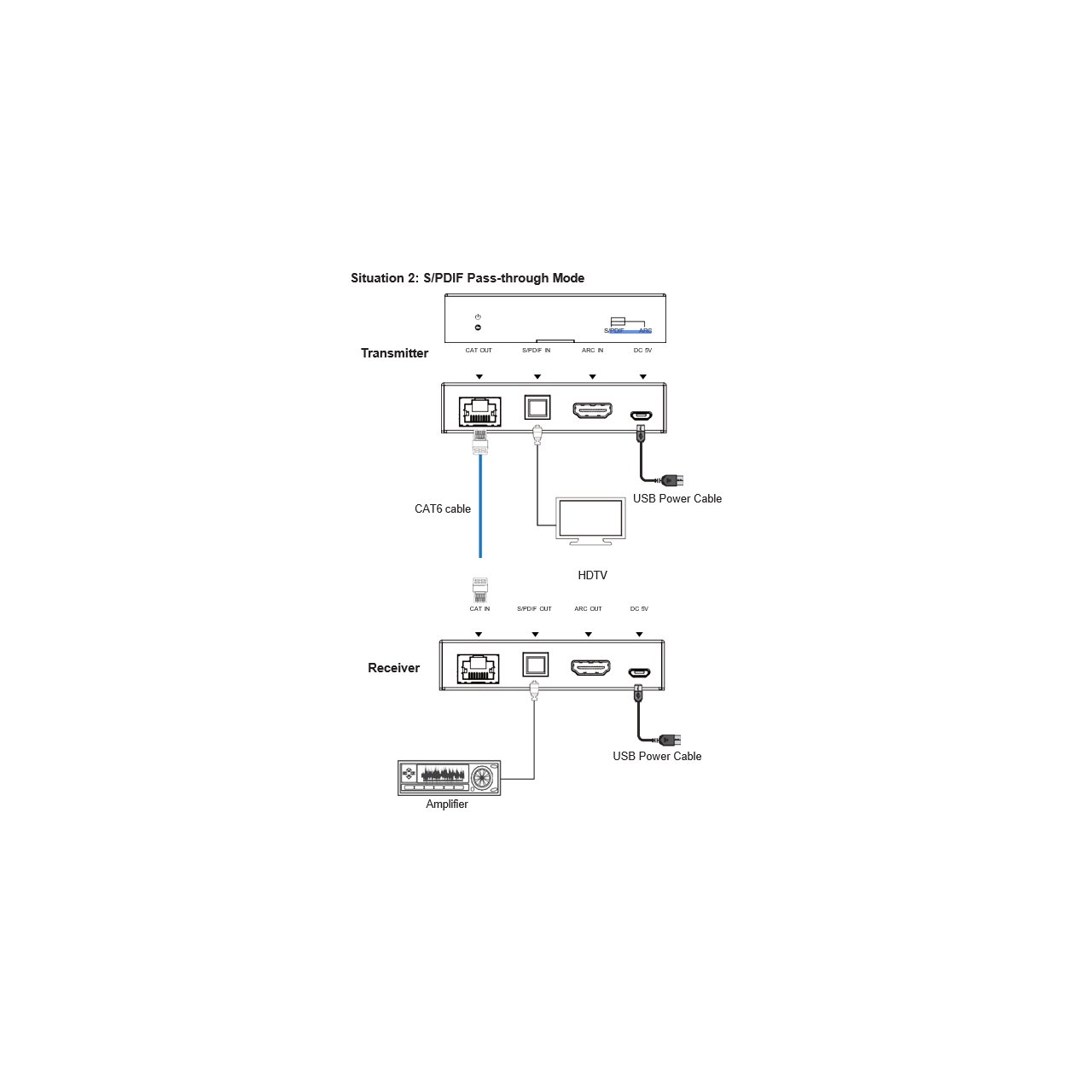

For TVs lacking ARC functionality, the extender offers an independent S/PDIF audio pass-through channel, allowing S/PDIF audio to be transmitted from the S/PDIF IN port of the transmitter to the S/PDIF OUT port of the receiver.

Say goodbye to audio limitations and enjoy a hassle-free plug-and-play solution for transmitting HDMI ARC and S/PDIF audio from your HDTV to an amplifier, AVR, or multi-room audio system.

Features:
- Extends HDMI ARC audio signal up to a distance of 150m/495ft (96kHz) or 90m/295ft (192kHz) over a single CAT cable
- Extends S/PDIF audio signal up to a distance of 150m/495ft (96kHz) over a single CAT cable
- Audio formats support: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Supports CEC pass-through when HDMI ARC mode is enabled
- Plug-and-play
- Small compact size
- Ultra-low jitter and high-fidelity design
Specifications:
- Supported Audio Formats: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Transmission Distance and Sample Rates:
  - ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz
  - S/PDIF audio: 150m/495ft - 96kHz
- ESD Protection Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

  Connection
- Transmitter Input Port:
  - 1x S/PDIF IN [Optical Audio Jack]
  - 1x ARC IN [HDMI Type A, 19-pin female]
  - 1x Micro-USB
- Transmitter Outputs: 1x CAT OUT [RJ45]
- Receiver Inputs:
  - 1x CAT [RJ45, female]
  - 1x Micro-USB
- Receiver Outputs:
  - 1x S/PDIF OUT [Optical Audio Jack]
  - 1x ARC OUT [HDMI Type A, 19-pin female]

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 2.99" x 2.52" x 0.94" / 76mm x 64mm x 28mm
- Weight: 0.88lb / 0.4Kg
- Power Supply: 5V/1A DC
- Power Consumption: 3.36 W (max)
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x HDMI Audio Extender (Transmitter)
- 1x HDMI Audio Extender (Receiver)
- 2x USB Shielded Cable (USB-A to Micro USB, 1m)
- 2x 5V/1A Power Adapter
- 1x User Manual
Warranty:
- 6 Years

VLEX-HAACT150-TR - Recommended Accessories

Milspec D155200WT 6 Outlet Power Strip with 3 Foot Cord - White
MILSPE-D155200WT
Our Price: $6.67
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Pelican 1920B LED Flashlight - Black
PEL-1920
Our Price: $42.95
Duracell PC1500 ProCell Heavy Duty AA Batteries - 24 Pack
24DURAA
Our Price: $18.56
Pro Tapes 001UPCG255MBLA Pro Gaff Gaffers Tape BGT-60 - 2 Inch x 55 Yards - Black
BGT-60
Our Price: $19.95
Black 5 Inch Soft cinch VELCRO® Brand Polytie Cable Tie - 25 Pack
3105-25
Our Price: $10.18

VLEX-HAACT150-TR - Reviews

Overview

VLEX-HAACT150-TR - Overview

Featuring CEC pass-through functionality between the HDMI ARC input port and ARC output port, this extender ensures a seamless handshake for ARC transmission.

Say goodbye to audio limitations and enjoy a hassle-free plug-and-play solution for transmitting HDMI ARC and S/PDIF audio from your HDTV to an amplifier, AVR, or multi-room audio system.

Features:
- Extends HDMI ARC audio signal up to a distance of 150m/495ft (96kHz) or 90m/295ft (192kHz) over a single CAT cable
- Extends S/PDIF audio signal up to a distance of 150m/495ft (96kHz) over a single CAT cable
- Audio formats support: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Supports CEC pass-through when HDMI ARC mode is enabled
- Plug-and-play
- Small compact size
- Ultra-low jitter and high-fidelity design
Specifications:
- Supported Audio Formats: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
- Transmission Distance and Sample Rates:
  - ARC audio: 150m/495ft - 96kHz, 90m/295ft - 192kHz
  - S/PDIF audio: 150m/495ft - 96kHz
- ESD Protection Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

  Connection
- Transmitter Input Port:
  - 1x S/PDIF IN [Optical Audio Jack]
  - 1x ARC IN [HDMI Type A, 19-pin female]
  - 1x Micro-USB
- Transmitter Outputs: 1x CAT OUT [RJ45]
- Receiver Inputs:
  - 1x CAT [RJ45, female]
  - 1x Micro-USB
- Receiver Outputs:
  - 1x S/PDIF OUT [Optical Audio Jack]
  - 1x ARC OUT [HDMI Type A, 19-pin female]

  Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 2.99" x 2.52" x 0.94" / 76mm x 64mm x 28mm
- Weight: 0.88lb / 0.4Kg
- Power Supply: 5V/1A DC
- Power Consumption: 3.36 W (max)
- Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Relative Humidity: 20 - 90% RH (No condensation)
Item Includes:
- 1x HDMI Audio Extender (Transmitter)
- 1x HDMI Audio Extender (Receiver)
- 2x USB Shielded Cable (USB-A to Micro USB, 1m)
- 2x 5V/1A Power Adapter
- 1x User Manual
Warranty:
- 6 Years
