Wooden Camera A00821 8 Position Quick Disconnect Receiver - 1/4-20 Mounting Option

ITEM #: WDC-A00821 MFG #: A00821

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$39.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


A00821 - Overview

Anti-Twist Swivel Mounts for QD Camera Strap System
The Wooden Camera A00821 Quick-Disconnect Receivers offer filmmakers, photographers, and riggers a secure and adjustable mounting solution. You've got options in design and mounting points.

Adjustable Non-Spin Positioning

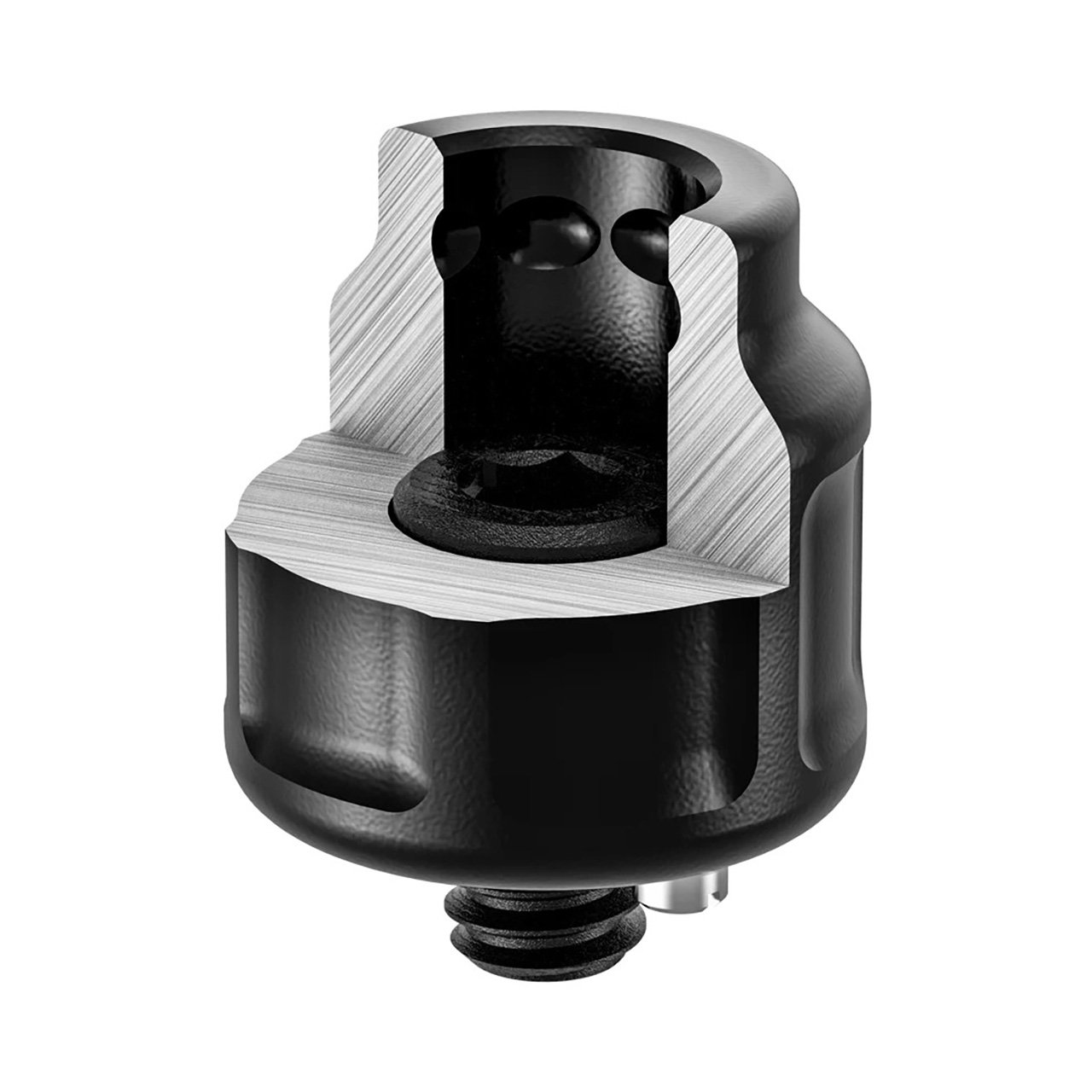

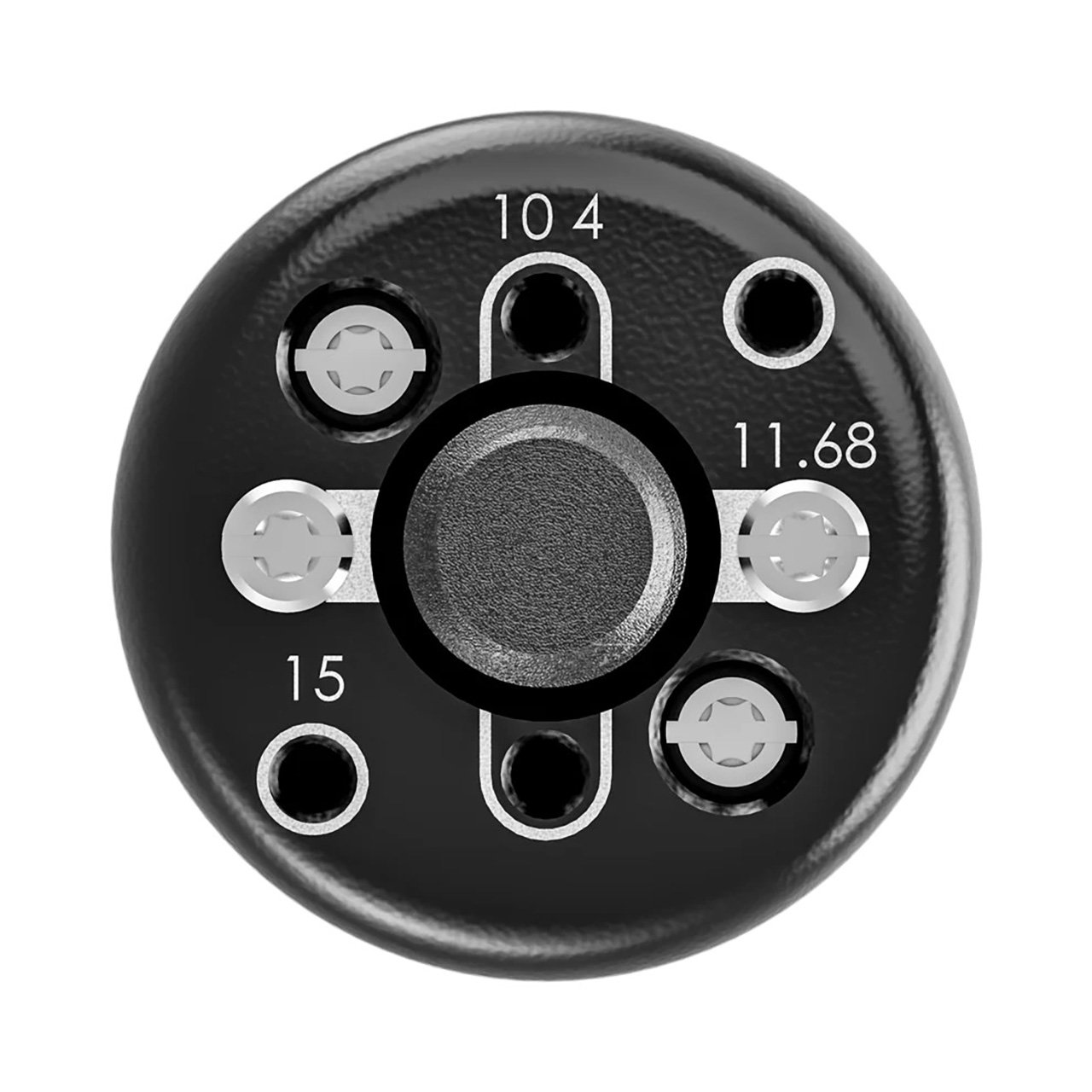

The 8-Position biconvex detent design firmly locks D-rings in place, preventing accidental detachment and twisting, unlike free-spring versions. Eight adjustable positions allow customized Triangle Ring orientation for optimal balance. This receiver provides a sturdy connection for cinema rigs, camera accessories, and professional mounting systems, offering precision, security, and versatility for dynamic shooting setups. The 1/4"-20 receivers include removable anti-twist pins that adjust to 10.4mm, 11.68mm, and 15mm patterns, with two spares in the base. A 3/16" hex tool secures the receiver to 1/4"-20 screw holes.

  • Specifications:

    • Mounting Option: 1/4"-20 Single
    • Weight: 0.033 lbs (14.97 g)
    • Dimensions: 1.63 x 1.63 x 2.13 in (19.5 x 19.5 x 25.5 mm)

  • Warranty:

    • 1 Year Limited Warranty
