Weller WE1010NA Digital Soldering Station with 70W Iron

ITEM #: WEL-WE1010NA MFG #: WE1010NA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    WE1010NA - Overview

    The Weller WE1010NA is a high performance 70W soldering iron with an ergonomic handle and easy tool-less tip change solution.

    Digital 70W soldering station is 40% more powerful than the well-known WES/WESD stations. This allows the iron to heat up faster and provides a faster recovery time-- gets the job done quicker with more efficiency and precision.

    • Features:

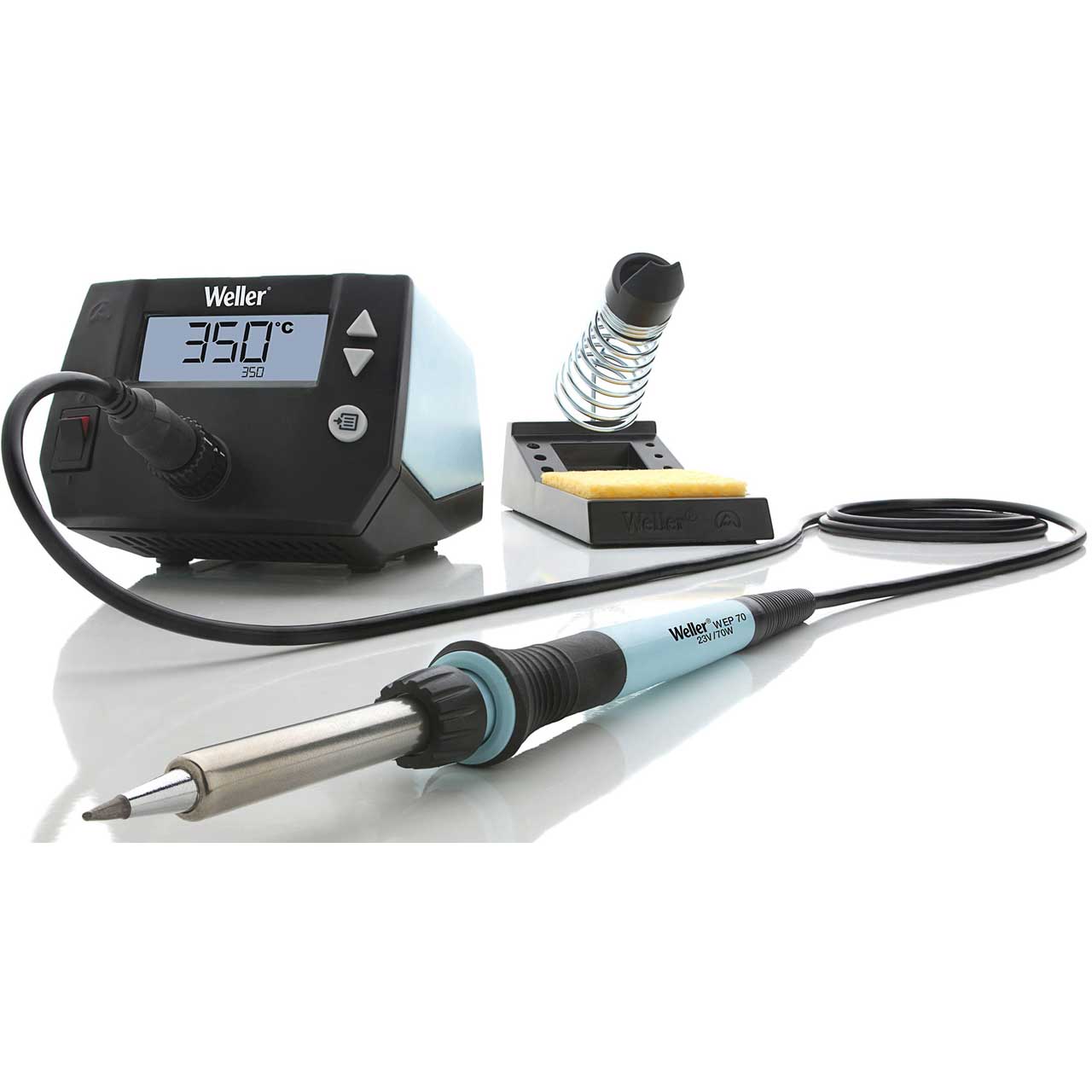

      • Includes: WE1 Soldering Station (120V, 70W) , WEP70 Soldering Iron with ETA tip, PH70 safety rest with sponge
      • Tip temperature control range: 200F to 850F (100C to 450C)
      • Intuitive navigation features: Password protection, Standby and Auto-off, temperature conversion from ° F to ° C all on a new LCD screen
      • Password-protected to preserve settings
      • Standby mode and Auto-off features conserves energy, protects equipment and extends tip life
      • 23V / 70 Watt high performance soldering pencil
      • Simple tip change using the new WEP70 Tip Retainer (WEP70 Order No.: T0058770714)

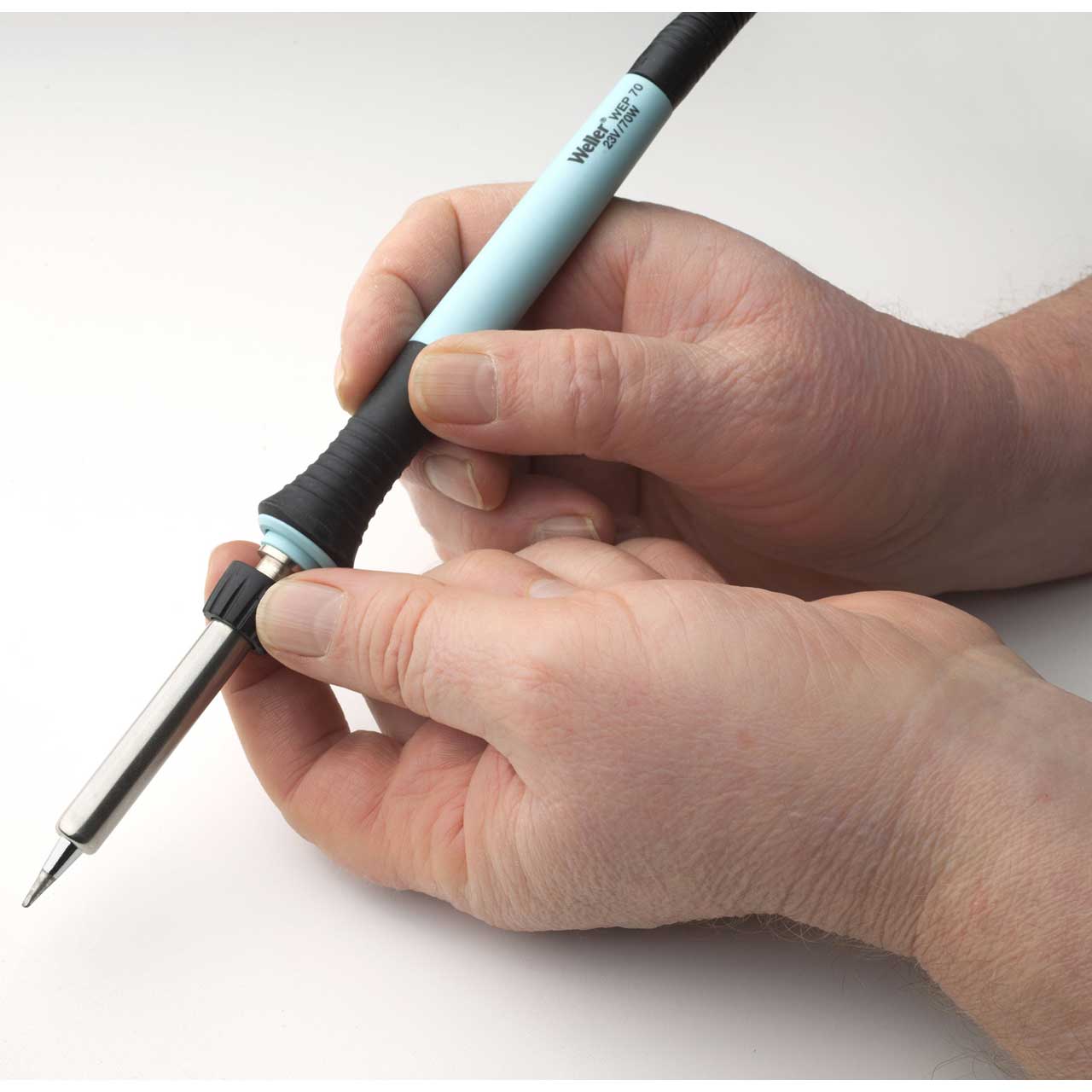

      • Light weight soldering pencil with a new co-molded grip
      • Uses the new PH70 Safety Rest with sponge (PH70 Order No.: T0058770706)
      • ESD safe, UL and cUL listed
    • Specifications:

      • Wattage: 70W
      • Temperature Range: 200° F - 850° F / 100° C - 450° C
      • Temperature Accuracy: Average tip temperature can be "offset" to ± 9°F / ± 5°C at idle with no load.
      • Temperature Stability: ± 10° F / ± 6° C
      • Dimensions (L x W x H): 5.91 in x 4.92 in x 3.94 in
    • GTIN:
