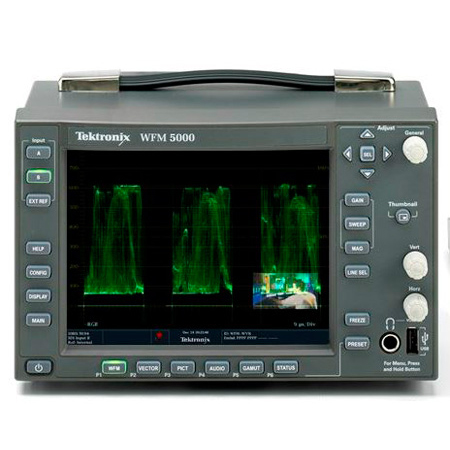

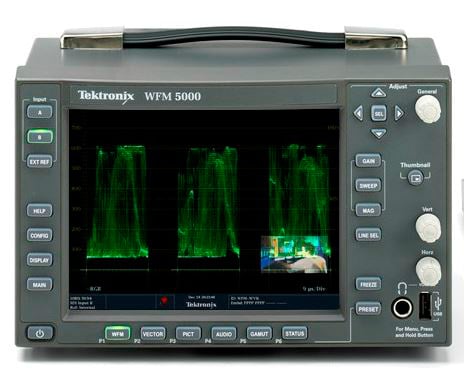

Tektronix WFM5000 SD/HD-SDI Waveform Monitor

WFM5000 - Overview

• Features:

  • WFM5000 - HD/SD - SDI Portable Waveform Monitor
  • Convenient, 3 RU, Half-rack, Short-depth Instrument, Ideal for Space-constrained Environments
  • AC and DC Power Options
  • Patented Gamut Displays Facilitate Compliance Verification
  • The Sharpest CRT-like Waveform Trace Quality
  • Error Log for 10,000 Events Simplifies Error Correction Tasks
  • Fully Digital Processing for Accurate, Repeatable, Drift-free Operation
  • Ethernet Port Allows for Easy Download of Screen Shots and Error Log
  • Freeze Mode for Trace and Picture Displays
  • Equipped Standard with Monitoring Capacity for 16 Channels of Embedded Audio (up to 8 Simultaneously) and 1 AES Audio Input
  • Front Panel Headphone Port for Easy Monitoring of Audio Channels
  • Audio Bars and Lissajous Displays for Verification of Audio on the Same Instrument
  • 32 User-configurable Presets for Quick Recall of Commonly Used Configurations.
  • User-definable Safe Area Graticules Facilitate Editing Tasks
  • High-brightness Display Allows for Indoor and Outdoor Usage
  • Picture Thumbnail with Line-select Marker
  • Intuitive User Interface, Backlit Buttons, and Online Help
  • Front Panel USB Port for Easy Transfer of Instrument Presets
  • Supports HD-SDI (SMPTE 292M) and SD-SDI (ITU-R BT.601) monitoring applications. It provides HD/SD format autodetect.


• Applications:

  • Confidence Monitoring Of SDI Video and
  • Uncompressed Digital Audio
  • Compliance Checking in Distribution and Broadcast
  • Content QA in Production and Post-Production
  • Portable Monitoring on Camera and Field Production
