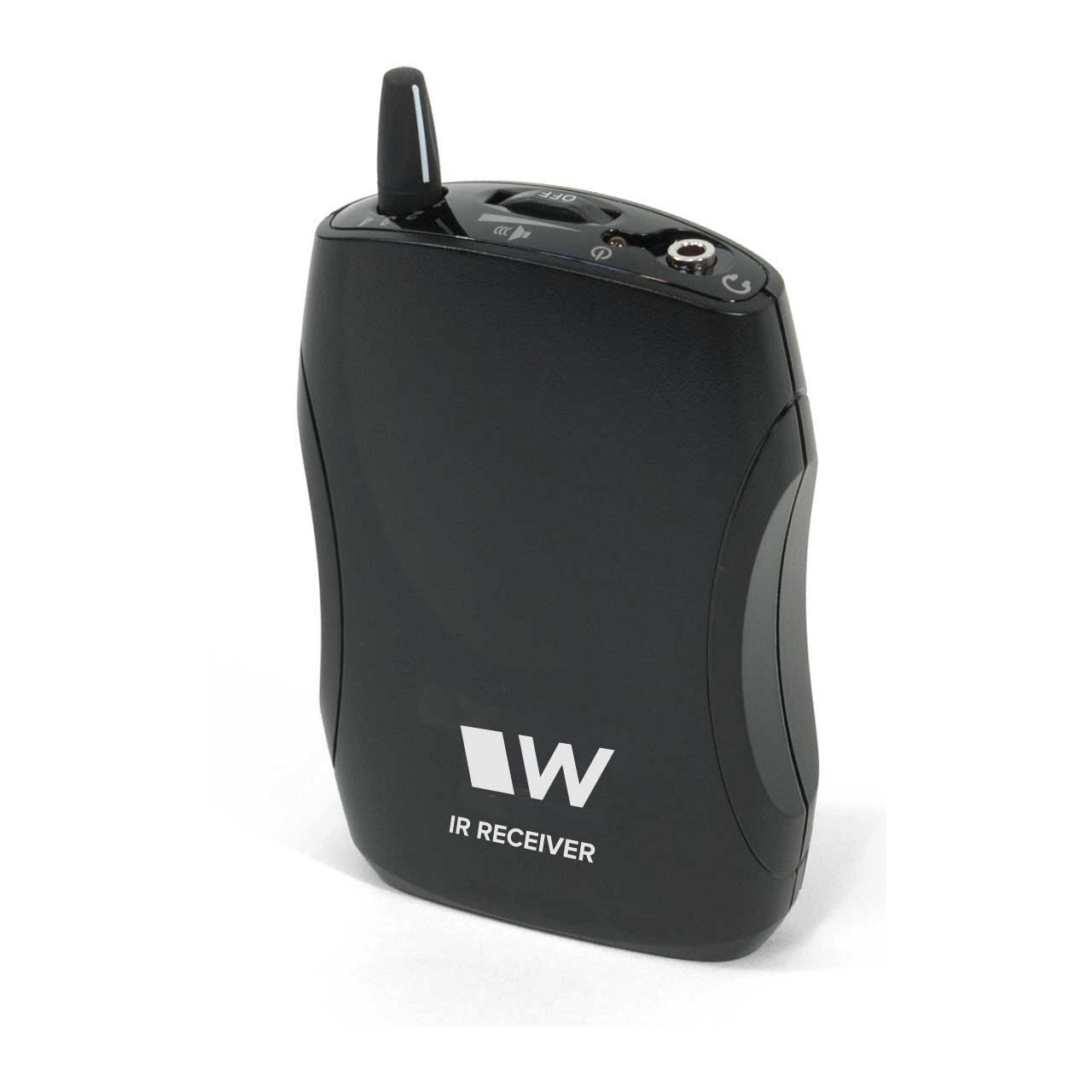

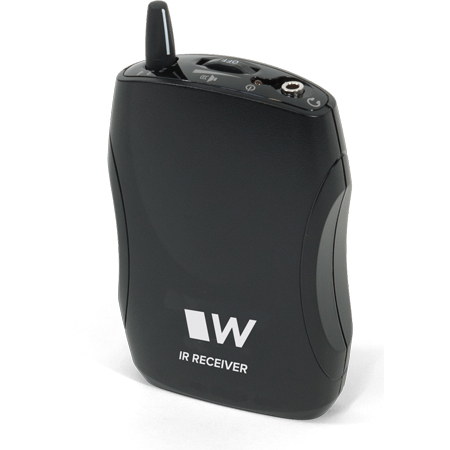

Williams AV WIR RX22-4N-NKL 4-Channel Infrared Body Pack Receiver - NKL 001 Neckloop Included

WIR RX22-4N-NKL - Overview

• Features:

  • Use with earphones, headphones or neckloop (lanyard included)
  • Uses AA alkaline or rechargeable batteries
  • Five-year warranty (90 days on accessories)


• Specifications:

  • Receiver Style: Body-Pack, dual-lens detector, lanyard
  • Size: 4.1" L x 2.85" W x 1.2" H
  • Weight: 4.5 oz with batteries
  • Color and Material: Black
  • Lanyard: 3 ft, allows receiver to be worn around the neck
  • Operating Temperature: -10° C to +50° C
  • Battery Type: 2x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
  • Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
  • Battery Drain: 25 mA, nominal
  • Charging Contacts: For use only with CHG 3512
  • Carrier Frequency: Channel 1: 2.3 MHz, Channel 2: 2.8 MHz, Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
  • De-Emphasis: 50 uS
  • FM Deviation: ±50 kHz
  • Signal-to-Noise Ratio: 60 dB min.
  • Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
  • Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
  • Total Harmonic Distortion: Less than 1%, electrical response

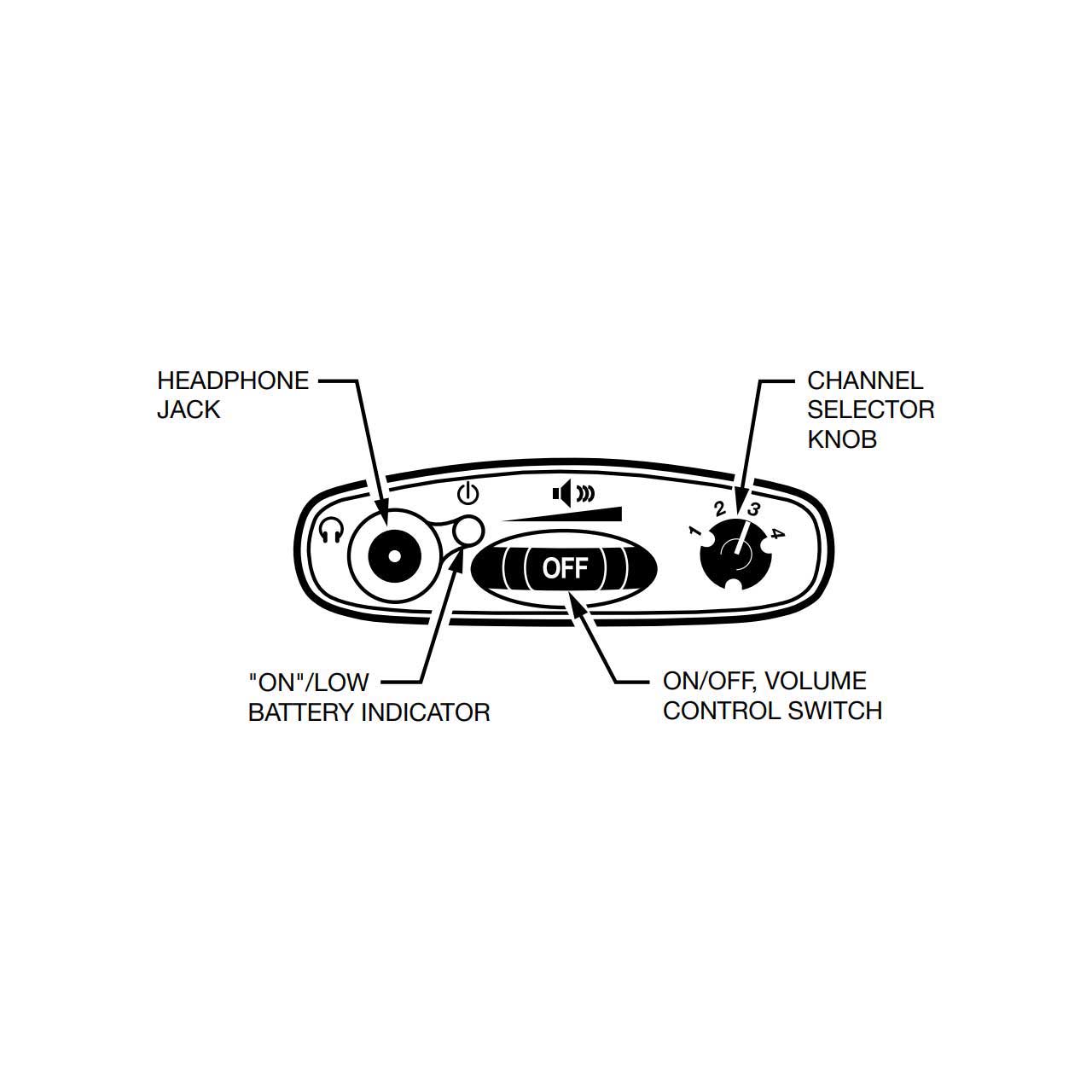

  • Controls: ON/OFF/VOLUME: combination thumbwheel knob, Channel Selector: four-position rotary switch
  • Indicators: Red LED "ON" indicator, flashes to indicate Low battery
  • Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
  • Audio Output Power: 15 mW max at 32 Ω
  • Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
  • Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
  • Approvals: CE, FCC, RoHS, WEEE
  • Warranty: 5 years on receiver, 90 days on accessories


• Item Includes:

  • 1x WIR RX22-4N Receiver
  • 2x RCS 004 Lanyards
  • 1x NKL 001 Neckloop


• Warranty:

  • 5 Years
