Wave Central Wave LITE KIT Grab-and-Go Wireless Video Transmission Kit

ITEM #: WVC-LITE-KIT MFG #: W2G-LITE-M-5G-LG

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$12,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


W2G-LITE-M-5G-LG - Overview

Go Live Simply. Perform Like a Pro.

Entry-level wireless kits often overpromise and underdeliver - weak range, unstable feeds, and headaches you don't have time for. The Wave Central Wave LITE Kit gives you the opposite: effortless setup, clean HD video, and Wave-engineered reliability that holds steady when other systems fall apart. It's lightweight, affordable, and ready to run right away - but performs with a confidence you'd expect from much higher-end gear.

Applications:
Houses of Worship
Small Venues & Local Productions
Freelancers & Production Assistants
Schools & Athletics Programs
Corporate Events

  • Features:

    • Easy Setup
    • Lightweight & Portable
    • Clean HD Video
    • Flexible Power
    • Budget-Friendly
    • Reliability under pressure
    • Ultra-low latency
    • Long-range performance
    • Hands-on support
    • Clean video stream
    • Plug-and-play simplicity

  • Specifications:

      System
    • Compression: AVC Intra (H.264) MPEG-4
    • Latency: <40ms
    • Audio: SDI Embedded
    • Range: Typically, Over a Mile
    • Video Resolution:
      - (SD/HD/3G) 720x480i, 59.94
      - 720x576i, 50Hz (SD)
      - 1280x720p, 60/59.94/50Hz (HD)
      - 1920x1080i, 60/59.94/50Hz (HD)
      - 1920x1080p, 30/29.97/25/24/23.97Hz (HD)
      - 1920x1080p, 60/59.94/50Hz (3G)

      Transmitter
    • Video Connectors:
    • - BNC - HD-SDI 3G with Loop
      - HDMI - Micro
    • Dimensions: 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Micro TX
    • Input Voltage: 6-17VDC

      Receiver
    • Video Connectors: 2x BNC - HD-SDI 3G
    • Dimensions: 5.875" x 5" x 1.71" (149.23mm x 127mm x 43.4mm)
    • Weight: 1.5lbs (0.7kg)

      Pro Kit Specifications
    • TX Antenna: 3dB Flex Omni
    • RX Antenna: 2x 3dB Omni
    • TX Power Cable: 2-Pin Lemo-P-Tap
    • RX Power Cable: 2-Pin Lemo to AC PSU
    • Video Profile: 4:2:0
    • RF Coverage: Option: 5.8GHz
    • TX Mounting: 1/4-20
    • Shipping Dimensions: 20" x 14" x 8" (mm x 355.6mm x 203.2mm)
    • Shipping Weight: 10lbs (4.5kg)

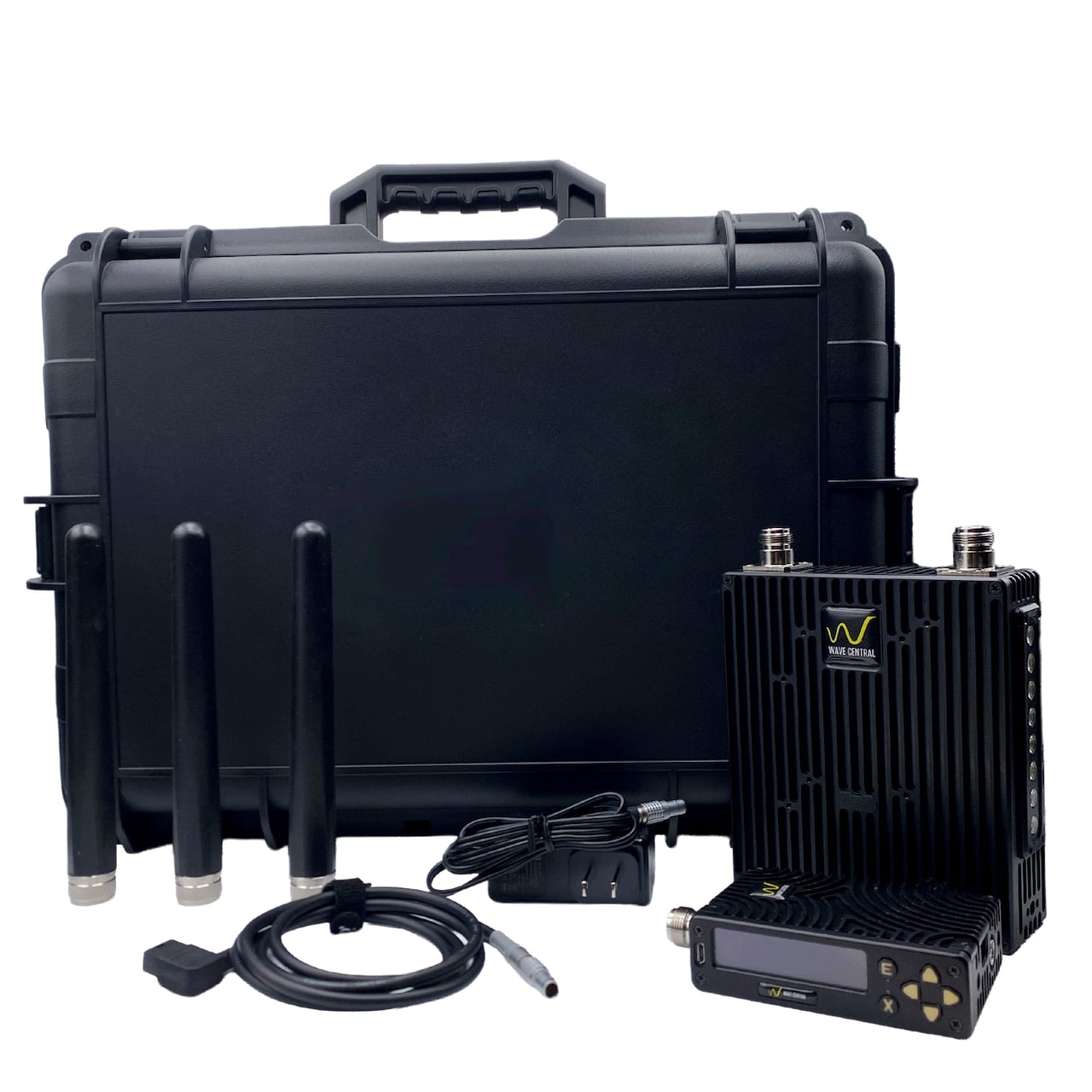

  • Item Includes:

    • 1x Lightweight Wireless Transmitter
    • 1x 2-Pin Male Lemo to Dtap Power Cable (2-Foot)
    • 3x 3dbi Omni Antennas
    • 1x 2-Way Portable RX H264 Receiver
    • 1x 2-Pin Lemo AC Power Supply
    • 1x Custom Hard Case

  • Warranty:

    • 1-Year Limited Warranty
