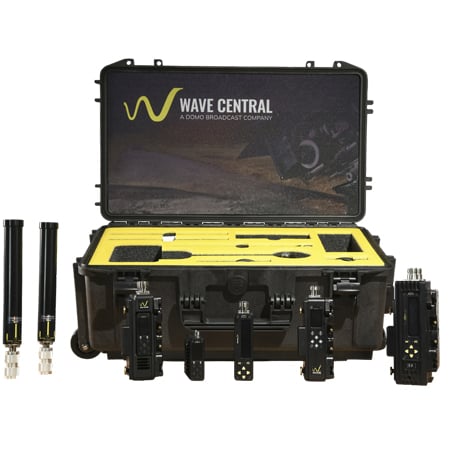

Wave Central Wave PRO KIT Broadcast Wireless Video Transmission Kit

ITEM #: WVC-PRO-KIT MFG #: W2G-PRO-N-5G-HC

Primary Image
Wave Central
Free Shipping with $49 Minimum Order

Our Price:

$16,995.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

W2G-PRO-N-5G-HC - Overview

Go Live With Confidence

Built for broadcasters, sports networks, and production teams who need uncompromising performance, the Wave Central Wave PRO Kit delivers a fully configured wireless video system capable of handling demanding, real-time environments. Designed around Wave Central's field-proven RF technology, the Pro Kit provides superior range, rock-solid reliability, and flexible configuration options - all packaged in a rugged, mission-ready case. Whether you're covering professional sports, capturing reality TV, or building out a mobile production workflow, the Pro Kit gives you the power to move fast and stay connected. Pre-configured and tested before it ships, this is your all-in-one, no-guesswork solution for high-pressure, high-stakes production.

Applications:
Professional Sports
ENG & Live News
Reality TV & Unscripted
Arena & Stadium Productions
Film & Cinematic TV

  • Features:

    • Reliability under pressure
    • Ultra-low latency
    • Long-range performance
    • Hands-on support
    • Clean video stream
    • Plug-and-play simplicity
    • Broadcast-Grade Performance
    • Extended Range
    • Flexible System Design
    • Rugged & Reliable
    • Ready to Roll


  • Specifications:

      System
    • Compression: AVC Intra (H.264) MPEG-4
    • Latency: <40ms
    • Audio: SDI Embedded
    • Range: Typically, Over a Mile
    • Video Resolution:
      - (SD/HD/3G) 720x480i, 59.94
      - 720x576i, 50Hz (SD)
      - 1280x720p, 60/59.94/50Hz (HD)
      - 1920x1080i, 60/59.94/50Hz (HD)
      - 1920x1080p, 30/29.97/25/24/23.97Hz (HD)
      - 1920x1080p, 60/59.94/50Hz (3G)

      Transmitter
    • Video Connectors:
    • - BNC - HD-SDI 3G with Loop
      - HDMI - Micro
    • Dimensions:
      - 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Micro TX
      - 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Mini B
      - 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Nano SDR
      - 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Nano SDR with Clamshell
    • Input Voltage: 6-17VDC

      Receiver
    • Video Connectors: 2x BNC - HD-SDI 3G
    • Dimensions: 5.875" x 5" x 1.71" (149.23mm x 127mm x 43.4mm)
    • Weight: 1.5lbs (0.7kg)

      Pro Kit Specifications
    • TX Antenna: 6dB Flex Omni
    • RX Antenna: 6dB 120o Directional
    • TX Power Cable: 2Pin Lemo-P-Tap / Option: Gold or V-Mount battery plates
    • RX Power Cable: 2Pin Lemo to AC PSU / Option: Gold or V-Mount battery plates
    • Video Profile: 4:2:2
    • RF Coverage: Option: 2.0-2.5, 5.8GHz, 6.4-7.1GHz
    • Shipping Dimensions: 22.5" x 14" x 8" (571.5mm x 355.6mm x 203.2mm)
    • Shipping Weight: 20lbs (9.1kg)


  • Item Includes:

    • 1x High-Performance Wireless Transmitter
    • 1x Clam Shell Housing
    • 1x SMA Antenna - DTC
    • 1x 2-Pin Male Lemo to Dtap Power Cable (2 Foot)
    • 1x 6DBI Omni Flex
    • 1x 2-Way Portable H264 Receiver
    • 2x 12DBI Sector
    • 1x 2-Pin Lemo AC Power Supply
    • 1x Arm/Clamp
    • 1x 4:2:2 License
    • 1x Custom Hard Case


  • Warranty:

    • 1-Year Limited Warranty
