    HL85BK - Overview

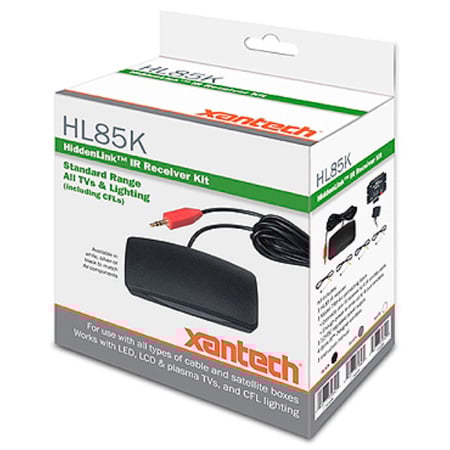

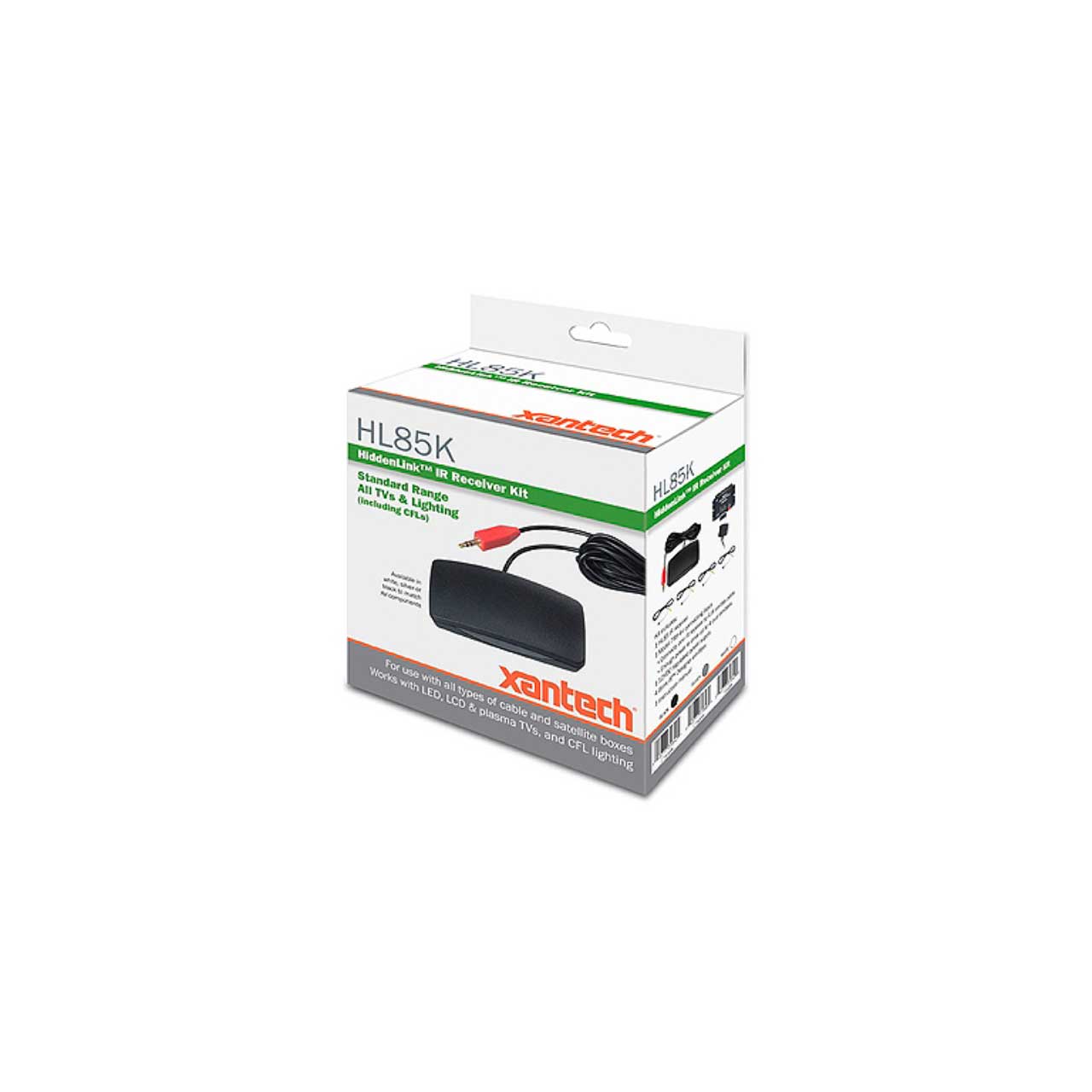

    Featuring five significant advances in IR control to achieve their remarkable sensitivity, performance and reliability in a wide variety of installation environments. The Xantech HL85BK LCD/CFL friendly Hidden Link IR Kit includes an HL85 table top infrared receiver, 1x4 connecting block and 4 IR emitters.

    Native Carrier Frequency Transmission Circuitry
    Nearly every IR system relies on a carrier frequency to "carry" the commands to their destination. Some consumer electronic devices, especially digital cable and satellite TV boxes, are very picky regarding carrier frequency accuracy. At times, they may not accept remote commands unless precisely the right carrier frequency is present.

    Unfortunately, many IR repeater systems take a technical short-cut and simply strip away the carrier frequency upon reception instead of intelligently identifying and removing the unwanted noise and interference from it -- and then attempt to regenerate or replicate the carrier frequency. This can result in incomplete or incorrect IR signals and a lot of frustration and expense for a system designer.

    Xantech takes no shortcuts here. Rather than trying to make a copy of the carrier frequency to compensate for inadequate parts and circuit design, Xantech uses better-quality components and circuitry that can accurately process the original carrier frequency. By doing so, a Xantech IR kit eliminates the noise and interference instead of the carrier itself, and transmits the original IR signal in its correct form to the rest of the system. The result is a dead-on accurate signal transmission -- minus all the noise and distortion.

    • Features:

      • Table-top design
      • Standard Range (up to 80 feet)
      • Works with LED, LCD & plasma TV's and CFL lighting
      • For use with all types of cable boxes, satellite boxes, remote controls and TVs
      • Available in white, silver or black to match AV components
      • Works with all types of cable boxes, satellite boxes, and TVs
      • Low profile table-top design - easy to hide
      • Proprietary ambient noise-suppression technology for reliable operation in any lighting environment including compact fluorescents
      • IR modulation frequency bandwidth: 25-60kHz
      • Reception range: up to 80 ft/24 m (Actual range depends on remote control output and ambient lighting conditions)
      • Color-coded connectors for fast, easy installation
    • Item Includes:

      • 1 HL85 IR receiver
      • 1 Model 789-44 connecting block
      • Connects one IR receiver to 4 IR emitter ports
      • Enough power to drive up to 4 dual emitters
      • 1 12VDC regulated power supply
      • 4 Blink-IR™ Designer emitters
      • 1 Instruction manual
