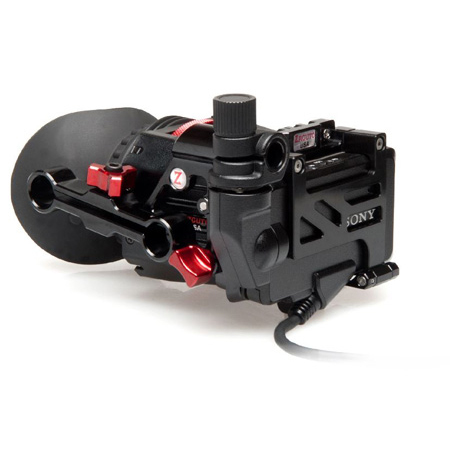

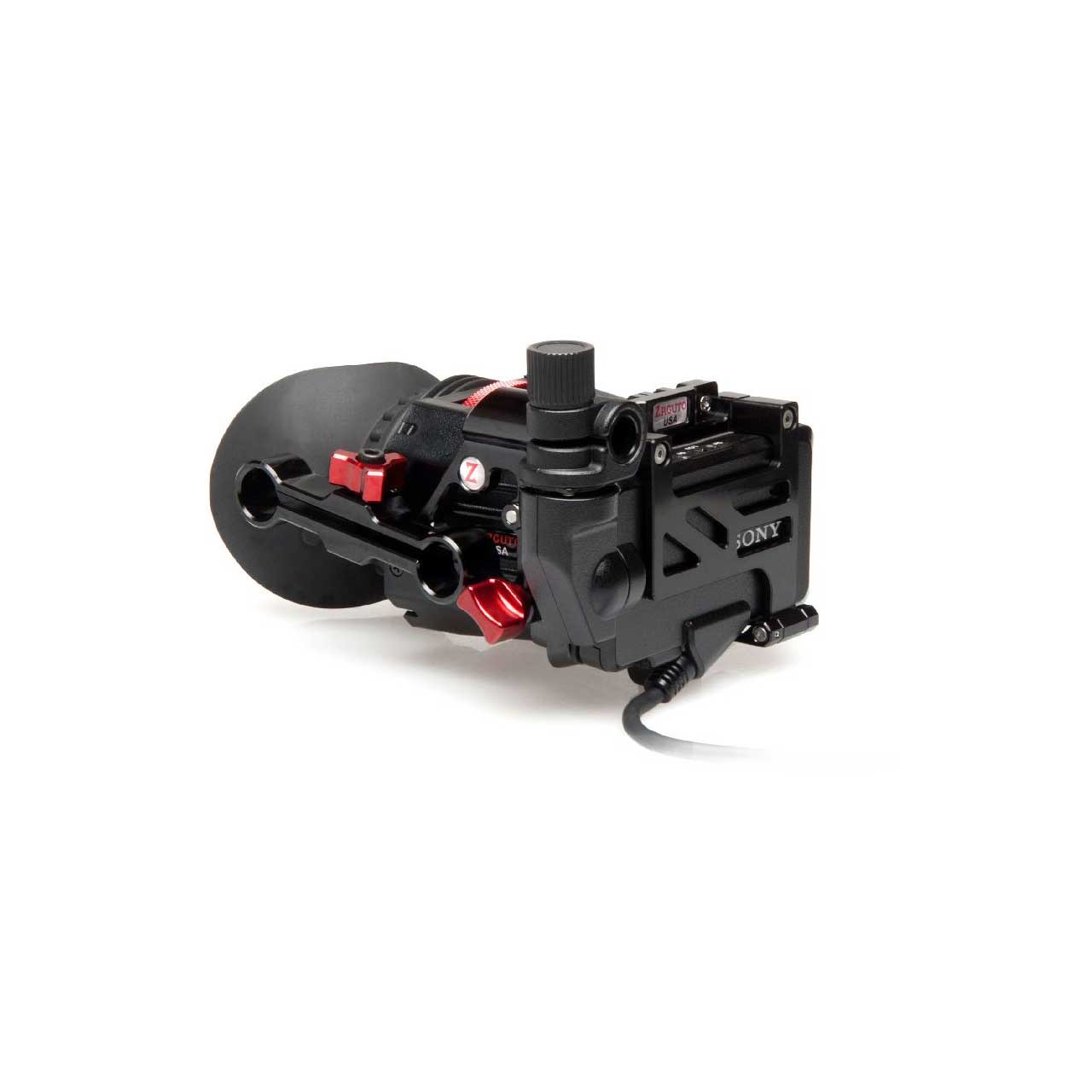

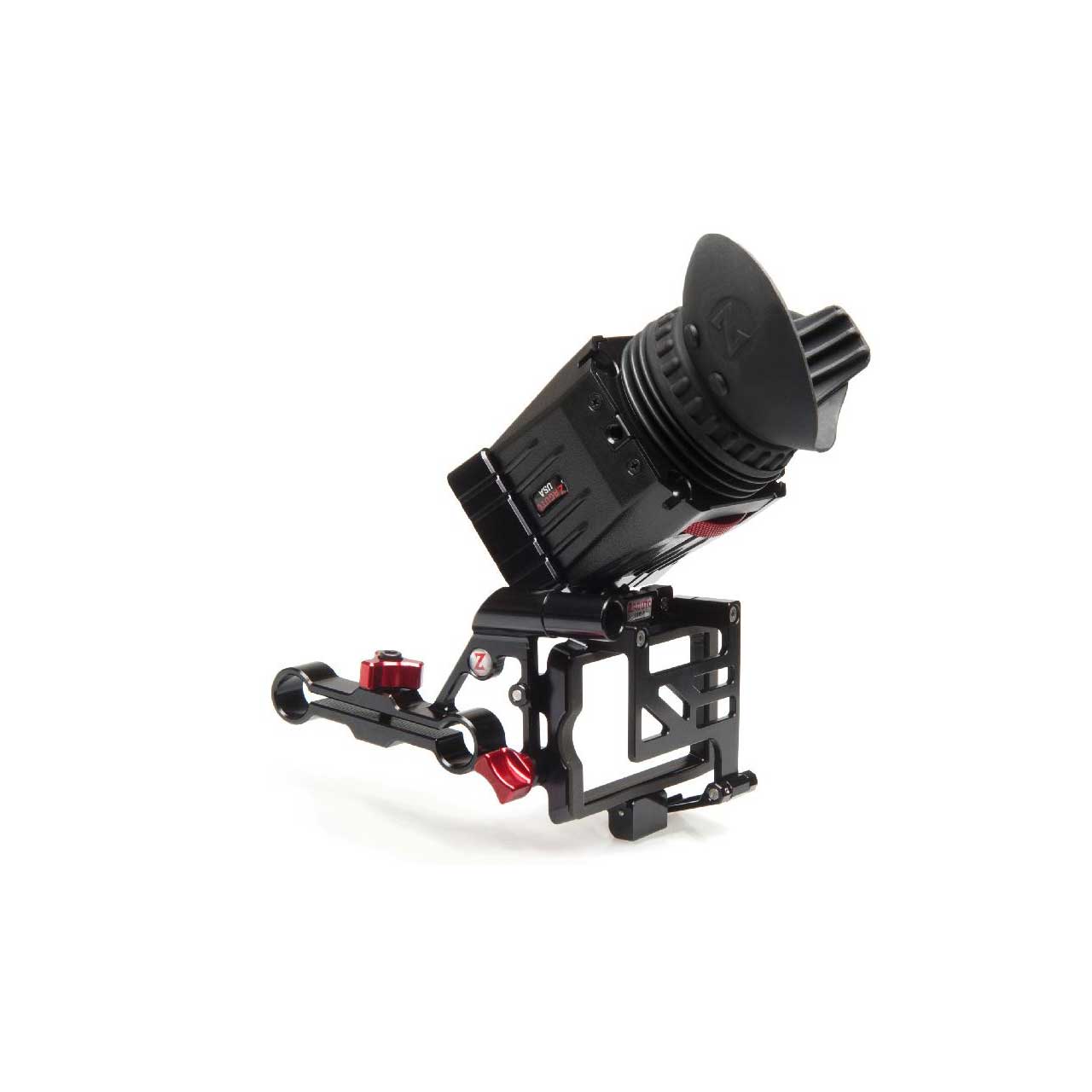

The Zacuto FS5 Z-Finder is specifically designed to suit the shape and size of the monitor included with the Sony FS5. The FS5 Z-Finder comes with a flip up frame designed to slide onto the FS5 LCD and lock securely in place. The Zacuto Z-Finder will pop on and off the frame for quick shooting. The red lever at the bottom of the frame allows you to quickly flip the Z-Finder up without removing it from the frame. If a producer/client/director etc. wants to see into the viewfinder, you can flip it open instead of having to adjust so they can get their eye to the loupe. You can also pop off the Z-Finder and use the FS5 LCD as a monitor.
This Z-finder will magnify the LCD screen by 2x and has a diopter for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against our comfy, large eyecup. The FS5 Z-finder comes with a 40mm diameter Zacuto optical designed lens, anti-fog coated protective covers, and the mounting system designed specifically for the FS5 LCD. The diopter allows you to dial in the focus to match your eye. If you need extra focal points you can use the included Z-Finder Extender Frames. These are semi-permanent stackable frames that attach to the body of the Z-Finder and extend the Z-Finder glass further away from the LCD screen for people who are farsighted. The diopter range with the included lens and extender frames is -4.0 to 0.0.
If you need more adjustment than the Extender Frames provide, you can add drop in diopters for further diopter adjustment. The interchangeable anti-fog glass diopters, -1, +1, +2, +3 and +4, correct the focus to your vision for perfect clarity. An aluminum sun mask is built in to the Z-Finder to protect your LCD screen from sunlight. Drop in diopters install underneath this aluminum sun mask.

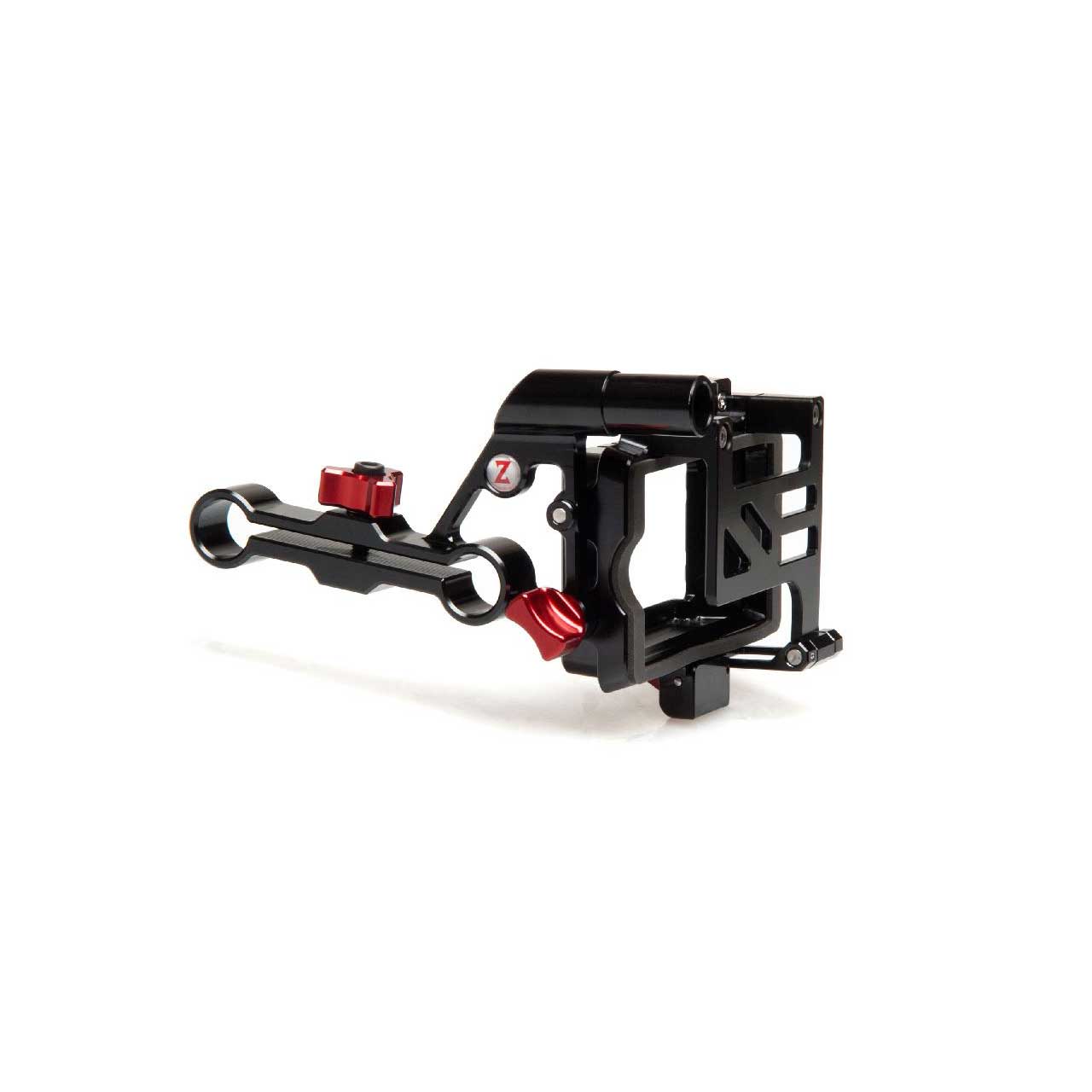

The included FS5 Mounting Bracket mounts the Z-Finder in place for shoulder mounted shooting. This includes a locking lever which screws into the flip frame to hold the LCD securely in place. The Mounting Bracket attaches to either the Sony adapter or any 15mm rod. You can attach a 15mm rod to the top of the camera by getting the FS5 Top Plate . Alternately, you can get the Axis Mini for FS5 which allows for a wider range of adjustment.
Please note: the FS5 Z-Finder is specifically designed for the Sony FS5 and will not work on any other camera.
