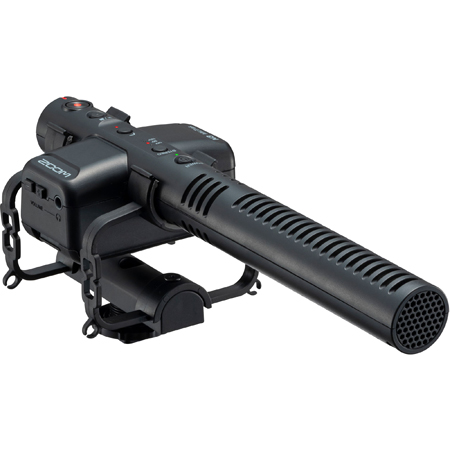

ZOOM M3 MicTrak Stereo Shotgun Microphone and 32-bit Audio Recorder

M3 - Overview

• Features:

  • Bidirectional Stereo Shotgun Microphone
  • For Audio for Video, Reporting, Film
  • 2-Channel Stereo Recording
  • 48 kHz / 32-Bit Floating Point Sampling
  • No Gain Adjustment Necessary
  • Supercardioid or Figure-8 Polar Pattern
  • 3.5mm Headphone Out and 3.5mm Line Out
  • microSDHC/microSDXC Compatible
  • AA Battery Power or USB-C Bus Power


• Specifications:

  • Inputs
    Mid Mic (Mono shotgun)
  • Directionality: Super cardioid
  • Input gain: Adjustment unnecessary (dual A/D converter circuit used)
  • Maximum sound pressure input: 133 dB SPL
    Side Mic
  • Directionality: Bidirectional
  • Input gain: Adjustment unnecessary (dual A/D converter circuit used)
  • Maximum sound pressure input: 119 dB SPL

    Outputs
    Line Out
  • Connector: 3.5mm stereo mini jack
  • Maximum Output Level: 1.2 dBu (into 2 kOhm load)
  • Output impedance: 100 Ohm
    Phone Out
  • Connector: 3.5mm stereo mini jack
  • Maximum Output Level: 20 mW + 20 mW (into 32 Ohm load)
  • Output Impedance: 10 Ohm

    Recorder
  • Maximum Simultaneous Recording Tracks: 4
  • Maximum Simultaneous Playback Tracks: 2
  • Recording Format: WAV 48 kHz, 32-bit float stereo BWF format supported
  • Recording Media: 4-32GB cards compatible with the microSDHC specification 64GB-1TB cards compatible with the microSDXC specification

    USB
  • Connector: USB Type-C (Use a USB cable that supports data transfer. USB bus power is supported.)
  • USB Mic: USB 2.0 High Speed, 48 kGzm 24-bit 2-in/2-out
  • File Transfer: USB 2.0 High Speed

    Power
  • 2 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-17): DC 5V/1A USB bus power is supported.
  • Estimated continuous operation times using batteries: These values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. These are times until the POWER indicator blinks orange (rapidly).
  • Alkaline batteries: about 12hrs
  • NiMH batteries (1900 mAh): about 11 hours
  • Lithium batteries: About 21 hours


• Item Includes:

  • 1x Zoom M3 MicTrak Stereo Shotgun Microphone and Recorder
  • 1x Foam Windscreen
  • 1x Shockmount
  • 1x 3.5mm TRS Cable


• Warranty:

  • Limited 1-Year Warranty
