ZOOM ZHA-4 Handy USB Type-C Headphone Amplifier with 4x 3.5mm Outputs

ITEM #: ZOOM-ZHA-4 MFG #: ZHA-4

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$79.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


ZHA-4 - Overview

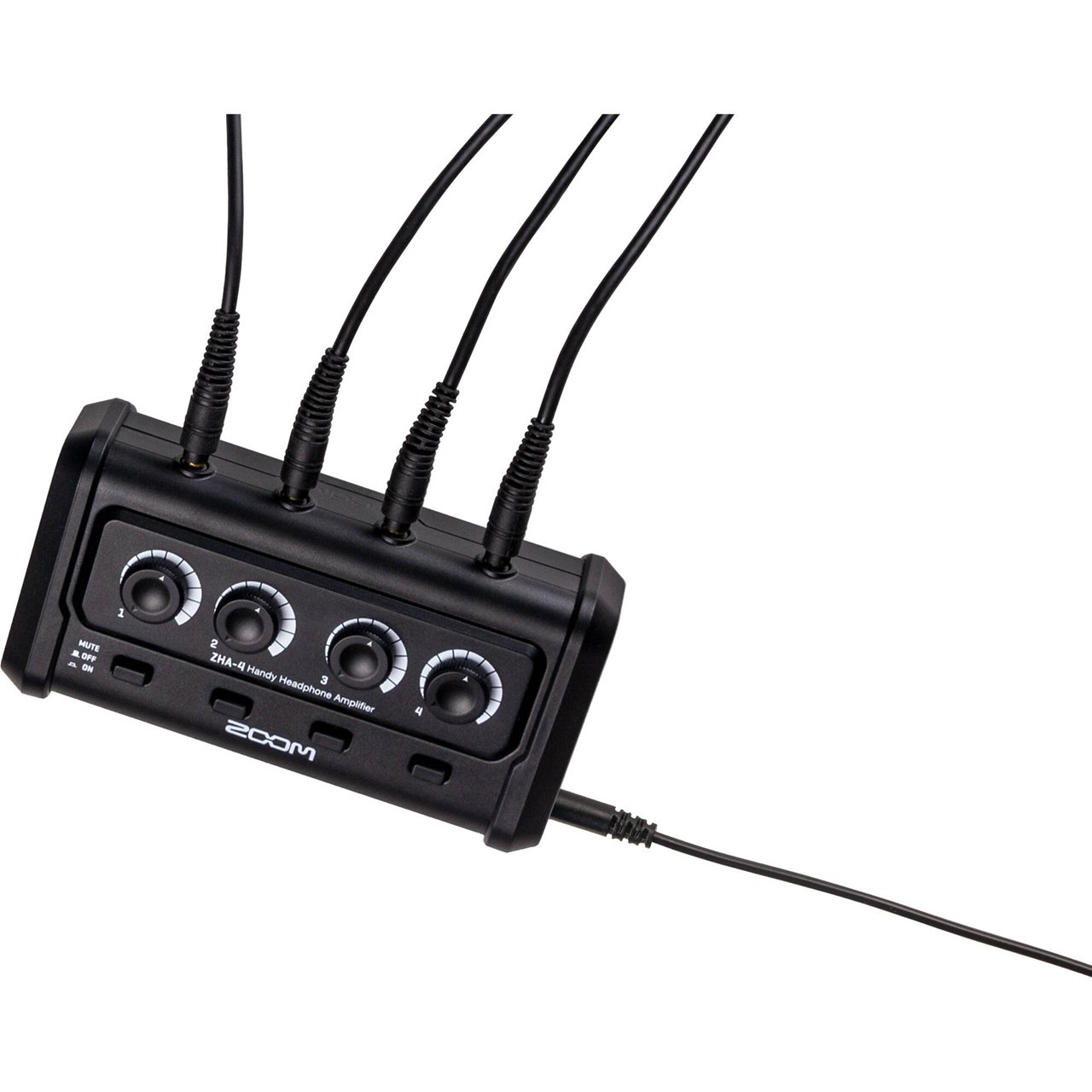

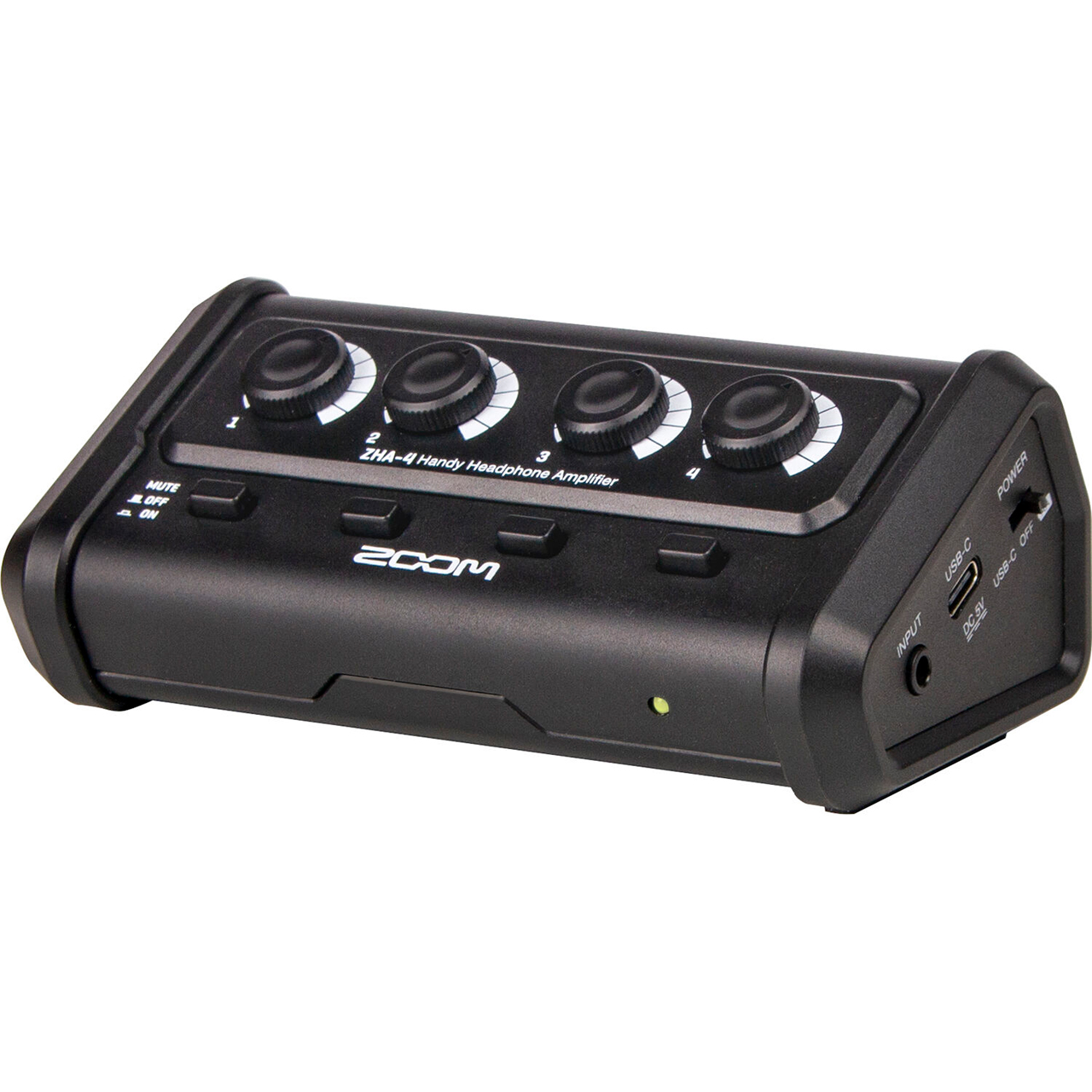

The Zoom ZHA-4 is the perfect for mobile recording setups and podcasting. It lets up to four people monitor audio from their headphones, dictating their own levels all the while. Four headphone outputs are on hand, as are four individual volume knobs to control levels, and four individual mute buttons. This battery-powered device, lasts between 3.5 and 4.5 hours on a single pair of AA batteries. However, you can also power it straight from portable power packs over USB Type-C. A 19 inch stereo aux cable is also included.

  • Features:

    • 4 Channels of Headphone Monitoring
    • Great for Podcasting and Mobile Recording
    • 4 Outputs, Volume Knobs & Mute Switches
    • Powered via 2 x AA Batteries
    • Up to 4.5 Hour Battery Life
    • Accepts Bus Power over USB Type-C
    • Includes 19 Inch Auxiliary Cable

  • Specifications:

      Physical
    • Dimensions: 5.1" x 2.8" x 2" (130cm x 70cm x 52cm)
    • Weight: 6.3oz (180g)

      Power
    • Power Requirements: Battery, USB Bus Power
    • DC Input Power: 5 VDC at 1A (USB Bus Power)
    • Battery Type: 2x AA
    • Approximate Battery Life:
      - 3.5 Hours (AA Alkaline)
      - 4.5 Hours (AA NiMH)

      Performance
    • Frequency Response: 10Hz to 50kHz ±1dB
    • Gain/Trim Range: 24dB
    • Dynamic Range: =100dB
    • Impedance:
      - Headphone Inputs: 10 Kilohm
      - Headphone Outputs: 47 Ohm (Unbalanced)

      Connectivity
    • Analog Audio I/O:
      - 1x 1/8"/3.5mm TRS Unbalanced Stereo Headphone Input

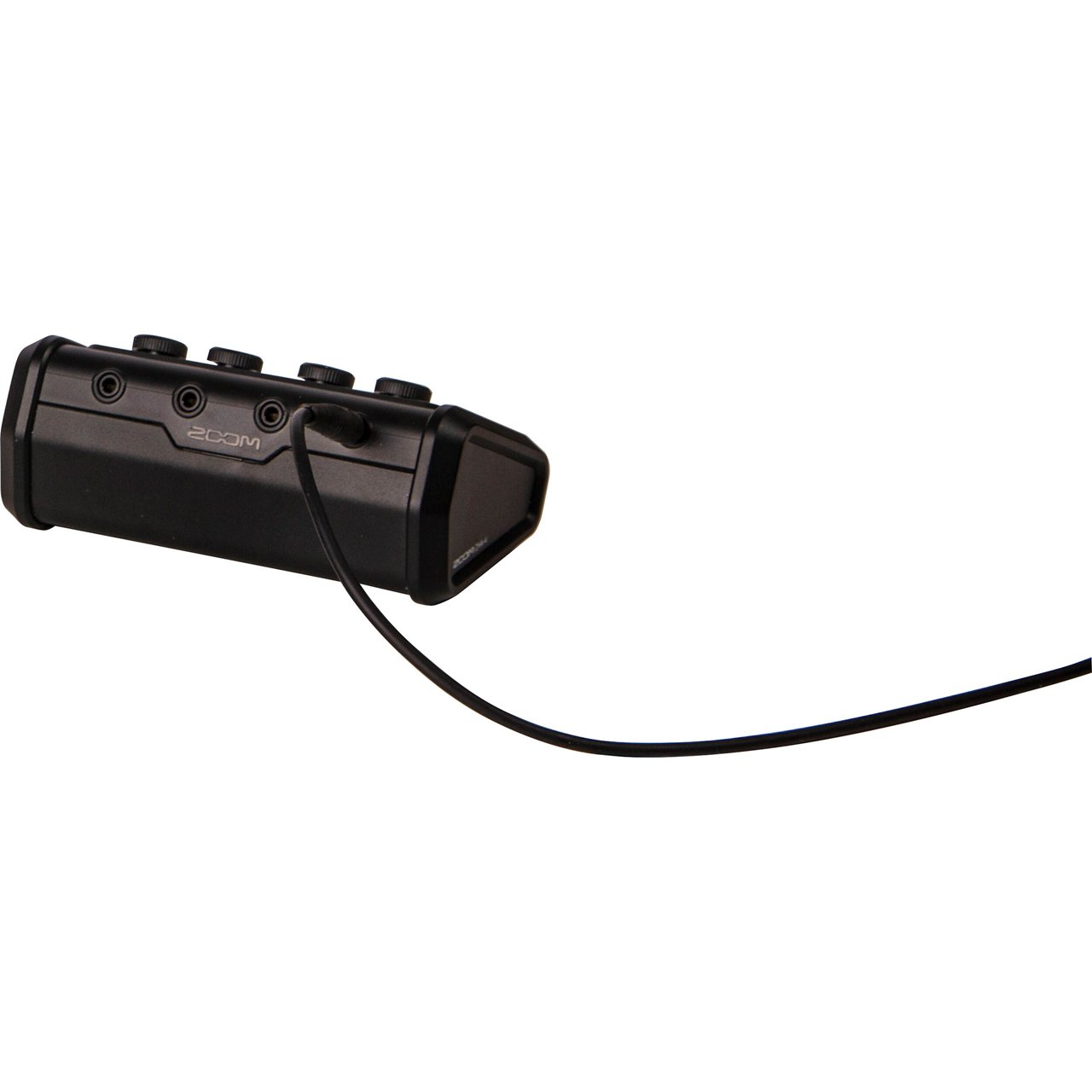

      - 4x 1/8"/3.5mm TRS Unbalanced Stereo Headphone Output (Rear Panel)
    • USB I/O: 1x USB-C (Power/Charging Input)

  • Item Includes:

    • 1x ZHA-4 Headphone Amplifier
    • 1x Stereo Mini Audio Cable (19"/50cm)
    • 1x Quick Guide

  • Warranty:

    • 1-Year Limited Warranty
