The optional Phabrix PHQXL01E-3G instrument Eye - SDI in A, available in the Physical Layer Analysis toolset, enables you to analyze physical layer compliance measurements at up to 12 Gbps. An analog front-end provides a bandwidth of more than 30 GHz (5th harmonic of the 6 GHz fundamental for 12G-SD...

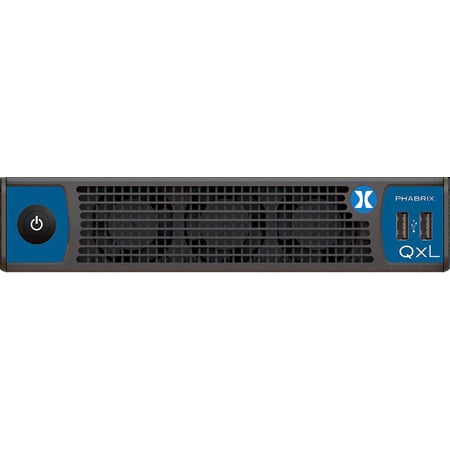

Phabrix PHQXL01-3G provides a Mezzanine interface board with eight SDI BNC Connectors (four inputs and four outputs) and two SDI-only SFP+ cages SFP+ Aand SFP+ B.From the moment you first power up a QxL, you'll appreciate the attention to detail in a platform designed to meet the increasing demands ...

PHABRIX QxL - 25GbE/12G-SDIFor real-time UHD IP workflows on 25G networks, the class leading Phabrix PHQXL provides support for HD/3G 2110 and 2022-6 payloads on generic 10G/25G SFP28 interfaces. The QxL is fully 10G/25G IP-enabled as standard, with support for JT-NM TR 1001- 1:2018, ST 2110-20 (vid...

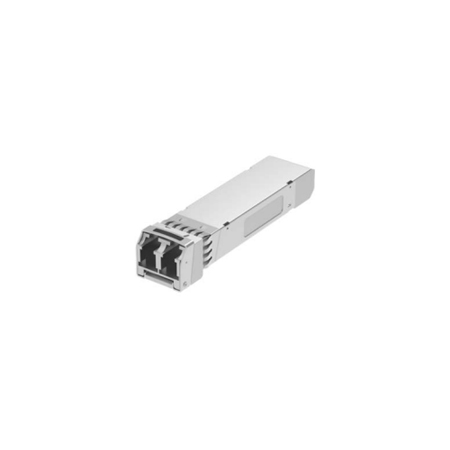

Phabrix PHSFP-RT12-1310 SFP+ SM(10km max.) LC Non-MSA - Tx 1310nm - Rx 1260-1620nm SD/HD/3G/6G/12G-SDI for QxP/QxL SDI OptionsItem Includes:1x Phabrix PHSFP-RT12-1310 SFP+ SM(10km max.) LC Non-MSA - Tx 1310nm - Rx 1260-1620nm SD/HD/3G/6G/12G-SDI for QxP/QxL SDI

Phabrix PHSFP-25GE-SR SFP28 25GBASE-SR Ethernet MultiMode for QXL/QXP - 850nm - 100mItem Includes:1x Phabrix PHSFP-25GE-SR SFP28 25GBASE-SR Ethernet MultiMode for QXL/QXP - 850nm - 100m

Phabrix PHSFP-25GE-LR SFP28 25GBASE-LR Ethernet SingleMode for QXL/QXP - 1310nm - 10kmItem Includes:1x Phabrix PHSFP-25GE-LR SFP28 25GBASE-LR Ethernet SingleMode for QXL/QXP - 1310nm - 10km

Phabrix PHSFP-10GE-SR SFP+ 10GBASE-SR Ethernet MultiMode SFP for QXL/QXP - 850nm - 300MItem Includes:1x Phabrix PHSFP-10GE-SR SFP+ 10GBASE-SR Ethernet MultiMode for QXL/QXP - 850nm - 300m

Phabrix PHSFP-10GE-LR SFP+ 10GBASE-LR Ethernet SingleMode for QXL/QXP - 1310nm - 10kmItem Includes:1x Phabrix PHSFP-10GE-LR SFP+ 10GBASE-LR Ethernet SingleMode for QXL/QXP - 1310nm - 10km

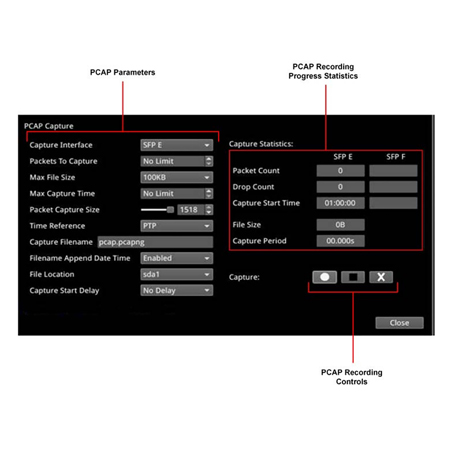

The Phabrix PHQXLO-IP-PCAP is a software license option that provides a Packet Capture function for the QxL series. The Packet Capture (CPAP) function enables you to capture a snapshot of all live IP network traffic on either one, or both, of the media interfaces. You can control the PCAP function e...

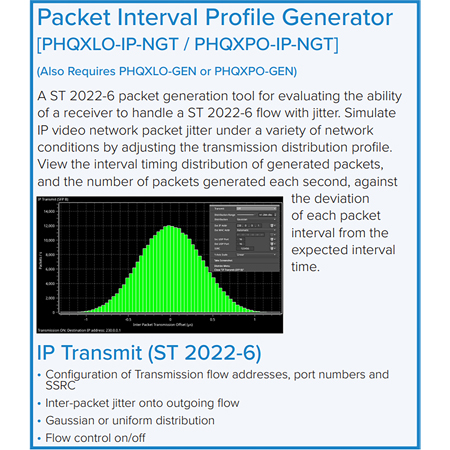

The Phabrix PHQXLO-IP-NGT is a software license option that provides a packet interval profile generator tool for the QxL series. This optional packet interval profile generator is for ST 2022-6 in IP 2022-6 boot mode ONLY when combined with PHQXLO-IP-NGT. (items sold separately)Please Note: This it...

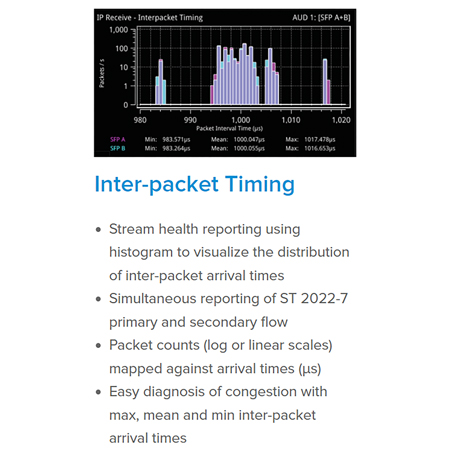

The Phabrix PHQXLO-IP-MEAS is a software license option that provides an advanced IP network traffic measurement tool for the QxL series. With the purchae of the PHQXLO-IP-MEAS software license, the following optional toolsets are available to you.When in IP 2100 Boot Mode- IP Receive - Interpacket ...

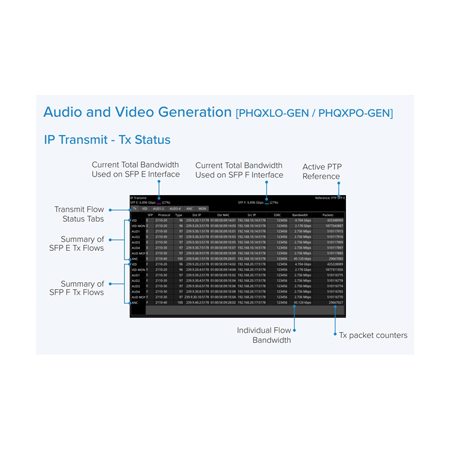

The Phabrix PHQXLO-GEN software option provides an audio/video text signal generator for QxL series rasterizers. Using the SDI option together with the PHQXLO-GEN (all items sold separately), the unit becomes both a Generator and Analyzer, which enables you to loop the Generator outputs back to the ...
