VAC 11-114-112 1x12 Composite Video DA
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    VAC 11-114-112 1x12 Composite Video DA

    Manufacturer: VAC

    Item #: 11-114-112   •   MFG #: 11-114-112


    List Price:$450.00
    Our Price:$431.95

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)



    1x12 Composite Video DA, Std. Input, Ind. Var. Gain, BNC Connectors, 12V AC

    • Specifications

      • Bandwidth DC - 200 MHz @ -3dB (1Vpp input signal)
      • Input Signal Level 0.5 - 2.0 Vpp (within -1V to +1V range from ground)
      • Input Configuration Standard(75 Ohm)
      • Input Coupling DC
      • Input Connectors BNC
      • Output Connectors BNC 12 Outputs
      • Gain Individual Variable
      • Output Series Impedance 75 Ohms
      • Mounting Two threaded 6-32 inserts
      • Power Supply 12V AC
      • Power Connector Type P5 Connector
      • Power Status Power LED indicator
      • Temperature -40°C to 50°C
      • Humidity 0% - 95%

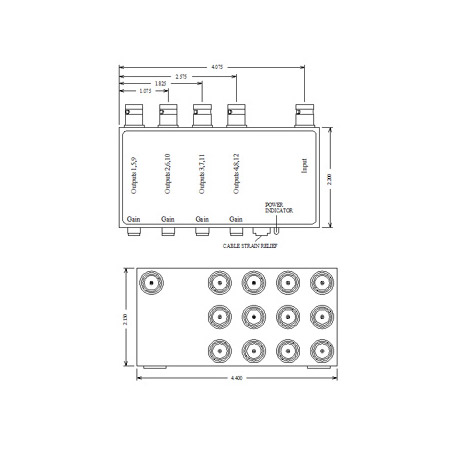

      • Dimensions 2.2" x 4.4" x 2.15"
      • 56mm x 112mm x 55mm
      • (Epoxy only without connectors)
      • Shipping Weight 3 lbs
      • (Includes wall transformer)
