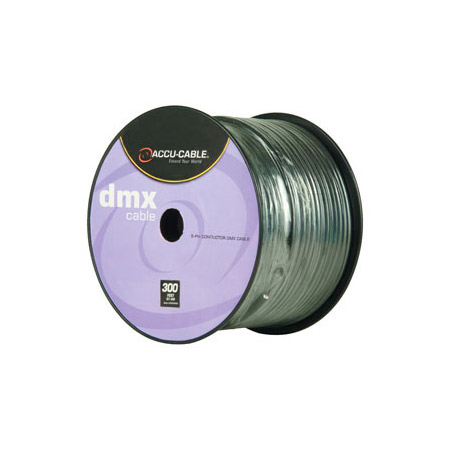

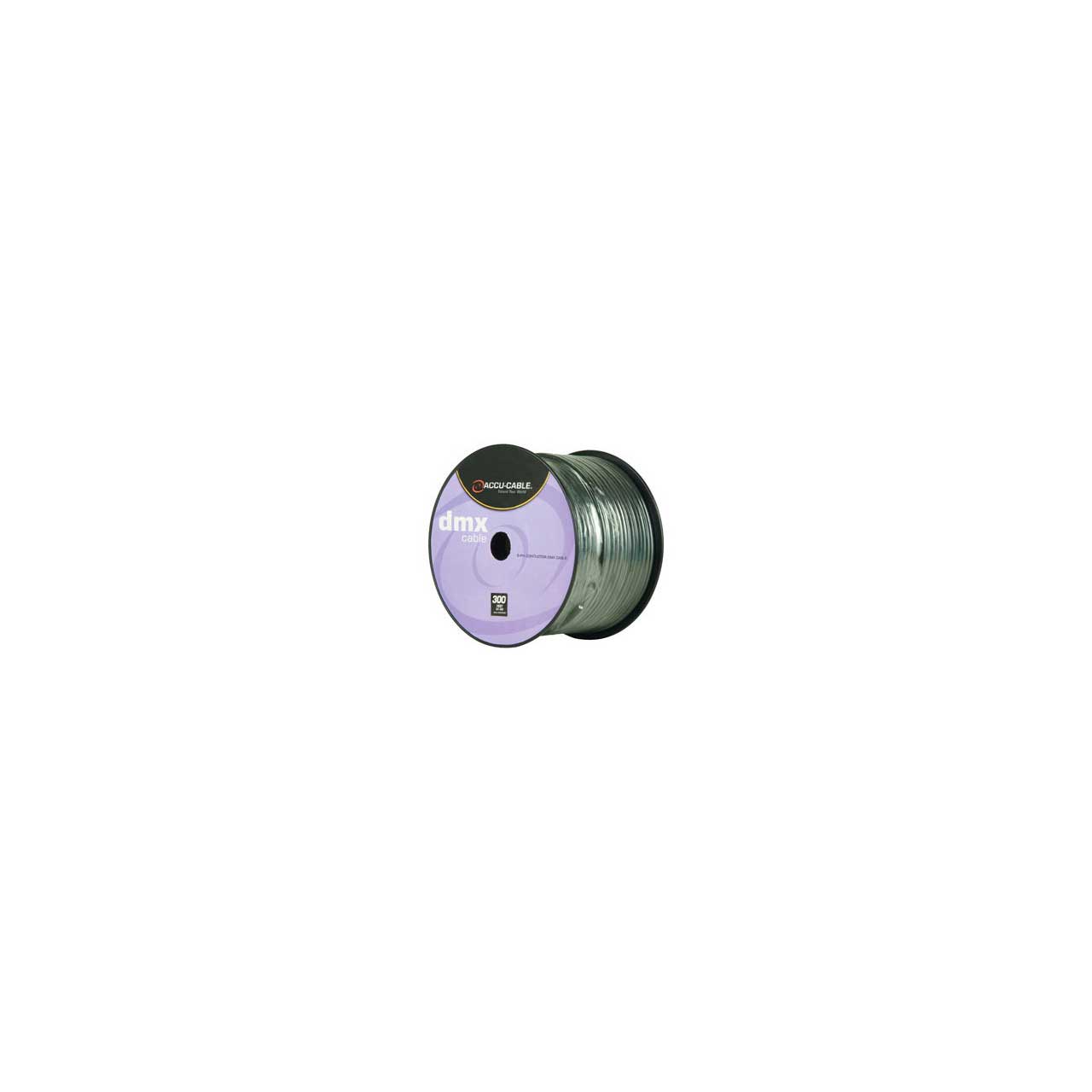

ACCU-CABLE AC5CDMX300 5 Pin DMX Cable - 300 Foot Spool
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    ACCU-CABLE AC5CDMX300 5 Pin DMX Cable - 300 Foot Spool

    Manufacturer: ACCU-CABLE

    Item #: AC5CDMX300   •   MFG #: AC5CDMX300


    List Price:$343.95
    Our Price:$309.95

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.



    22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

    • Specifications

      • Physical Characteristics:
      • Conductor:
      • Number of Pairs: 2
      • Total Number of Conductors: 4
      • AWG: 22
      • Stranding: 0.15 x 19
      • Conductor Diameter: .0354"
      • Conduct or Material: TC-Tinned Copper

      • Insulation:
      • Insulation Material PE Polyethylene

      • Lay Length:
      • Lay Length: 1.1"
      • Direction: Left Hand Lay
      • Twists: 10.9 per foot

      • Inner Jacket:
      • Inner Jacket Material: PE- Polyethylene
      • Inner Jacket Diameter: .055"
      • Pair Color Code: Green/Black/Red/White

      • Outer Shield:
      • Outer Shield Trade Name: Duofoil
      • Outer Shield Type: Tape/Braid

      • Outer Shield Material:
      • Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
      • Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

      • Outer Jacket:
      • Outer Jacket Material: PVC-Polyvinyl Chloride

      • Overall Nominal Diameter:
      • Overall Nominal Diameter: .295"

      • Mechanical Characteristics:
      • Operating Temperature Range: (-30 degrees C To + 75 degrees C)
      • Bulk Cable Weight: 50 lbs/1000
      • Minimum Bend Radius (Install): 3.5"
      • Maximum Recommended Pull Tension: 22 lbs.

      • Electrical Characteristics:
      • Nominal Characteristic Impedence: 110 Ohms
      • Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
      • Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
      • Nominal Velocity of Propagation: 76%
      • Nominal Delay: 1.6 Nanoseconds per foot
      • Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
      • Nominal Outer Shield D C Resistance @ 20 degrees C: 15 Ohms/ 1000 ft
      • Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
      • Maximum Recommended Current: 2.1 Amps per conductor @ 25 degree C
