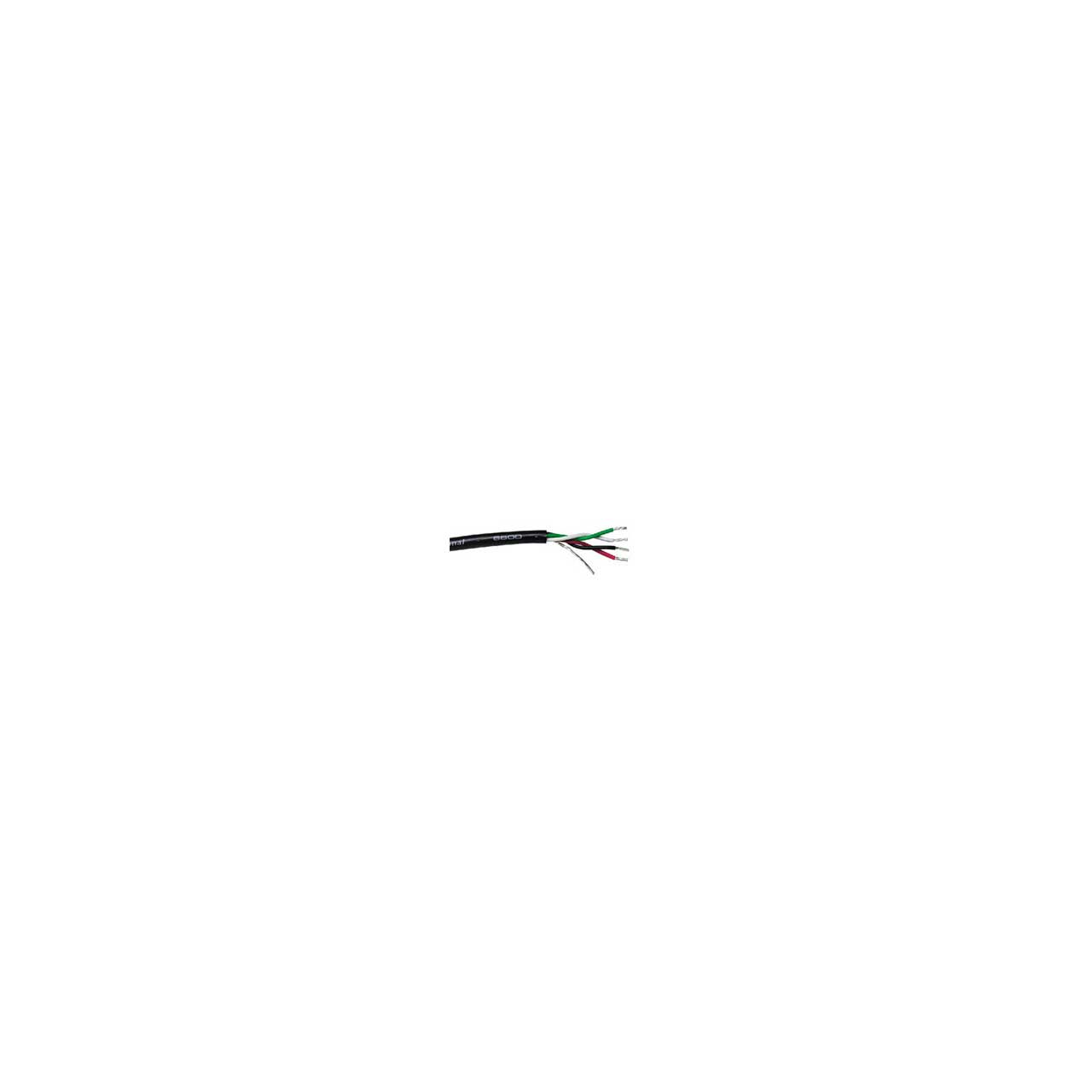

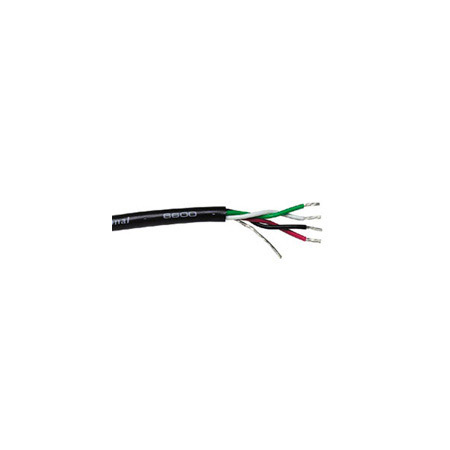

Gepco 6600 22 AWG 2 Pair Stranded TC Audio/Control Cable Per Ft Black

ITEM #: GEP-6600 MFG #: 6600-099

free ship

List Price:

$0.35

Our Price:

$0.30

Availability: In Stock
iAvailability Description Popup
  • This item is not returnable. See Terms & Conditions for details.


6600-099 - Overview

Two shielded twisted-pairs under a single round jacket for audio or control applications. Easy to terminate, the 6600 series features a reduced overall cable diameter. Each pair is individually shielded, but electrically in common, and shares a single tinned-copper drain wire. Insulation is a high-grade polyethylene that provides both improved electrical and temperature characteristics compared to PVC. Ideal for general purpose data or machine control applications.

  • Features:

    • Standard Capacitance
    • Polyethylene or Halar Dielectric
    • Small Overall Diameter
    • Individual Pair Shields
    • Common Drain Wire
    • CM Rated

  • Specifications:

    • Conductors: 22 AWG (7x30) Stranded TC
    • Drain Wire: 24 AWG (7x32) Stranded TC (common for both pairs)
    • Pairs: 2
    • Nominal O.D.: 0.173"
    • Insulation (type, wall thick)/ Color Code: PE, .008"/ Red & Black; White & Green
    • Shield: 100% Foil (per pair)
    • Capacitance: 29 pF/ft between conductors, 53pF/ft between one conductor and other tied to shield
    • Cond. DCR: 15.3 Ohm/Mft
    • Drain DCR: 23.8 Ohm / Mft
    • Jacke: PVC, Black
    • UL Type: CM
    • Weight: 21 Lbs. / M ft.
