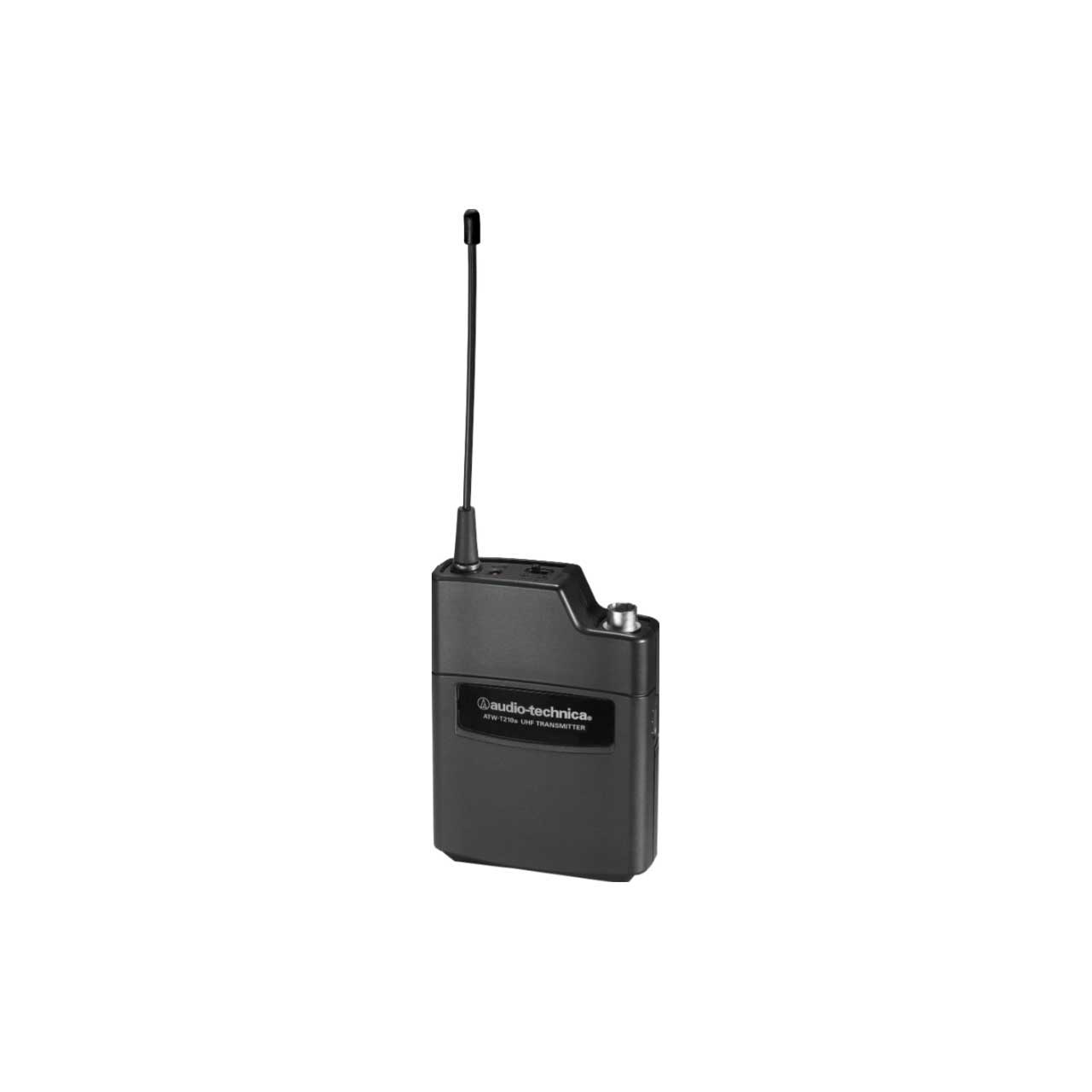

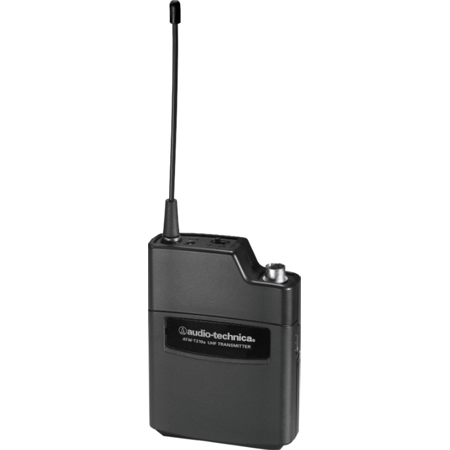

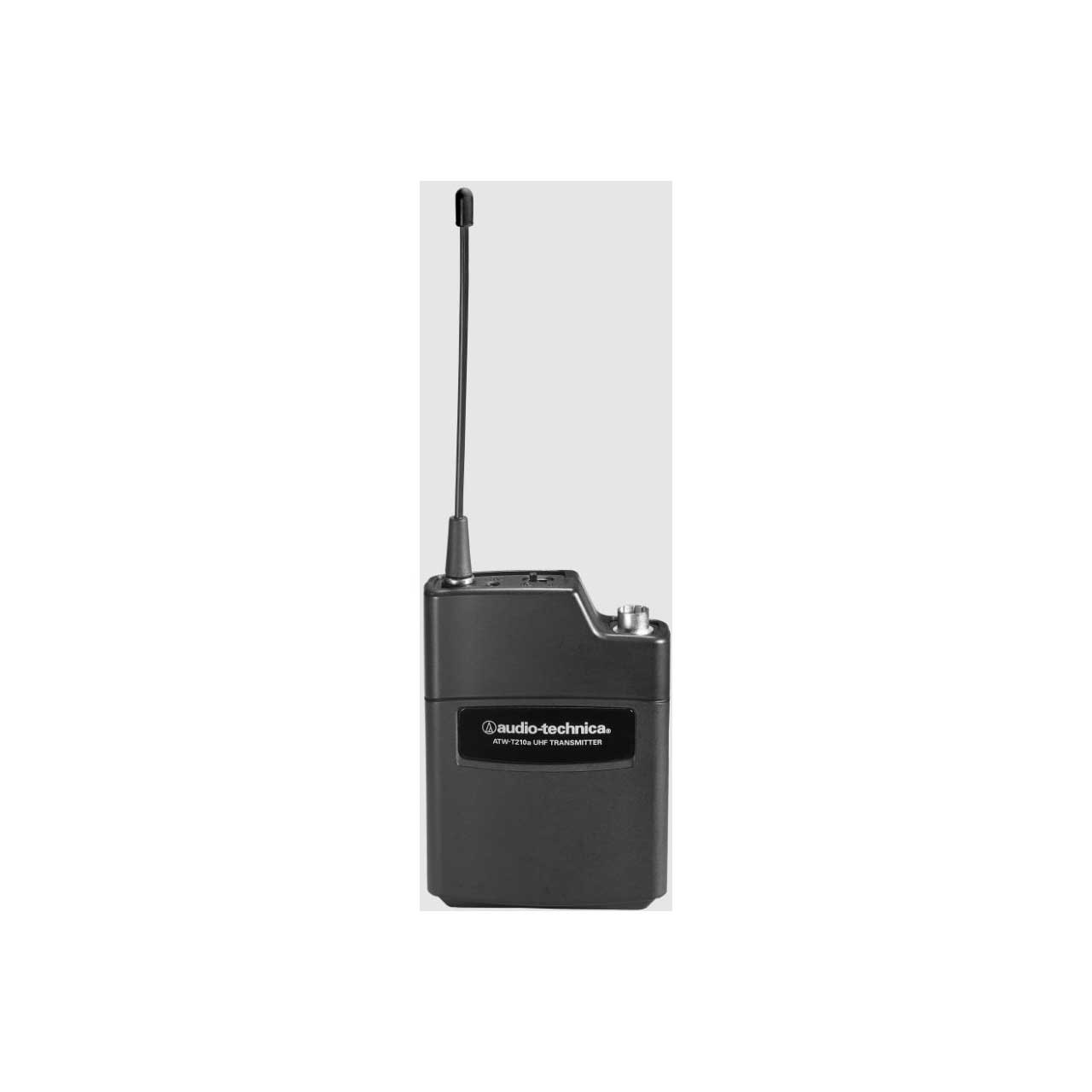

Audio-Technica ATW-T210CI Wireless UniPak Mic Transmitter - Band I: 487.125 - 506.500MHz

ITEM #: AT-ATW-T210CI MFG #: ATW-T210CI

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$169.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ATW-T210CI - Overview

    The Audio-Technica ATW-T210CI wireless UniPak body-pack transmitter has both low- and high-impedance input connections along with a DC bias voltage connection for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. Separate input trim controls are provided for each input along with a ten-position channel selector switch. All adjustment controls are hidden behind the transmitter's battery door and an adjustment tool is provided with the transmitter. A locking 4-pin HRS-type input connector is provided for both inputs. The connector is recessed to protect the connection and input cable. Sophisticated Tone Lock tone squelch eliminates the need for a separate mute button allowing the two-position, positive-action mechanical switch to function for both power and mute. The switch is located on the top of the transmitter for easy access and can be operated without looking at the transmitter. An RF power select switch offers high and low settings. A battery condition indicator shows that the batteries are good. The transmitter operates on two standard AA batteries (sold seperately) providing over eight hours of continuous operation. Constructed of rugged high-impact materials, the transmitter incorporates a latching captive battery door, field replaceable antenna and reversible belt clip.

    • Features:

      • Rugged housing with a reversible clothing clip
      • Recessed locking HRS-type microphone input connector
      • LED "ON" indicator
      • 10 compatible user-switchable channels in one of two UHF frequency ranges
      • Microphone or line input with DC bias voltage
      • Internal channel selector switch
      • Internal trim controls for mic and line inputs
      • Integrated two-position top-mounted power/mute switch
      • Digital Tone LockT to identify the wireless transmitter to the receiver
      • Operates on two AA batteries (sold seperately)
      • Field replaceable whip antenna

    • Specifications:

      • Body-Pack Transmitter Specifications
      • RF Power Output: High: 30mW, Low: 10mW (switchable), @ 50Ω
      • Spurious Emissions: Following federal and national regulations
      • Input Connections: Four-pin Locking Connector; Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
      • Batteries: Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included), Recharging power for NiMH batteries (with ATW-CHG2); U.S./Canada/Latin America: 3.2 V DC, 230 mA x2; Other world areas: 3.2V DC, 320mA x2
      • Battery Life: High: 7 hours (alkaline); Low: 9 hours (alkaline), Depending on battery type and use pattern
      • Dimensions (HxWxD): 3.63" x 2.60" x 0.89"
      • Net Weight: 2.9oz, without batteries

    • Warranty:

      • 2 Year Limited End-User
