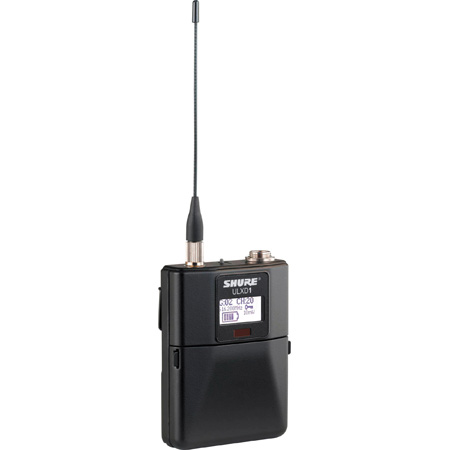

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    ULXD1-G50 - Overview

    The ULXD1 Wireless Bodypack Transmitter by Shure is for capturing audio. It can be used in various environments, when paired with a ULXD4 receiver for applications such as, theater, stage, broadcast TV, DJ setups, and more. The ULXD1 compact bodypack transmitter is enclosed in a rugged metal housing with a TA4-M (4-pin male) audio input connector and features a comprehensive LCD display.

    The ULXD1 features pristine, compandor-free digital transmission for uncompromising sound quality, range and detail. Its 256-bit encryption keeps wireless transmissions secure, and its adjustable RF output power delivers maximum range wherever necessary. The ULXD1 operates on either alkaline AA batteries or Li-Ion rechargeable batteries for up to 12 hours.

    Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

    • Features:

      • AES 256-bit encryption for applications for which secure transmission is needed
      • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
      • Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge, and zero memory effect
      • External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
      • Backlit LCD with easy to navigate menu and controls
      • Rugged metal construction
      • Detachable 1/4 wave antenna
      • Frequency and power lockout
    • Specifications:

      • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
      • Audio Frequency Response: 20 - 20 kHz (±1 dB)
      • Battery Type: Shure SB900B Rechargeable Li-Ion or LR6 AA batteries 1.5 V
      • Battery Runtime: @ 10 mW
      • Dimensions: 86 mm x 66 mm x 23 mm (3.4 in. x 2.6 in. x 0.9 in.) H x W x D
      • Weight: 142 g (5.0 oz.), without batteries
      • Housing: Cast aluminum
      • Audio Input Connector: 4-Pin male mini connector (TA4M), See drawing for details
      • Configuration: Unbalanced
      • Impedance: 1 MΩ, See drawing for details
      • Maximum Input Level: 1 kHz at 1% THD
      • Preamplifier Equivalent Input Noise (EIN): System Gain Setting = +20-120 dBV, A-weighted, typical
      • RF Output Connector: SMA
      • Antenna Type: 1/4 wave
      • Impedance: 50 Ω
      • Occupied Bandwidth: <200 kHz
      • Modulation Type: Shure proprietary digital
      • Power: 1 mW, 10 mW, 20 mW
    • GTIN:
