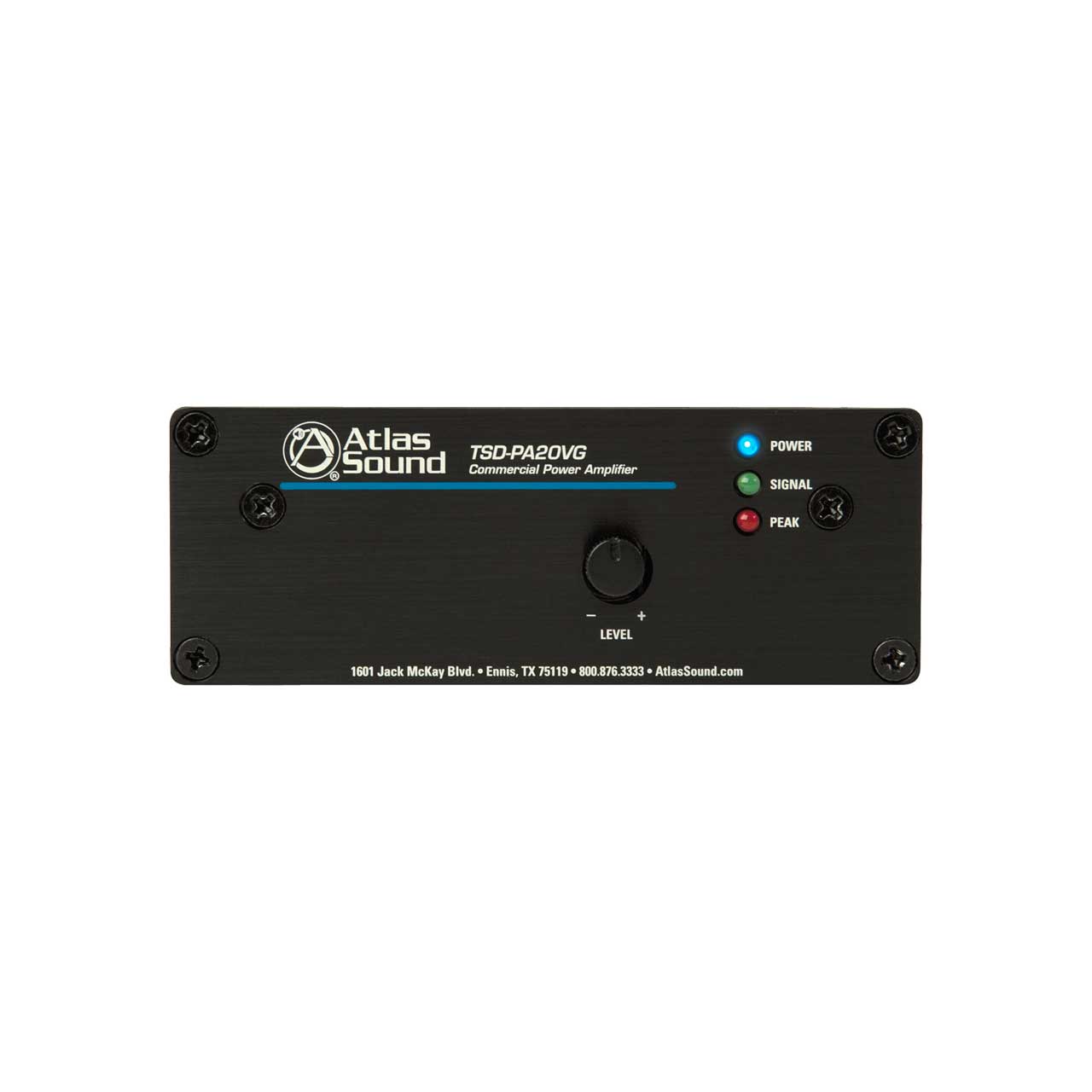

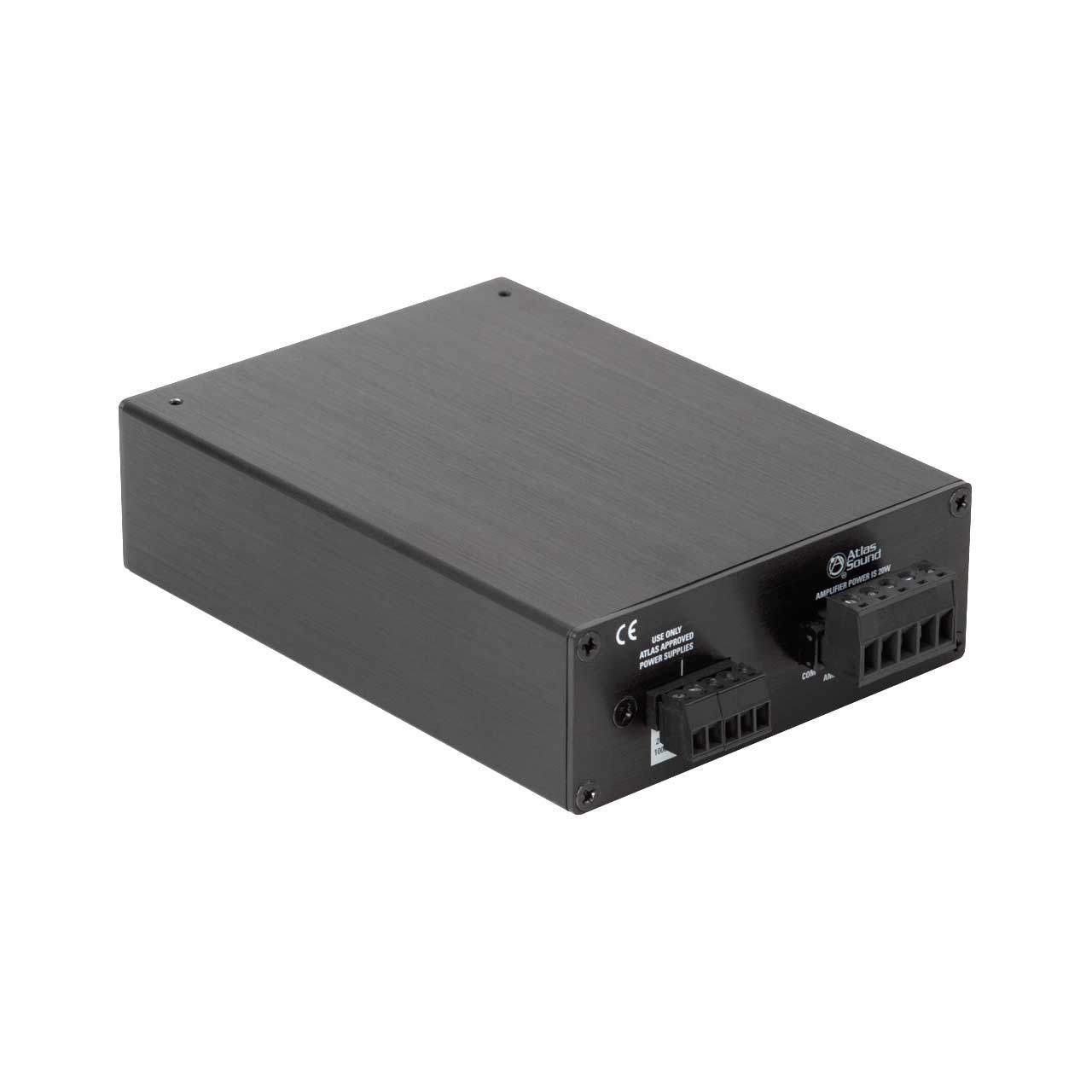

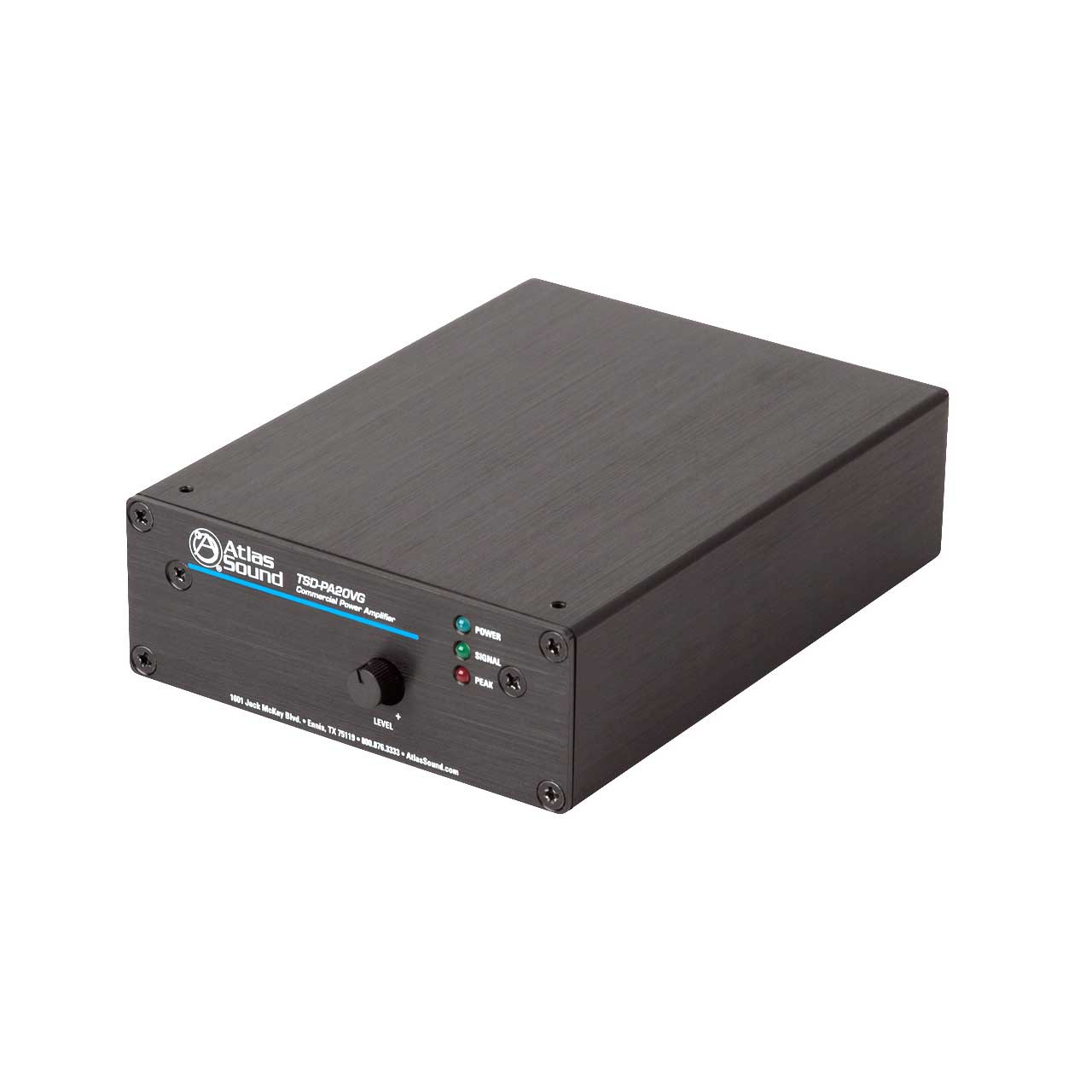

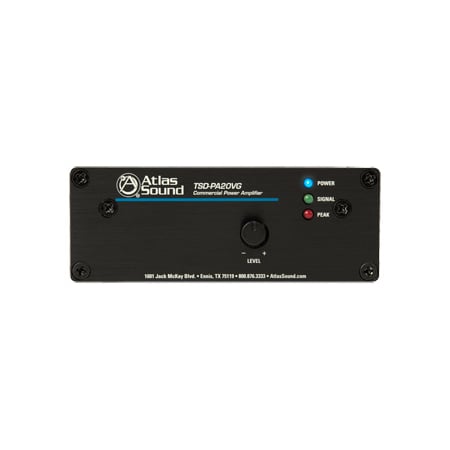

Atlas TSD-PA20VG 20W Mono 25V/70.7V/100V Power Amplifier

Manufacturer: Atlas Sound

Item #: ATL-TSD-PA20VG   •   MFG #: TSD-PA20VG



List Price:$241.99
Our Price:$193.99

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.


Share!





The TSD-PA20VG is a cost effective mono amplifier for 4 ohm and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.

Unit requires a power supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. Options include:
TSD-PS24V250MA
TSD-PS24V500MA
TSD-PS24V2500MA

Audio Applications:
Projector Amplifier
Zone Amplifier
Paging Systems

Installation:
Courtrooms
Public Forums
Churches
Restaurants
Schools
Industrial Facilities
House of Worship


  • Features

    • 4 Ohm/25V/70.7V/100V Output
    • One (1) Balanced Input
    • Removable Level Control with Set-It-And-Forget-It Security Cover
    • Input Signal and Peak Indicator LEDs
    • Cable Management System

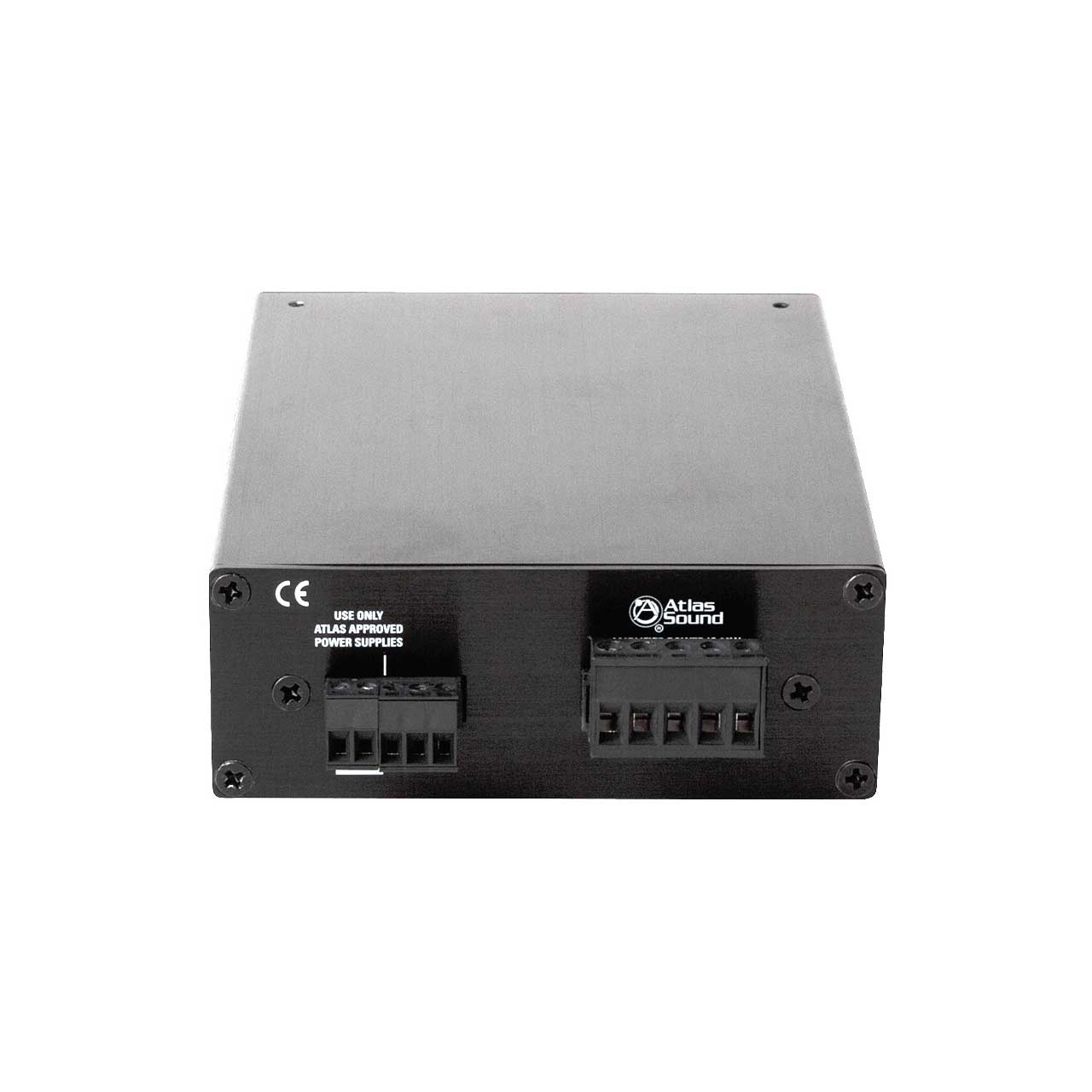

    • Removable Phoenix Style I/O Connectors
    • Energy Efficient
    • Compact Chassis Design

  • Specifications

    • Frequency Response: 40Hz - 20kHz
    • Power Output: 20W @ 4O, 10W @ 8O, 20W @ 25V/70V/100V Loads
    • Line Input Level: 500mV (-6dBV) Balanced
    • Signal to Noise Ratio: 78dBV
    • Load Taps: 4 Ohm, 25V = 31 Ohm Load, 70V = 250 Ohm Load, 100V = 500 Ohm Load
    • Voltage: 24VDC
    • Idle Current: 50mA
    • Idle VA Watts: 1.2W
    • Average Current: 160mA
    • Average VA Watts: 3.8W
    • Max Current: 490mA
    • Max VA Watts: 11.7W
    • Voltage: 24VDC
    • Idle Current: 50mA
    • Average Current: 160mA
    • Max Current: 490mA
    • Height: 1.5" (3.81 cm)
    • Width: 4" (10.16 cm)
    • Depth: 5.2" (13.2 cm)
    • Chassis Color: Black
    • Chassis Material: Aluminum
